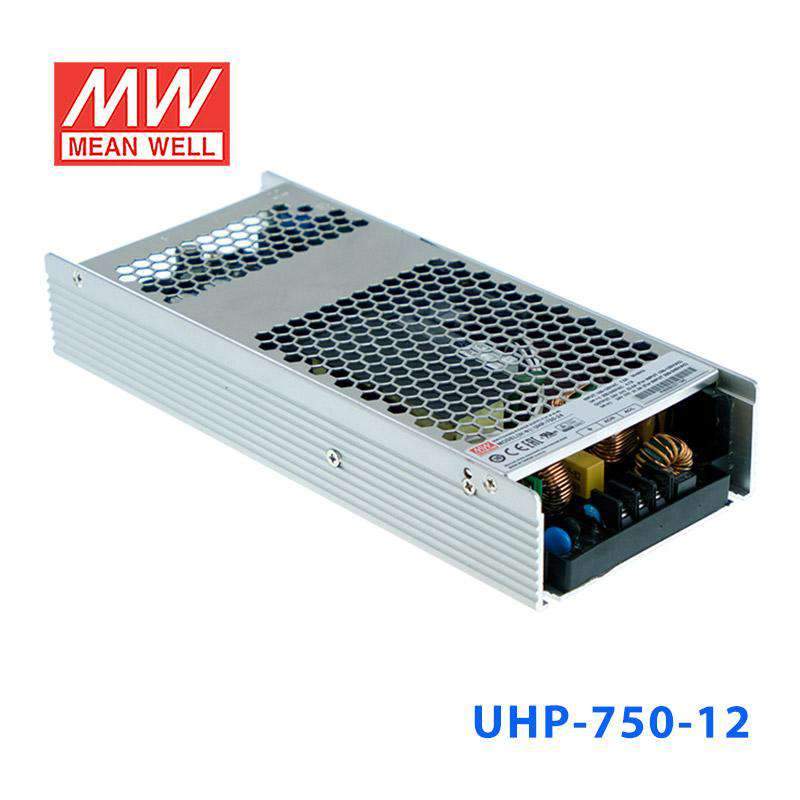

Mean Well UHP-750-12 Power Supply 720W 12V
$232.24 USD
Unit price /
Unavailable
Description
Description
Features
| Slim and Low profile (41mm) |
| Fanless and conduction-cooled design |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| -30~+70℃ working temperature |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| DC OK relay contact |
| Operating altitude up to 5000 meter |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC 127~370VDC |
| AC inrush current | Cold start :20A/115VAC 40A/230VAC |
| Overload protection | 105~125% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage protection | 12V:14.5~16V, 24V:29~33V, 36V:43. 5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover |
| Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC, 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -30~+70℃ (Refer to Derating Curve) |
| Safety standards | UL62368-1, TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
| EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2, 3; EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2 |
| Dimension (LxWxH) | 237×100×41mm |
| Packing | 1.4Kg; 10pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating720 Watt
-
Output Voltage12 Volt
-
Rated Current60 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.33 in
-
Width3.94 in
-
Height1.61 in
-
Weight3.09 lb
