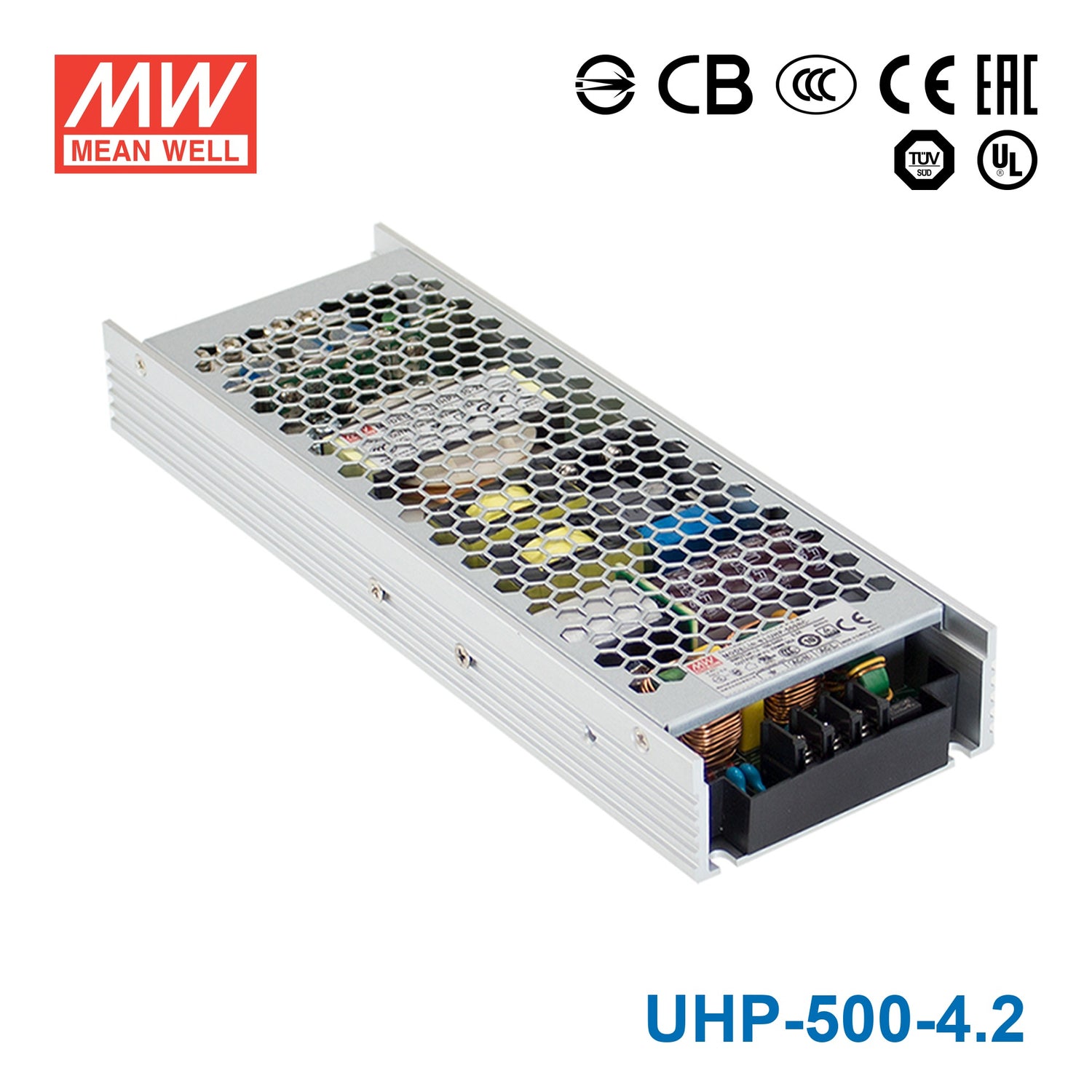

Mean Well UHP-500-4.2 Power Supply 336W 4.2V 80A

Name: Mean Well UHP-500-4.2 Power Supply 336W 4.2V 80A
Brand: Mean Well
SKU: UHP-500-4.2
Price: 114.67 USD
Availability: InStock

slim and low profilefanless design

SKU UHP-500-4.2

$114.67 USD

Shipping calculated at checkout.

Select model — 4 in this family

UHP-500-4.2

UHP-200A-4.2 168W 4.2V Backorder$68.31 USD

UHP-200-4.2 200W 4.2V Backorder$60.66 USD

UHP-350-4.2 350W 4.2V Low stock$84.96 USD

UHP-500-4.2 500W 4.2V Backorder$114.67 USD

Product variants

Available to order

Overview

UHP-500-4.2 is the 4.2V output model of this series: rated current 80A, rated power 336W, typical efficiency 89%.

UHP-500 series is a 500W single-output slim type power supply with 31mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 4.2V, 5V,12V,15V,24V,36V,48Vand 55V.In addition to the high efficiency up to 95%, that the whole series operates from -30℃ ~ 70℃ under air convection without fan. UHP-500 has the complete protection functions and 5G anti-vibration capability;It is complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1, UL 62368-1 and GB 4943.1 . UHP-500 series serves as a high performance power supply solution for various industrial applications.

Features

Slim and Low profile (31mm)
Fanless design,500W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter (Note.5)
LED indicator for power on
3 years warranty

Specifications

UHP-500-4.2Specifications from the official datasheet (2025-08-01 edition)

OUTPUT

DC VOLTAGE: 4.2V
RATED CURRENT: 80A
RATED POWER: 336W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE^Note.7: 3.6~4.4V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC; 1000ms,50ms/115VAC at full load;550ms/230VAC for 55V setup time
HOLD UP TIME (Typ.): 12ms/230VAC 12ms/115VAC

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.95/230VAC PF≥0.98/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 4.85A/115VAC 2.6A/230VAC
INRUSH CURRENT (Typ.)^Note9: Cold start 30A/115VAC 60A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVERLOAD: 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 4.62 ~ 5.46V Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL(Optional): Contact rating(max.):30Vdc/1A resistive load
REDUNDANT(Optional): For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.6)

SAFETY STANDARDS: UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), BS EN/EN61558-1,BS EN/EN61558-2-16, GB 4943.1, BSMI CNS15598-1, BIS IS13252(Part1): 2010/IEC 60950-1: 2005(NOTE 11), EAC TP TC 004 approved; Design refer to AS/NZS 61558.1/2.16, AS/NZS 62368.1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Compliance to BS EN/EN55032,GB17625.1,GB/T 9254.1,Class B, BS EN/EN61000-3-2,-3, BSMI CNS15936, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level ,EAC TP TC 020

OTHERS

MTBF: 1264.1 K hrs min. Telcordia SR-332 (Bellcore) ; 167.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 232*81*31mm (L*W*H)
PACKING: 0.905kg; 16pcs/15.48kg/0.82CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m is needed for operating altitude greater than 2000m(6500ft)
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. Please refer to derating curve.
8. R type efficiency slightly less than the Blank type, according to the actual measurement.
9. Inrush current parameter has 10% tolerance.
10. RCM is on voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
11. Some models or factory may not have the BIS marking , please contact MEAN WELL’s sales for more details.

Technical drawings

UHP-500-4.2 Block Diagram — Block Diagram

UHP-500-4.2 Derating Curve — Derating Curve

UHP-500-4.2 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
LED display application
Power Source Equipment for PoE(55V model)

Downloads

Certificates9

Mean Well UHP-500-BSMI Certificate PDF Download

Mean Well UHP-500(R)-CCC Certificate PDF Download

Mean Well UHP-500(R)-TUV Certificate PDF Download

Mean Well UHP-500(R)-TUV(60335) Certificate PDF Download

Mean Well UHP-500(R)-CB(60335) Certificate PDF Download

Mean Well UHP-500(R)-CB(UL) Certificate PDF Download

Mean Well UHP-500(R)-EMC Certificate PDF Download

Mean Well UHP-500(R)-CE-dec Certificate PDF Download

Mean Well UHP-500(R)-UK-dec Certificate PDF Download

Test reports1

Mean Well UHP-500-4.2 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the UHP-500-4.2 for a high-current 4.2V embedded or electronics test fixture?

Yes, this model is built for applications that need a constant 4.2V rail at high current. It delivers up to 80A with a total output power of 336W, which suits 4.2V test and embedded loads designed for that bus voltage.

Is the UHP-500-4.2 appropriate for industrial electronics that run on a 4.2V DC bus?

It can be appropriate where the equipment specifically requires constant 4.2V input. The unit provides 4.2V at up to 80A, so it is aimed at low-voltage, high-current loads rather than higher-voltage control systems.

Would this power supply work for a production burn-in rack for 4.2V boards or modules?

Yes, it is suitable for burn-in or validation setups built around a constant 4.2V supply rail. Its 336W rating, 80A output current, and fanless design make it a practical option where many 4.2V loads are grouped into one higher-current source.

Can I use this for a high-current 4.2V automation subsystem instead of a 5V or 12V supply?

Only if the subsystem is designed for a constant 4.2V input. This unit provides 4.2V and up to 80A, while the other UHP-500 variants listed use different output voltages and corresponding current ratings.

Is the UHP-500-4.2 suitable for outdoor equipment cabinets?

The provided specs list an operating temperature range of -30°C to +70°C, but they do not provide an IP rating. That means the temperature capability is defined, while outdoor dust and water exposure suitability is not established by the listed specifications.

How does the 4.2V model compare with the other UHP-500 versions?

The listed UHP-500 family includes 500.4W at 12V and 41.7A, 501W at 15V and 33.4A, 501.6W at 24V and 20.9A, 500.4W at 36V and 13.9A, 501.6W at 48V and 10.45A, 400W at 5V and 80A, and 336W at 4.2V and 80A. This model is the lowest-voltage option shown and is designed around very high current at 4.2V.
