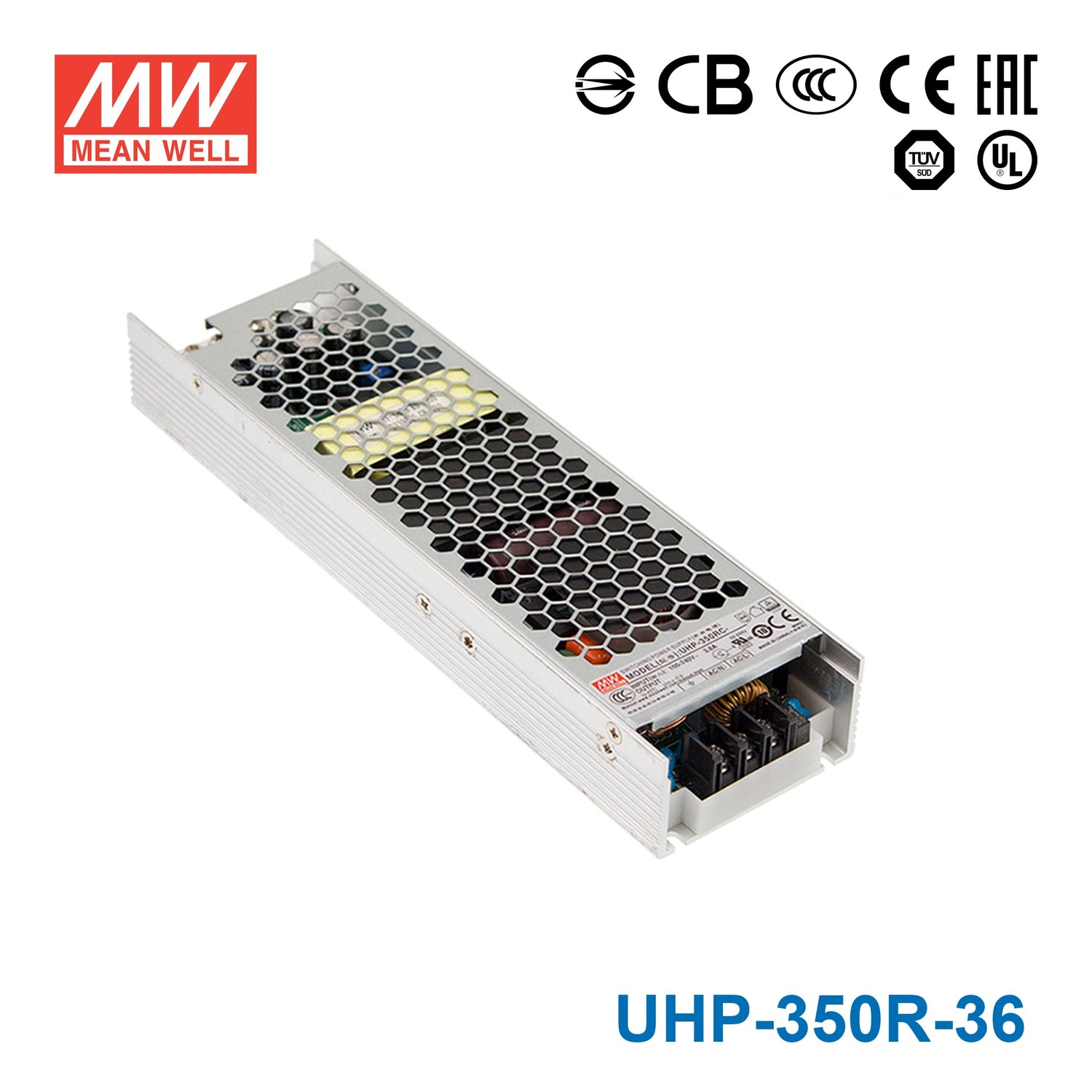

Mean Well UHP-350R-36 Power Supply 351W 36V - Redundant 9.75A

Name: Mean Well UHP-350R-36 Power Supply 351W 36V - Redundant 9.75A
Brand: Mean Well
SKU: UHP-350R-36
Price: 86.95 USD
Availability: InStock

slim and low profilefanless designbuilt-in DC OK and redundant function

SKU UHP-350R-36

$86.95 USD

Shipping calculated at checkout.

Available to order

Overview

UHP-350R-36 is the 36V output model of this series: rated current 9.75A, rated power 351W, typical efficiency 94%.

UHP-350 series is a 350W single-output slim type power supply with 31mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V,48V and 55V. In addition to the high efficiency up to 94%, that the whole series operatesfrom -30℃ ~ 70℃ under air convection without fan. UHP-350 has the complete protection functions and 5G anti-vibration capability;It is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL 62368-1 and GB 4943.1 . UHP-350 seriesserves as a high performance power supply solution for various industrial applications.

Features

Slim Low profile (31mm)
Fanless design,350W conversion
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter (Note.5)
LED indicator for power on
3 years warranty

Specifications

UHP-350R-36Specifications from the official datasheet (2024-11-23 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 9.75A
RATED POWER: 351W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 34.2~37.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2000ms, 80ms/230VAC; 3000ms, 80ms/115VAC at full load;550ms/230VAC for 55V setup time
HOLD UP TIME (Typ.): 10ms/230VAC 10ms/115VAC

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.94/230VAC PF≥0.98/115VAC at full load
EFFICIENCY (Typ.)^Note.7: 94%
AC CURRENT (Typ.): 4A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.)^Note.8: Cold start 30A/115VAC 60A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVERLOAD: 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 39.6 ~46.8V Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL(Optional): Contact rating(max.):15Vdc/10mA resistive load
REDUNDANT(Optional): For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V),BS EN/EN61558-1, BS EN/EN61558-2-16,GB 4943.1,BSMI CNS15598-1,EAC TP TC 004,BIS IS13252(Part1)/IEC60950-1 (except for 4.2V/15V/48V/55V) approved,Design refer to AS/NZS 61558.1/2.16,AS/NZS 62368.1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Compliance to BS EN/EN55032,GB17625.1,GB/T 9254.1,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3, BSMI CNS15936, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level ,EAC TP TC 020

OTHERS

MTBF: 1791.2 K hrs min. Telcordia SR-332 (Bellcore) ; 253.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*62*31mm (L*W*H)
PACKING: 0.68 kg;16 pcs/11.88 kg/0.63CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft)
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. Only for Blank type,R type efficiency slightly less than the Blank type.
8. Inrush current parameter has 10% tolerance.
9. RCM is on voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.

Technical drawings

UHP-350R-36 Block Diagram — Block Diagram

UHP-350R-36 Derating Curve — Derating Curve

UHP-350R-36 1.DC_OK Signal — 1.DC_OK Signal

UHP-350R-36 2.Redundant function — 2.Redundant function

UHP-350R-36 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)

Downloads

Certificates10

Mean Well UHP-350-BSMI Certificate PDF Download

Mean Well UHP-350(R)-CCC Certificate PDF Download

Mean Well UHP-350(R)-TUV Certificate PDF Download

Mean Well UHP-350(R)-TUV(EN60335) Certificate PDF Download

Mean Well UHP-350(R)-CB(UL) Certificate PDF Download

Mean Well UHP-350(R)-CB(TUV) Certificate PDF Download

Mean Well UHP-350(R)-CB(60335) Certificate PDF Download

Mean Well UHP-350(R)-EMC Certificate PDF Download

Mean Well UHP-350(R)-CE-dec Certificate PDF Download

Mean Well UHP-350(R)-UK-dec Certificate PDF Download

Test reports1

Mean Well UHP-350-36 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the UHP-350R-36 for 36V industrial automation equipment?

Yes, if the equipment requires a constant 36V DC supply and the total demand stays within 351W and 9.75A. It is a better fit for systems designed around a 36V bus than for standard 24V or 48V control platforms.

Is the UHP-350R-36 suitable for 36V motion-control or actuator-related electronics?

It can be used for 36V motion-control support electronics or actuator systems that need a constant-voltage source up to 9.75A. The answer depends on the equipment's required DC bus matching 36V and staying within the 351W rating.

Can this 36V model work in compact industrial equipment with limited airflow?

It can suit compact industrial assemblies because it uses a fanless design and a 220.0 × 62.0 × 31.0 mm low-profile housing. Electrically, the load still needs to be a constant 36V application within 351W and 9.75A.

How does the UHP-350R-36 compare with the other UHP-350R models?

The UHP-350R redundant lineup includes 3.3V 198W 60A, 4.2V 252W 60A, 5V 300W 60A, 12V 350.4W 29.2A, 15V 351W 23.4A, 24V 350.4W 14.6A, 36V 351W 9.75A, and 48V 350.4W 7.3A. The UHP-350R-36 is the 36V version, rated at 351W and 9.75A.

Is the UHP-350R-36 suitable for outdoor use or wide-temperature industrial environments?

The operating temperature range is -30°C to +70°C, so it is specified for broad indoor industrial temperature conditions. Because no IP rating is listed in the provided specs, the product data does not confirm outdoor or hose-down suitability.
