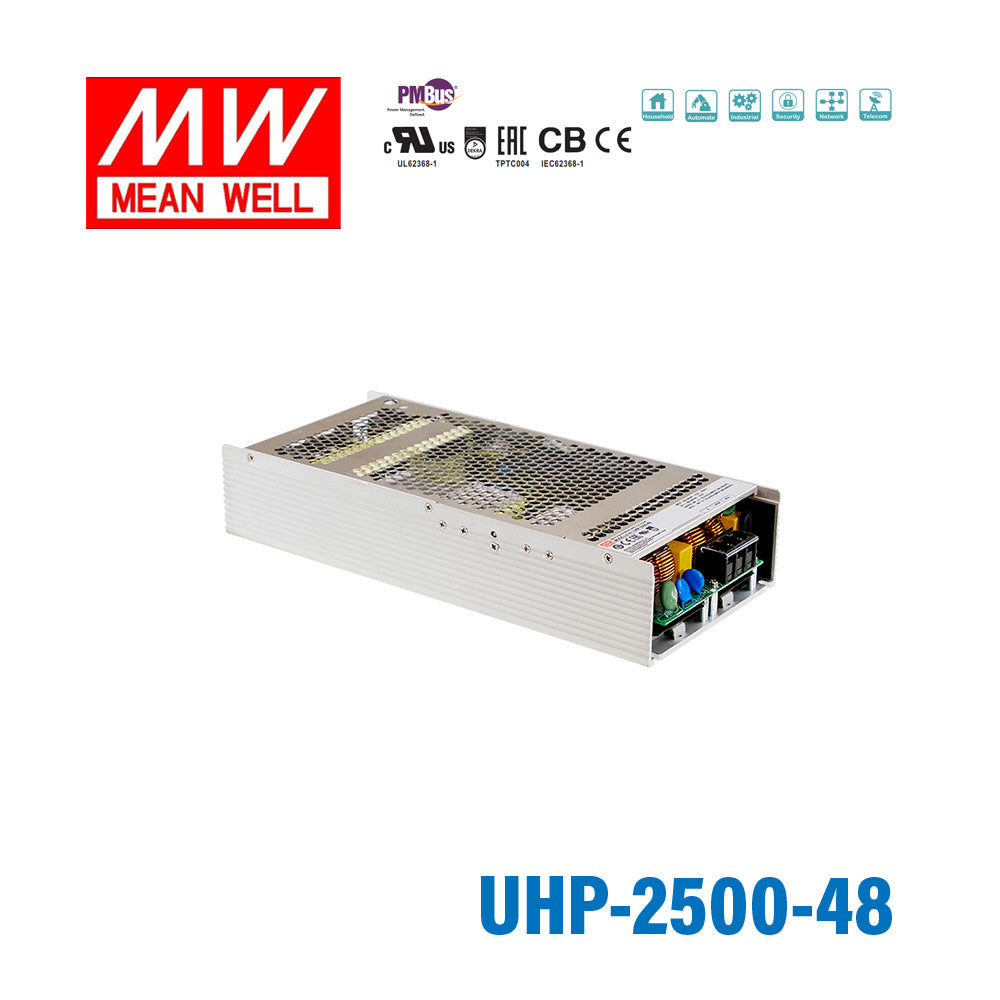

Mean Well UHP-2500-48 Power Supply 2500.8W 48V 52.1A

Name: Mean Well UHP-2500-48 Power Supply 2500.8W 48V 52.1A
Brand: Mean Well
SKU: UHP-2500-48
Price: 676.54 USD
Availability: InStock

slim and low profilefanless design

SKU UHP-2500-48

$676.54 USD

Shipping calculated at checkout.

Select model — 7 in this family

UHP-2500-48

UHP-200-48 200W 48V Backorder$60.56 USD

UHP-350-48 350W 48V Low stock$83.70 USD

UHP-500-48 500W 48V In stock$114.67 USD

UHP-750-48 750W 48V Low stock$232.24 USD

UHP-1000-48 1000W 48V Low stock$306.00 USD

UHP-1500-48 1500W 48V Backorder$459.86 USD

UHP-2500-48 2500W 48V Low stock$676.54 USD

Product variants

In stock

Overview

UHP-2500-48 is the 48V output model of this series: rated current 52.1A, rated power 2500.8W, typical efficiency 96%.

UHP-2500 series is a 2500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264Vac input, the entire series provides an output voltage line of 24V, 36V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30℃~ +70℃ under air convection without fan. UHP-2500 has the complete protection functions and 2G anti-vibration capability; It is complied with the international safety regulations such as DEKRA BS EN/EN62368-1, UL62368-1. UHP-2500 series serves as a high performance power supply solution for various industrial applications.

Features

90 ~ 264Vac input with PFC
Slim and Low profile (60mm)
Fanless and conduction-cooled design
Output voltage 50~120% and constant current 20~100% programmable
Built-in PMBus or CANBus protocol
Protections: Short circuit / Overload / Over voltage / Over temperature
-30~+70℃ working temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 5000 meter (Note.8)
LED indicator for power on
5 years warranty

Specifications

UHP-2500-48Specifications from the official datasheet (2025-12-05 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 52.1A
RATED POWER: 2500.8W
RIPPLE & NOISE (max.)^Note.2: 480mVp-p
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR
VOLTAGE ADJ. RANGE: 48~57.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.4: 1800ms, 60ms/230Vac 1800ms, 60ms/115Vac at full load
HOLD UP TIME (Typ.)^Note.4: 16ms/230Vac at 75% load ; 10ms/230Vac at full load ; 16ms/115Vac at 75% load ; 10ms/115Vac at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264Vac 250 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.)^Note.4: PF≥0.95/230Vac PF≥0.99/115Vac at full load
EFFICIENCY (Typ.): 96%
AC CURRENT (Typ.): 15A/115Vac 14.3A/230Vac
INRUSH CURRENT (Typ.): Cold start 30A/115Vac 60A/230Vac
LEAKAGE CURRENT: <0.75mA / 240Vac

PROTECTION

OVERLOAD: 105 ~ 115% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
OVER VOLTAGE: 60 ~ 67V Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5}: Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 5}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
REMOTE ON/OFF CONTROL: Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER: 12V@0.4A tolerance±10%, ripple 150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = 4.5 ~ 5.5Vdc ; PSU turn off = -0.5 ~ 0.5Vdc. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, Dekra seal BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVac I/P-FG:2KVac O/P-FG:1.25KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500Vdc/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32) Class B
Radiated BS EN/ EN55032 (CISPR32) Class A
Harmonic Current BS EN/ EN61000-3-2 Class A
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55035, BS EN/ EN61000-6-2 (Note.7)

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32)	Class B
Radiated	BS EN/ EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/ EN61000-3-2	Class A
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 493.9K hrs min. Telcordia SR-332 (Bellcore) ; 48.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Forced-air cooling: 310*140*60mm (L*W*H) Water cooling: 380*140.4*72mm (L*W*H)
PACKING: 4.07kg ; 4pcs/17.25kg/1.76CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve and Static characteristics for more details.
5. PV/PC functions when users do not use SVR.
6. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 1100mm*650mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Please contact MEAN WELL technical staff to confirm that the product and the water-cooling system match the relevant specifications.

Technical drawings

UHP-2500-48 BLOCK DIAGRAM — BLOCK DIAGRAM

UHP-2500-48 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

UHP-2500-48 DERATING CURVE — DERATING CURVE

UHP-2500-48 FUNCTION MANUAL — FUNCTION MANUAL

UHP-2500-48 UHP-2500 series — UHP-2500 series

UHP-2500-48 UHP-2500 series (2) — UHP-2500 series (2)

UHP-2500-48 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

UHP-2500-48 1.Operate with additional aluminum plate and fan — 1.Operate with additional aluminum plate and fan

UHP-2500-48 Inlet temperature 25℃ — Inlet temperature 25℃

UHP-2500-48 Illustration (page 8) — Illustration (page 8)

UHP-2500-48 3.With 45CFM forced air — 3.With 45CFM forced air

UHP-2500-48 4.Condensation - Safe operating area. — 4.Condensation - Safe operating area.

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
Test and measurement instrument
Laser related machine
Charging related equipment
Household appliance
Power Sourcing Equipment of PoE (48V model: DC O/P range 48~57.6V)

Downloads

Certificates6

Mean Well UHP-2500-Dekra seal Certificate PDF Download

Mean Well UHP-2500-CB Certificate PDF Download

Mean Well UHP-2500-CB(UL) Certificate PDF Download

Mean Well UHP-2500-EMC Certificate PDF Download

Mean Well UHP-2500-CE-dec Certificate PDF Download

Mean Well UHP-2500-UK-dec Certificate PDF Download

Test reports1

Mean Well UHP-2500-48 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the UHP-2500-48 for a 48V telecom or industrial communications power system?

Yes, this is a constant-voltage 48V model rated for 2500.8W and 52.1A. That makes it relevant for 48V DC systems used in telecom, communications, and industrial control environments that require a high-power 48V source.

Is the UHP-2500-48 a fit for 48V automation equipment or large control panels?

It can be a fit where the equipment is designed for 48V constant-voltage input and the total load stays within 2500.8W and 52.1A. The 310 × 140 × 60 mm slim profile also suits larger control-panel layouts where space planning matters.

Can this model support a 48V embedded platform or DC bus in industrial equipment?

Yes, the unit is built around a 48V constant-voltage output with up to 52.1A available. That output class is commonly considered for embedded industrial platforms and centralized 48V DC buses that need more power than smaller 48V supplies provide.

Can the UHP-2500-48 be used in cold or hot operating conditions?

The specified operating temperature range is -30°C to +70°C, which supports use across a broad temperature span. No IP rating is listed, so environmental sealing for outdoor or exposed locations is not established by the provided specs.

What are the differences between the UHP-2500-24, UHP-2500-36, and UHP-2500-48?

The UHP-2500-24 is rated for 2500.8W at 24V and 104.2A, the UHP-2500-36 is rated for 2498.4W at 36V and 69.4A, and the UHP-2500-48 is rated for 2500.8W at 48V and 52.1A. They are all in the same slim, fanless UHP-2500 class, with the key difference being output voltage and resulting current.
