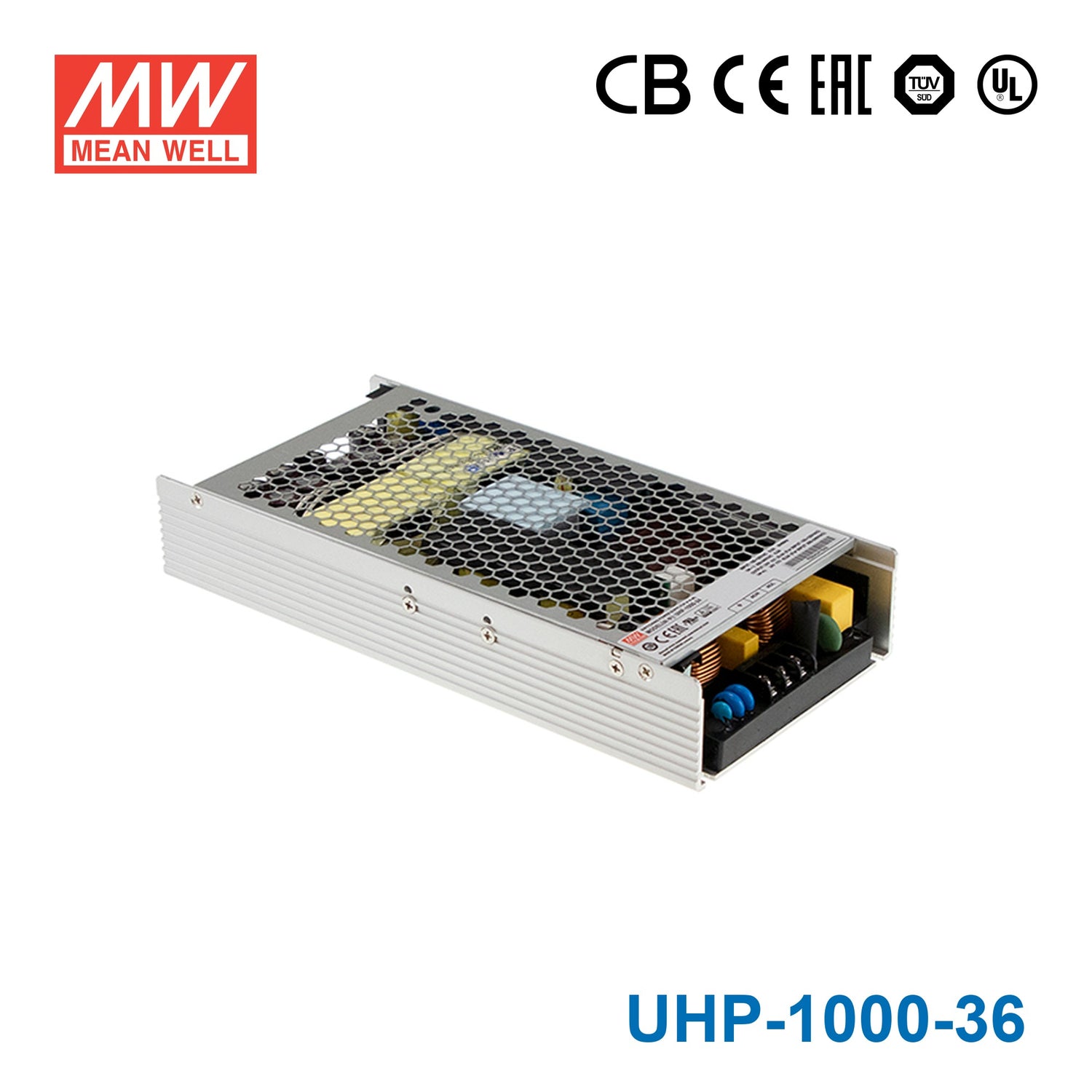

Mean Well UHP-1000-36 Power Supply 1008W 36V 28A

Name: Mean Well UHP-1000-36 Power Supply 1008W 36V 28A
Brand: Mean Well
SKU: UHP-1000-36
Price: 306.0 USD
Availability: InStock

slim and low profilefanless design

SKU UHP-1000-36

$306.00 USD

Shipping calculated at checkout.

Select model — 6 in this family

UHP-1000-36

UHP-200-36 200W 36V Low stock$60.56 USD

UHP-350-36 350W 36V Low stock$83.70 USD

UHP-500-36 500W 36V Low stock$114.67 USD

UHP-750-36 750W 36V Low stock$232.24 USD

UHP-1000-36 1000W 36V In stock$306.00 USD

UHP-2500-36 2500W 36V Backorder$676.54 USD

Product variants

In stock

Overview

UHP-1000-36 is the 36V output model of this series: rated current 28A, rated power 1008W, typical efficiency 95.5%.

UHP-1000 series is a 1000W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 12V,24V,36V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30℃ ~ 70℃ under air convection without fan. UHP-1000 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1. UHP-1000 series serves as a high performance power supply solution for various industrial applications.

Features

Slim and Low profile (41mm)
Fanless and conduction-cooled design
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 5000 meter (Note.7)
LED indicator for power on
5 years warranty

Specifications

UHP-1000-36Specifications from the official datasheet (2024-09-04 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 28A
RATED POWER: 1008W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR
VOLTAGE ADJ. RANGE: 36~43.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.4: 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load
HOLD UP TIME (Typ.): 12ms/230VAC 12ms/115VAC

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.)^Note.4: PF≥0.95/230VAC PF≥0.99/115VAC at full load
EFFICIENCY (Typ.): 95.5%
AC CURRENT (Typ.): 10.1A/115VAC 5.3A/230VAC
INRUSH CURRENT (Typ.): Cold start 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVERLOAD: 105~120% rated output power Protection type: Constant current limiting with delay shutdown after 3 seconds, re-power on to recover
SHORT CIRCUIT: Protection type: Constant current limiting with delay shutdown after 3 seconds, re-power on to recover
OVER VOLTAGE: 43.5 ~ 49V Protection type: Shut down O/P voltage, re-power on to recover
OVER TEMPERATURE: Protection type: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5}: Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 5}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
REMOTE ON/OFF CONTROL: Power ON: "Low" <0 ~ 0.5V or Short circuit Power OFF: "Hi" >2 ~ 5V or Open circuit
AUXILIARY POWER: 12V@0.5A tolerance±10%, ripple 150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = 4.5 ~ 5.5V; PSU turn off = -0.1 ~ 0.5V. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC I/P-FG: 2KVAC O/P-FG: 1.25KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 662.3K hrs min. Telcordia SR-332 (Bellcore) ; 69.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 240*115*41mm (L*W*H)
PACKING: 1.74kg ; 8pcs/14.9kg/0.74CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve and Static characteristics for more details.
5. PV/PC functions when users do not use SVR.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies. " (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

UHP-1000-36 BLOCK DIAGRAM — BLOCK DIAGRAM

UHP-1000-36 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

UHP-1000-36 DERATING CURVE — DERATING CURVE

UHP-1000-36 FUNCTION MANUAL — FUNCTION MANUAL

UHP-1000-36 Illustration (page 5) — Illustration (page 5)

UHP-1000-36 4.DC-OK Signal — 4.DC-OK Signal

UHP-1000-36 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

UHP-1000-36 Operate with additional aluminum plate and fan — Operate with additional aluminum plate and fan

UHP-1000-36 INSTALLATION MANUAL — INSTALLATION MANUAL

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
Test and measurement instrument
Laser related machine
Charging related equipment
Household appliances
Power Sourcing Equipment of PoE (48V model: DC O/P range 48~57.6V)

Downloads

Certificates5

Mean Well UHP-1000-TUV Certificate PDF Download

Mean Well UHP-1000-CB Certificate PDF Download

Mean Well UHP-1000-EMC Certificate PDF Download

Mean Well UHP-1000-CE-dec Certificate PDF Download

Mean Well UHP-1000-UK-dec Certificate PDF Download

Test reports1

Mean Well UHP-1000-36 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the UHP-1000-36 for a 36V industrial automation or motion-related DC load?

This model provides 36V constant-voltage output with 1008W total power and 28A output current. It fits 36V industrial or automation loads that need substantially more power than lower-wattage 36V supplies.

Is the UHP-1000-36 appropriate for a 36V embedded or control system with higher power demand?

It is intended for systems that require a stable 36V output and have load demand up to 1008W or 28A. The 90-264VAC input range also supports operation across a wide span of AC source conditions.

Can the UHP-1000-36 support a centralized 36V DC power supply design?

Yes, for designs built around a 36V constant-voltage bus, this supply offers 1008W of available output power. It is a practical choice when the total 36V load remains within 28A and 1008W.

What is the difference between the UHP-1000-36 and the other UHP-1000 models?

In the UHP-1000 family, the listed output variants are 12V 960W 80A, 24V 1008W 42A, 36V 1008W 28A, and 48V 1008W 21A. The shared specs shown here are 90-264VAC input, 240.0 x 115.0 x 41.0 mm dimensions, 1.74 kg weight, -30 C to +70 C operating temperature, UL62368-1/TUV BS EN/EN62368-1/EAC TP TC 004 certifications, a 5-year warranty, and a slim fanless convection-cooled design.

Is the UHP-1000-36 suitable for outdoor enclosures or only indoor use?

The unit is rated for operation from -30 C to +70 C, which covers a broad temperature range for equipment environments. No IP rating is listed in the provided specifications, so the data does not confirm outdoor or weather-exposed use.
