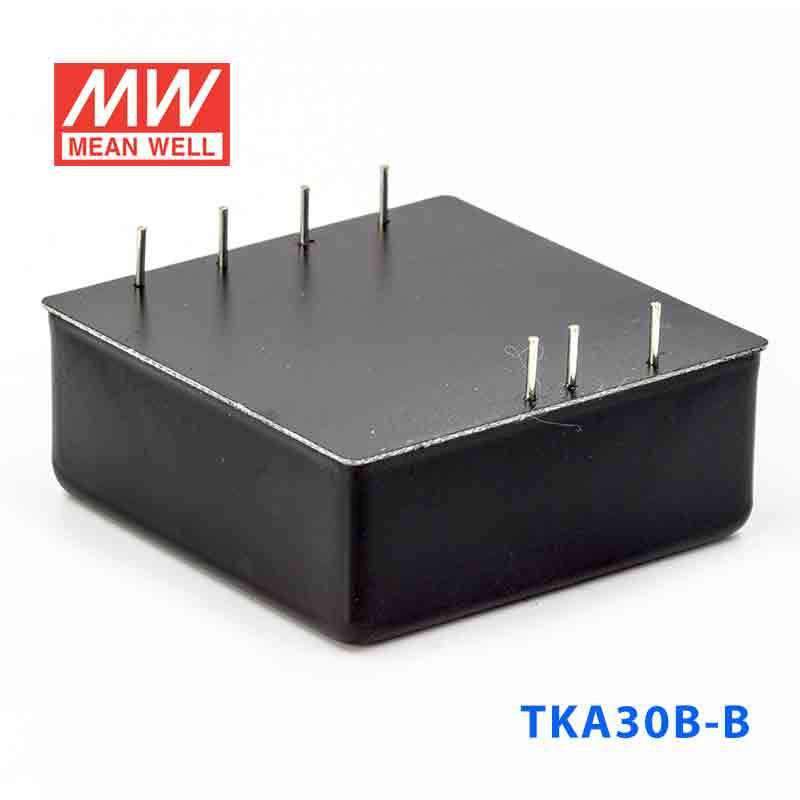

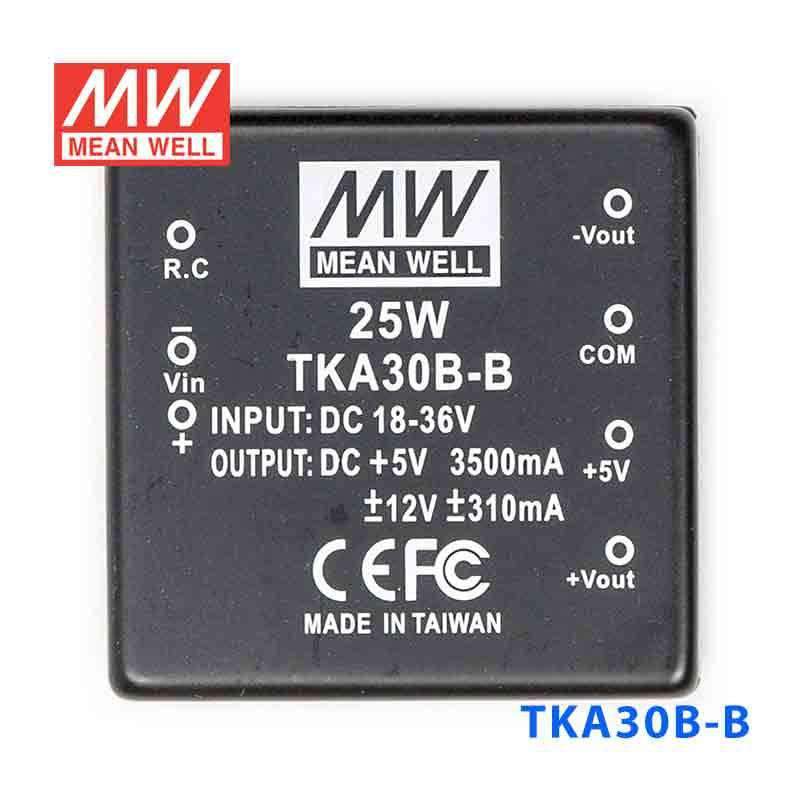

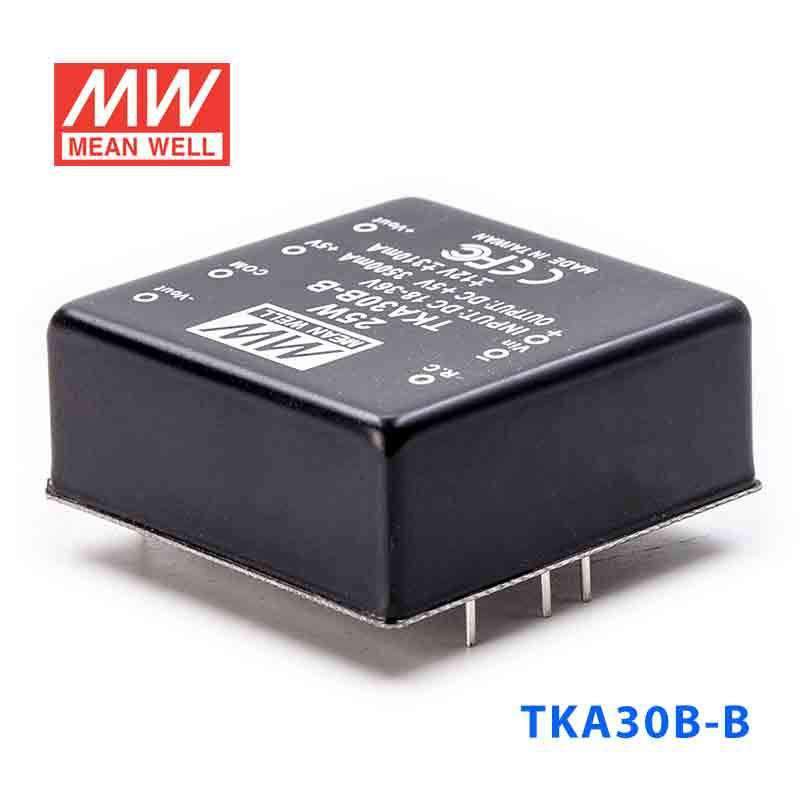

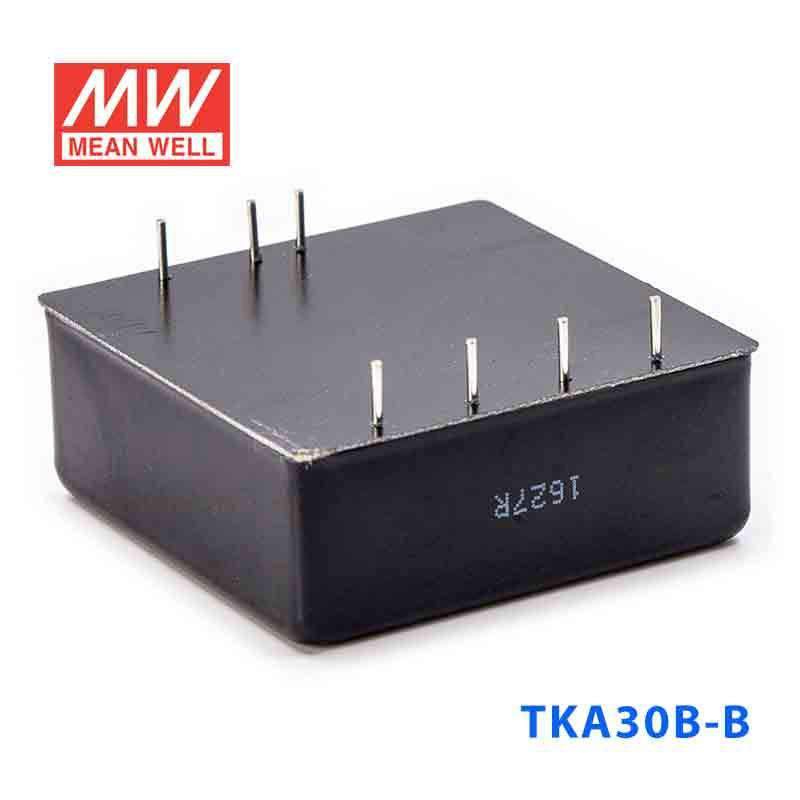

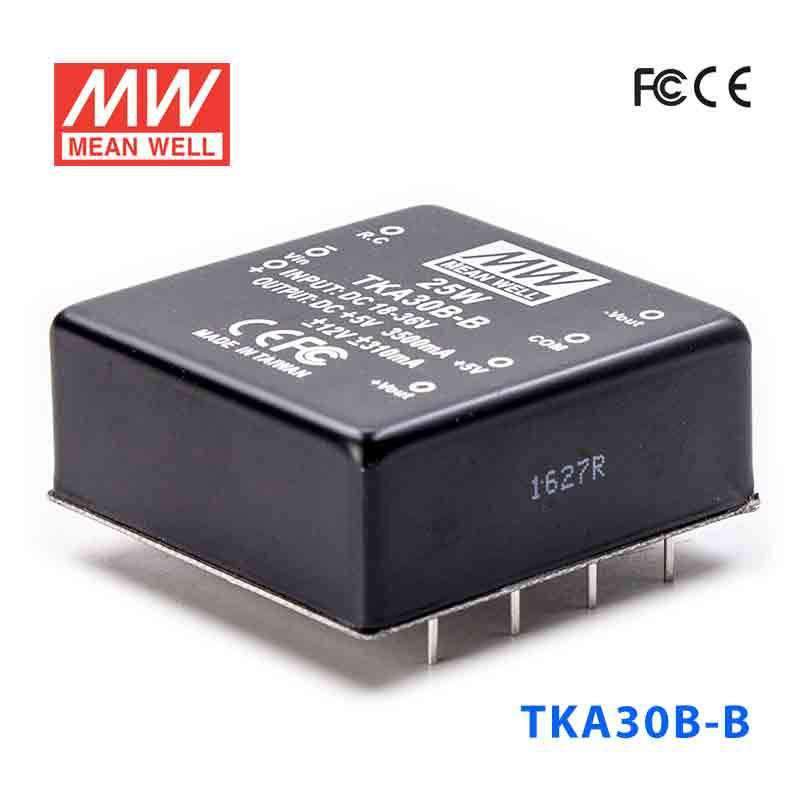

Mean Well TKA30B-B DC-DC Converter - 25W - 18~36V in ±12V out
Overview
TKA30B-B is the +5V / ±12V output model of this series: rated power 25W, typical efficiency 82%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1500VDC I/O isolation
- Built-in EMI filter
- Remote ON-OFF control
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- Epoxy encapsulated
- 100% burn-in test
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- +5V / ±12V
- CURRENT RANGE
- 700 ~ 3500mA / ±62 ~ ±310mA
- RATED POWER
- 25W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- LINE REGULATIONNote.3
- ±1.0%
- LOAD REGULATIONNote.4
- +5V: ±2.0%, ±V1: ±5.0%
- VOLTAGE ACCURACY
- +5V: ±2.0%, ±V1: ±5.0%
- SWITCHING FREQUENCY
- 100KHz min.
INPUT
- VOLTAGE RANGE
- 18~36VDC
- EFFICIENCY (Typ.)
- 82%
- DC CURRENT Full load
- 1.27A
- DC CURRENT No load
- 18mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVERLOAD
- 110 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- REMOTE CONTROL
- Power on: R.C ~-Vin > 4.5~5.5VDC or open, Power off: R.C~ -Vin <0.8VDC or short
- MTBF
- 100Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 50.8*50.8*21.0mm or 2"*2"*0.82" inch (L*W*H)
- PACKING
- 110g ; 5pcs/per tube, 140pcs/28 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the TKA30B-B in a 24V-class industrial DC system that needs +5V / ±12V output for control electronics?
Yes, the published input range is 18-36VDC, which fits 24V-class DC systems within that range. The output is listed as +5V / ±12V with a 25W power rating.
Is the TKA30B-B suitable for embedded or automation devices that require +5V / ±12V power from an 18-36VDC source?
It is designed for 18-36VDC input and +5V / ±12V output operation. The product is rated at 25W, so the connected embedded or automation load needs to stay within that published power limit.
Can this converter be used for +5V / ±12V interface or signal-conditioning hardware in industrial equipment?
It can be considered where the available source is 18-36VDC and the downstream hardware uses +5V / ±12V output. The provided specifications list 25W power and output currents of 700~3500mA for +5V and ±62~±310mA for ±12V.
Would the TKA30B-B make sense for compact +5V / ±12V power conversion inside automation assemblies?
Its listed dimensions are 50.8 x 50.8 x 21.0 mm and the weight is 0.11 kg, which supports use in compact assemblies. The electrical spec is 18-36VDC input with +5V / ±12V output at 25W.
Is the TKA30B-B rated for outdoor environments or only temperature extremes?
The published operating temperature range is -40°C to +85°C, so the unit is specified for a wide temperature span. No IP rating is provided in the specs, so outdoor or water-exposed suitability is not established by the listed data.
How does TKA30B-B differ from TKA30B-C?
The provided sibling specs show both models at 25W with 18-36VDC input and the same 50.8 x 50.8 x 21.0 mm dimensions. The published difference is output voltage and current: TKA30B-B is listed at +5V / ±12V (±62~±310mA), while TKA30B-C is listed at +5V / ±15V (±50~±250mA).
