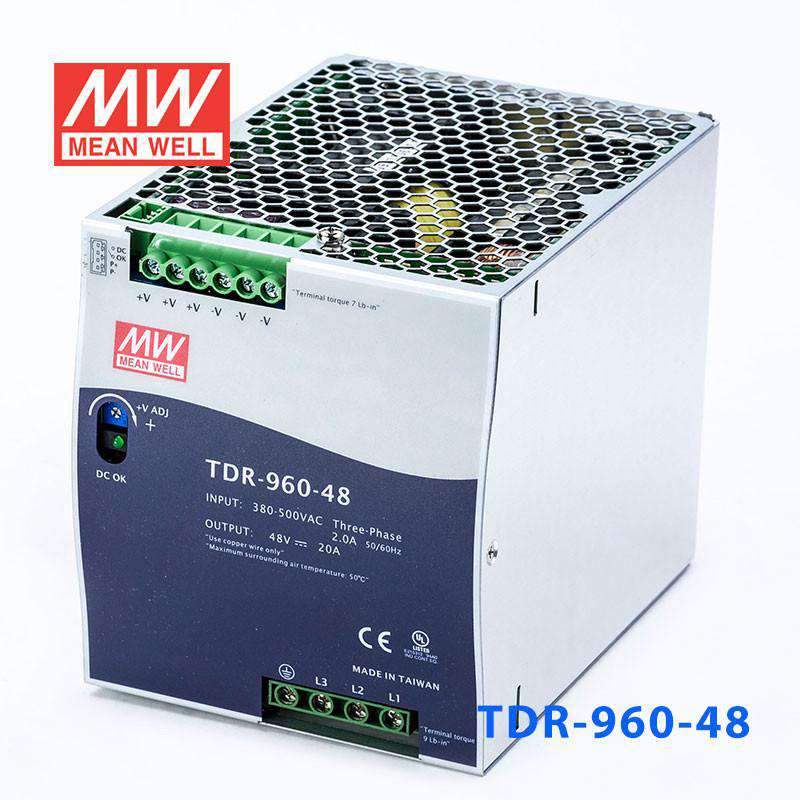

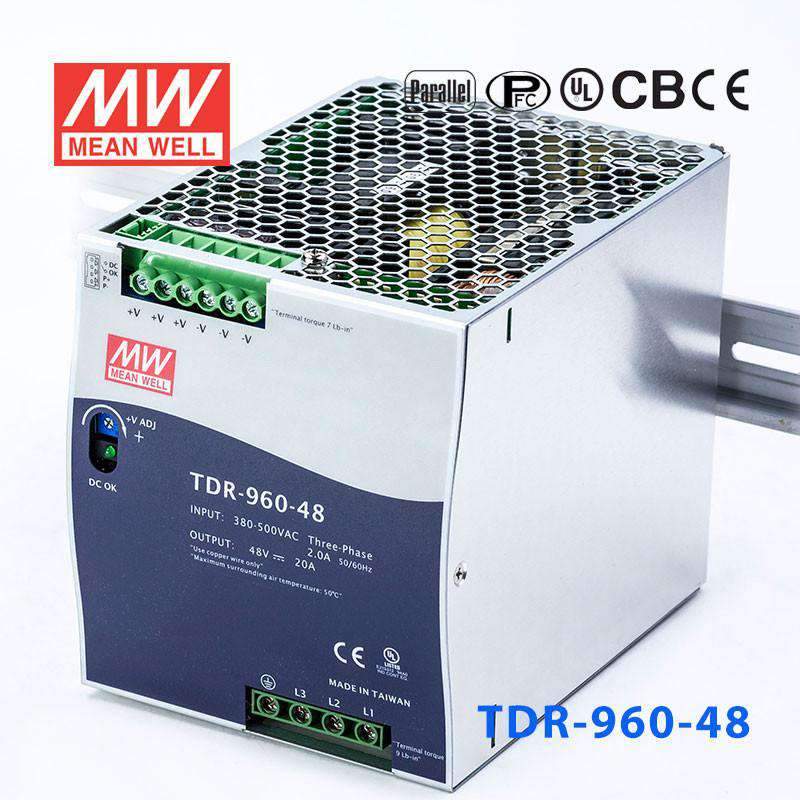

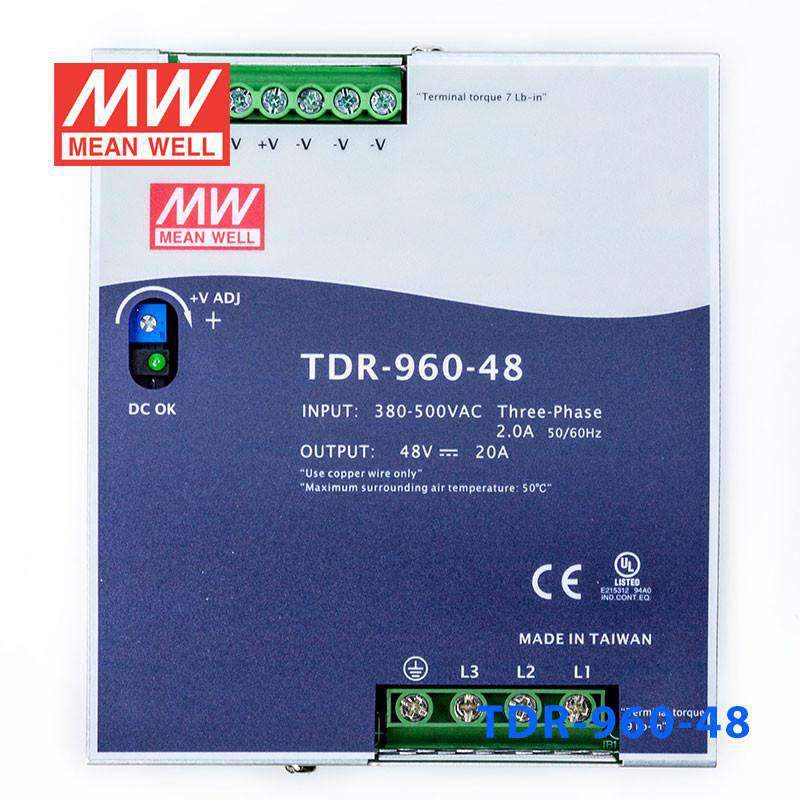

Mean Well TDR-960-48 Single Output Industrial Power Supply 960W 48V 20A - DIN Rail

Name: Mean Well TDR-960-48 Single Output Industrial Power Supply 960W 48V 20A - DIN Rail
Brand: Mean Well
SKU: TDR-960-48
Price: 255.11 USD
Availability: InStock

metal caseslim size3 phase inputhigh efficiency up to 94.5%built-in active PFC

SKU TDR-960-48

$255.11 USD ~~$259.06~~

Shipping calculated at checkout.

Select model — 3 in this family

TDR-960-48

TDR-240-48 240W 48V In stock$84.16 USD

TDR-480-48 480W 48V Low stock$131.97 USD

TDR-960-48 960W 48V Low stock$255.11 USD

Product variants

In stock

Overview

TDR-960-48 is the 48V output model of this series: rated current 20A, rated power 960W, typical efficiency 94.5%.

Features

Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
Width only 110mm
Built-in active PFC function compliance to BS EN/EN61000-3-2
High efficiency 94.5% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit

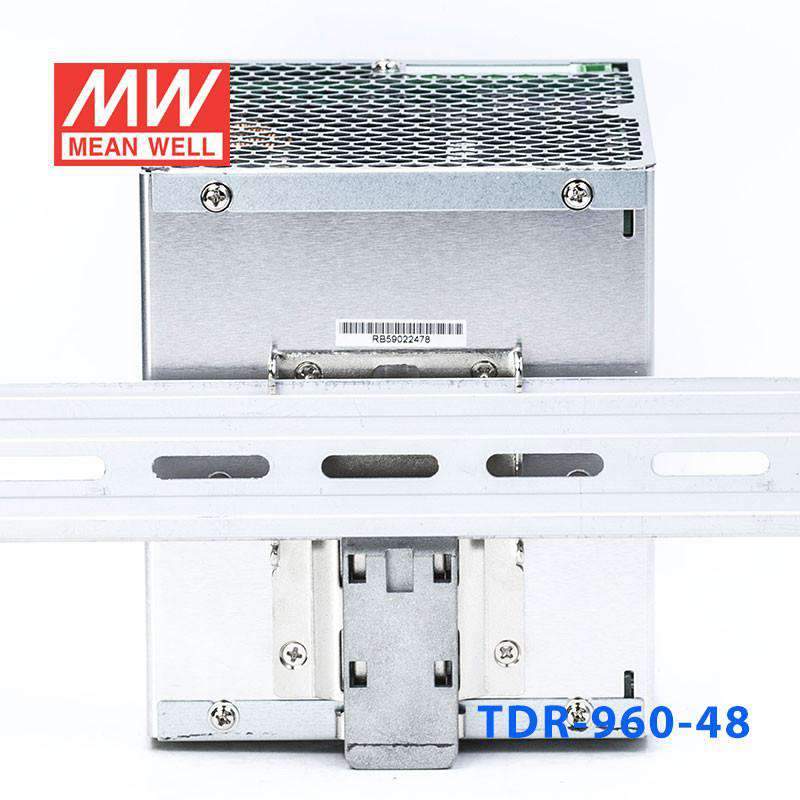

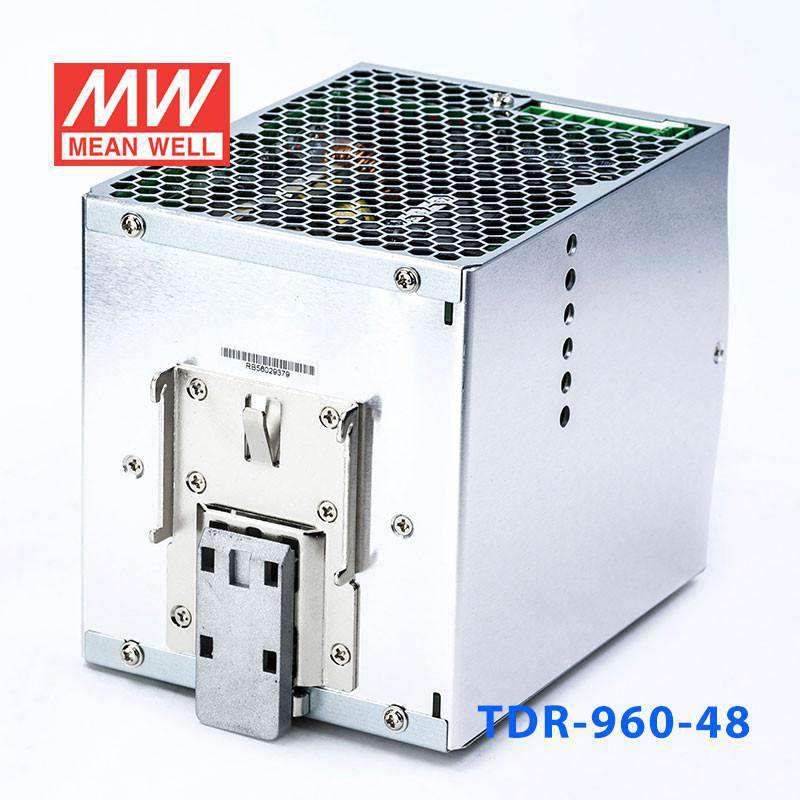

Can be installed on DIN rail TS-35/7.5 or 15
UL508(industrial control equipment)approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Current sharing up to 3840W(3+1)
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Specifications

TDR-960-48Specifications from the official datasheet (2024-09-06 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 20A
CURRENT RANGE: 0 ~ 20A
RATED POWER: 960W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 55V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 100ms/400VAC; 800ms, 100ms/500VAC at full load
HOLD UP TIME (Typ.): 12ms / 400VAC; 14ms / 500VAC at full load

INPUT

VOLTAGE RANGE^Note.4: Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.88/400VAC; PF≧0.86/500VAC at full load
EFFICIENCY (Typ.): 94.5%
AC CURRENT (Typ.): 2A/400VAC; 1.4A/500VAC
INRUSH CURRENT (Typ.): COLD START 60A
LEAKAGE CURRENT: <3.5mA / 530VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover
OVER VOLTAGE: 56 ~ 65V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.): 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
CURRENT SHARING: Please refer to function manual

ENVIRONMENT

WORKING TEMP.^Note.5: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS: UL508, AS/NZS62368.1, BIS IS13252(Part1) (only for 24V), EAC TP TC 004 approved, IEC62368-1 CB approved by SIQ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 647.1K hrs min. Telcordia SR-332 (Bellcore) ; 59.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 110*125.2*150mm (W*H*D)
PACKING: 2.47Kg ; 6pcs/15.8Kg/1.47CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Dual phase operation is allowed under certain derating to output load. Please refer to derating curves for details.
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

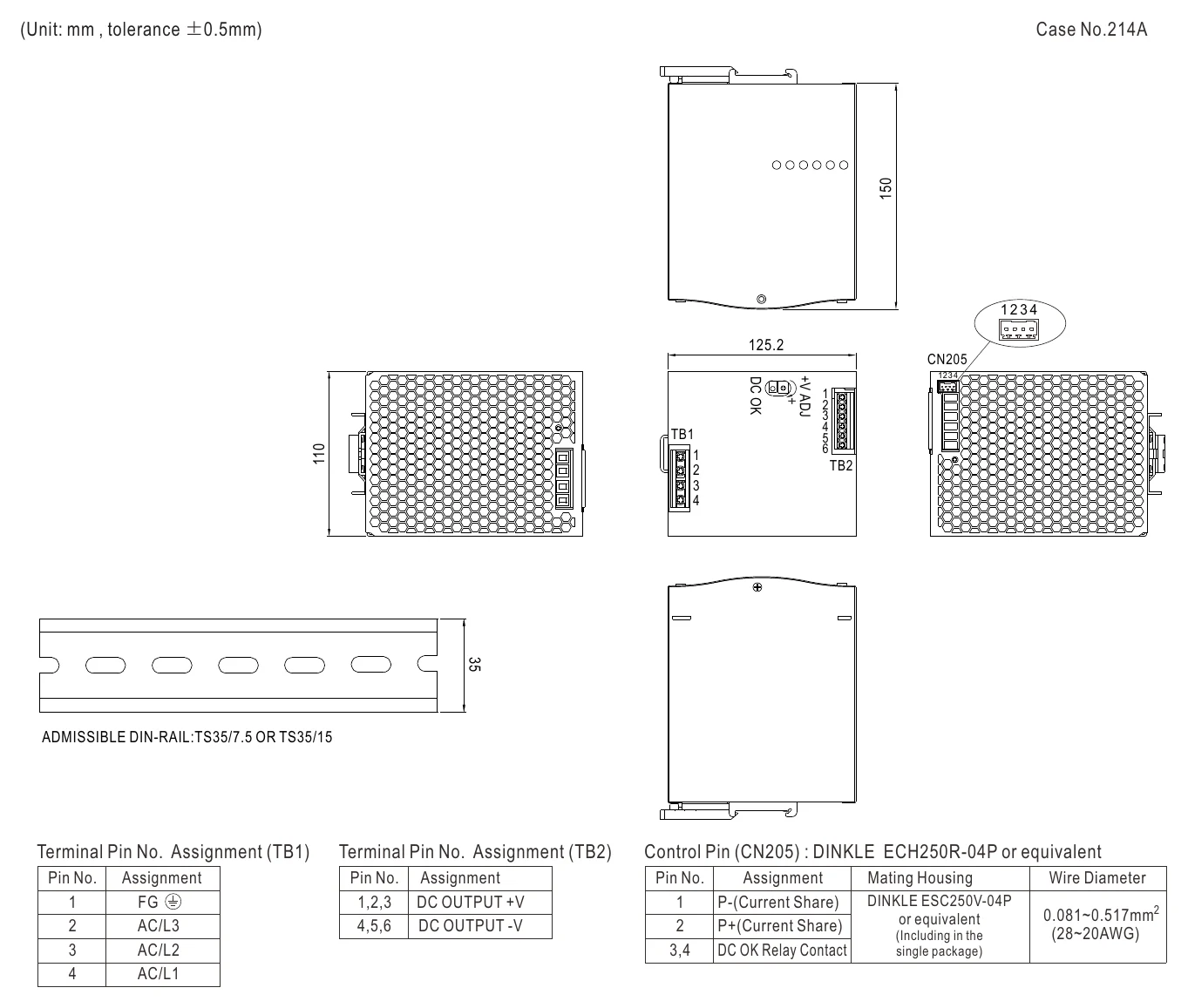

TDR-960-48 Mechanical Specification — Mechanical Specification

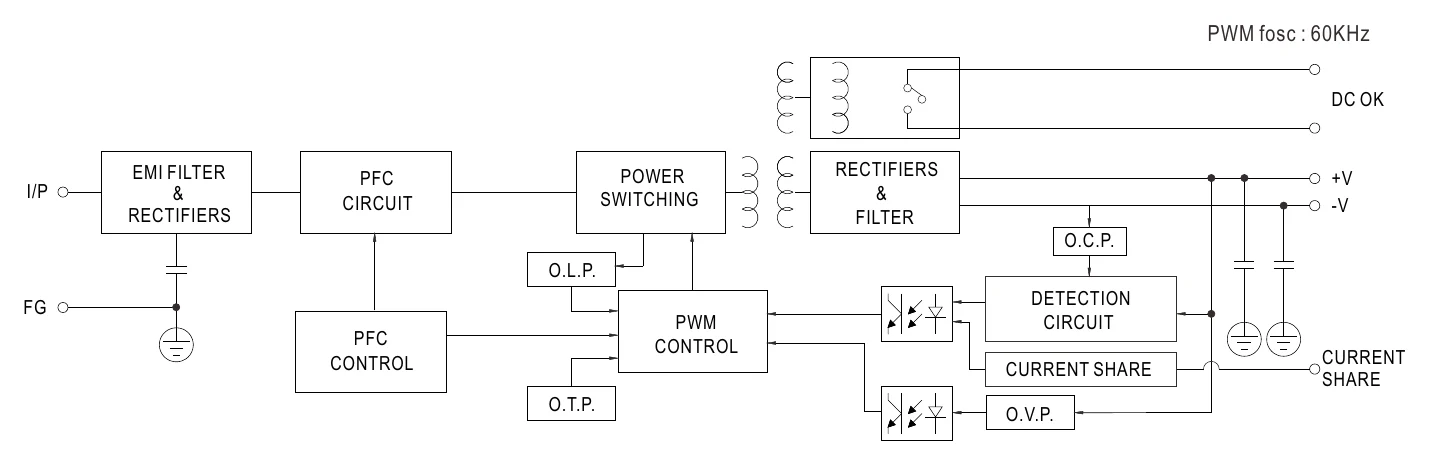

TDR-960-48 Block Diagram — Block Diagram

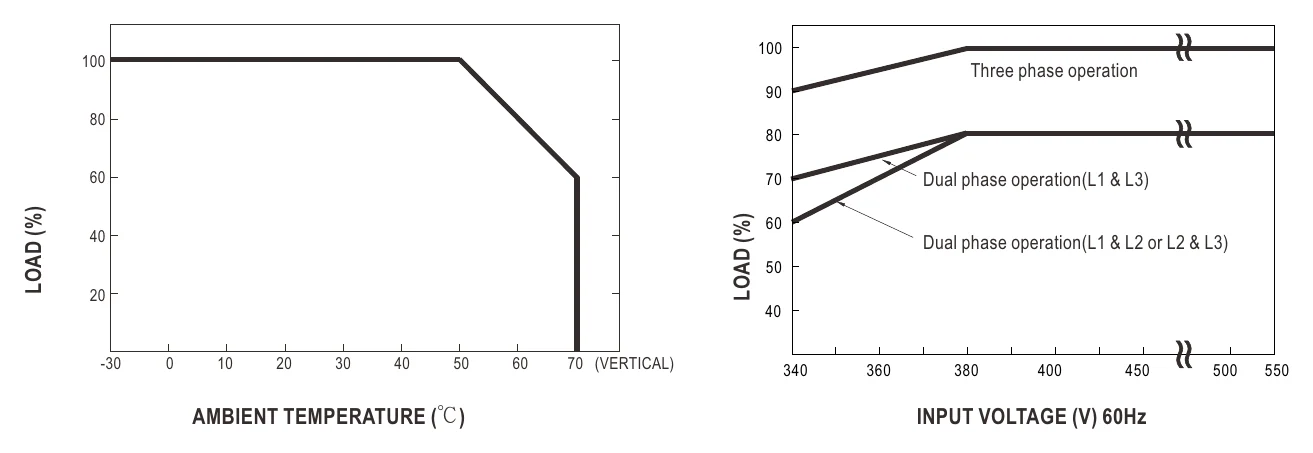

TDR-960-48 Derating Curve — Derating Curve

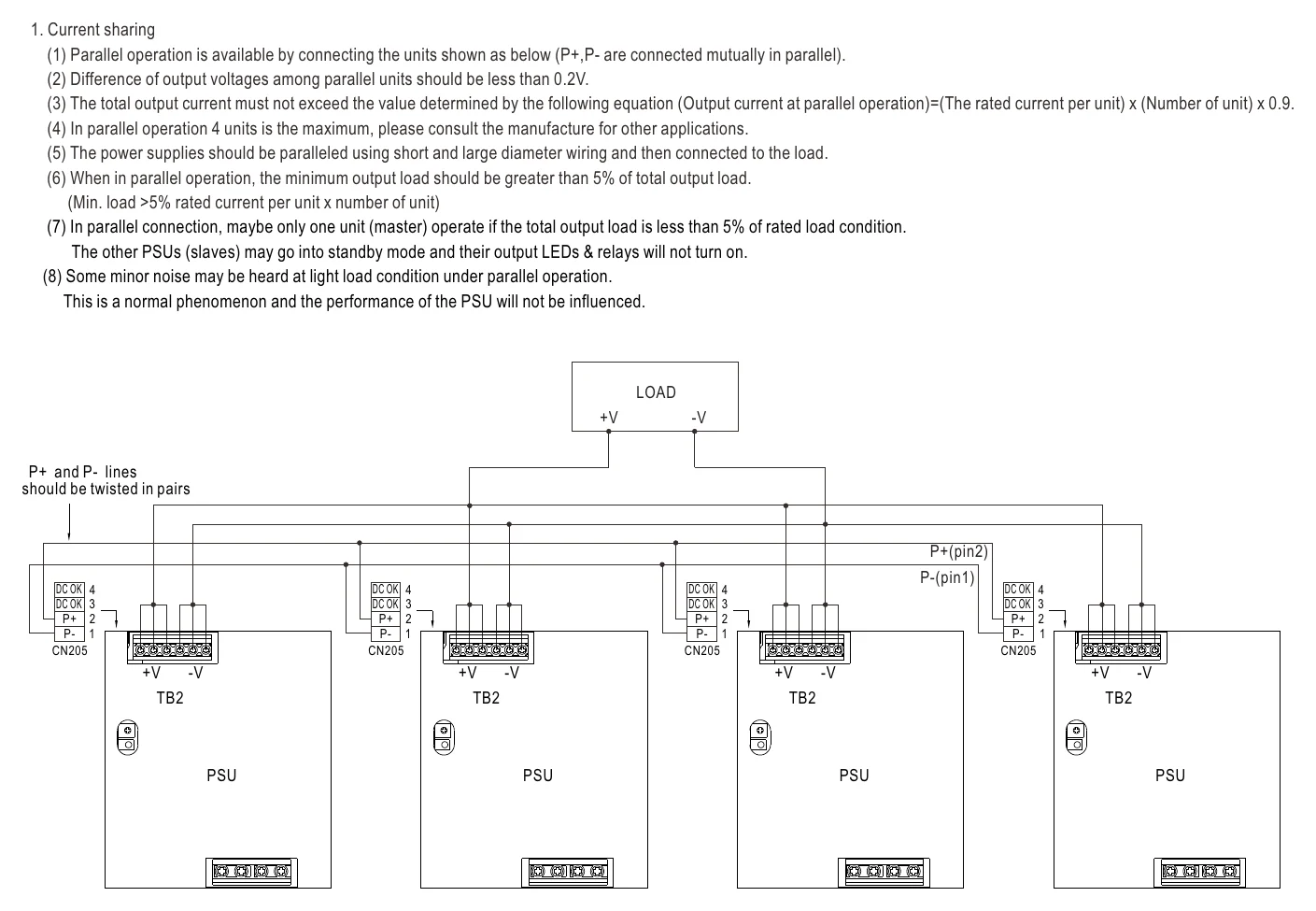

TDR-960-48 Function Manual — Function Manual

Downloads

Certificates3

CB Certificate (TDR-960)(EN) PDF Download

UL Certificate (TDR-960)(EN) PDF Download

EMC Certificate (TDR-960)(EN) PDF Download

Test reports1

Test Report (TDR-960-48)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the Mean Well TDR-960-48 to power a 48V PLC or industrial automation control panel?

Yes. The TDR-960-48 provides a 48V DC output at up to 20A with 960W capacity, which fits 48V PLC, controller, and industrial automation panel loads within that power budget. Its DIN rail form factor and slim metal case are suited to control cabinet installations where space is limited.

Is the TDR-960-48 a good fit for 48V building management and control cabinet systems?

It can be a good fit for 48V building management equipment installed in a control cabinet or enclosure. This model delivers 48V, 20A, and 960W, uses a DIN rail mounting format, and supports a 340-550VAC input range for three phase industrial power environments.

Can this 48V DIN rail power supply be used in large industrial control panels with multiple 48V loads?

Yes, if the combined load stays within 48V, 20A, and 960W. The TDR-960-48 is designed as a DIN rail power supply with a slim 110.0 × 125.2 × 150.0 mm housing, which helps when cabinet space is tight. Its efficiency is rated up to 94.5%, which is relevant in higher-power enclosed panel builds.

Is the Mean Well TDR-960-48 suitable for 48V industrial automation systems that need a three phase input power supply?

Yes. This model is built for three phase input and accepts 340-550VAC, making it suitable for industrial automation systems that are powered from that input range. On the output side, it supplies 48V DC up to 20A with 960W total power.

Can the TDR-960-48 be used inside an enclosure or control cabinet in demanding temperatures?

It is intended for industrial use in a control cabinet or enclosure, not exposed outdoor use. The operating temperature range is -30°C to +70°C, and the metal case, DIN rail format, and 2.47 kg build are aligned with enclosed industrial panel environments.

What is the difference between the TDR-960-48 and other Mean Well TDR series DIN rail power supplies?

Within the same series, the TDR-240-24 is 240W, 24V, 10A; the TDR-240-48 is 240W, 48V, 5A; the TDR-480-24 is 480W, 24V, 20A; the TDR-480-48 is 480W, 48V, 10A; and the TDR-960-24 is 960W, 24V, 40A. The TDR-960-48 is the 960W, 48V, 20A model in that group.
