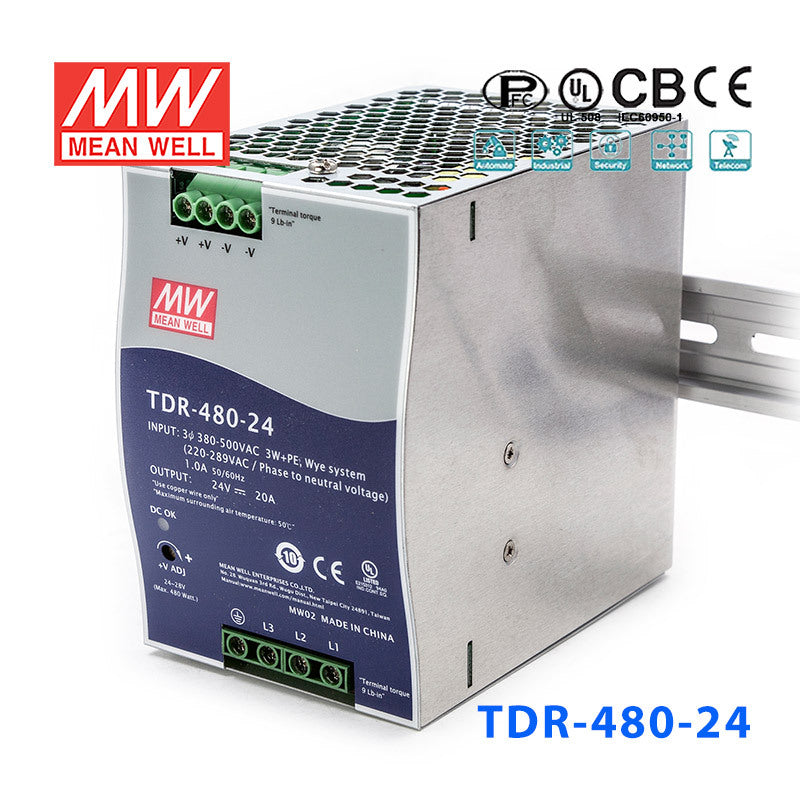

Mean Well TDR-480-24 Single Output Industrial Power Supply 480W 24V 20A - DIN Rail

Name: Mean Well TDR-480-24 Single Output Industrial Power Supply 480W 24V 20A - DIN Rail
Brand: Mean Well
SKU: TDR-480-24
Price: 149.23 USD
Availability: InStock

metal caseslim size3 phase inputhigh efficiency up to 94.5%built-in active PFC

SKU TDR-480-24

$149.23 USD

Shipping calculated at checkout.

Select model — 3 in this family

TDR-480-24

TDR-240-24 240W 24V In stock$84.16 USD

TDR-480-24 480W 24V In stock$149.23 USD

TDR-960-24 960W 24V In stock$255.11 USD

Product variants

In stock

Overview

TDR-480-24 is the 24V output model of this series: rated current 20A, rated power 480W, typical efficiency 92.5%.

TDR-480 is one economical slim 480W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3ψ 340VAC to 550VAC (Dual Phase operation possible) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 93 %, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1 CB approved by UL.) make TDR-480 a very competitive power supply solution for industrial applications.

Features

Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
Width only 85.5mm
Built-in active PFC function compliance to BS EN/EN61000-3-2
High efficiency 93% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508(industrial control equipment)approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Optional DC OK relay contact
3 years warranty

Specifications

TDR-480-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 20A
CURRENT RANGE: 0 ~ 20A
RATED POWER: 480W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 28V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/400VAC 800ms, 60ms/500VAC at full load
HOLD UP TIME (Typ.): 20ms / 400VAC 20ms / 500VAC at full load

INPUT

VOLTAGE RANGE^Note.4: Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.9/400VAC PF≧0.88/500VAC at full load
EFFICIENCY (Typ.): 92.5%
AC CURRENT (Typ.): 0.85A/400VAC 0.7A/500VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <3.5mA / 530VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover
OVER VOLTAGE: 29 ~ 33V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.^Note.5: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL508, IEC62368-1,UL 62368-1, AS/NZS 62368.1, BIS IS13252(Part1)(only for 24V),EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK(optional):0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) / BS EN/EN61204-3 Class B
Radiated BS EN/EN55032(CISPR32) / BS EN/EN61204-3 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated Field BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods＞ 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32) / BS EN/EN61204-3	Class B
Radiated	BS EN/EN55032(CISPR32) / BS EN/EN61204-3	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
Radiated Field	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods＞ 95% interruptions 250 periods

OTHERS

MTBF: 1174.0K hrs min. Telcordia SR-332(Bellcore) ; 108.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 85.5*125.2*128.5mm (W*H*D)
PACKING: 1.51Kg ; 8pcs/13Kg/1.16CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Dual phase operation is allowed under certain derating to output load. Please refer to derating curves for details.
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

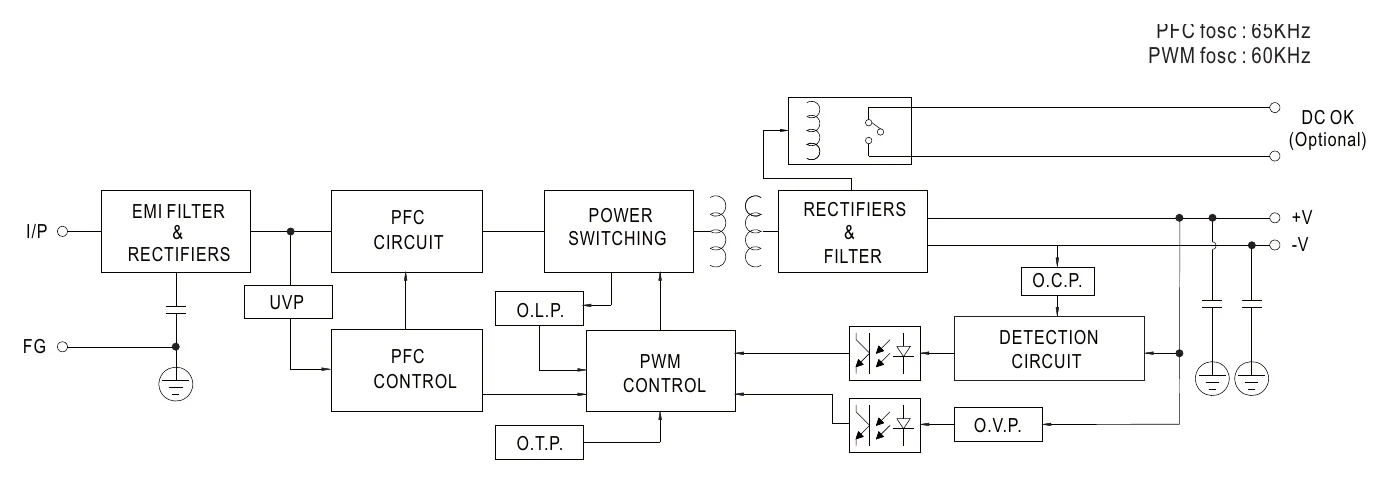

TDR-480-24 Block Diagram — Block Diagram

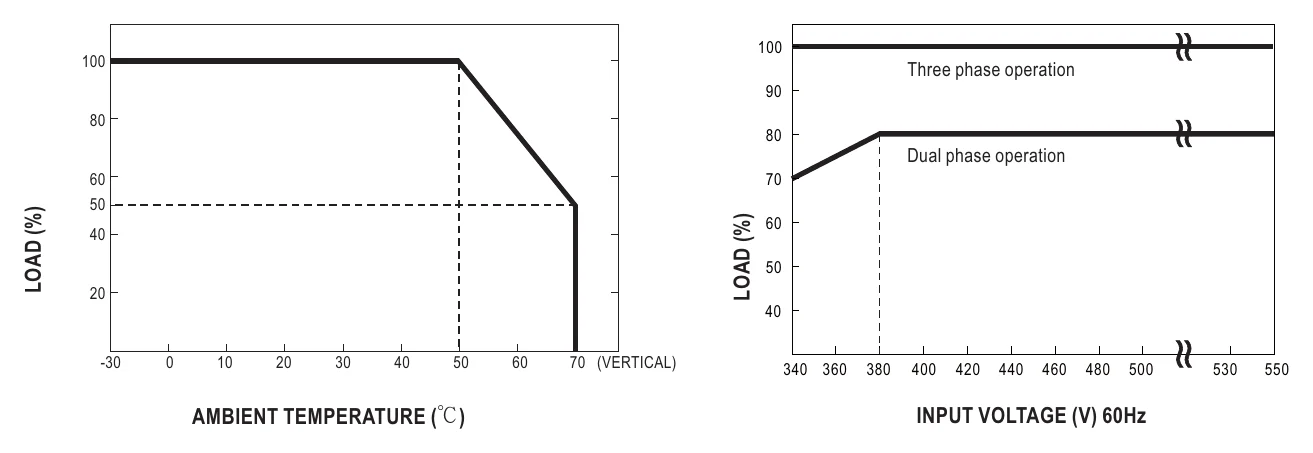

TDR-480-24 Derating Curve — Derating Curve

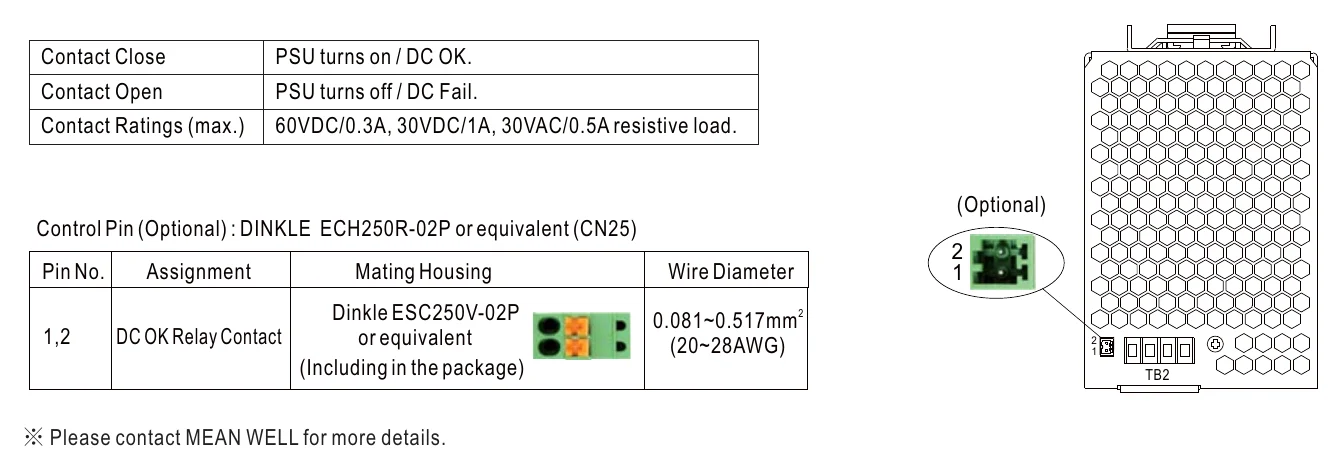

TDR-480-24 DC OK Relay Contact (Optional) — DC OK Relay Contact (Optional)

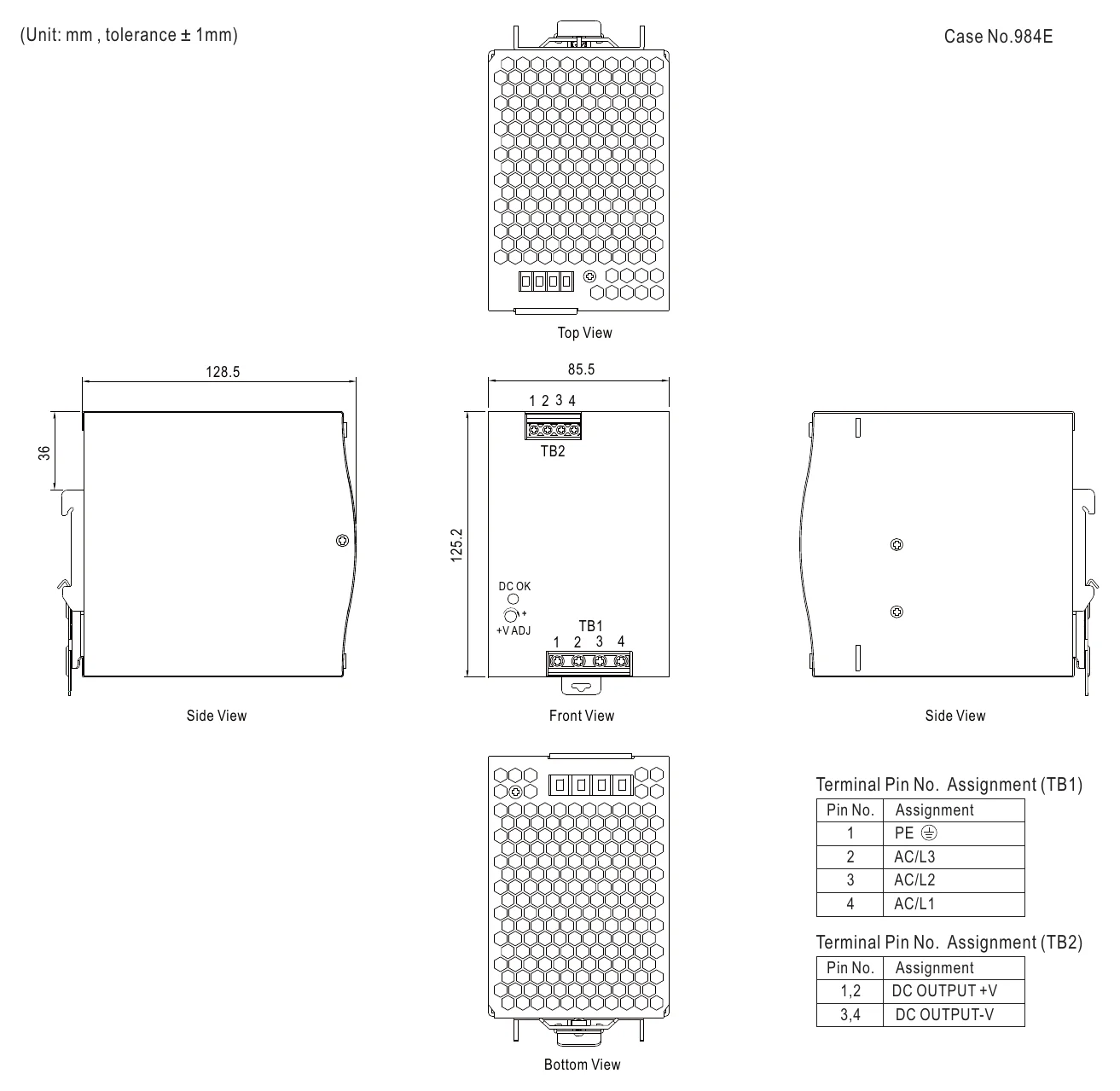

TDR-480-24 Mechanical Specification — Mechanical Specification

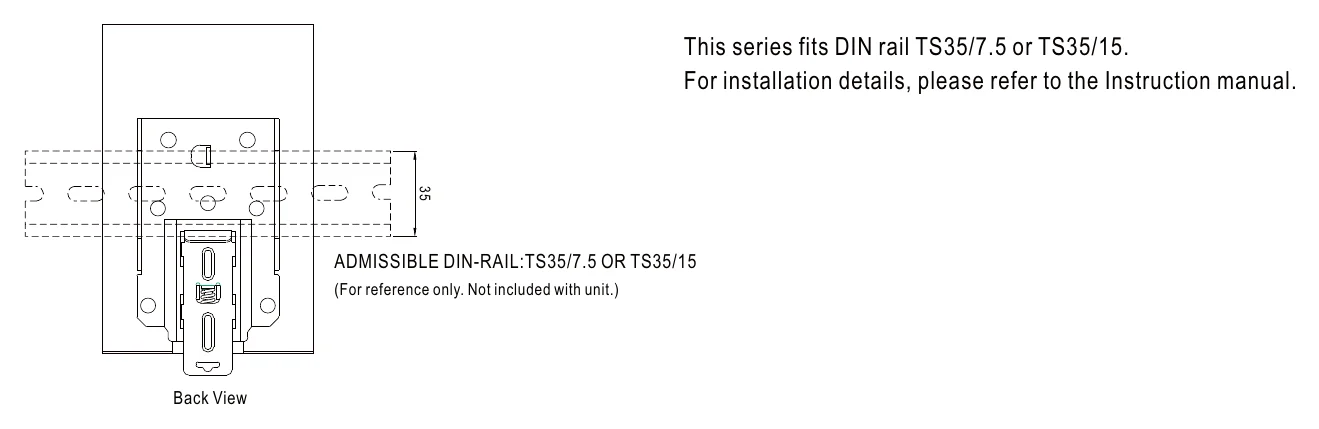

TDR-480-24 Installation Instruction — Installation Instruction

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Certificates6

Mean Well TDR-480 CB(UL) Certificate PDF Download

Mean Well TDR-480 EMC Certificate PDF Download

Mean Well TDR-480 CE-dec Certificate PDF Download

Mean Well TDR-480 UK-dec Certificate PDF Download

Mean Well E215312-UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well TDR-480-24 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the TDR-480-24 for a larger 24V PLC cabinet with more I/O and control loads?

Yes, this model is suited to 24VDC control cabinets that need more capacity, up to 20A or 480W. Its 340-550VAC 3 phase input and DIN rail format make it appropriate for larger industrial panels fed from three-phase power.

Is the TDR-480-24 appropriate for 24V industrial automation panels with multiple control devices?

It can be a fit when the total 24VDC demand remains within 480W and 20A. The metal case, slim design, and efficiency up to 92.5% support compact enclosure layouts with higher current needs than the 240W versions.

Can this power supply be used for 24V building management panels with several controllers and field devices?

Yes, if the panel runs on 24VDC and the aggregate load stays at or below 20A and 480W. The DIN rail construction and 128.5 × 125.2 × 85.5 mm size make it suitable for control cabinets where a single higher-capacity supply is preferred.

Is the TDR-480-24 a good option when I need more 24V current without going to the 960W frame?

This model sits in the middle of the series at 24V, 20A, and 480W. It offers more output than the 24V 240W unit while keeping a smaller footprint and lower weight than the 24V 960W model, which is 2.47 kg.

How does the TDR-480-24 compare with the other TDR series power supplies?

The TDR-480-24 is rated at 480W, 24V, and 20A. The sibling models are TDR-240-24 at 240W, 24V, 10A; TDR-240-48 at 240W, 48V, 5A; TDR-480-48 at 480W, 48V, 10A; TDR-960-24 at 960W, 24V, 40A; and TDR-960-48 at 960W, 48V, 20A.

Can the TDR-480-24 be used inside a control enclosure with demanding ambient conditions?

The specified operating temperature is -30°C to +70°C, which supports use in many industrial cabinets and enclosed panels. The provided specs describe a metal case but do not list a separate exposed-location enclosure rating, so cabinet or enclosure use is the safer fit.
