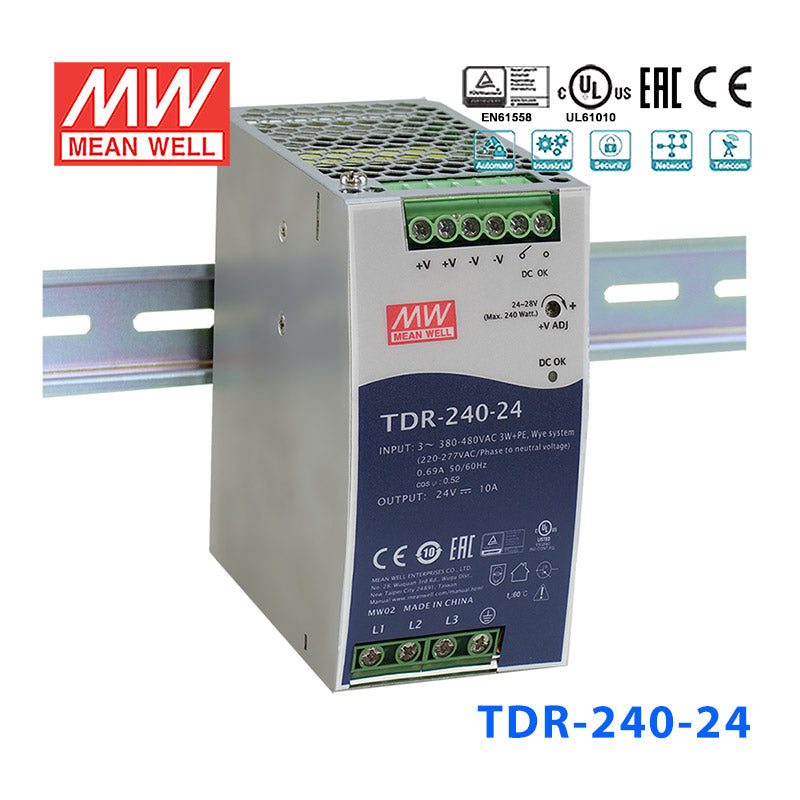

Mean Well TDR-240-24 Single Output Industrial Power Supply 240W 24V 10A - DIN Rail

Name: Mean Well TDR-240-24 Single Output Industrial Power Supply 240W 24V 10A - DIN Rail
Brand: Mean Well
SKU: TDR-240-24
Price: 84.16 USD
Availability: InStock

metal caseslim size3 phase inputhigh efficiency up to 94.5%built-in active PFC

SKU TDR-240-24

$84.16 USD ~~$84.74~~

Shipping calculated at checkout.

Select model — 3 in this family

TDR-240-24

TDR-240-24 240W 24V In stock$84.16 USD

TDR-480-24 480W 24V In stock$149.23 USD

TDR-960-24 960W 24V In stock$255.11 USD

Product variants

In stock

Overview

TDR-240-24 is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 92%.

TDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3ψ 340VAC to 550VAC (Dual Phase operation possible) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-240 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 92 %, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004 approved, and etc.) make TDR-240 a very competitive power supply solution for industrial applications.

Features

Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
63mm slim width
Built-in passive PFC function compliance to BS EN/EN61000-3-2
High efficiency 92% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Full power between -30~+60°C
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL61010(industrial control equipment)approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
DC OK relay contact
3 years warranty

Specifications

TDR-240-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 240W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 28V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 2000ms, 60ms/400VAC 1500ms, 60ms/500VAC at full load
HOLD UP TIME (Typ.): 20ms / 400VAC 40ms / 500VAC at full load

INPUT

VOLTAGE RANGE^Note.4: Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.53/400VAC PF≧0.52/500VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 0.69A/400VAC 0.6A/500VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <2mA / 530VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, unit will hiccup after 3 sec.
OVER VOLTAGE: 30 ~ 36V Protection type : Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.): 60VDC/0.3A, 30VDC/1A, 30VAC/0.5A resistive load

ENVIRONMENT

WORKING TEMP.^Note.5: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 60℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.6: 5000 meters

SAFETY & EMC

OVER VOLTAGE CATEGORY: Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters
SAFETY STANDARDS: UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, BIS IS13252(Part1)(only for 24V), EAC TP TC 004 approved, design refer to AS/NZS61558-1/-2-16
WITHSTAND VOLTAGE: I/P-O/P:4.87KVAC I/P-FG:2.4KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32)/BS EN/EN61204-3 Class B
Radiated BS EN/EN55032(CISPR32)/BS EN/EN61204-3 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^Note.7: BS EN/EN55035 , BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated Field BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods＞ 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)/BS EN/EN61204-3	Class B
Radiated	BS EN/EN55032(CISPR32)/BS EN/EN61204-3	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
Radiated Field	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods＞ 95% interruptions 250 periods

OTHERS

MTBF: 1534.9K hrs min. Telcordia SR-332(Bellcore); 215.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 63*125.2*113.5mm (W*H*D)
PACKING: 1Kg ; 12pcs/13Kg/1.22CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Dual phase operation is allowed under certain derating to output load. Please refer to derating curves for details.
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. The ambient temperature derating of 3.5℃/1000m is needed for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

TDR-240-24 BLOCK DIAGRAM — BLOCK DIAGRAM

TDR-240-24 DERATING CURVE — DERATING CURVE

TDR-240-24 DC OK RELAY CONTACT — DC OK RELAY CONTACT

TDR-240-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

TDR-240-24 Installation Instruction — Installation Instruction

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Certificates6

Mean Well TDR-240 TUV Certificate PDF Download

Mean Well TDR-240 EMC Certificate PDF Download

Mean Well TDR-240 CE-dec Certificate PDF Download

Mean Well TDR-240 UK-dec Certificate PDF Download

Mean Well E215312-UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well TDR-240-24 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the TDR-240-24 for a 24V PLC and I/O control panel?

Yes, this model is suited to 24V control panels that need up to 10A or 240W. Its DIN rail format, slim 125.2 × 113.5 × 63.0 mm housing, and 340-550VAC 3 phase input fit industrial control cabinets where space and three-phase distribution matter.

Is the TDR-240-24 a good fit for 24V industrial automation cabinets with relays, HMIs, and control electronics?

It can be a fit when the cabinet uses a 24VDC bus and the combined load stays within 240W and 10A. The slim metal case and DIN rail design make it practical for enclosure-mounted automation systems, and the stated efficiency is up to 92%.

Can this power supply be used in a building management or HVAC control enclosure?

Yes, for building management panels that use 24VDC controls and have a 340-550VAC input source, this model aligns well with that application. The DIN rail form factor and 125.2 × 113.5 × 63.0 mm size are useful in panel layouts where multiple devices share limited cabinet space.

Is the TDR-240-24 suitable for a slim DIN rail cabinet where depth is limited?

This model is designed for DIN rail mounting and has a slim profile relative to its 240W output. Its dimensions are 125.2 × 113.5 × 63.0 mm, so it is generally easier to place in narrow control cabinets than larger higher-power units in the same series.

What is the difference between the TDR-240-24 and the other TDR series models?

The TDR-240-24 is 240W at 24V and 10A. Other siblings are TDR-240-48 at 240W, 48V, 5A; TDR-480-24 at 480W, 24V, 20A; TDR-480-48 at 480W, 48V, 10A; TDR-960-24 at 960W, 24V, 40A; and TDR-960-48 at 960W, 48V, 20A.

Can the TDR-240-24 be used inside a control cabinet or enclosure in harsh indoor conditions?

It is intended for enclosure-based industrial use, with a metal case and an operating temperature range of -30°C to +70°C. For exposed or washdown locations, the provided specs do not list a separate enclosure rating, so it is better evaluated for use inside a control cabinet or protected enclosure.
