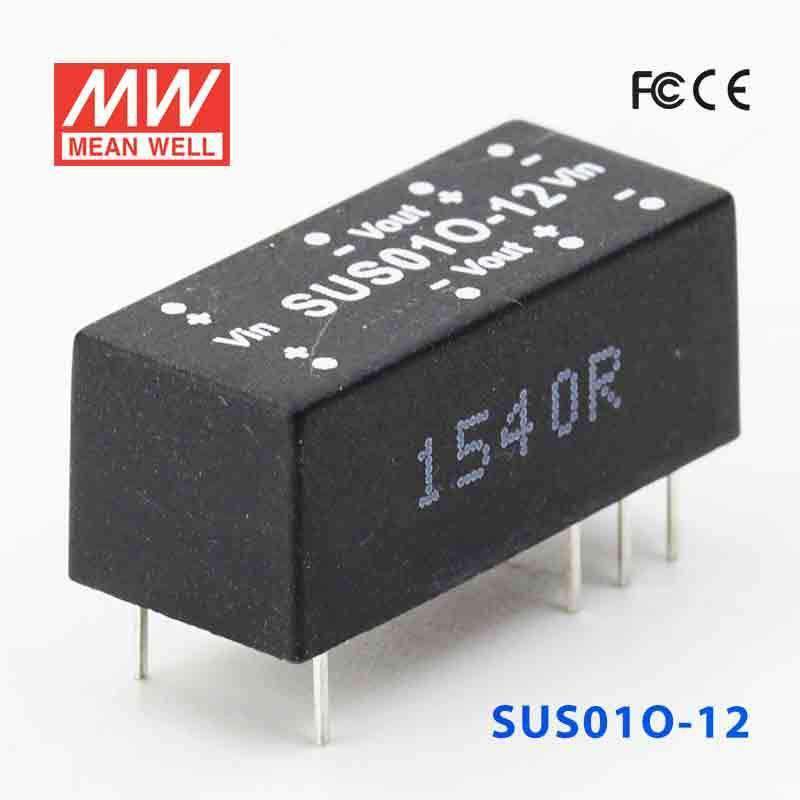

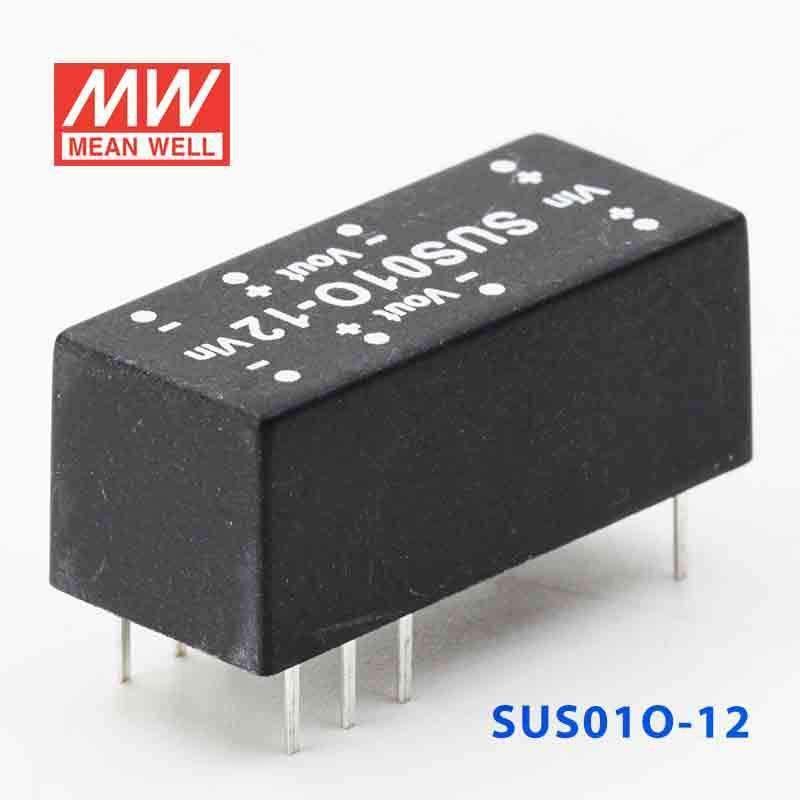

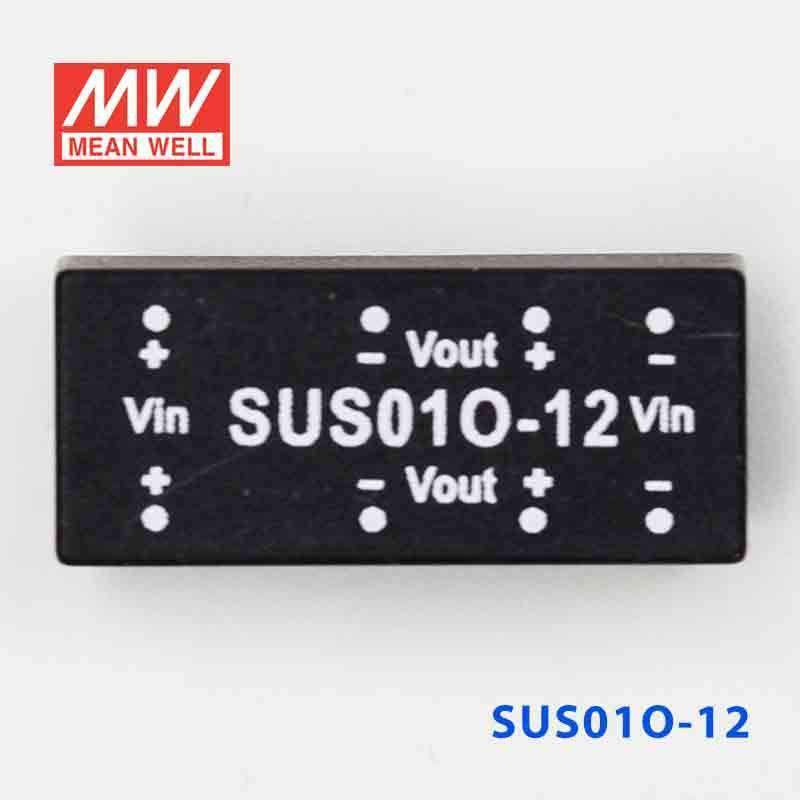

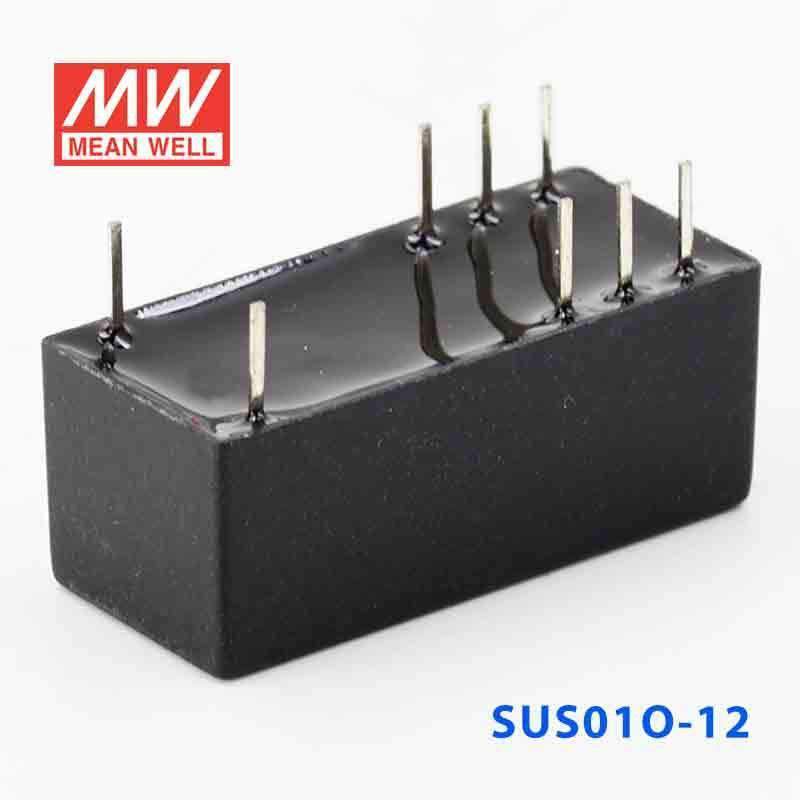

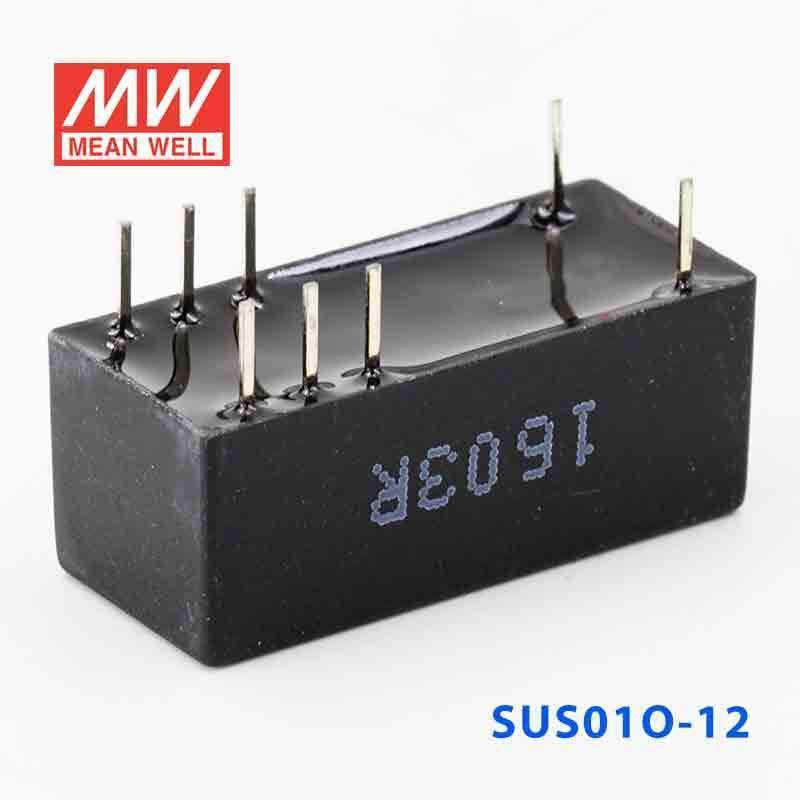

Mean Well SUS01O-12 DC-DC Converter - 1W - 43.2~52.8V in 12V out
Overview
SUS01O-12 is the model of this series: rated power 1W, typical efficiency 83%.
Features
- 1500VDC I/O isolation
- Internal SMD technology
- Built-in EMI filter
- Cooling by free air convection
- Non-conductive plastic case
- Dual in line package
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC OUTPUT VOLTAGE
- 12V
- OUTPUT CURRENT RANGE
- 0 ~ 84mA
- EFFICIENCY
- 83%
- RATED POWER
- 1W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- LINE REGULATIONNote.3
- ±1.2% for 1% input variation
- LOAD REGULATIONNote.4
- ±8.0%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 50KHz min.
INPUT
- VOLTAGE RANGE
- 43.2 ~ 52.8V
- NORMAL VOLTAGE
- 48V
- INPUT CURRENT Full load
- 28mA
- INPUT CURRENT No load
- 3mA
- FILTER
- Capacitor type
- PROTECTION
- Fuse recommended
PROTECTION
- OVERLOAD
- Momentary Protection type : Broken
- SHORT CIRCUIT
- Momentary Protection type : Broken
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE
- 80pF max.
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 700khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
- PACKING
- 3.1g ; 22 pcs/per tube, 3080 pcs/ 140 tube/per carton
Test conditions and notes4
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.
Technical drawings
Downloads
FAQ
Can I use the SUS01O-12 for a low-power 12V control circuit in industrial equipment?
Yes, it is intended for applications that need a 12V constant-voltage output from a 43.2~52.8VDC input range. With a 1W power rating and 84mA output current, it is best suited to low-power control electronics.
Is this a good choice for embedded 12V auxiliary power inside compact devices?
It can fit embedded 12V auxiliary power roles where the load stays within 1W. The 22.6 × 9.9 × 8.9 mm package is useful when board or enclosure space is tight.
Can the SUS01O-12 be used for small automation interface modules that need 12V?
It is suitable for small automation interface modules that require a fixed 12V output and operate from 43.2~52.8VDC input. The 84mA output rating indicates it is aimed at light electronic loads rather than larger 12V devices.
Is the SUS01O-12 intended for indoor-only use, or can it handle exposed environments?
The stated operating temperature range is -25°C to +71°C, so the product has a defined thermal envelope for equipment use. No IP rating is listed, so the specifications do not confirm suitability for exposed outdoor environments.
What should I compare between the SUS01O-12 and the other SUS01O models?
The listed SUS01O family members all share 1W power, 43.2~52.8VDC input, and 22.6 × 9.9 × 8.9 mm dimensions, while the outputs differ: SUS01O-05 is 5V and 200mA, SUS01O-09 is 9V and 111mA, SUS01O-12 is 12V and 84mA, and SUS01O-15 is 15V and 67mA. The practical distinction is the output voltage and associated output current spec for each version.
