Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

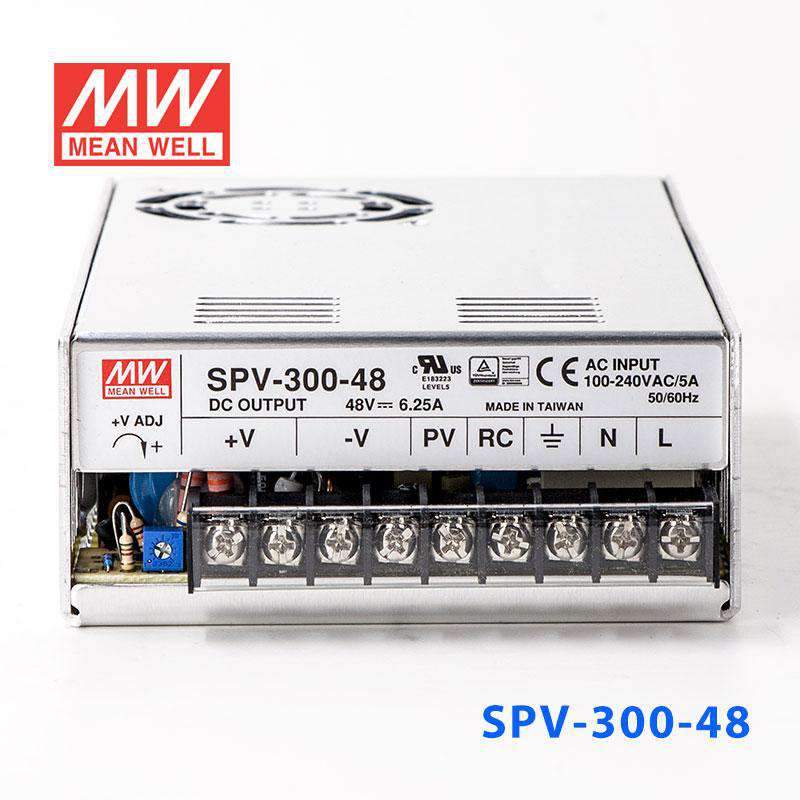

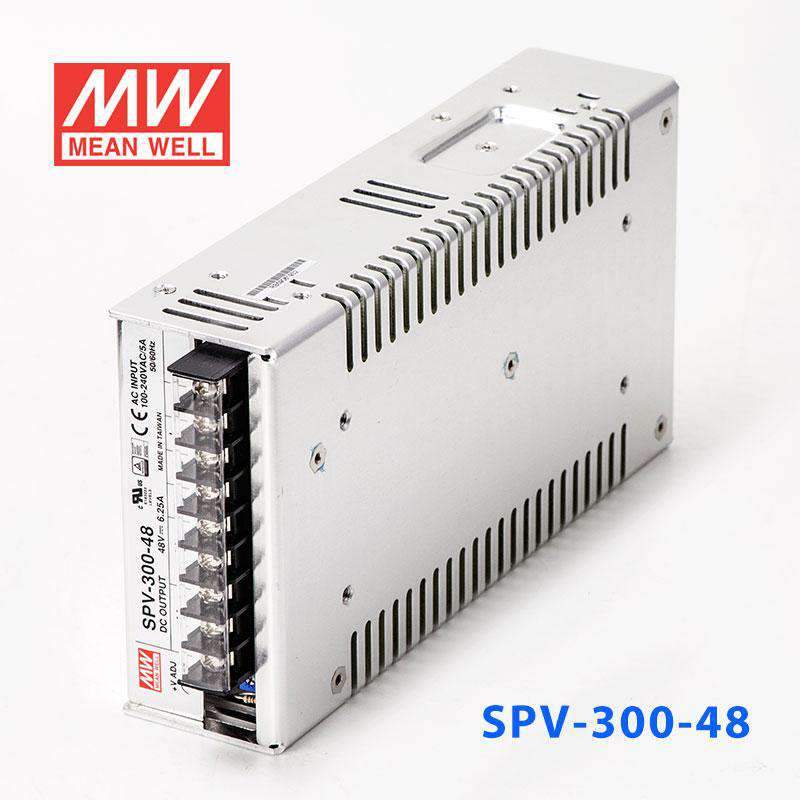

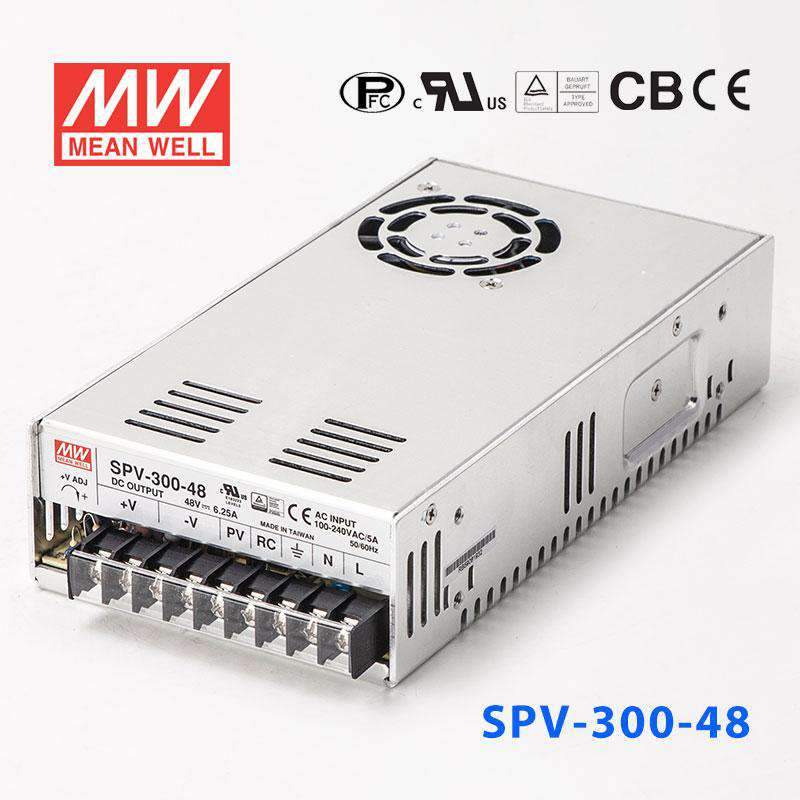

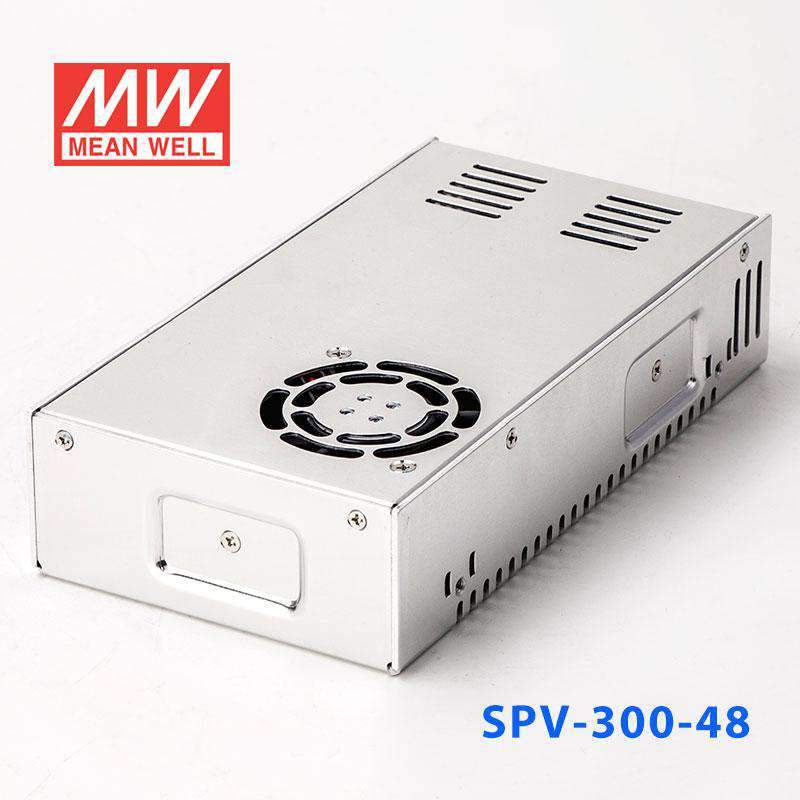

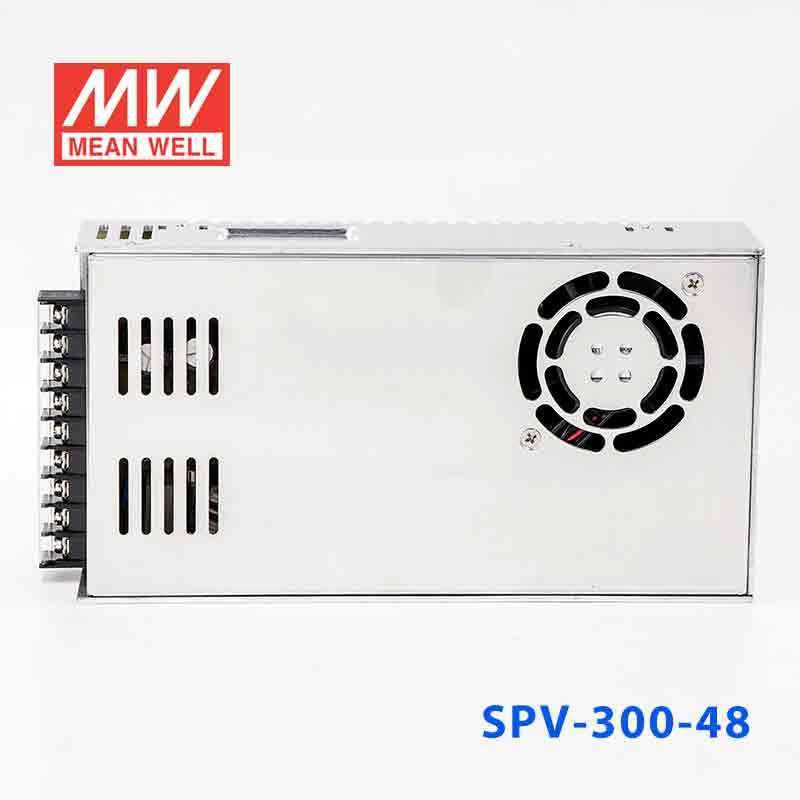

Mean Well SPV-300-48 power supply 300W 48V 6.25A
$98.99 USD
Unit price /
Unavailable
Description
Description
MEAN WELL SPV-300 Series Power Supplies are 300W switching power supplies with high efficiency, long life, and high reliability.
Features
- Universal AC input / Full range
- Built-in active PFC function
- PF>0.95
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC Fan
- Output voltage programmable from 20-110% by 1-5.5VDC external control signal
- Built-in remote ON-OFF control
- Built-in fan speed control
- Fixed switching frequency at 100KHz
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSPV Series
-
Power Rating300 Watt
-
Output Voltage48 Volt
-
Rated Current6.25 Ampere
-
Input Voltage88V~264V
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
File Downloads
File Downloads
::specification::
