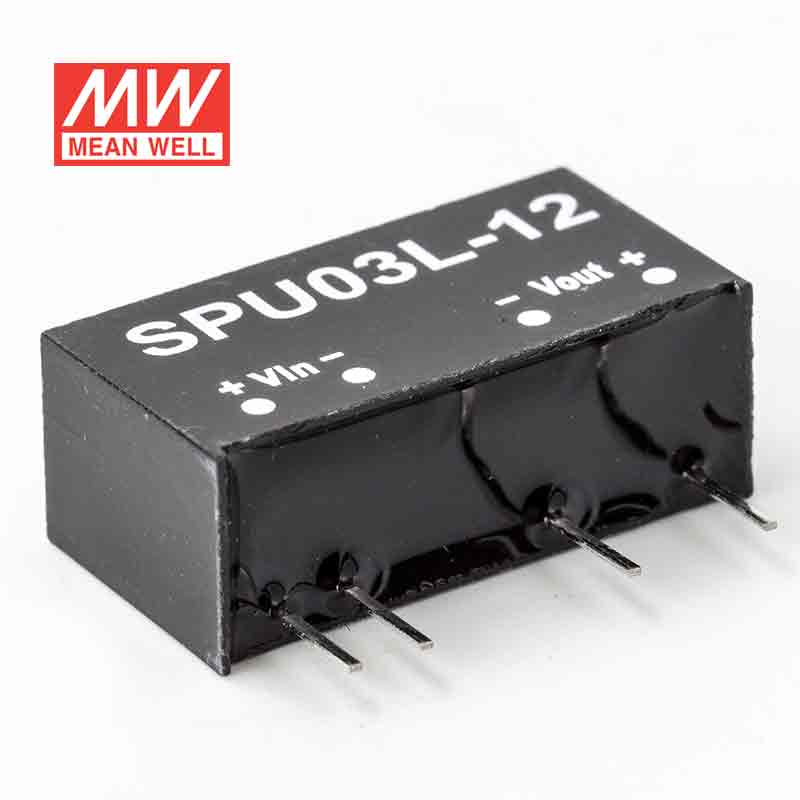

Mean Well SPU03L-12 DC-DC Converter - 3W - 10.8~13.2V in 5V out

$7.57 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

3000VDC I/O isolation
Internal SMD technology
Built-in EMI filter
Protection: Short circuit
Cooling by free air convection
non-conductive plastic case
Single in-line package
100% full load burn-in test
Low cost / High reliability
2 years warranty

General Specification

Voltage accuracy ±2.0%
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along the X, Y, and Z axes
Cooling Free-air convection
Short circuit protection Momentary; Protection type: Broken
Working temperature -40 ~ +90℃ (Refer to "Derating Curve")C
EMC Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient ±0.03% / ℃ (0 ~ 50℃)
Dimension (LxWxH) (mm) 19.6 x 7.5 x 10.2mm
Potting material UL 94V-0 rated

Specifications

  • Brand
    Mean Well
  • Series
    SPU Series
  • Power Rating
    3 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    0.6 Ampere
  • Input Voltage
    10.8V~13.2V
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    2 Year
  • Length
    0.77 in
  • Width
    0.4 in
  • Height
    0.3 in
  • Weight
    0.01 lb

File Downloads
