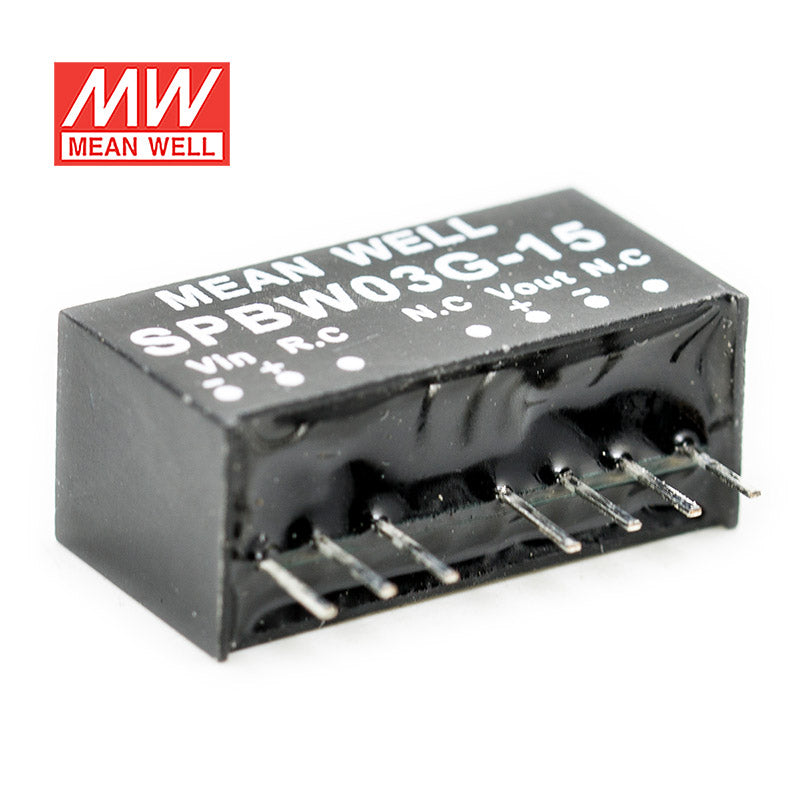

Mean Well SPBW03G-15 DC-DC Converter - 3W - 18~75V in 15V out

$10.22 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

SIP8 package with industry-standard pinout
Wide operating temperature range -40~+85°C
High efficiency up to 85%
4:1 wide input range
No minimum load required
Comply to BS EN/EN55032 radiated Class B without additional components
Protection: Short circuit(continuous)/Overload/Input under voltage
1.5KVDC I/O isolation

Remote ON/OFF control

9V model available(optional)

3 years warranty


General Specification

Voltage accuracy ±1.5%
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, and Z axes
Cooling Free-air convection
Short circuit protection Continuous, auto-recovery
Working temperature -40°C to +85°C
EMC Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient 0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm) 21.8*9.2*11.1mm
Potting material UL 94V-0 rated

Specifications

  • Brand
    Mean Well
  • Series
    SPBW Series
  • Power Rating
    3 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.2 Ampere
  • Input Voltage
    18V~75V
  • Standards Met
    CE
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    0.86 in
  • Width
    0.44 in
  • Height
    0.36 in
  • Weight
    0.01 lb
