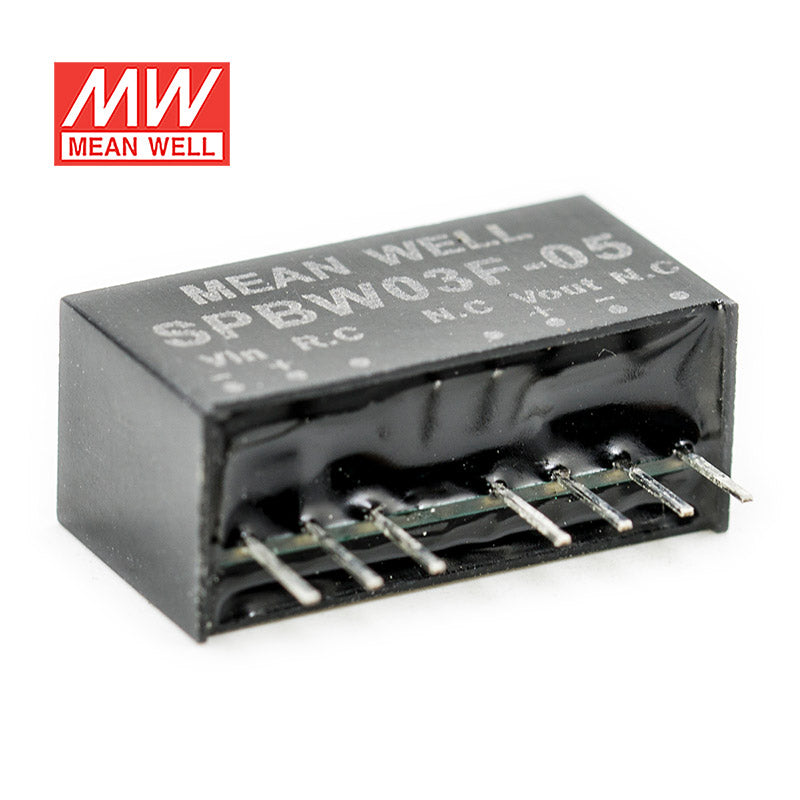

Mean Well SPBW03F-05 DC-DC Converter - 3W - 9~36V in 5V out
$10.22 USD
Unit price /
Unavailable
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓Wide operating temperature range -40~+85°C
- ✓High efficiency up to 85%
- ✓4:1 wide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓9V model available(optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
