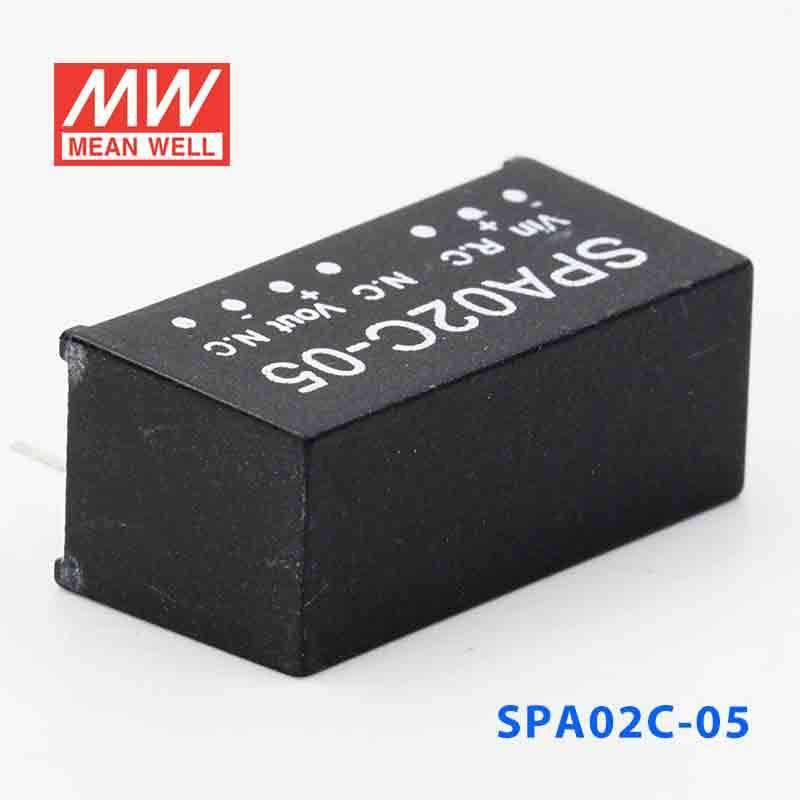

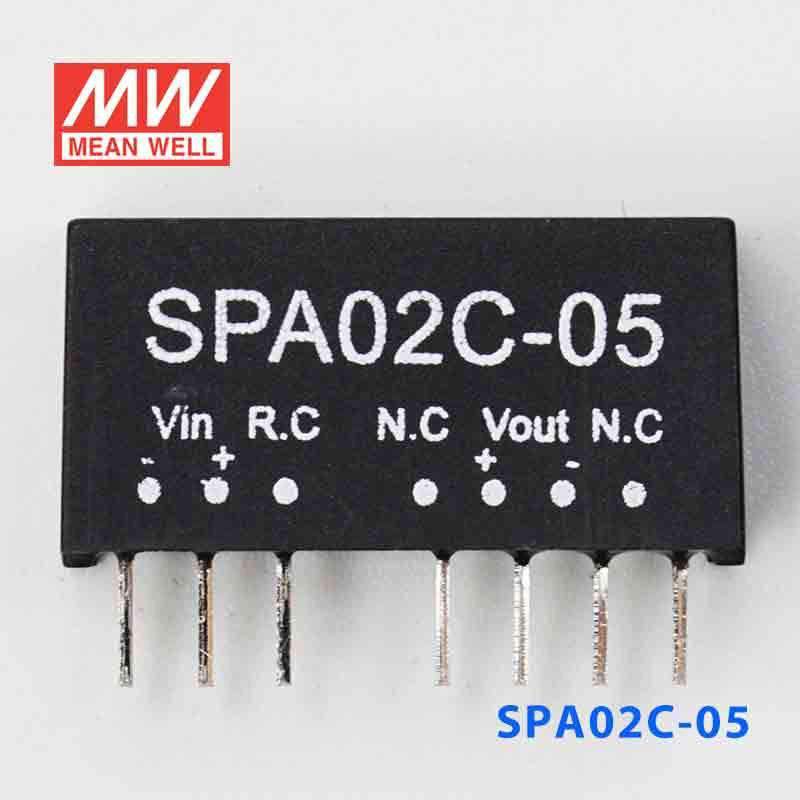

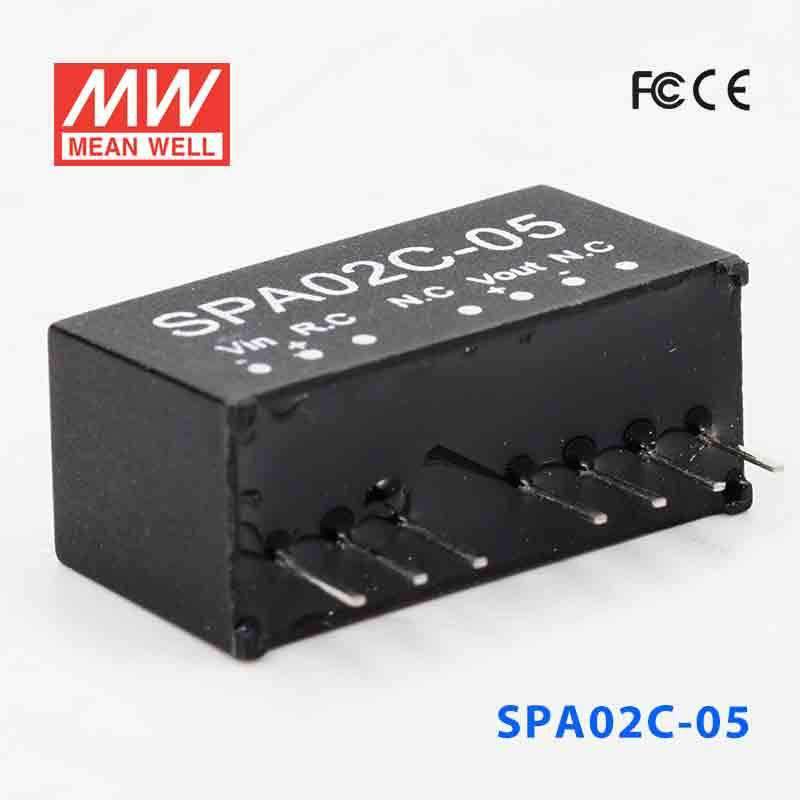

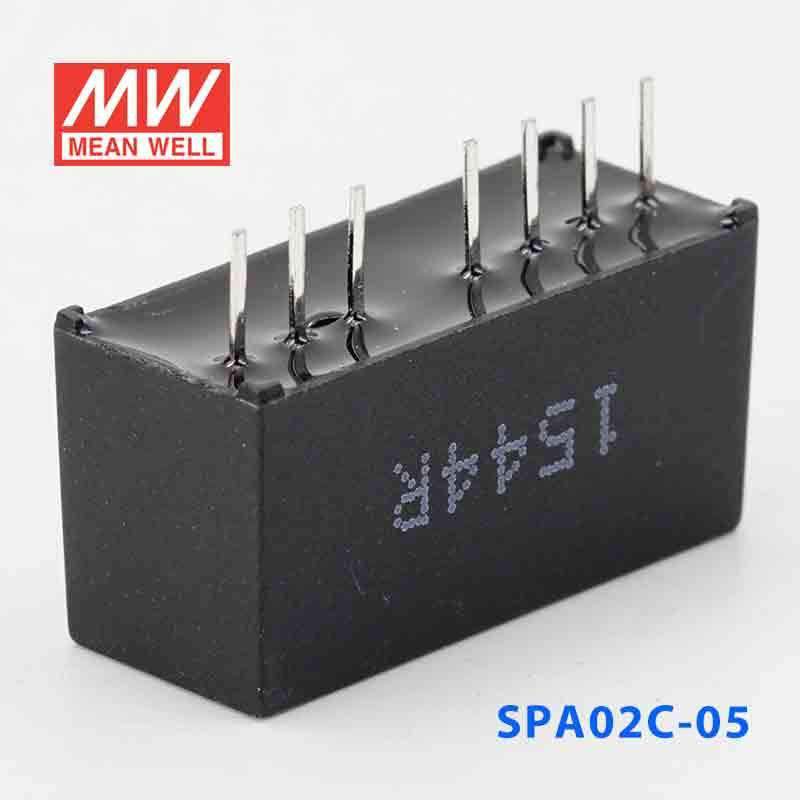

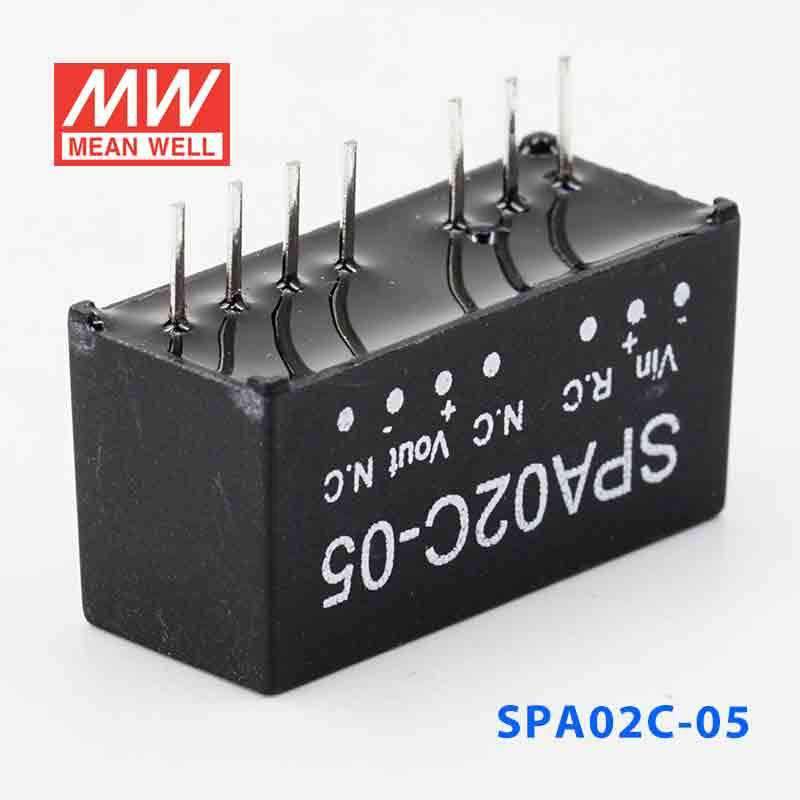

Mean Well SPA02C-05 DC-DC Converter - 2W - 36~72V in 5V out

$8.00 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

"

Features

  • 2:1 wide input range
  • 4:1 wide input range (A / B Type Only)
  • 1000VDC I/O isolation
  • 3000VDC I/O isolation (Option)
  • Built-in remote ON/OFF control
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Single in line package
  • 100% full load burn-in test
  • Low cost / High reliability
  • Modified models available: output 3.3V/9V
  • 2 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    SPA Series
  • Power Rating
    2 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    0.4 Ampere
  • Input Voltage
    36V~72V
  • Standards Met
    CE,EAC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    2 Year
  • Length
    0.86 in
  • Width
    0.44 in
  • Height
    0.36 in
  • Weight
    0.01 lb
