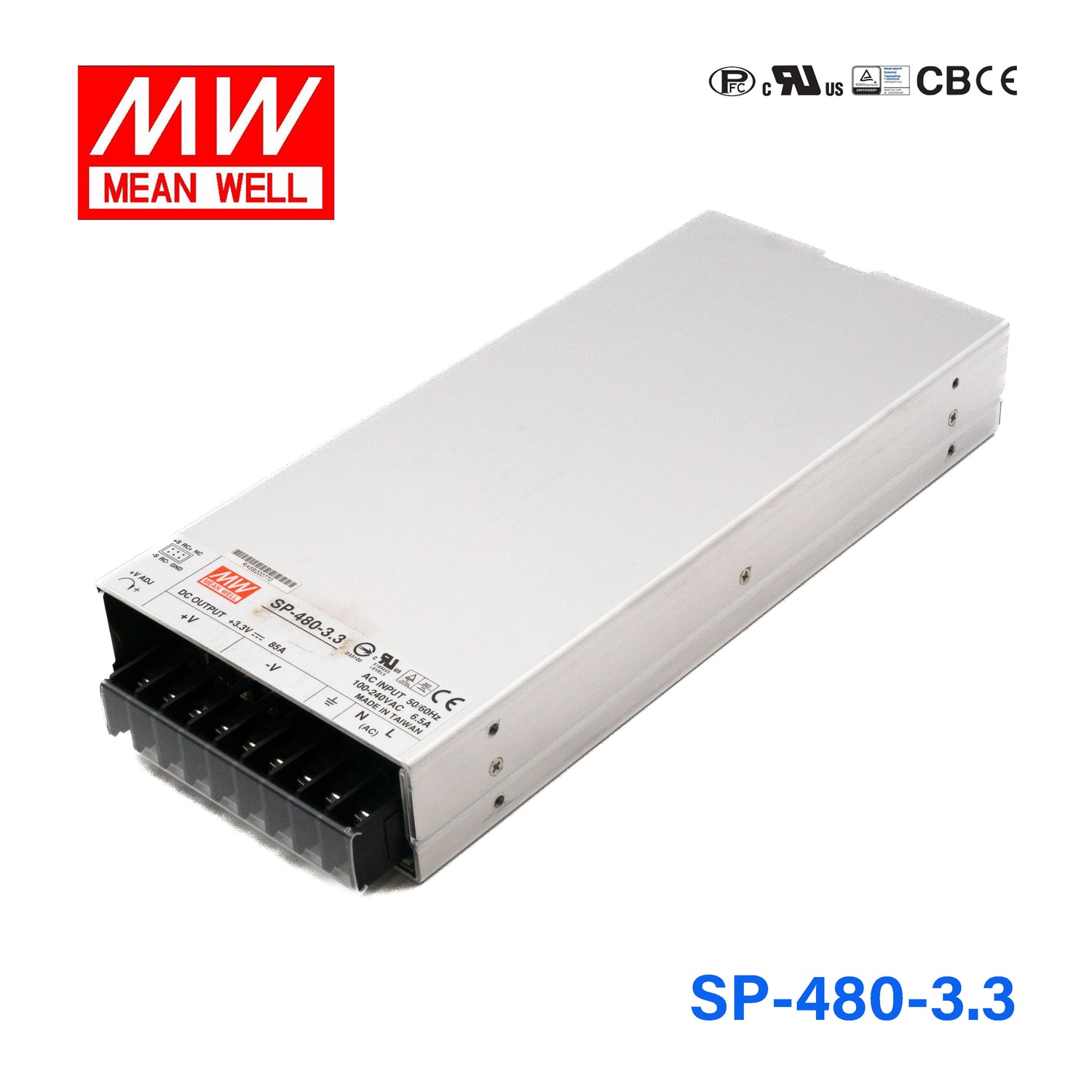

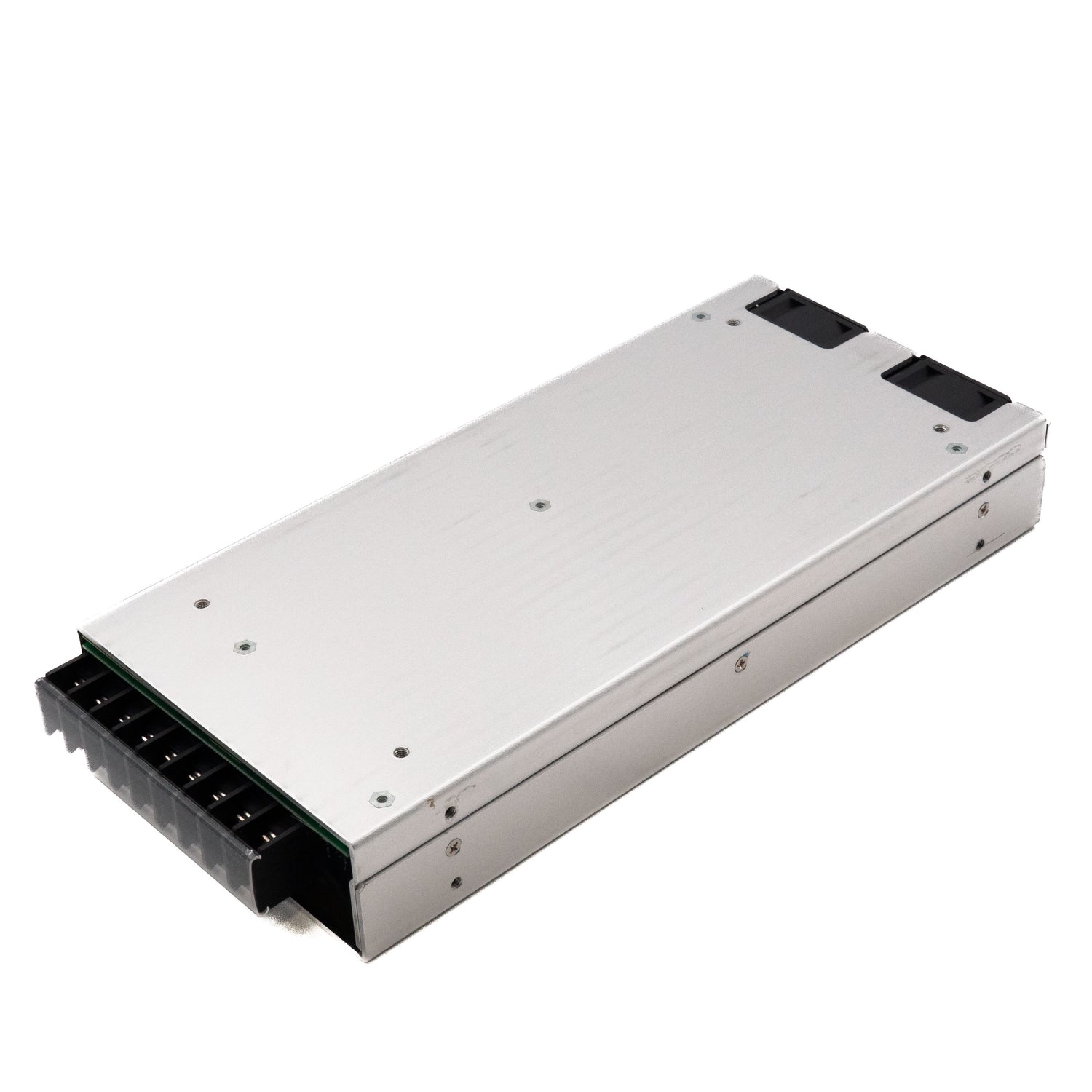

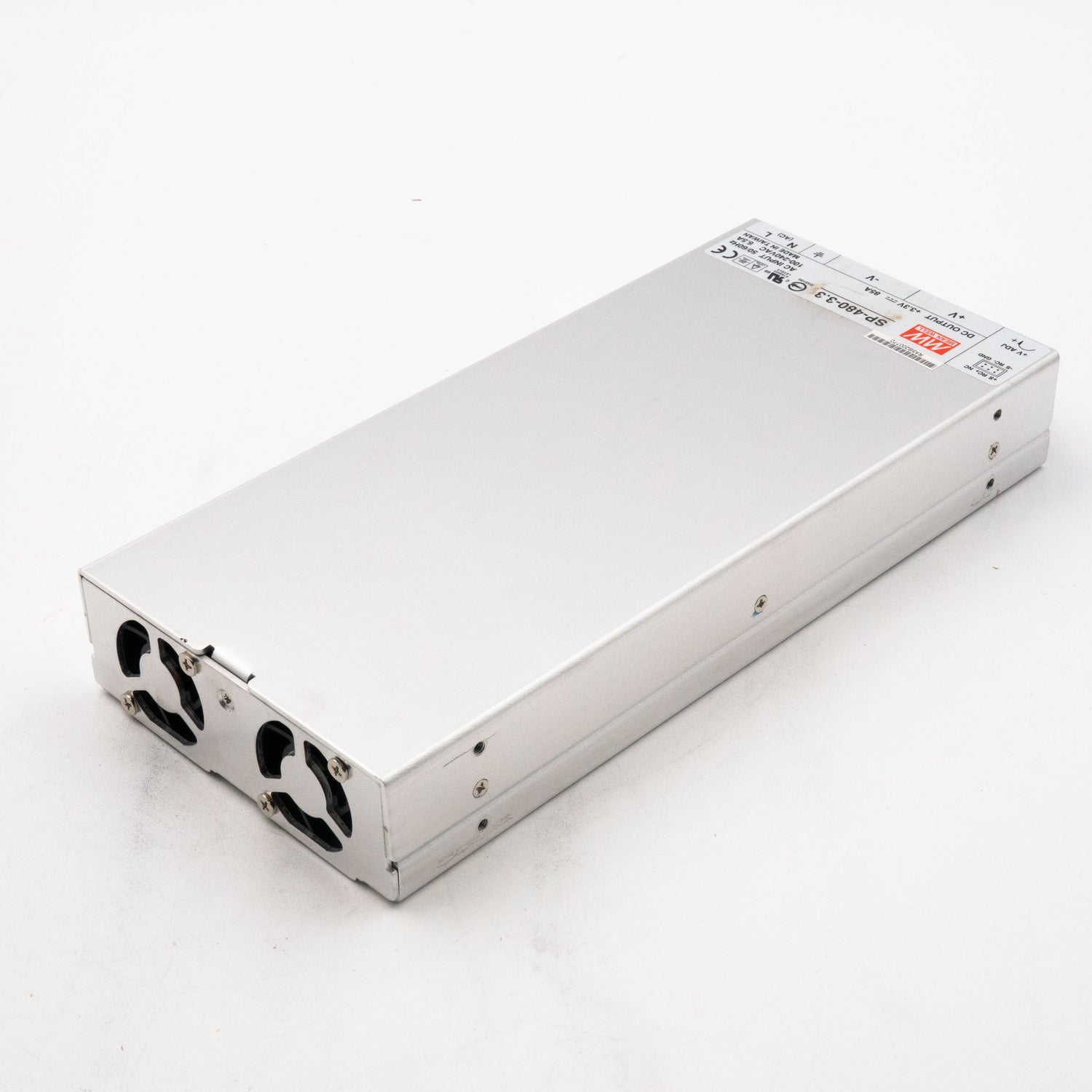

Mean Well SP-480-3.3 Power Supply 480W 3.3V 85A

SKU SP-480-3.3
$127.53 USD
Shipping calculated at checkout.
End of Life, Succeeded by RSP-480-3.3
In stock
|

Overview

SP-480-3.3 is the 3.3V output model of this series: rated current 85A, rated power 280.5W, typical efficiency 74%.

Features

  • Universal AC input / Full range
  • Built in active PFC function, PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • High power density 5.18w/in³
  • Low profile:43mm thickness
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • Active AC surge current limiting
  • 3 years warranty

Specifications

SP-480-3.3Specifications from the official datasheet (2018-01-04 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
3.3V
RATED CURRENT
85A
CURRENT RANGE
0 ~ 85A
RATED POWER
280.5W
PEAK LOAD(10min.)Note.5
280.5W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
2.9 ~ 3.6V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 80ms/230VAC 2500ms, 80ms/115VAC at full load
HOLD UP TIME (Typ.)
18ms/230VAC 18ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
74%
AC CURRENT (Typ.)
6.5A/115VAC 3.5A/230VAC
INRUSH CURRENT (Typ.)
20A/115VAC 40A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
87 ~ 103A Protection type : Constant current limiting, recovers automatically after conditions is removed
OVER VOLTAGE
3.8 ~ 4.45V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURENote.4
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL
RC+/RC-: 0 ~ 0.8V=power on ; 4 ~ 10V=power off

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS
UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:Short
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), light industry level, criteria A

OTHERS

MTBF
120.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
278*127*43mm (L*W*H)
PACKING
1.7Kg; 6pcs/11.3Kg/0.67CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. TSW1: Detect on heatsink of power transistor. TSW2: Detect on heatsink of output diode.
  5. 5. 33% Duty cycle maximum within every 30 minute. Average output power should not exceed the rated power.
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
  7. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SP-480-3.3 Mechanical Specification
Mechanical Specification
SP-480-3.3 Block Diagram
Block Diagram
SP-480-3.3 Derating Curve
Derating Curve
SP-480-3.3 Control Terminal Instruction Manual
Control Terminal Instruction Manual
SP-480-3.3 Control Terminal Instruction Manual (2)
Control Terminal Instruction Manual (2)

Downloads

FAQ

Can I use the SP-480-3.3 for 3.3V digital or embedded systems that need very high current?

Yes, this model is rated for a 3.3V single output at up to 280.5W and 85A. It is intended for applications that need a large 3.3V DC power rail rather than higher-voltage outputs.

Is the SP-480-3.3 suitable for industrial computing or logic-heavy equipment with a 3.3V bus?

It can support 3.3V equipment with high current demand because it provides up to 85A. The unit is designed for single-output 3.3V use where total power reaches 280.5W.

Can this power supply support low-voltage electronics in automation or embedded hardware racks?

Yes, if the hardware is built for 3.3V DC, this supply provides up to 280.5W and 85A from one output. That makes it relevant for dense low-voltage electronic loads that need substantial current.

What temperature and location conditions are listed for the SP-480-3.3?

The published operating temperature range is -20°C to +60°C. No IP rating appears in the provided specs, so the data does not define weather-resistant or outdoor use.

How does the SP-480-3.3 compare with the other SP-480 versions?

The SP-480-3.3 is the 3.3V version of the family and is rated at 280.5W and 85A. Other listed SP-480 models are SP-480-12 at 480W, 12V, 40A; SP-480-15 at 480W, 15V, 32A; SP-480-24 at 480W, 24V, 20A; SP-480-48 at 480W, 48V, 10A; and SP-480-5 at 425W.
