Mean Well SP-200-12 Power Supply 200W 12V 16.7A

Name: Mean Well SP-200-12 Power Supply 200W 12V 16.7A
Brand: Mean Well
SKU: SP-200-12
Price: 47.76 USD
Availability: InStock

200W Single Output with PFC Function

SKU SP-200-12

$47.76 USD

Shipping calculated at checkout.

Select model — 5 in this family

SP-200-12

SP-75-12 75W 12V Low stock$31.87 USD

SP-100-12 100W 12V Backorder$36.72 USD

SP-200-12 200W 12V Backorder$47.76 USD

SP-320-12 320W 12V Backorder$58.97 USD

SP-480-12 480W 12V Low stock$127.53 USD

Product variants

End of Life, Succeeded by RSP-200-12

Available to order

Overview

SP-200-12 is the 12V output model of this series: rated current 16.7A, rated power 200.4W, typical efficiency 84%.

Features

Universal AC input / full range
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan speed control
Built-in constant current limiting circuit
Built-in fan speed control
Remote ON-OFF control(Optional)
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

SP-200-12Specifications from the official datasheet (2021-09-15 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 16.7A
CURRENT RANGE: 0 ~ 16.7A
RATED POWER: 200.4W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 11.4 ~ 13.2V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 600ms, 40ms at full load
HOLD UP TIME (Typ.): 20ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.97/115VAC at full load
EFFICIENCY (Typ.): 84%
AC CURRENT (Typ.): 3.5A/115VAC 1.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.2 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL(OPTION): CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL60950-1, CCC GB4943 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A

OTHERS

MTBF: 183.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*99*50mm (L*W*H)
PACKING: 0.85Kg; 20pcs/17.9Kg/1.21CUFT

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

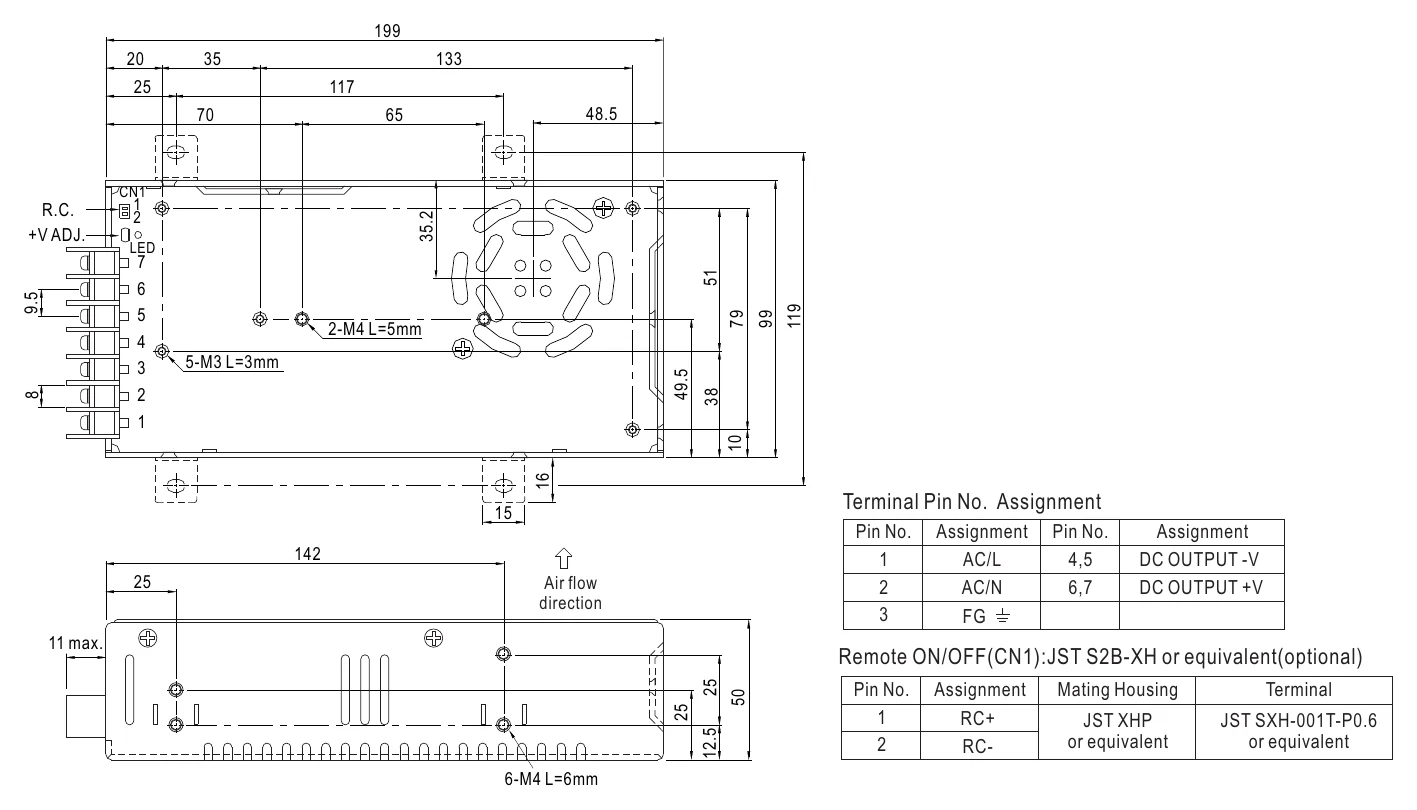

SP-200-12 Mechanical Specification — Mechanical Specification

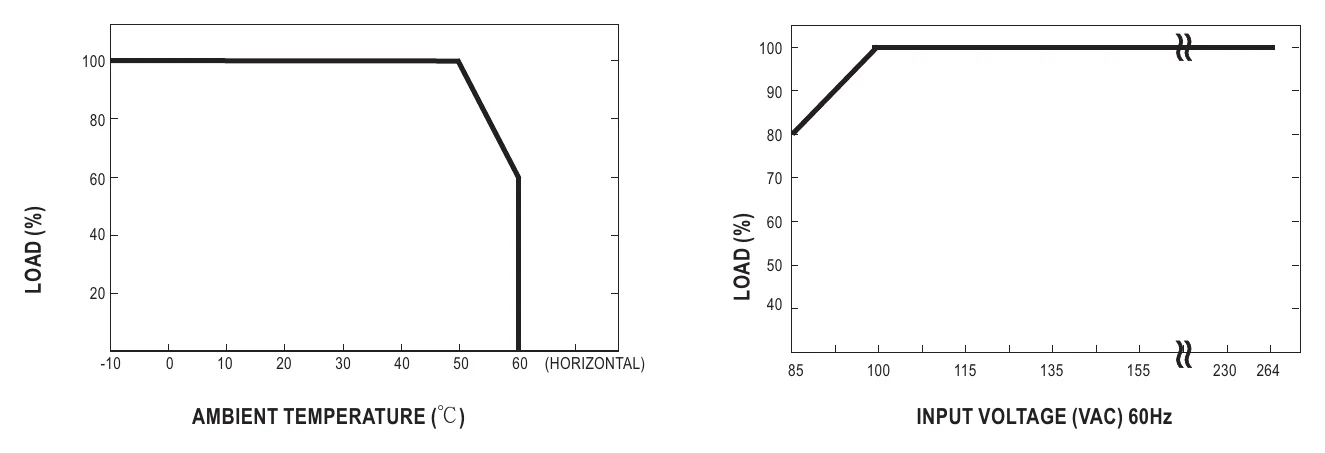

SP-200-12 Derating Curve — Derating Curve

Downloads

Datasheet1

SP-200-12 datasheetSP_200_spec.pdf · 2021-09-15 edition PDF Download

FAQ

Can I use the SP-200-12 to power a 12V PLC or industrial control panel?

Yes, this is a constant-voltage 12V power supply rated for 200.4W and 16.7A. It is appropriate for 12V industrial control loads that require regulated 12V and stay within that current and power capacity.

Is the SP-200-12 suitable for 12V CCTV, access control, or building automation equipment?

It can be used for 12V constant-voltage building and security systems when the combined load does not exceed 16.7A or 200.4W. Buyers typically choose this type of supply when several 12V devices need one centralized source.

Would this work for a 12V embedded computer, HMI, or industrial display setup?

Yes, if the equipment is designed for 12V DC input and the total draw stays within 16.7A. The SP-200-12 provides a fixed 12V output rather than an adjustable multi-voltage output, which suits dedicated 12V systems.

Can the SP-200-12 support a larger 12V LED or signage load than a lower-power 12V supply?

Yes, it offers 200.4W at 12V, so it supports more 12V load than smaller 12V models such as the SP-100-12. It is intended for constant-voltage 12V applications that need higher current availability.

Is the SP-200-12 rated for harsh temperature conditions or outdoor use?

Its specified operating range is -10°C to +60°C. No IP rating is listed in the provided specs, so the product data does not define it as an outdoor or weather-exposed power supply.
