Mean Well SP-150-24 Power Supply 150W 24V 6.3A

Name: Mean Well SP-150-24 Power Supply 150W 24V 6.3A
Brand: Mean Well
SKU: SP-150-24
Price: 41.24 USD
Availability: InStock

150W Single Output with PFC Function

SKU SP-150-24

$41.24 USD

Shipping calculated at checkout.

Select model — 4 in this family

SP-150-24

SP-100-24 100W 24V Backorder$36.72 USD

SP-150-24 150W 24V Backorder$41.24 USD

SP-200-24 200W 24V Backorder$47.76 USD

SP-480-24 480W 24V Backorder$127.53 USD

Product variants

End of Life, Succeeded by RSP-150-24

Available to order

Overview

SP-150-24 is the 24V output model of this series: rated current 6.3A, rated power 150W, typical efficiency 85%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Remote ON-OFF control(Optional)
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

SP-150-24Specifications from the official datasheet (2021-09-15 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 6.3A
CURRENT RANGE: 0 ~ 6.3A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 22.8 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 700ms, 40ms at full load
HOLD UP TIME (Typ.): 20ms at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.97/115VAC at full load
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 2.5A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 26.4 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL(OPTION): CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -10 ~ +55℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A

OTHERS

MTBF: 191.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*99*50mm (L*W*H)
PACKING: 0.76Kg; 20pcs/16.4Kg/1.21CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Derating may be needed under low input voltages. Please check the derating curve for more details.

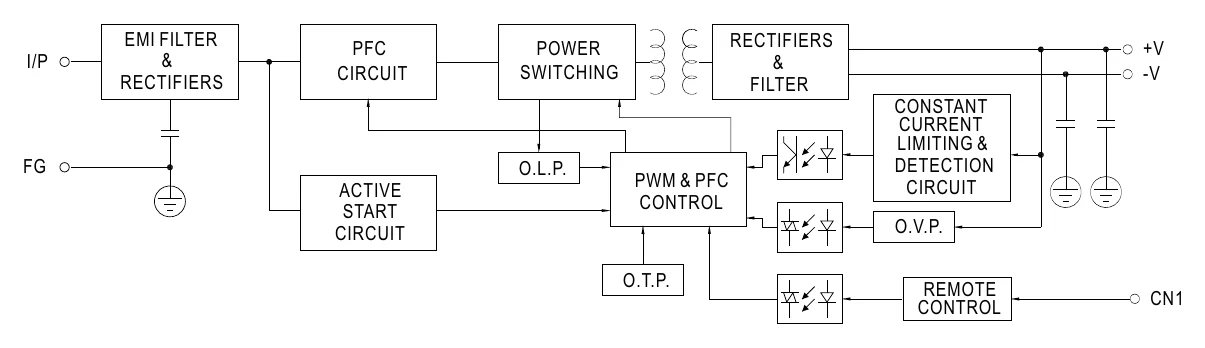

Technical drawings

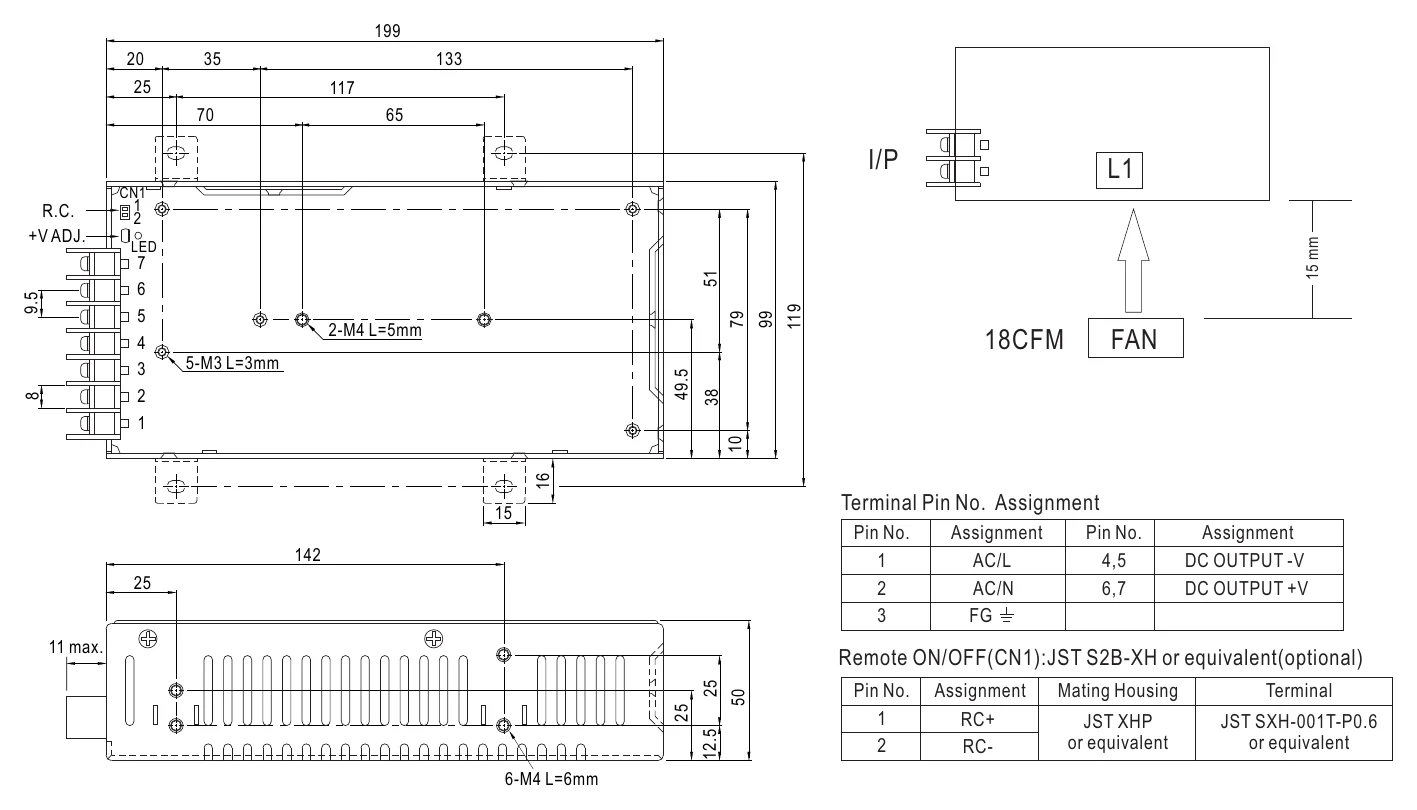

SP-150-24 Mechanical Specification — Mechanical Specification

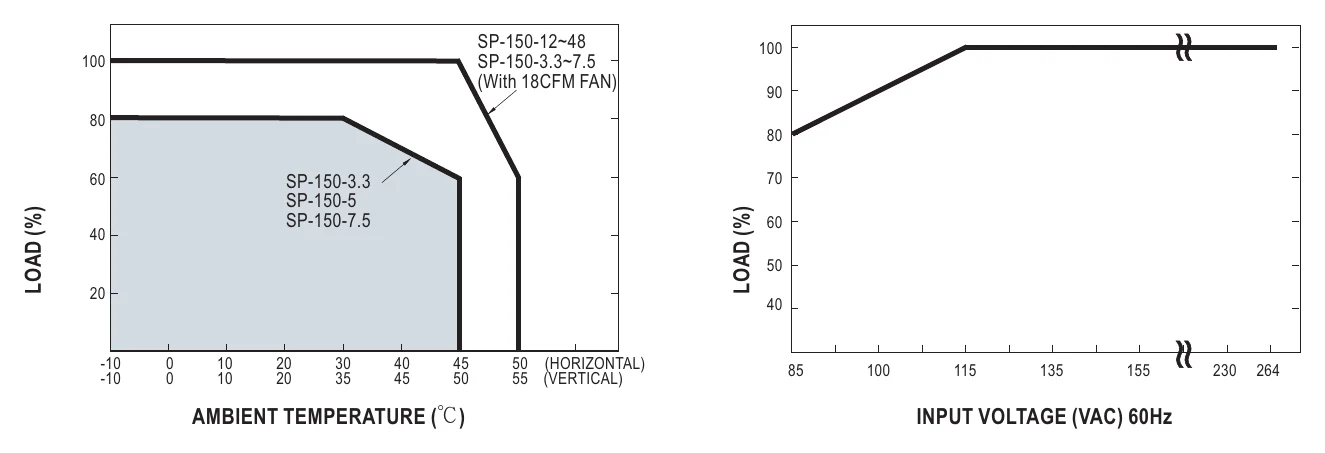

SP-150-24 Derating Curve — Derating Curve

Downloads

Datasheet1

SP-150-24 datasheetSP_150_spec.pdf · 2021-09-15 edition PDF Download

FAQ

Can I use the SP-150-24 for a larger 24V PLC or automation panel than a 100W supply can handle?

Yes, if the system requires 24V constant voltage and the total load stays within 6.3A and 150W. That gives it more 24V output headroom than the 100W, 4.2A SP-100-24 for higher-load automation panels.

Is the SP-150-24 suitable for 24V industrial control equipment with several DC loads?

It can be a fit for 24V control equipment when the combined demand remains at or below 150W and 6.3A. This is appropriate for applications built around a regulated 24V bus rather than lower-voltage logic rails.

Can the SP-150-24 power a 24V embedded rack or test station?

Yes, for 24V embedded or industrial test setups that need no more than 6.3A and 150W from a constant-voltage source. The 85-264VAC input also helps in facilities with different AC mains standards.

Is this model appropriate for indoor or outdoor environments?

The operating temperature range is -10°C to +55°C, but no IP rating is listed in the published specs. Based on that information, it should be considered an indoor power supply unless the enclosure adds the needed environmental protection.

How does the SP-150-24 compare with other 24V models listed in the SP family?

The listed 24V siblings are SP-100-24 at 100W and 4.2A, SP-150-24 at 150W and 6.3A, SP-200-24 at 200W and 8.4A, and SP-480-24 at 480W and 20A. They share the same nominal 24V output, with the main difference being available power and current.
