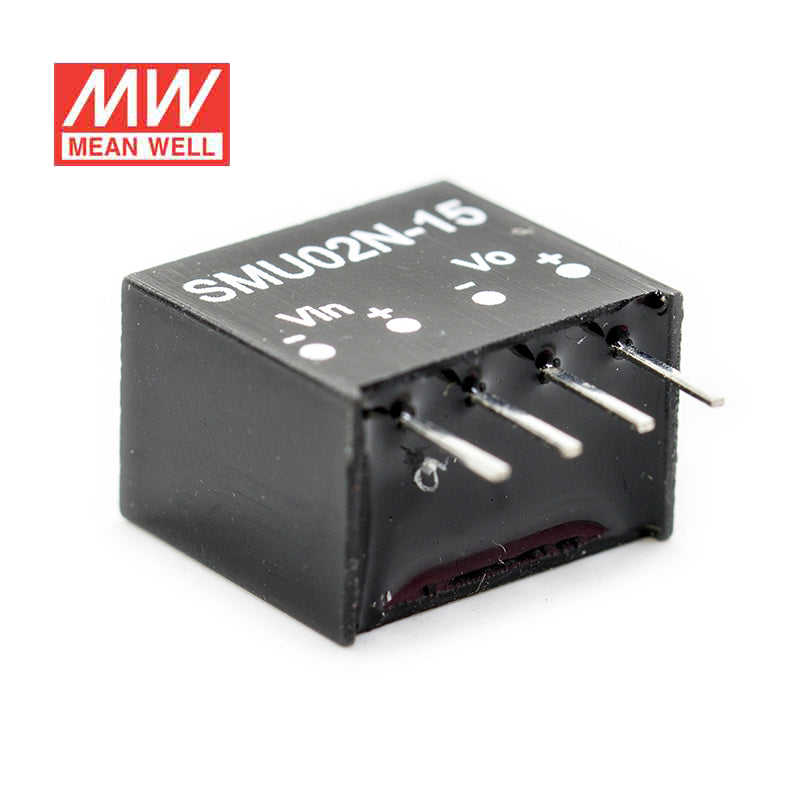

Mean Well SMU02N-15 DC-DC Converter - 2W - 21.6~26.4V in 15V out

$5.93 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

SIP package
Industry standard pinout
1500VDC I/O isolation
Built-in EMI filter without external components
Cooling by free air convection
Non-conductive plastic case
100% full load burn-in test
Low cost, high reliability
Dual in-line package for SMA01
2 years warranty

General Specification

Voltage set point accuracy ±2.0% (max.)
Line regulation ±1.2% (max.) for 1% input variation
Load regulation ±8.0% (max.)@20~100% load
Input reflected ripple 80mVp-p
Efficiency 85% (typical)
Short circuit protection Momentary
Switching frequency 100kHz (min.)
I/O isolation voltage 1500VDC (min.)
I/O isolation resistance 100MQ(min.)@500DC
Working temperature -40°C to +85°C
Storage temperature -55°C to +125°C
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Isolation capacitance 80pF (max.)
Dimension (LxWxH) (mm) 11.6 x 7.5 x 10.14mm or 0.46" x 0.30" x 0.40" inch
Safety standards UL60950-1 approved

Specifications

  • Brand
    Mean Well
  • Series
    SMU Series
  • Power Rating
    2 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.13 Ampere
  • Input Voltage
    21.6V~26.4V
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    2 Year
  • Length
    0.46 in
  • Width
    0.4 in
  • Height
    0.3 in
  • Weight
    0 lb
