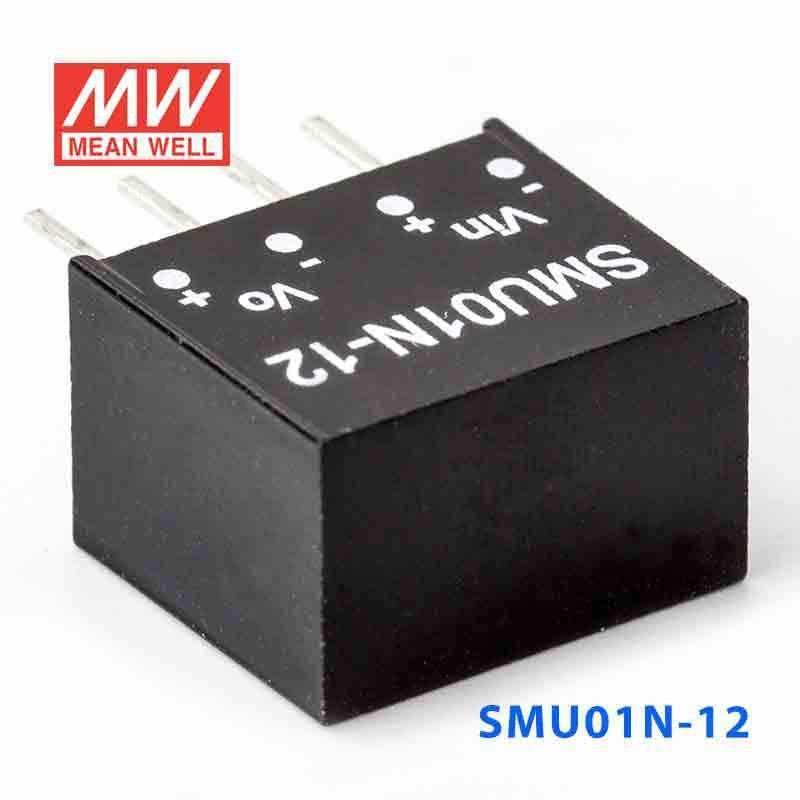

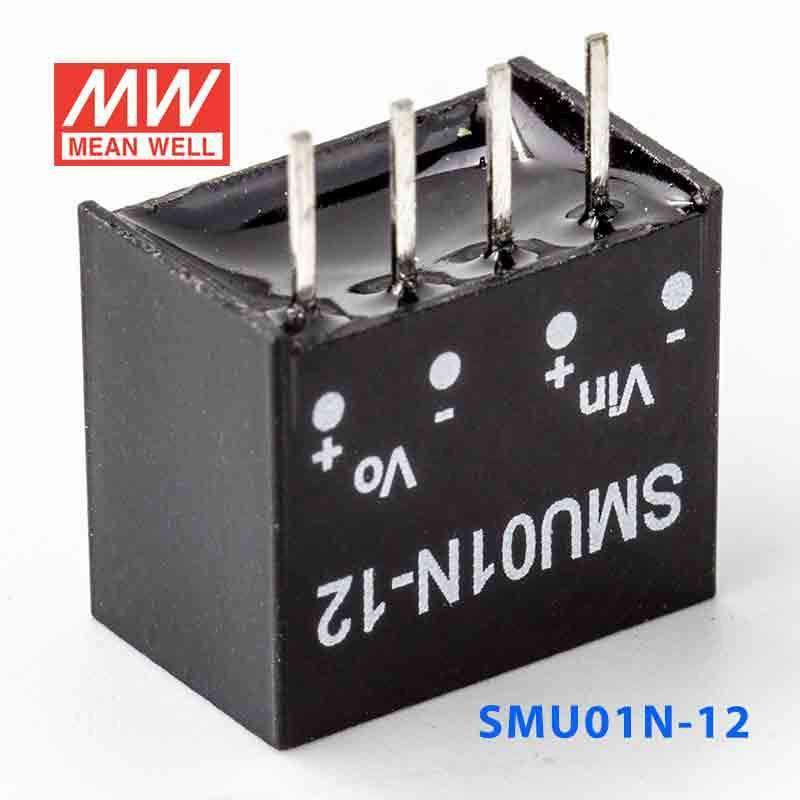

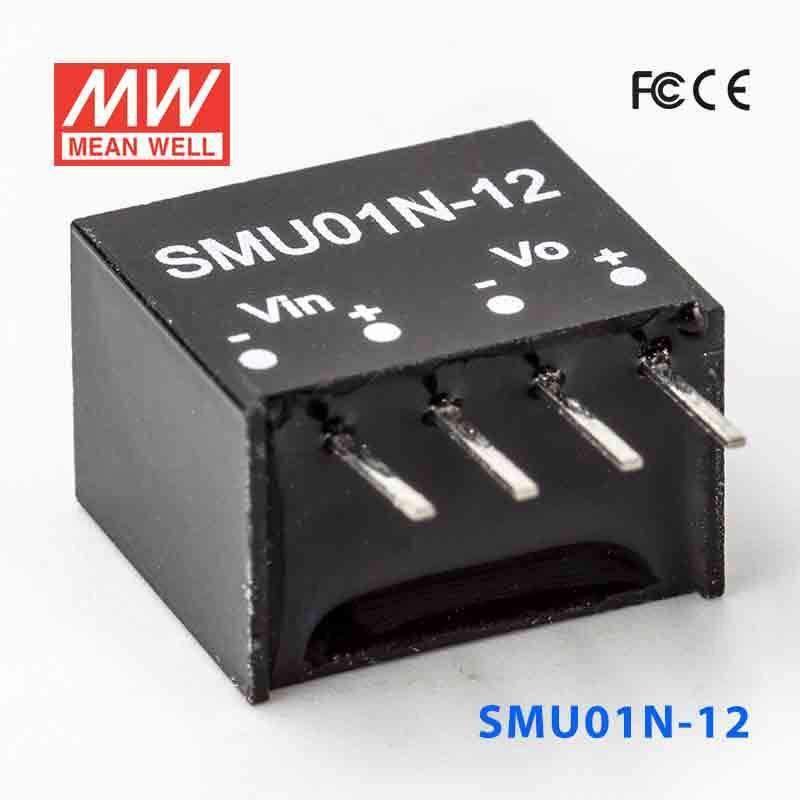

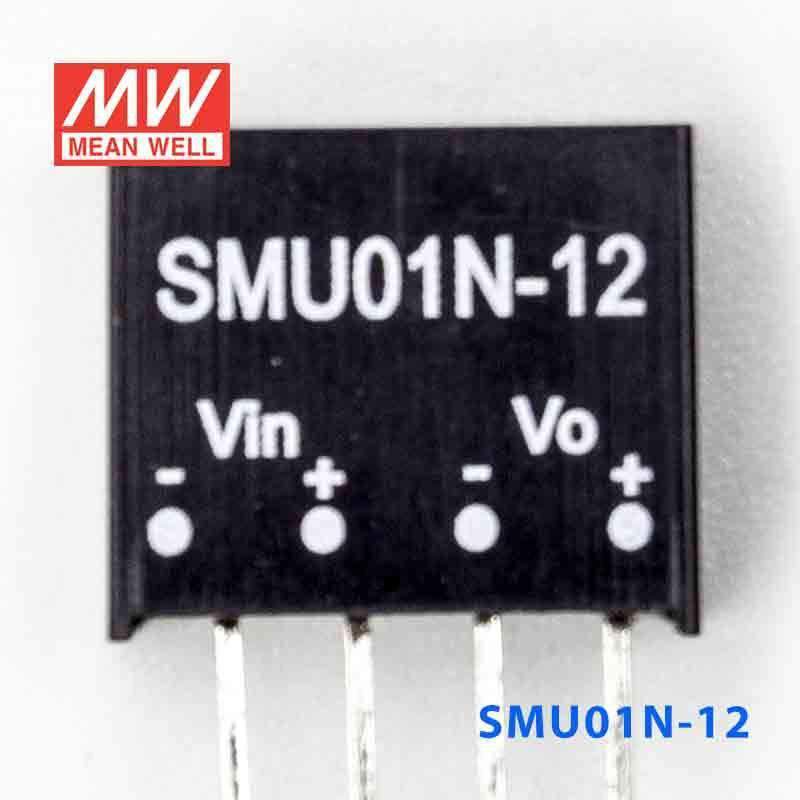

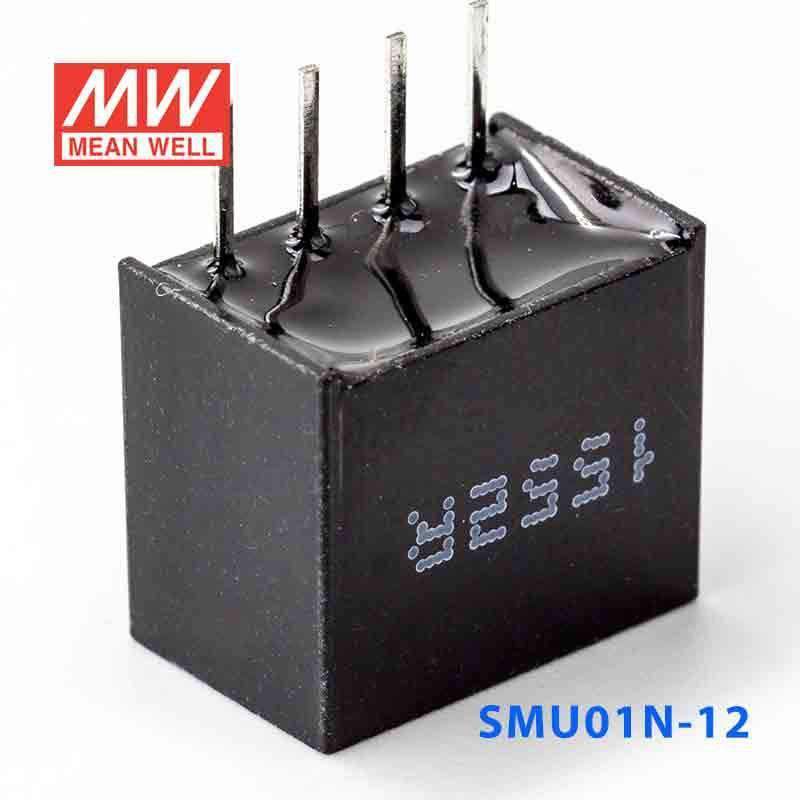

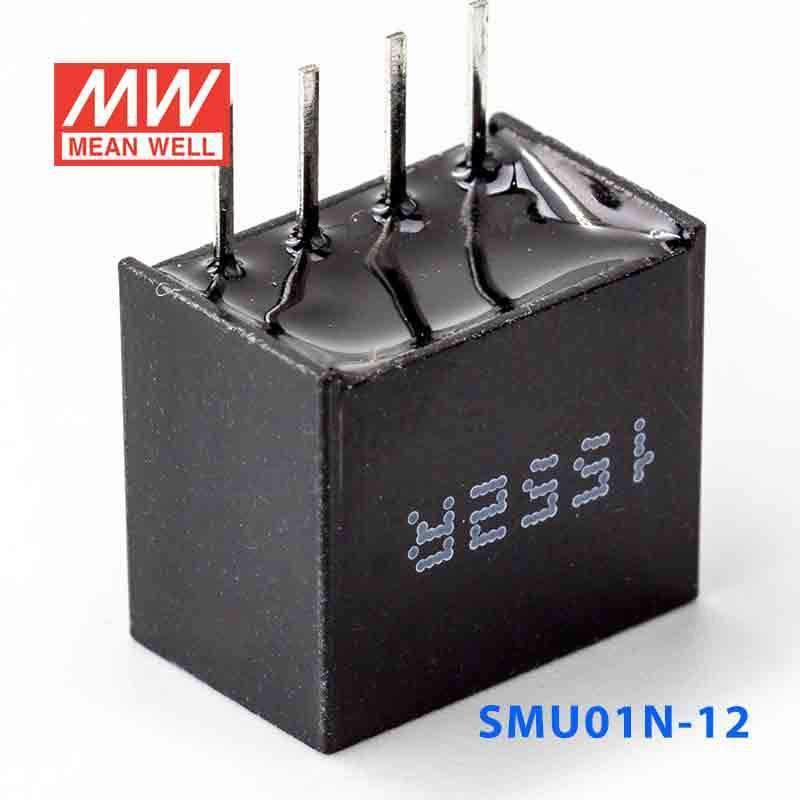

Mean Well SMU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out
$5.57 USD
Unit price /
Unavailable
Description
Description
Features
| 1500VDC I/O isolation |
| Internal SMD technology |
| Operating temperature range -40~85oC without derating |
| Built-in EMI filter |
| Protection: Short circuit |
| Cooling by free air convection |
| Non-conductive plastic case |
| 100% full load burn-in test |
| Low cost, high reliability |
| Dual in line package for SMA01 |
| Industry standard pinout |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (max.) |
| Line regulation | ±1.2% (max.) for 1% input variation |
| Load regulation | ±8% (max.)@20~100% load |
| Input reflected ripple | 100mVp-p |
| Efficiency | 80% (typical) |
| Short circuit protection | Momentary |
| Switching frequency | 100kHz (min.) |
| I/O isolation voltage | 1500VDC (min.) |
| I/O isolation resistance | 100MQ(min.)@500DC |
| Working temperature | -40°C to +85°C |
| Storage temperature | -55°C to +125°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Isolation capacitance | 80pF (max.) |
| Dimension (LxWxH) (mm) | 0.46""x 0.24""x 0.4""; 0.5""x 0.4""x 0.28"" |
| Safety standards | UL60950-1 approved |
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.29 in
-
Weight0 lb
