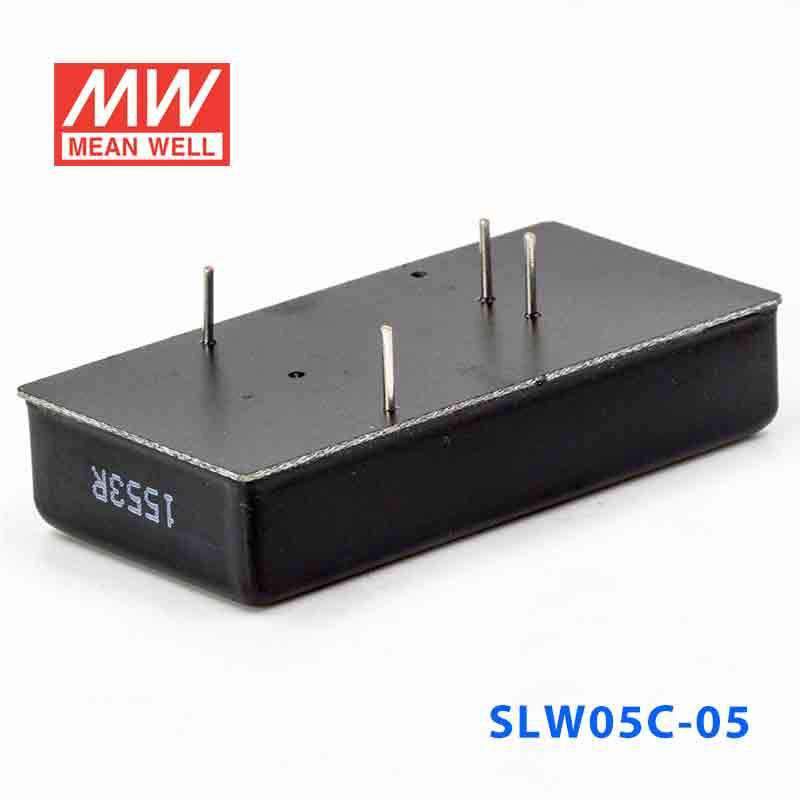

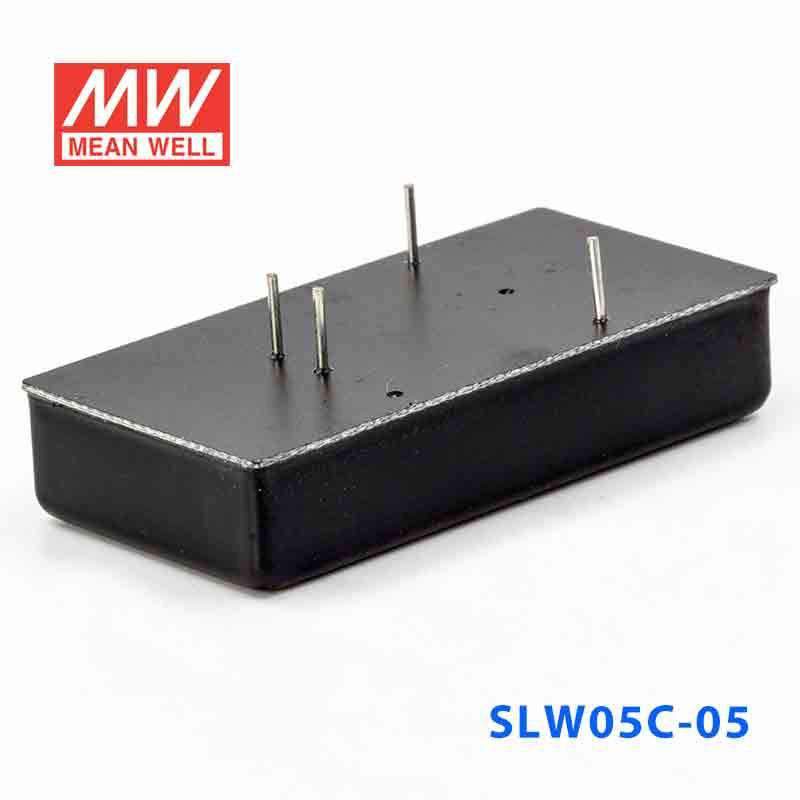

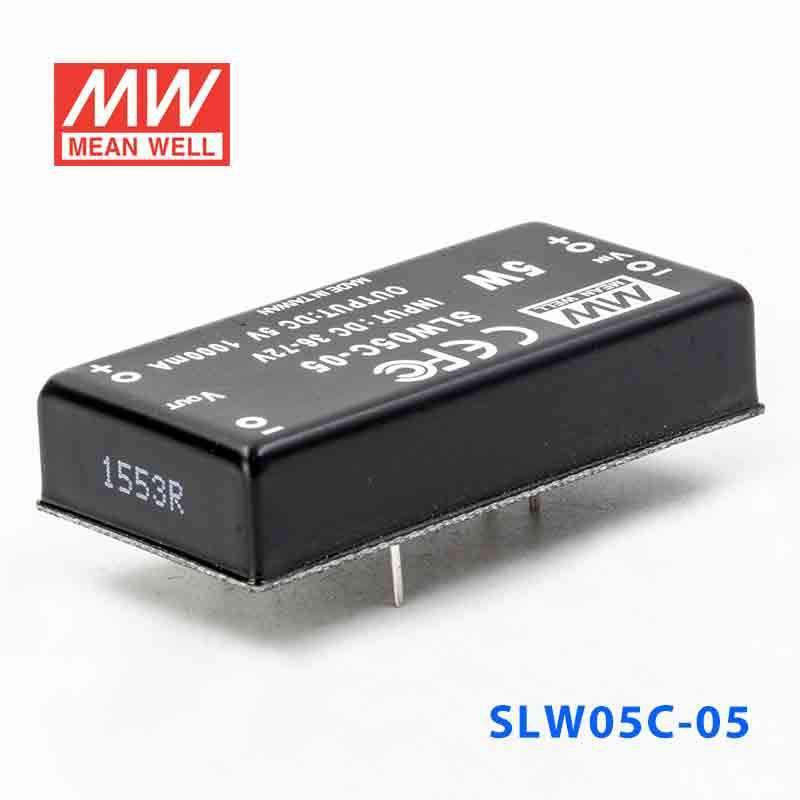

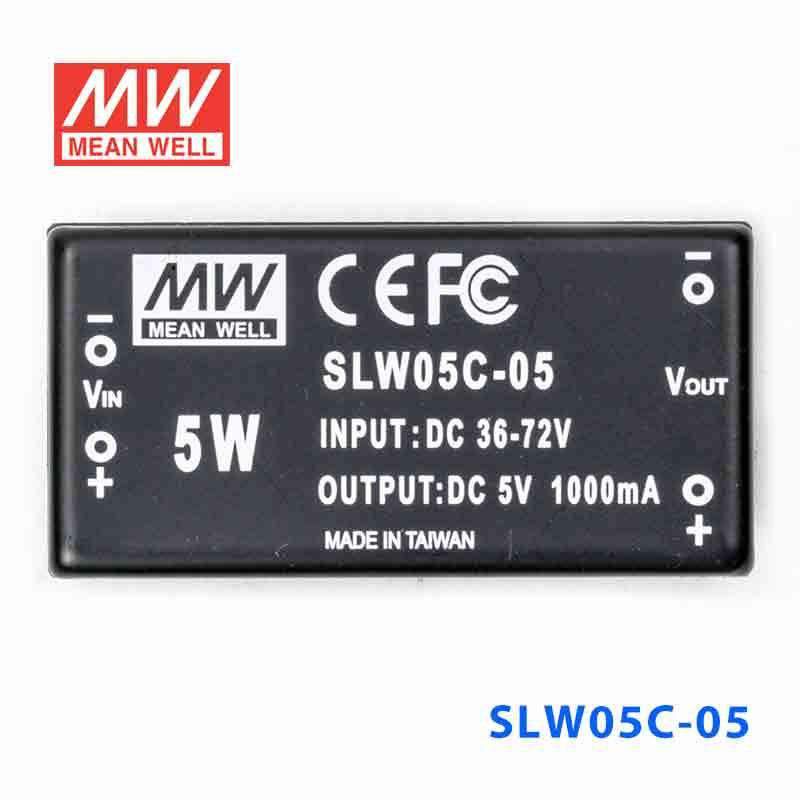

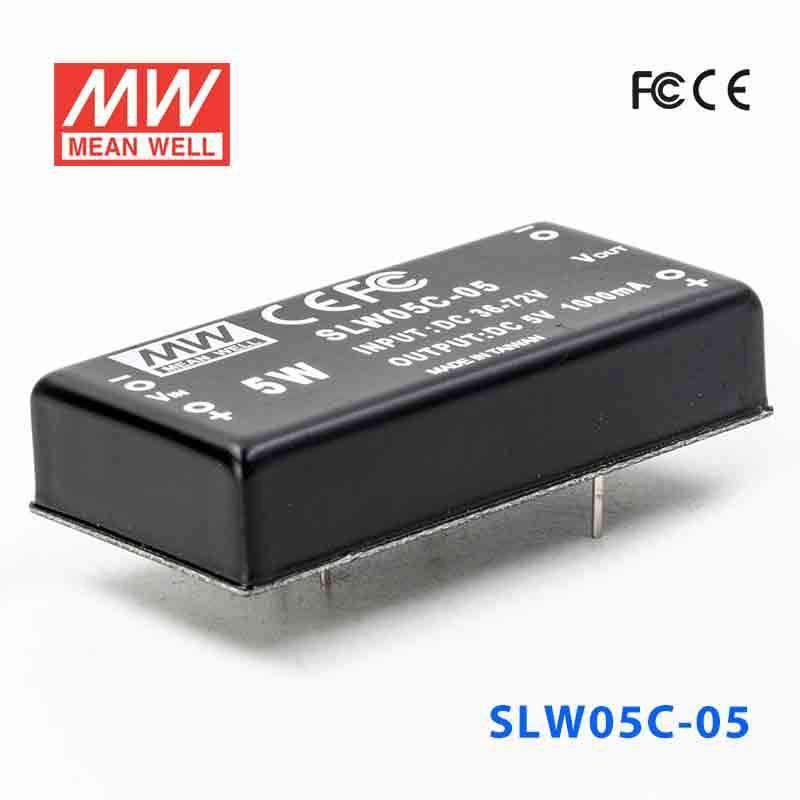

Mean Well SLW05C-05 DC-DC Converter - 5W - 36~72V in 5V out 1A

SKU SLW05C-05
$15.56 USD
Shipping calculated at checkout.
In stock
|

Overview

SLW05C-05 is the 5V output model of this series: rated power 5W, typical efficiency 77%.

Features

  • 2:1 wide input range
  • 4:1 wide input range(option)
  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

SLW05C-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
100 ~ 1000mA
RATED POWER
5W
VOLTAGE ACCURACY
±2.0%
RIPPLE & NOISE (max.)Note.2
50mVp-p
LINE REGULATIONNote.3
±0.2%
LOAD REGULATIONNote.4
±0.5%
SWITCHING FREQUENCY
50KHz min.

INPUT

VOLTAGE RANGE
36 ~ 72VDC
EFFICIENCY (Typ.)
77%
DC CURRENT Full load
135mA
DC CURRENT No load
10mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
160 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF
800khrs min. MIL-HDBK-217F(25℃)
DIMENSION
50.8*25.4*11.27mm or 2"*1"*0.44" inch (L*W*H)
PACKING
31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SLW05C-05 Mechanical Specification
Mechanical Specification
SLW05C-05 Packing
Packing

Downloads

FAQ

Can I use the SLW05C-05 to derive 5V for embedded electronics from a 36-72VDC source?

Yes, this model is built for a constant 5V output when the input is within 36-72VDC. It is rated at 5W and 1000mA output current, which makes it relevant for low-power embedded or control electronics matched to those values.

Is the SLW05C-05 a good fit for industrial monitoring or controller logic that runs on 5V?

It can fit controller logic, monitoring circuits, or other 5V electronics when the available source is 36-72VDC. The converter is constant voltage and packaged in a 50.8 × 25.4 × 11.27 mm form factor for compact installations inside equipment.

Can this 5V converter be used in higher-voltage automation systems that only need a small regulated rail?

That is the intended type of use case, provided the upstream source is in the 36-72VDC range and the downstream load stays within 5W. It is suited to small regulated 5V subcircuits rather than larger power sections.

How does the SLW05C-05 compare with the other SLW05C models?

Within the SLW05C series, SLW05C-05 is 5W, 5V, 1000mA; SLW05C-09 is 5W, 9V, 556mA; SLW05C-12 is 5W, 12V, 417mA; and SLW05C-15 is 5W, 15V, 333mA. All share 36-72VDC input, constant-voltage operation, 50.8 × 25.4 × 11.27 mm dimensions, 31.2g weight, and a -25°C to +71°C operating range.

Can the SLW05C-05 be used in outdoor equipment?

The temperature specification is -25°C to +71°C, so that part of the environment should stay within the published range. No IP rating is provided in the specs, so outdoor exposure should only be considered if the enclosure handles moisture and dust protection.
