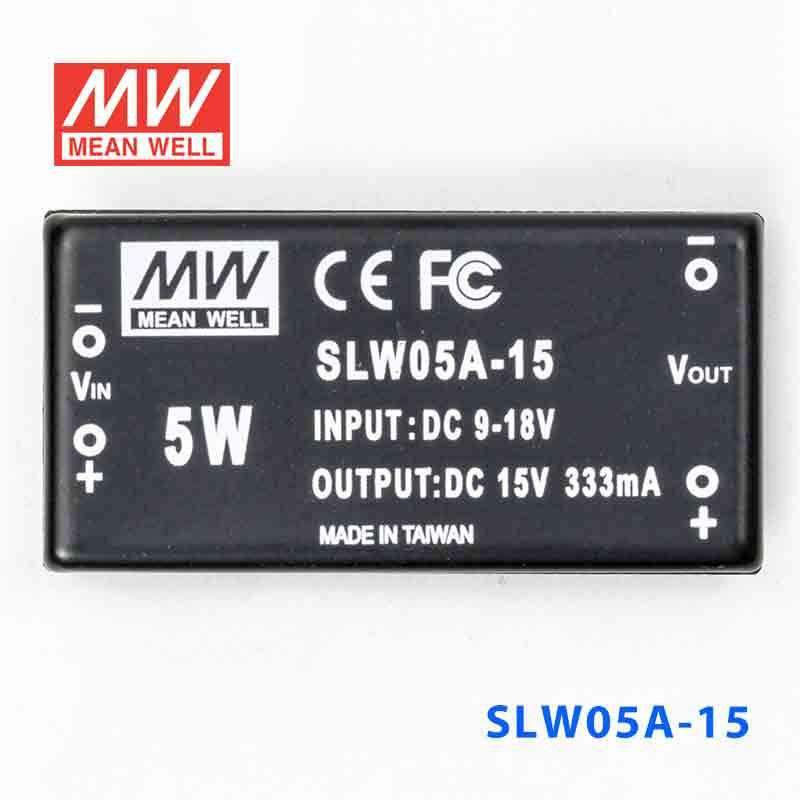

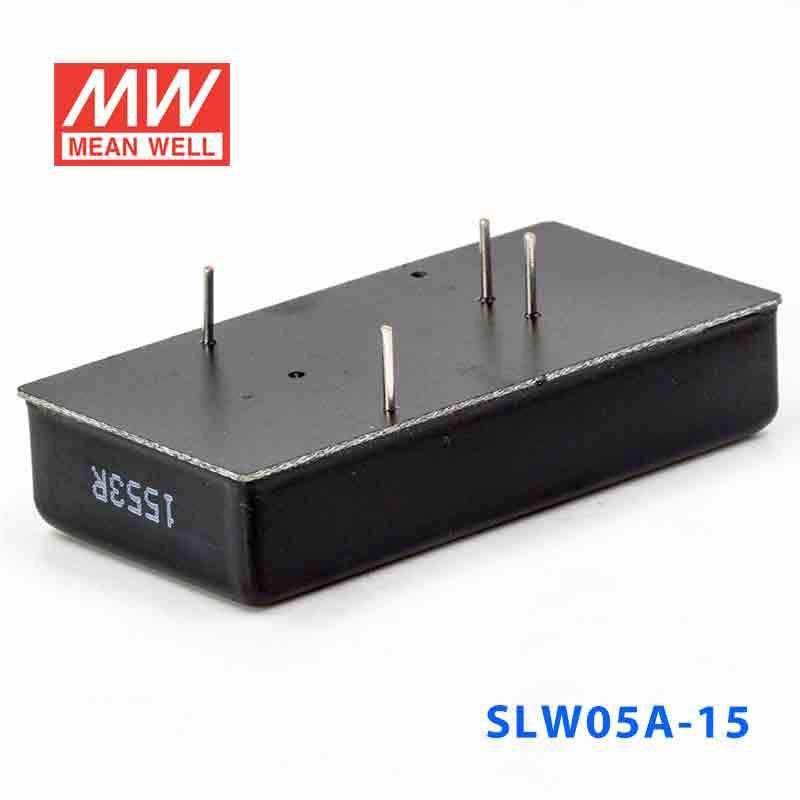

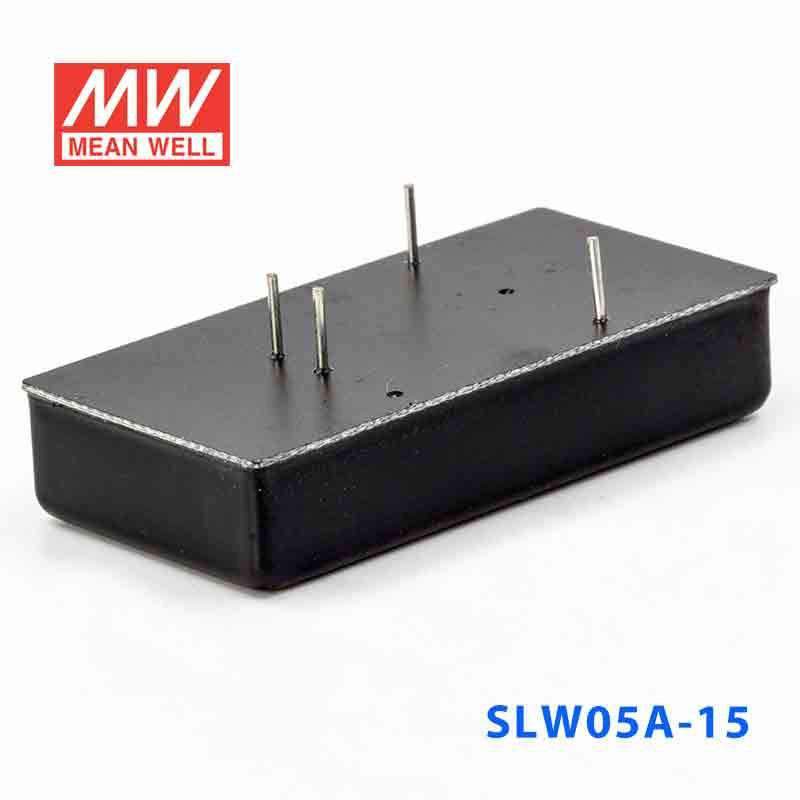

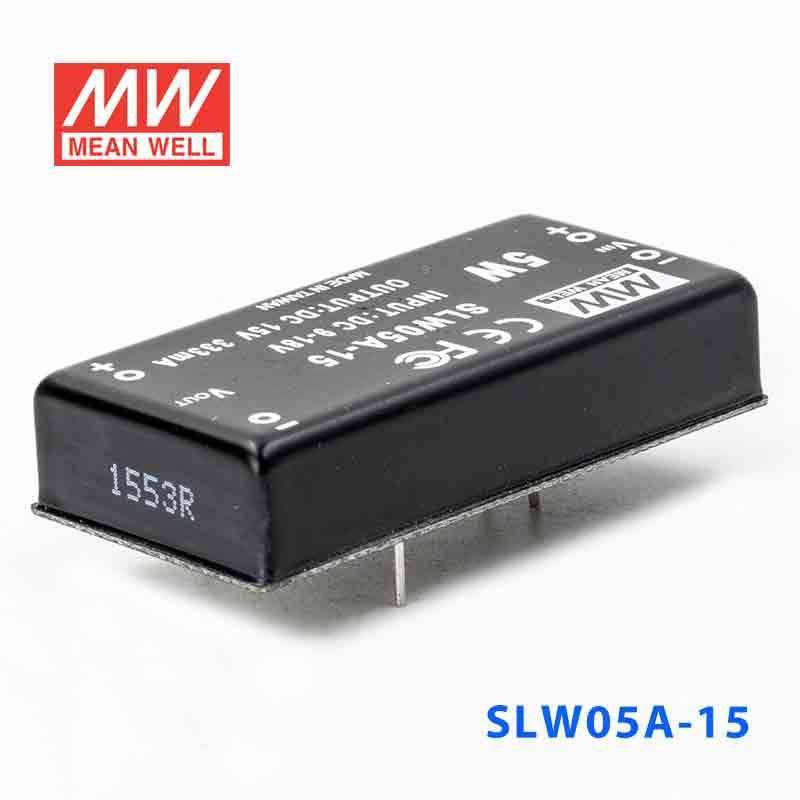

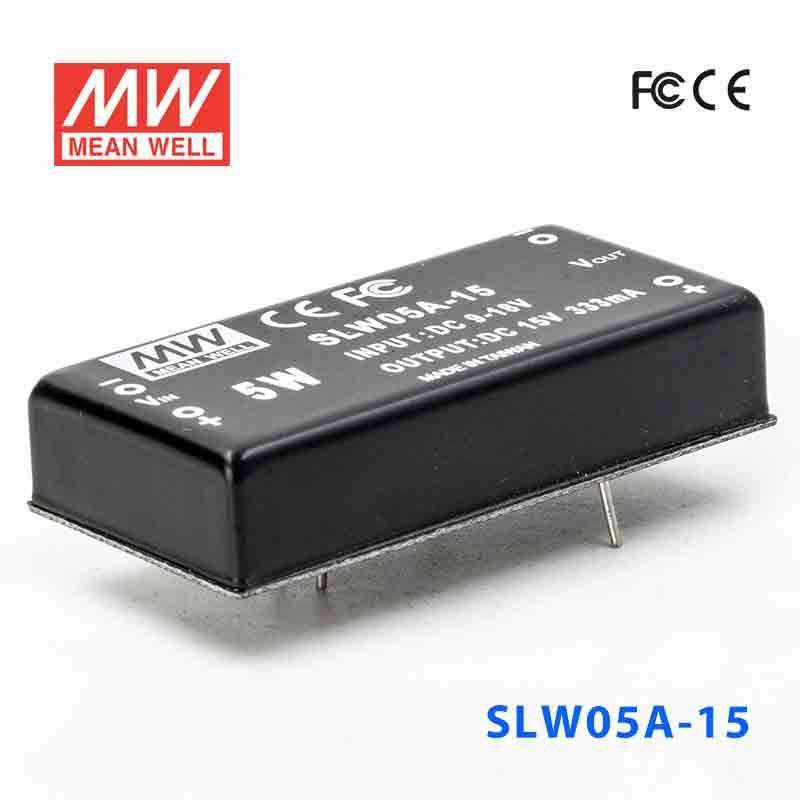

Mean Well SLW05A-15 DC-DC Converter - 5W - 9~18V in 15V out 333mA

Name: Mean Well SLW05A-15 DC-DC Converter - 5W - 9~18V in 15V out 333mA
Brand: Mean Well
SKU: SLW05A-15
Price: 15.56 USD
Availability: InStock

SKU SLW05A-15

$15.56 USD

Shipping calculated at checkout.

In stock

Overview

SLW05A-15 is the 15V output model of this series: rated power 5W, typical efficiency 81%.

Features

Specifications

SLW05A-15Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE: 15V
CURRENT RANGE: 33.3 ~ 333mA
RATED POWER: 5W
VOLTAGE ACCURACY: ±2.0%
RIPPLE & NOISE (max.)^Note.2: 60mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY: 50KHz min.

INPUT

VOLTAGE RANGE: 9 ~ 18VDC
EFFICIENCY (Typ.): 81%
DC CURRENT Full load: 556mA
DC CURRENT No load: 33mA
FILTER: Pi network
PROTECTION: Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT: 160 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF: 800khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 50.8*25.4*11.27mm or 2"*1"*0.44" inch (L*W*H)
PACKING: 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SLW05A-15 Mechanical Specification — Mechanical Specification

Downloads

Certificates2

EMC Certificate (SLW05)(EN) PDF Download

FCC Certificate (SLW05)(EN) PDF Download

Test reports1

Test Report(SLW05A)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SLW05A-15 for low-power analog or instrumentation circuits that need 15V?

Yes, this model provides a constant 15V output and is rated for 5W. That makes it a practical option for low-power analog, instrumentation, or signal-conditioning electronics designed around a 15V rail.

Is the SLW05A-15 suitable for legacy industrial electronics that run on 15V?

It can be used with older or specialized industrial electronics that require a fixed 15V supply, provided the load remains within 5W. The input available to the converter must be within 9-18VDC.

Can this converter power a compact test or calibration module with a 15V requirement?

Yes, it is suited to compact low-power electronics that need a regulated 15V output rather than a higher-power supply. The small 50.8 × 25.4 × 11.27 mm form factor and 31.2g weight can help in tighter equipment layouts.

Is the SLW05A-15 meant for indoor or outdoor conditions?

The operating temperature range is -25°C to +71°C, but no IP rating is specified. Based on the published specs, it is better treated as a converter for protected indoor equipment or enclosed assemblies rather than exposed outdoor locations.

How does the SLW05A-15 compare with the rest of the SLW05A series?

All listed SLW05A variants are 5W converters, but the output combinations differ. The series includes 5V and 1000mA on SLW05A-05, 9V and 556mA on SLW05A-09, 12V and 417mA on SLW05A-12, and 15V and 333mA on SLW05A-15.
