Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

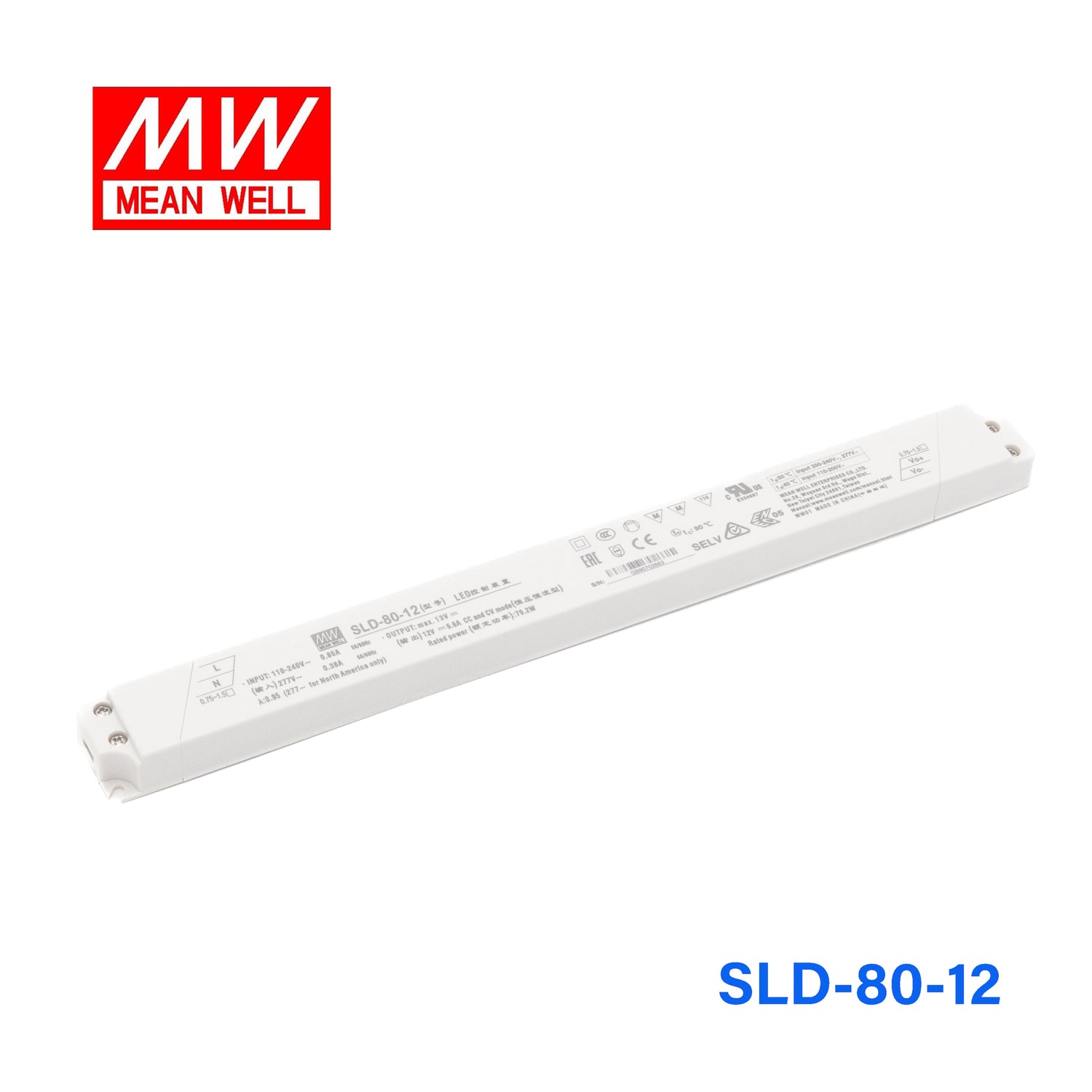

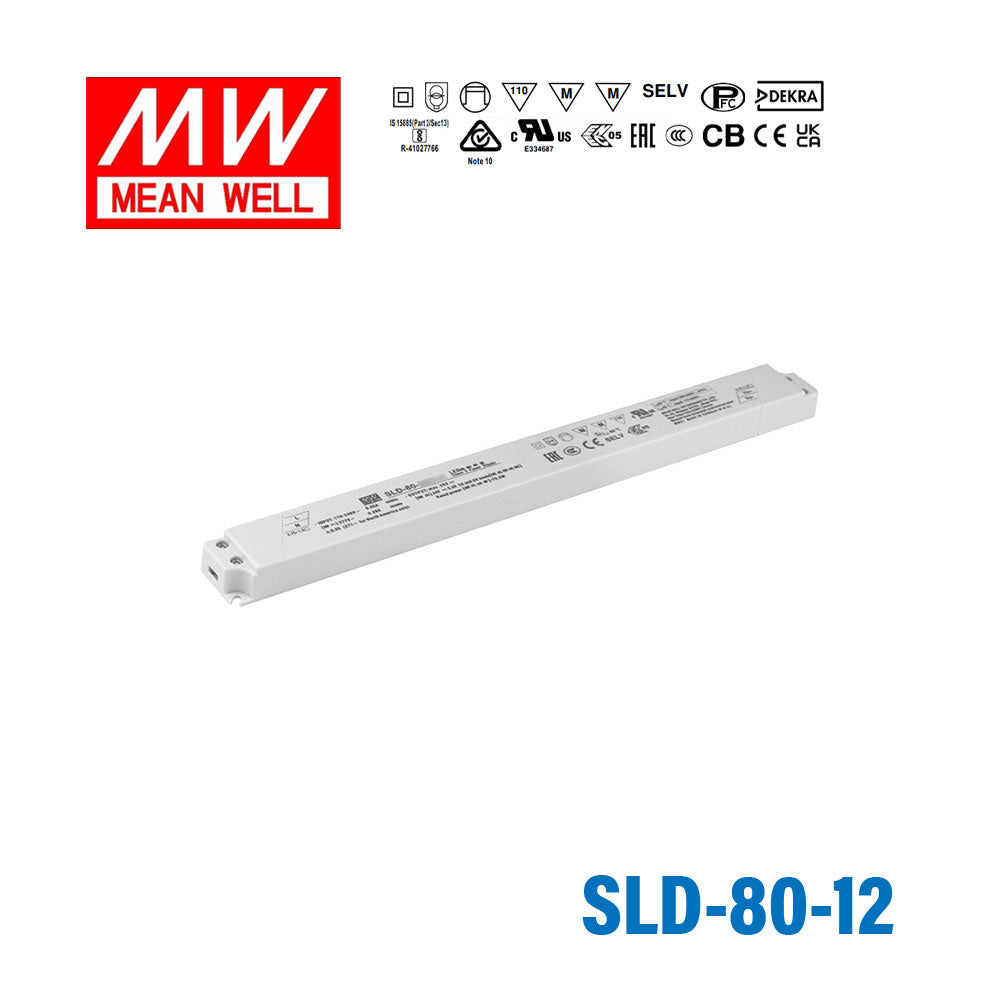

Mean Well SLD-80-12 Linear LED Driver 80W 12V 6600mA - Slim
$32.42 USD
Unit price /
Unavailable
Description
Description
The SLD-80 is a 80W Mean Well power converter (input range: 110~305VAC).
Key Features
- ✓ Input voltage range: 110~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.4 UL8750(type”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, EAC TP TC 004, GB19510.1,GB19510.14
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSLD Series
-
Power Rating80 Watt
-
Output Voltage12 Volt
-
Rated Current6 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~90°C
-
Warranty3 Year
-
Length12.6 in
-
Width1.18 in
-
Height0.66 in
-
Weight0.45 lb
