Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

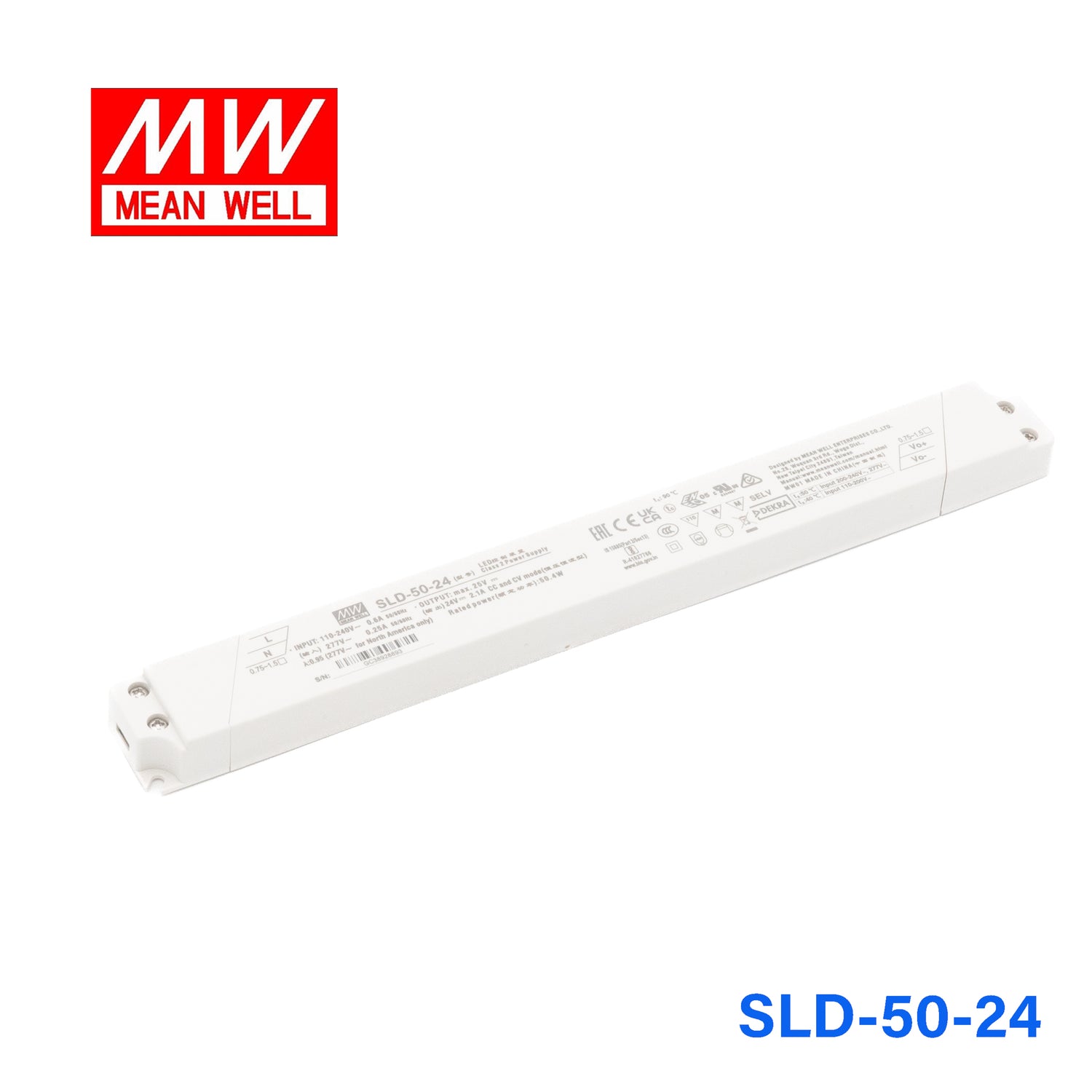

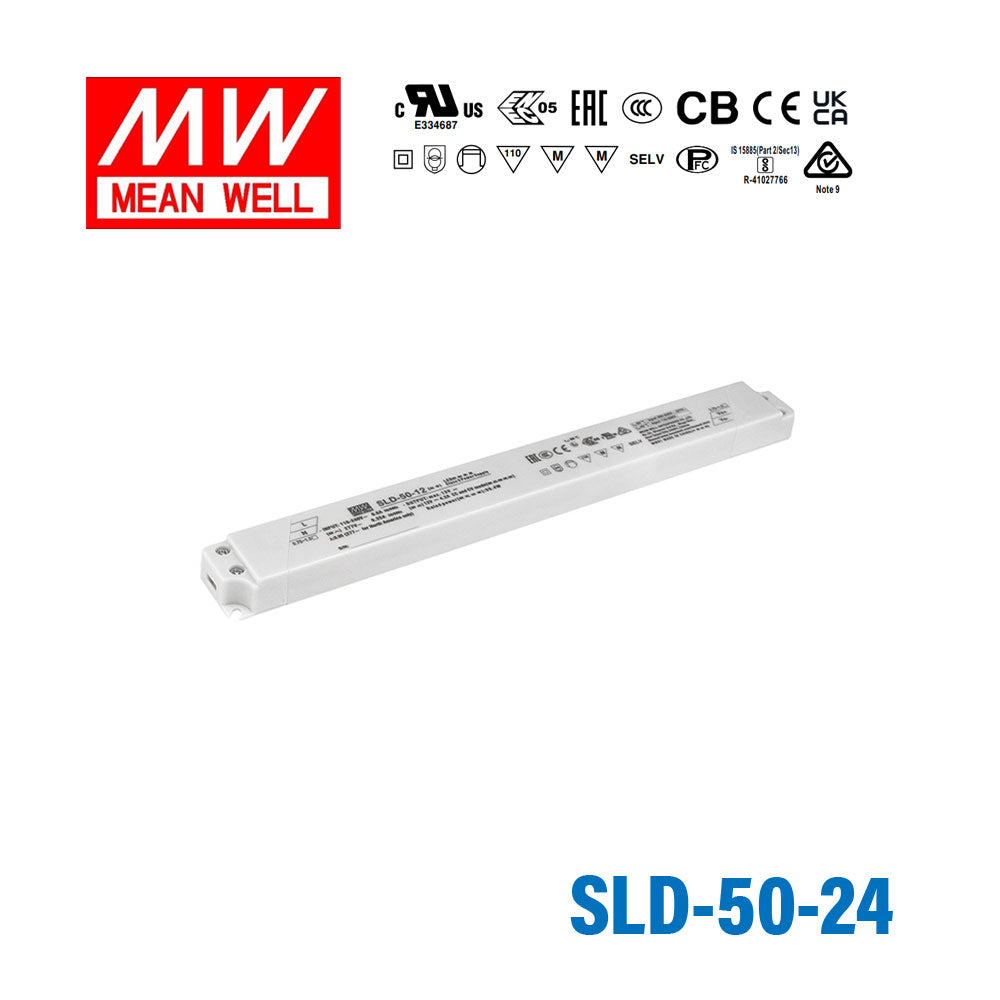

Mean Well SLD-50-24 Linear LED Driver 50.4W 24V 2100mA - Slim
$25.03 USD
Unit price /
Unavailable
Description
Description
Features
| Constant Voltage + Constant Current mode output |
| Wide input range 110-305VAC with PFC function |
| Compliance with EN6 1347 regulation |
| Class 2/ Ⅱ power unit |
| Slim and Liner housing Design |
| No load power consumption ＜ 0.5W |
| 3 years warranty |
General Specification
| AC input voltage range | 110~305VAC 155~431VDC(Please refer to "STATIC CHARACTERISTIC" section) |
| AC inrush current | COLD START 50A (width=270μs measured at 50% peak) at 230VAC ; Per NEMA 410 |
| DC Voltage | 12V |
| Over current protection | 95 ~ 108% Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage protection | 14 ~ 17V Shut down and latch off o/p voltage, re-power on to recover |
| Short circuit protection | Hiccup mode, recovers automatically after fault condition is removed |
| Over temperature protection | Shut down output voltage, re-power on to recover |
| Setup, rise, hold up time | 500ms, 80ms 115VAC / 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature | case=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards | UL8750(type ”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, EAC TP TC 004 , GB19510.1,GB19510.14 |
| EMC standards | EN55015(CISPR15) ,GB/T17743, EN61000-3-2 ,GB/T17625.1,EN61000-3-3;EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 280x30x16.8mm |
| Packing | 64pcs / 12.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesSLD Series
-
Power Rating50.4 Watt
-
Output Voltage24 Volt
-
Rated Current2.1 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~90°C
-
Warranty3 Year
-
Length11.02 in
-
Width1.18 in
-
Height0.66 in
-
Weight0.39 lb
