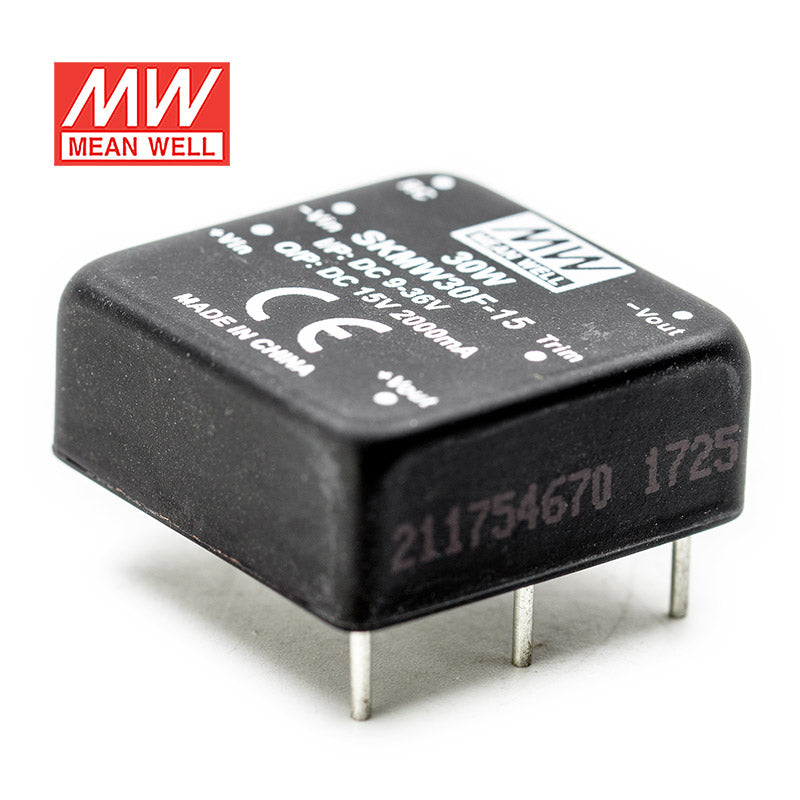

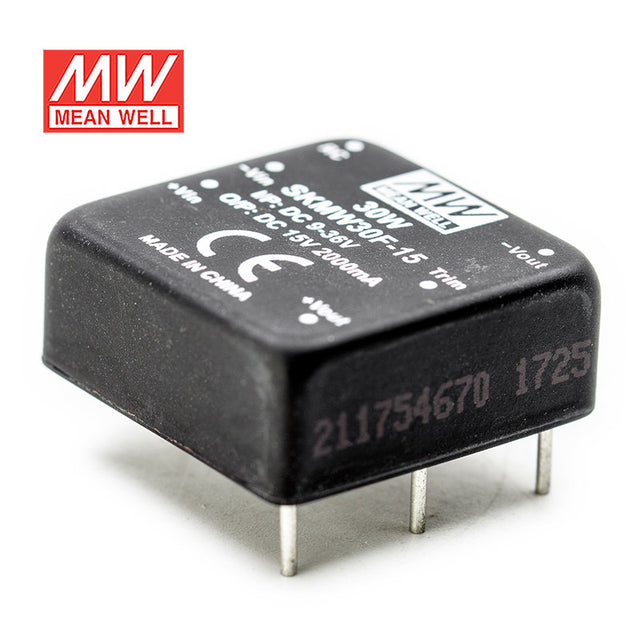

Mean Well SKMW30F-15 DC-DC Converter - 30W - 9~36V in 15V out
$40.29 USD
Unit price /
Unavailable
Description
Description
Features
| DIP 1"x1" package with industry-standard pinout |
| Operating temperature range -40~+85°C |
| 4:1 ultrawide input range |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High efficiency up to 90% |
| Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage |
| 1.5KVDC I/O isolation |
Remote ON/OFF control and trimming output (±10%) |
3 years warranty |
General Specification
| Voltage accuracy | ±1.5% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 60℃) |
| Dimension (LxWxH) (mm) | 25.4*25.4*10.2mm (1*1*0.4 inch) |
| Potting material | Black coated copper with a non-conductive base |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage9V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
