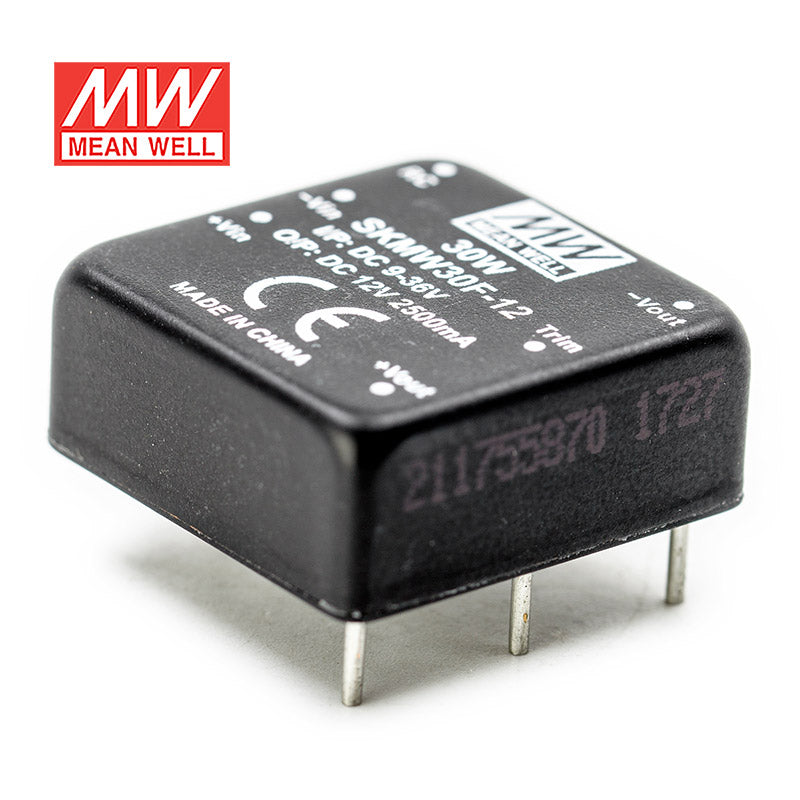

Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out
$40.29 USD
Unit price /
Unavailable
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 90%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage9V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
