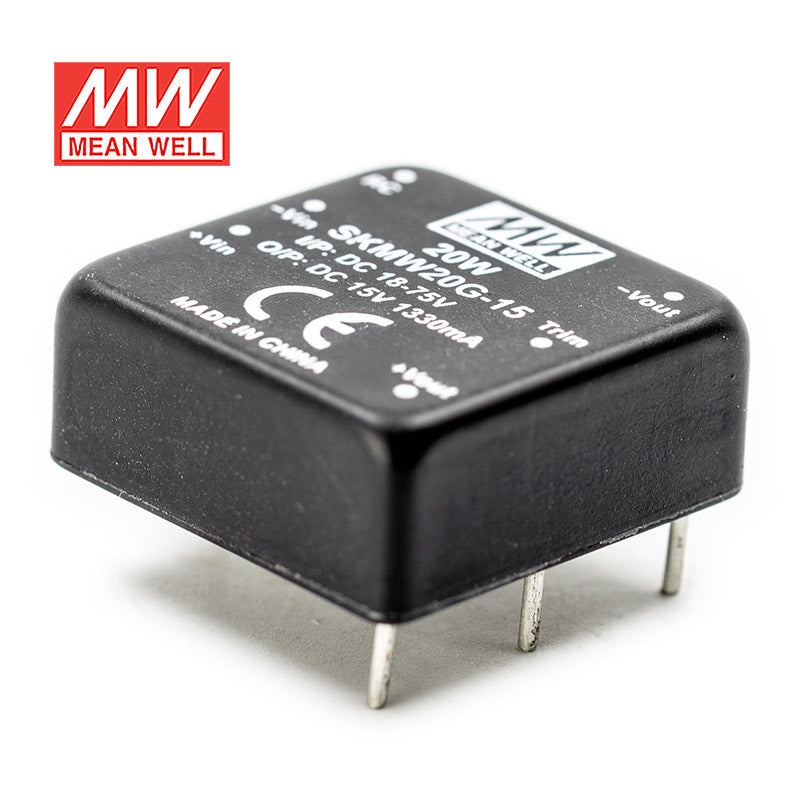

Mean Well SKMW20G-15 DC-DC Converter - 20W - 18~75V in 15V out

$38.22 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

DIP 1"x1" package with industry-standard pinout
Operating temperature range -40~+85°C
4:1 ultrawide input range
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
1.5KVDC I/O isolation

Remote ON/OFF control and trimming output (±10%)

3 years warranty


General Specification

Voltage accuracy ±1.5%
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, and Z axes
Cooling Free-air convection
Short circuit protection Continuous, automatic recovery
Working temperature -40°C to +85°C
EMC Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6
Temp. Coefficient 0.03% / ℃ (0 ~ 60℃)
Dimension (LxWxH) (mm) 25.4*25.4*10.2mm (1*1*0.4 inch)
Potting material Black coated copper with a non-conductive base

Specifications

  • Brand
    Mean Well
  • Series
    SKMW Series
  • Power Rating
    20 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    1.33 Ampere
  • Input Voltage
    18V~75V
  • Standards Met
    CE
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    1 in
  • Width
    1 in
  • Height
    0.4 in
  • Weight
    0.04 lb
