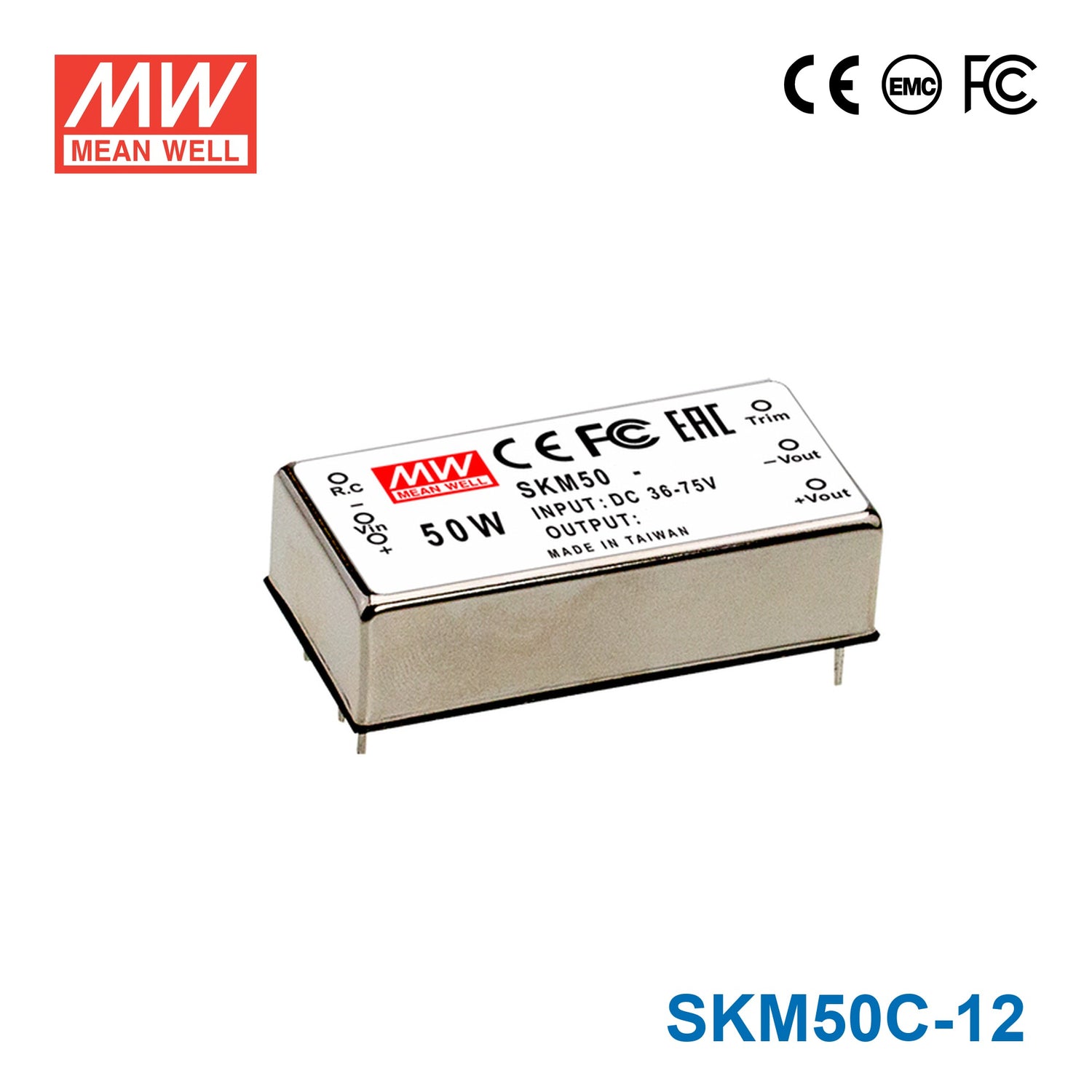

Mean Well SKM50C-12 DC-DC Converter - 50W - 36~75V in 12V out
$50.52 USD
Unit price /
Unavailable
Description
Description
Features
| DIP 2"x 1" compact size |
| 2:1 wide input range |
| High Efficiency up to 92% |
| 1500KVDC I/O isolation |
| Remote ON/OFF control and Trimming the output |
| Comply with CE / FCC without external components |
| Protection: Short circuit / Overload / Input and output over-voltage |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% burn-in test |
| Low cost / High reliability |
| Approvals: FCC / EAC / CE / UKCA |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2.0% (max.) |
| Line regulation | ±0.2% (max.) |
| Load regulation | 0.5% |
| Overload protection | 110%~140%, Protection type: Recovers automatically after fault condition is removed |
| Efficiency | 91% ; 91% ; 92% | 91% ; 90% ; 91% |
| Short circuit protection | All output equipped with short circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| I/O isolation voltage | 1500VDC (min.) |
| I/O isolation resistance | I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -40~+75°C (refer to output derating curve) |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Dimension (LxWxH) (mm) | 50.8 x 25.4 x 13.7 mm | 2" x 1" x 0.54" inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating50 Watt
-
Output Voltage12 Volt
-
Rated Current4.17 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.54 in
-
Weight0.09 lb
