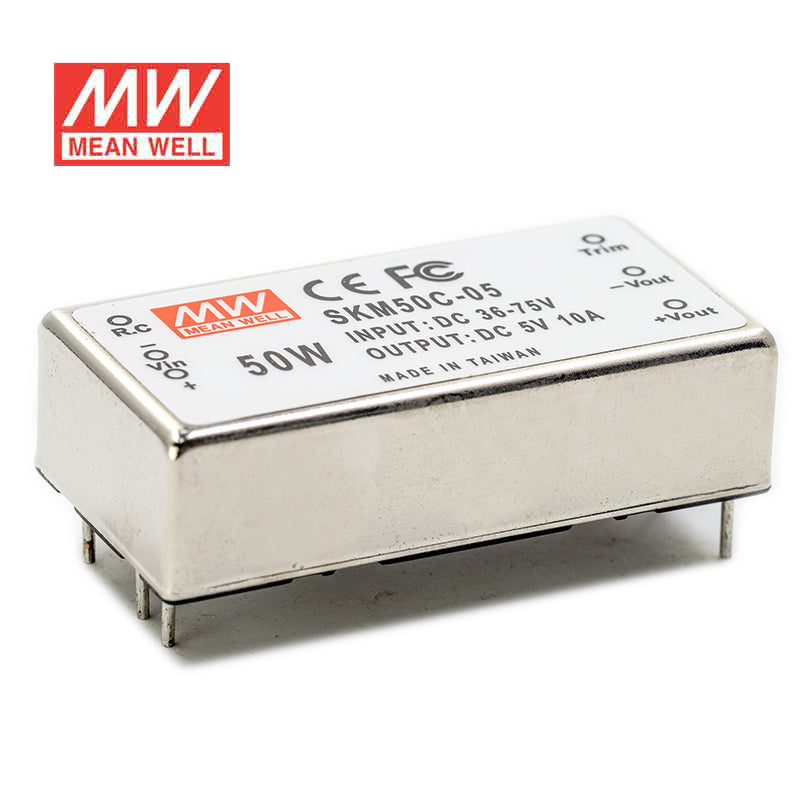

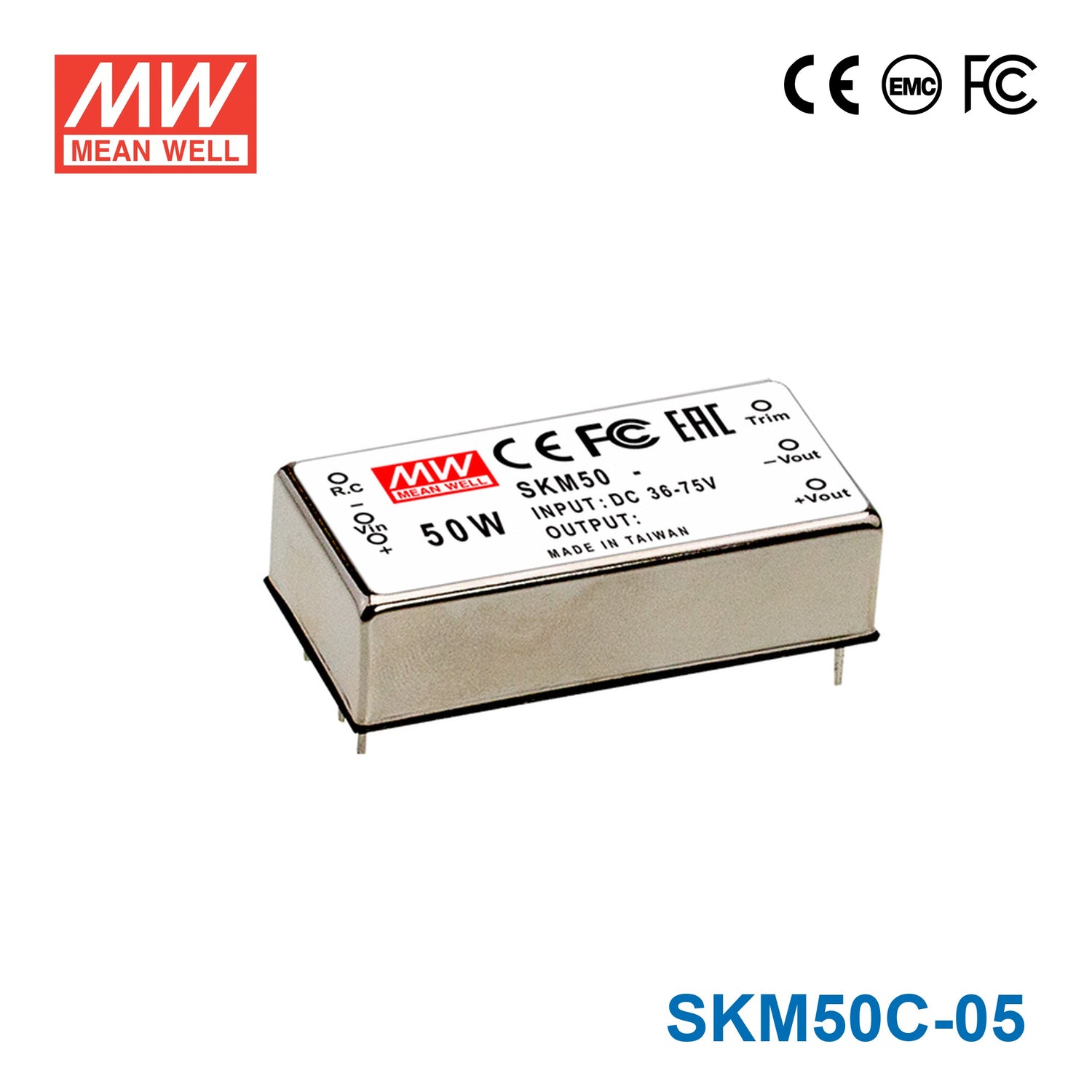

Mean Well SKM50C-05 DC-DC Converter - 50W - 36~75V in 5V out

$50.52 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

DIP 2"x 1" compact size
2:1 wide input range
High Efficiency up to 92%
1500KVDC I/O isolation
Remote ON/OFF control and Trimming the output
Comply with CE / FCC without external components
Protection: Short circuit / Overload / Input and output over-voltage
Cooling by free air convection
Six-sided shield metal case
100% burn-in test
Low cost / High reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty

General Specification

Voltage set point accuracy ±2.0% (max.)
Line regulation ±0.2% (max.)
Load regulation 0.5%
Overload protection 110%~140%, Protection type: Recovers automatically after fault condition is removed
Efficiency 91% ; 91% ; 92% | 91% ; 90% ; 91%
Short circuit protection All output equipped with short circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed
I/O isolation voltage 1500VDC (min.)
I/O isolation resistance I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature -40~+75°C (refer to output derating curve)
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm) 50.8 x 25.4 x 13.7 mm | 2" x 1" x 0.54" inch

Specifications

  • Brand
    Mean Well
  • Series
    SKM Series
  • Power Rating
    50 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    36V~75V
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~75°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.54 in
  • Weight
    0.09 lb
