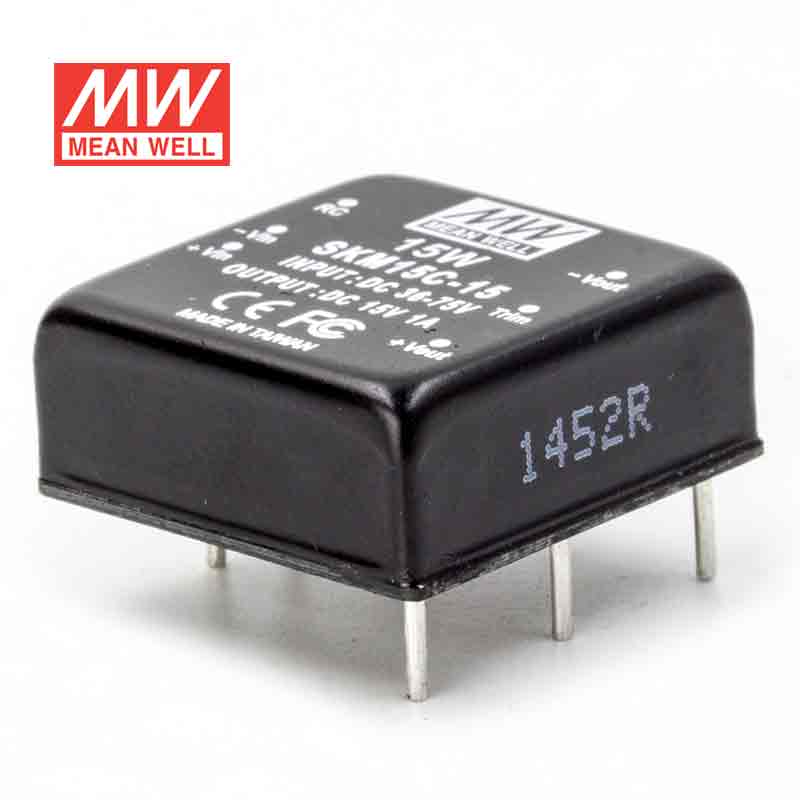

Mean Well SKM15C-15 DC-DC Converter - 15W - 36~75V in 15V out
$30.54 USD
Unit price /
Unavailable
Description
Description
"
Features
- 1"×1" compact size
- 2:1 wide input range
- High efficiency up to 88%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in trimming output(±10%)
- Built-in EMI filter
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / CE
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty2 Year
-
Length1 in
-
Width1 in
-
Height0.39 in
-
Weight0.03 lb
