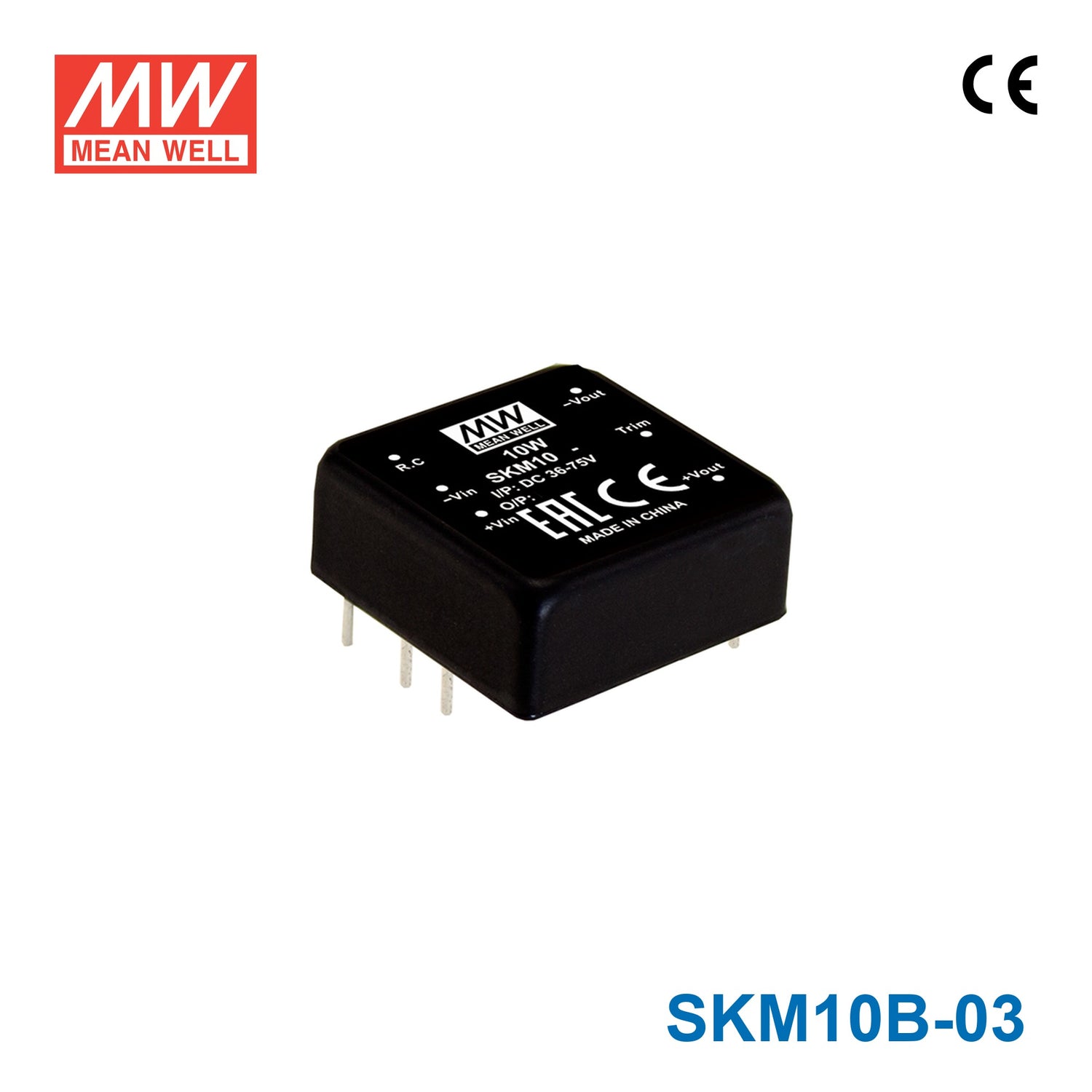

Mean Well SKM10B-03 DC-DC Converter - 10W - 18~36V in 3.3V out
$22.90 USD
Unit price /
Unavailable
Description
Description
Features
| DIP 1"x 1" package with industry-standard pinout |
| 2:1 wide input range |
| Operating temperature range -40 ~ + 85°C |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High Efficiency up to 90% |
| Protection: Short circuit / Overload Input and output over-voltage |
| 1.5KVDC I/O isolation |
| Remote ON/OFF control and Trimming output (±10%) |
| 3 years warranty |
General Specification
| Voltage set point accuracy | ±1.5% (max.) |
| Line regulation | ±0.2% (max.) |
| Load regulation | Single output models: 0.2%, Dual output models: 1% |
| Overload protection | 110%~140%, Protection type: Recovers automatically after fault condition is removed |
| Efficiency | 89% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I/O isolation voltage | 1500VDC (min.) |
| I/O isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -40~+85°C (refer to output derating curve) |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Dimension (LxWxH) (mm) | 25.4 x 25.4 x 10.2mm (1 x 1 x 0.4 inch) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating10 Watt
-
Output Voltage3.3 Volt
-
Rated Current2.5 Ampere
-
Input Voltage18V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
