Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

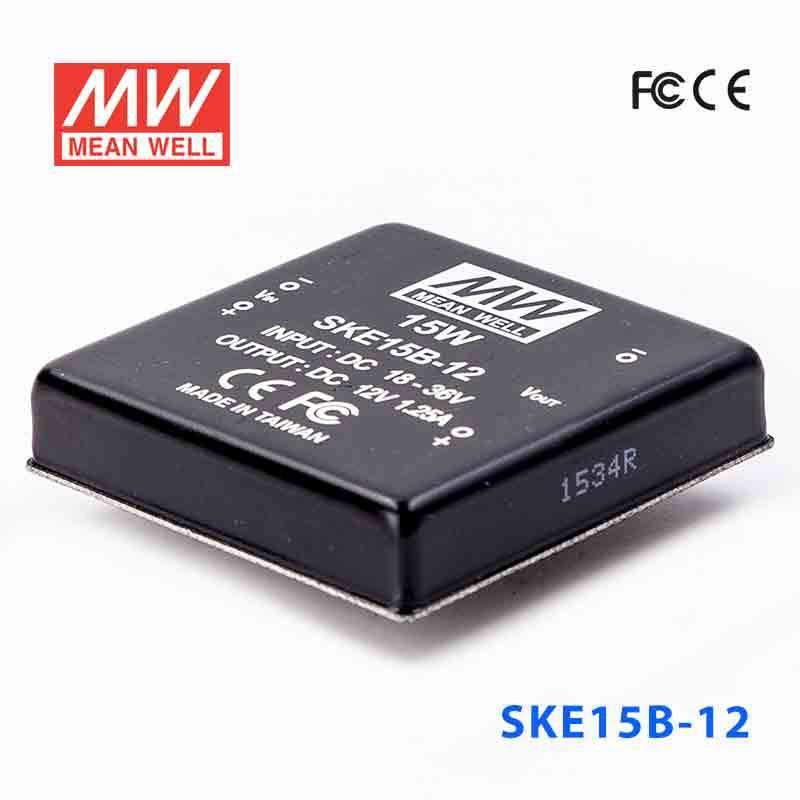

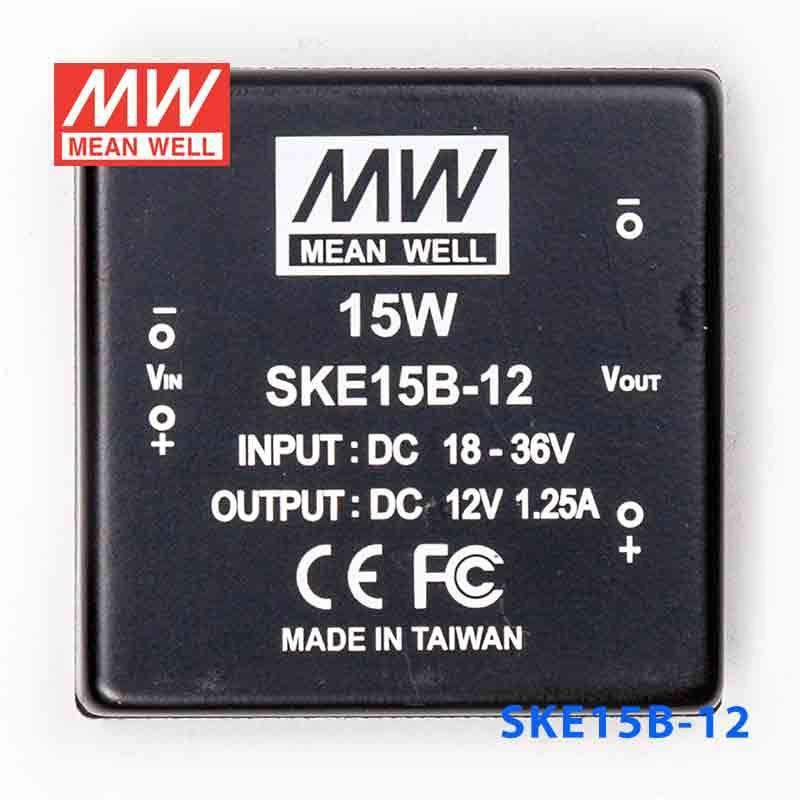

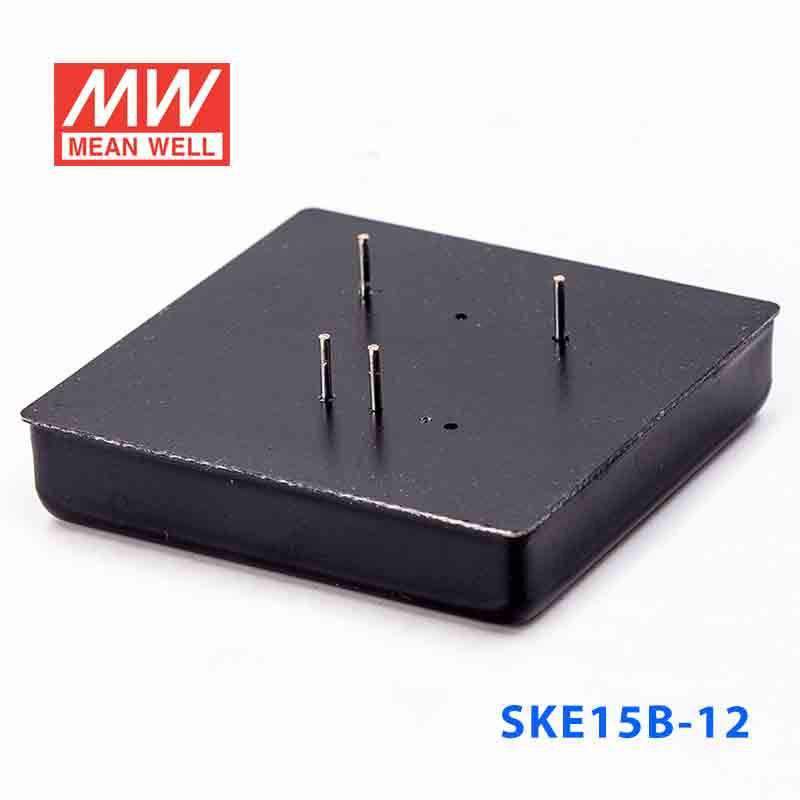

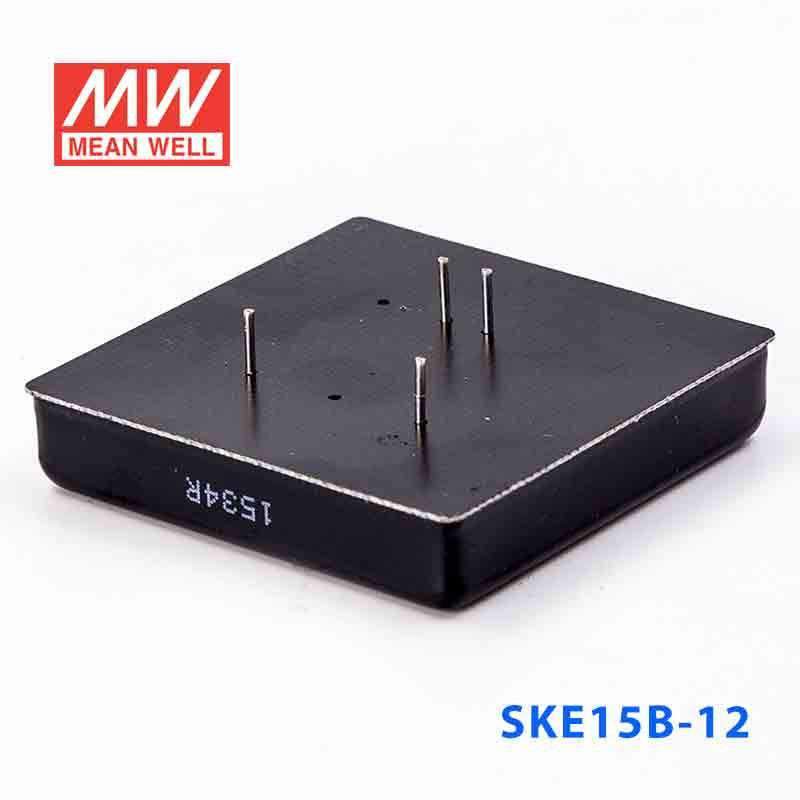

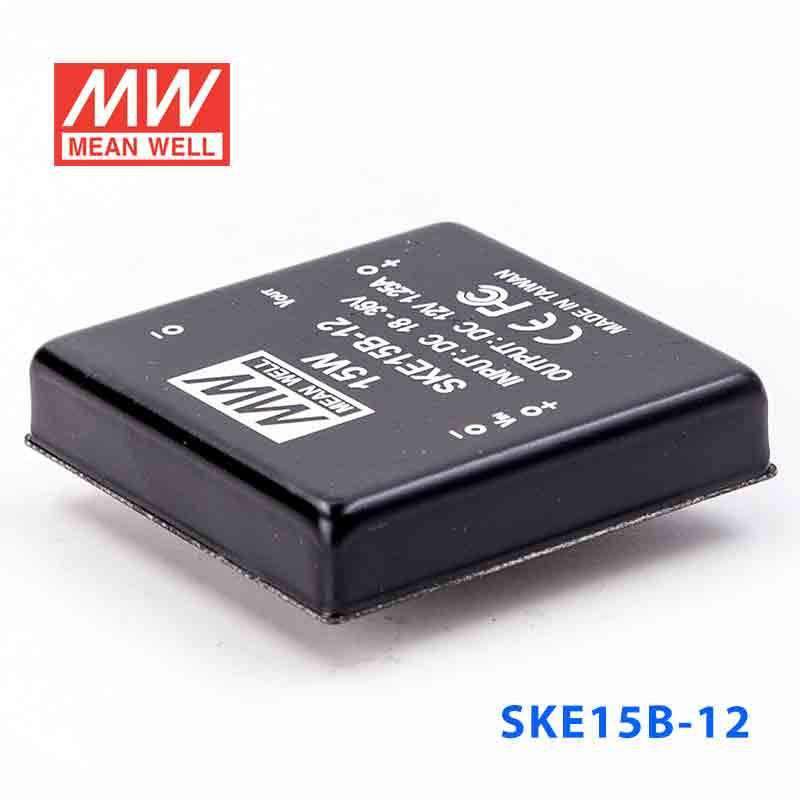

Mean Well SKE15B-12 DC-DC Converter - 15W - 18~36V in 12V out
$22.04 USD
Unit price /
Unavailable
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.3% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 2"x 2" x 0.43" |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage18V~36V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
