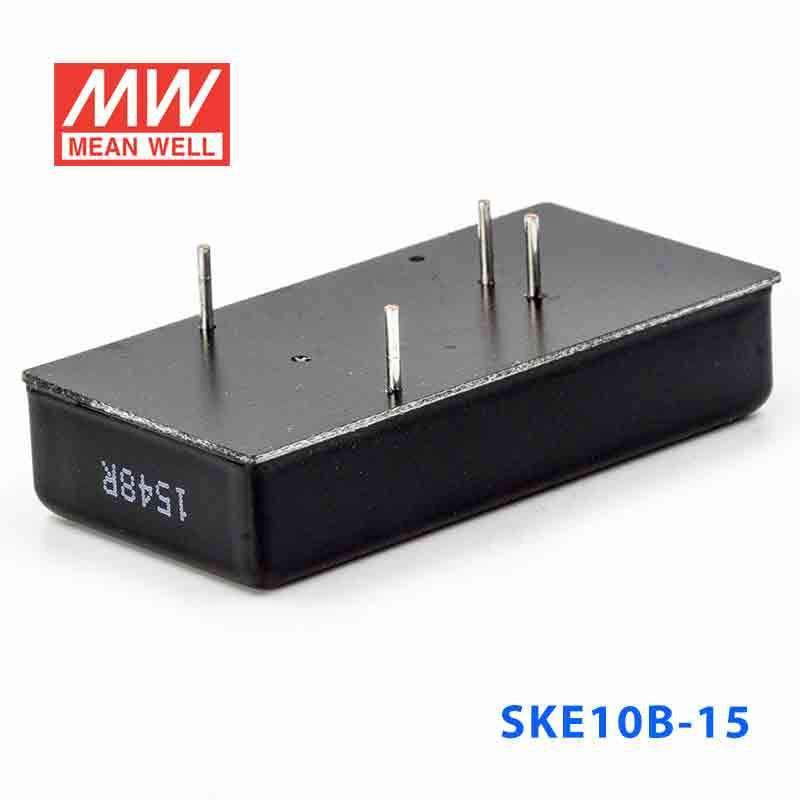

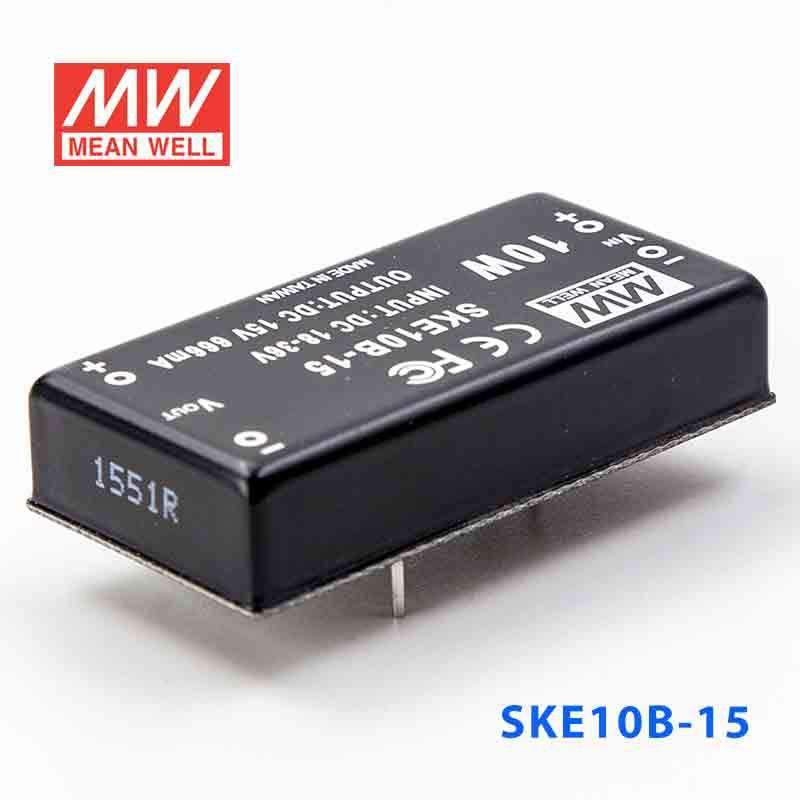

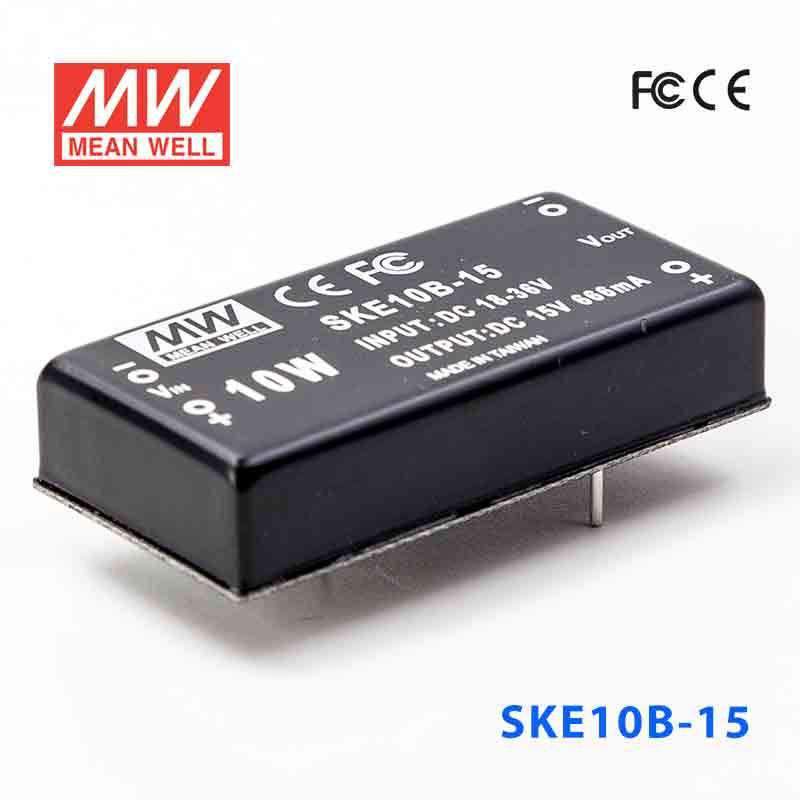

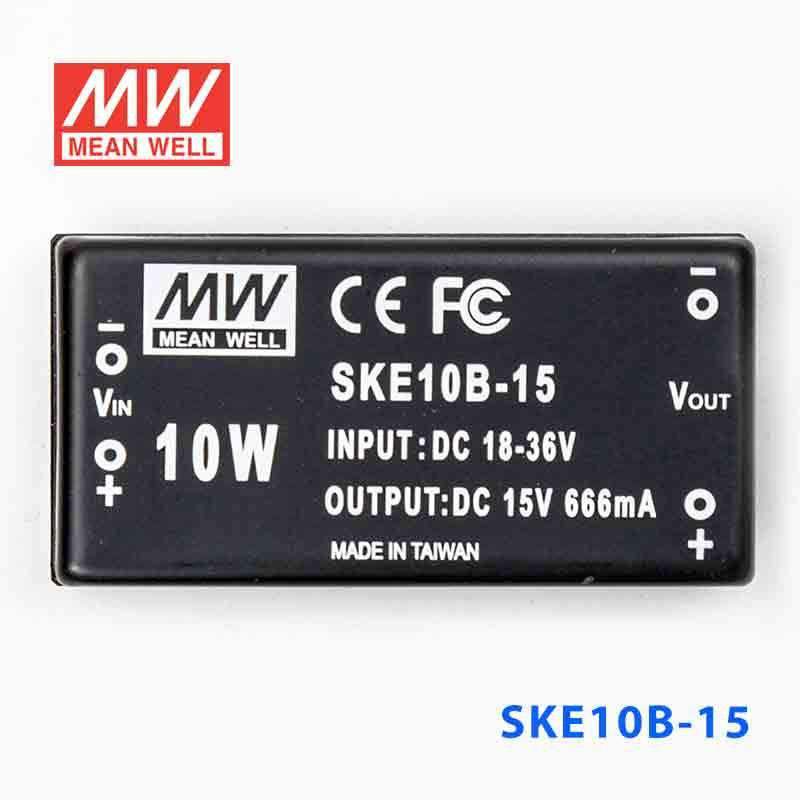

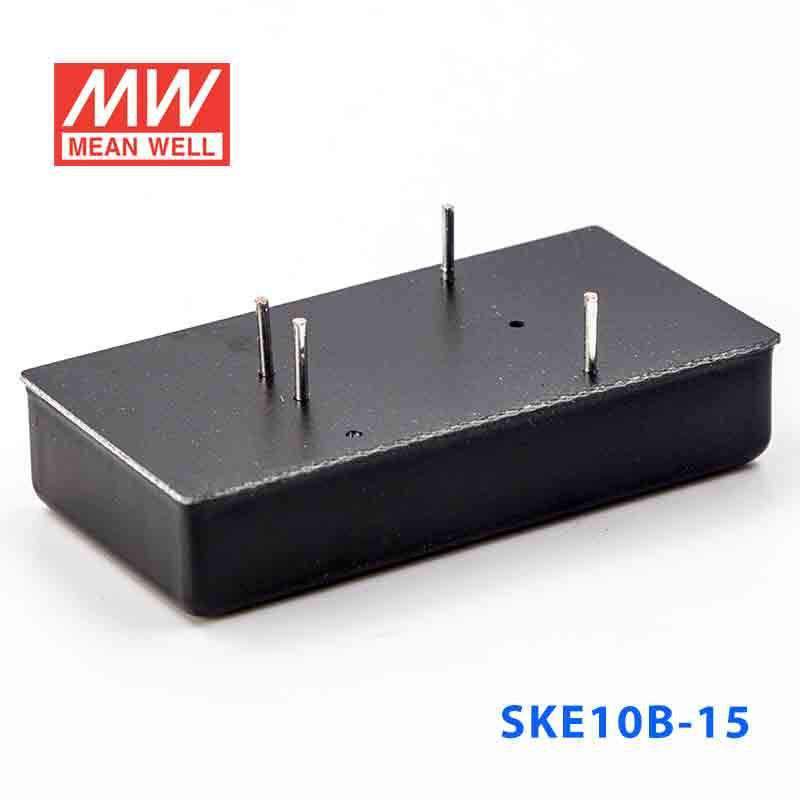

Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA

Name: Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA
Brand: Mean Well
SKU: SKE10B-15
Price: 21.34 USD
Availability: InStock

SKU SKE10B-15

$21.34 USD

Shipping calculated at checkout.

In stock

Overview

SKE10B-15 is the 15V output model of this series: rated power 10W, typical efficiency 82%.

Features

Specifications

SKE10B-15Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE: 15V
CURRENT RANGE: 66.6 ~ 666mA
RATED POWER: 10W
RIPPLE & NOISE (max.)^Note.2: 60mVp-p
LINE REGULATION^Note.3: ±0.3%
LOAD REGULATION^Note.4: ±0.5%
VOLTAGE ACCURACY: ±2.0%
SWITCHING FREQUENCY: 200KHz min.

INPUT

VOLTAGE RANGE: 18 ~ 36VDC
EFFICIENCY (Typ.): 82%
DC CURRENT Full load: 530mA
DC CURRENT No load: 16mA
FILTER: Pi network
PROTECTION: Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT: 160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H)
PACKING: 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKE10B-15 Mechanical Specification — Mechanical Specification

Downloads

Certificates1

FCC Certificate (SKE10)(EN) PDF Download

Test reports1

Test Report(SKE10B-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SKE10B-15 to power a 15V industrial sensor or control module?

Yes, it is a constant-voltage converter with a 15V output and 10W power rating. It fits industrial sensors or control modules that require 15V and stay within the listed 10W capacity.

Is the SKE10B-15 suitable for embedded electronics that need regulated 15V from an 18-36VDC source?

Yes, this model is designed for an 18-36VDC input range and provides a constant 15V output. That makes it appropriate for embedded electronics that need 15V and fit within the 10W output limit.

Can this converter be used in automation panels for low-power 15V loads?

It can be used for low-power automation loads that require constant 15V output. With a 10W rating, it is better suited to smaller panel devices than higher-draw equipment.

Is the SKE10B-15 appropriate for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -25°C to +71°C, but no IP rating is provided. That means temperature capability is stated, while outdoor or water-exposure suitability is not established by the listed specs.

How does the SKE10B-15 compare with the other SKE10B models?

In the SKE10B series, all listed models are 10W units. The sibling outputs are 5V at 2A for the SKE10B-05, 12V at 840mA for the SKE10B-12, 15V at 666mA for the SKE10B-15, and 24V at 420mA for the SKE10B-24.
