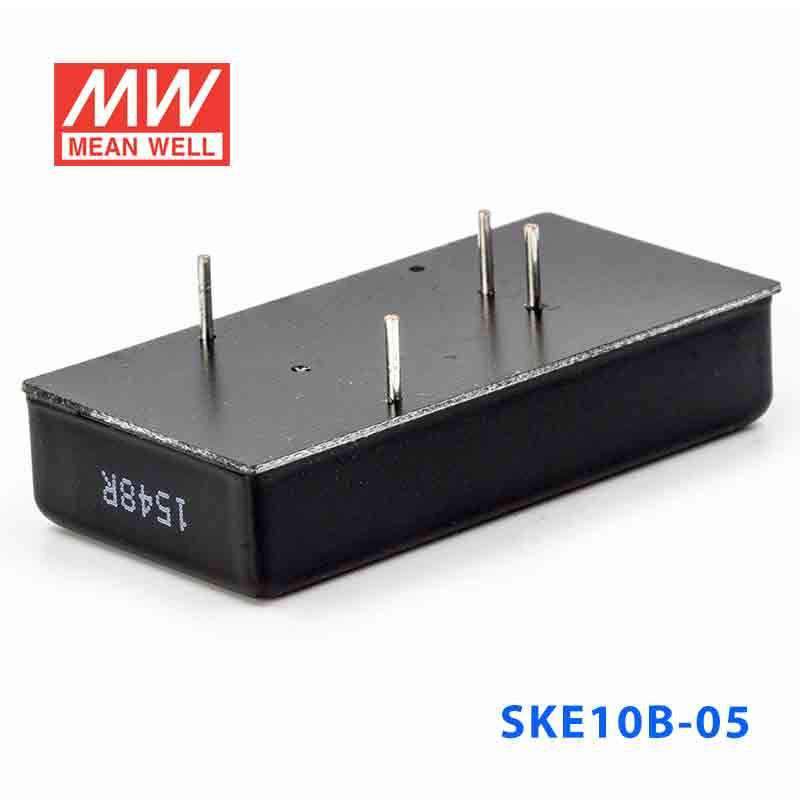

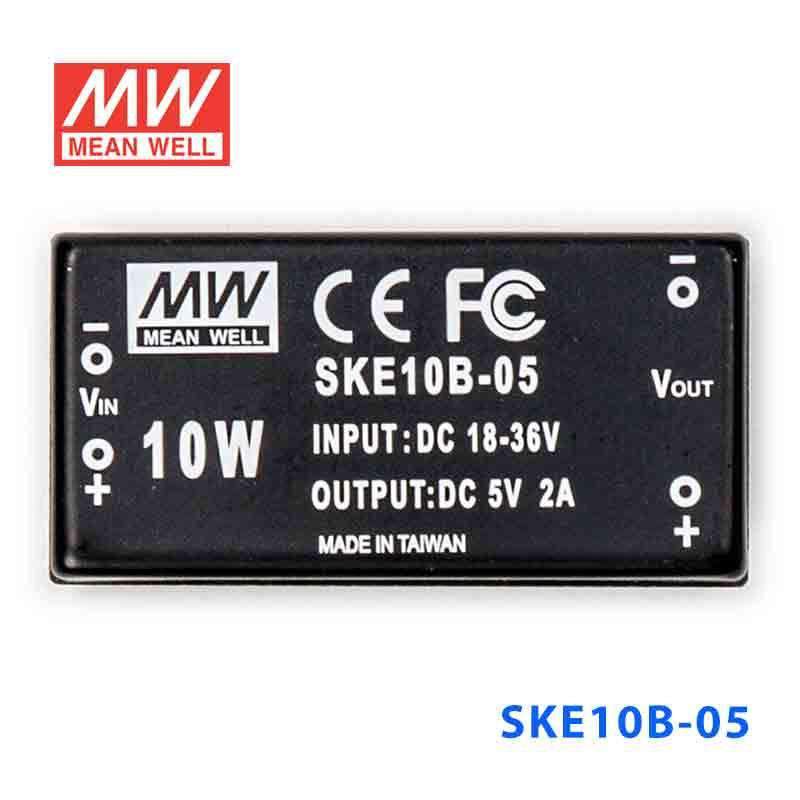

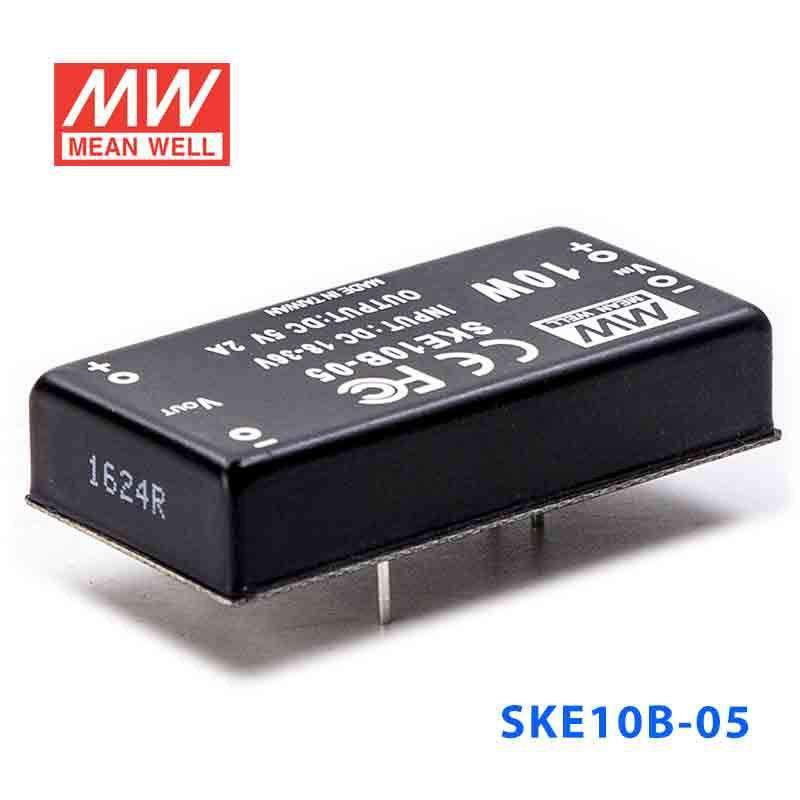

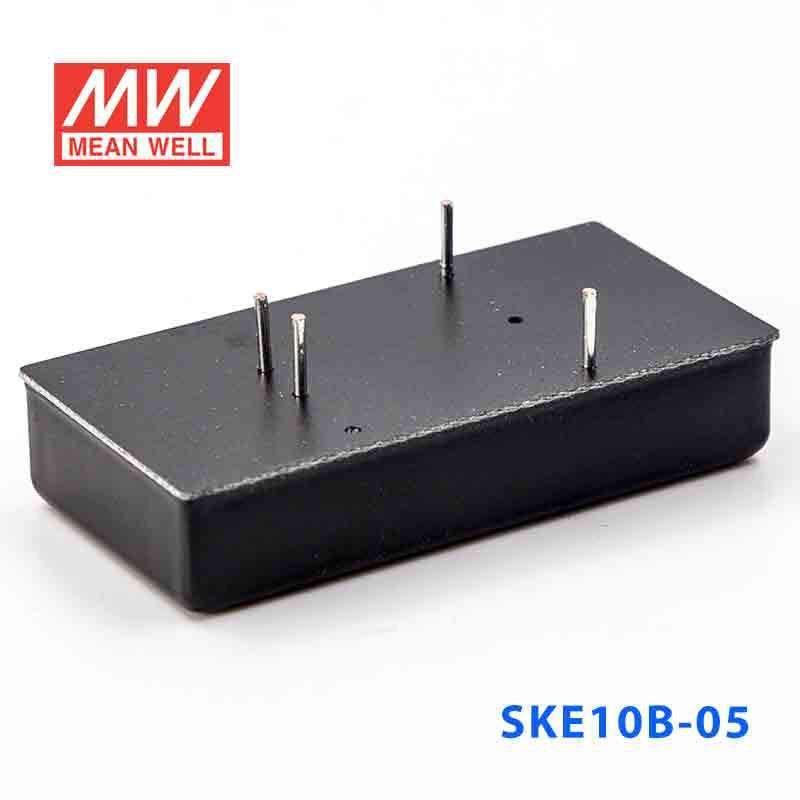

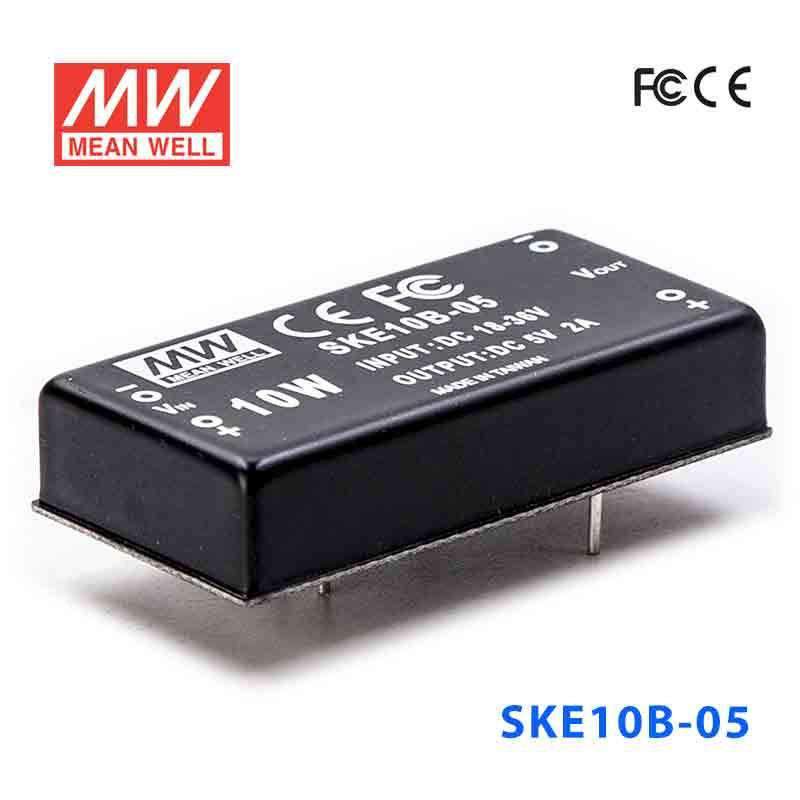

Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A

Name: Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A
Brand: Mean Well
SKU: SKE10B-05
Price: 21.29 USD
Availability: InStock

SKU SKE10B-05

$21.29 USD

Shipping calculated at checkout.

Available to order

Overview

SKE10B-05 is the 5V output model of this series: rated power 10W, typical efficiency 79%.

Features

Specifications

SKE10B-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE: 5V
CURRENT RANGE: 200 ~ 2000mA
RATED POWER: 10W
RIPPLE & NOISE (max.)^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.3%
LOAD REGULATION^Note.4: ±0.5%
VOLTAGE ACCURACY: ±2.0%
SWITCHING FREQUENCY: 200KHz min.

INPUT

VOLTAGE RANGE: 18 ~ 36VDC
EFFICIENCY (Typ.): 79%
DC CURRENT Full load: 530mA
DC CURRENT No load: 16mA
FILTER: Pi network
PROTECTION: Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT: 160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H)
PACKING: 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKE10B-05 Mechanical Specification — Mechanical Specification

Downloads

Certificates1

FCC Certificate (SKE10)(EN) PDF Download

Test reports1

Test Report(SKE10B-05)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SKE10B-05 to power 5V logic or microcontroller circuits in industrial equipment?

It can fit 5V logic or microcontroller loads when the total output stays within 10W. This version is designed for 18-36VDC input and provides constant-voltage 5V output.

Is the SKE10B-05 suitable for 5V communication or interface electronics in a 24V-class control system?

It is a possible fit when the available source is within 18-36VDC and the downstream electronics need regulated 5V. The 10W rating makes it more appropriate for smaller 5V electronics than for larger 5V loads.

Can the SKE10B-05 be used for small embedded boards inside automation cabinets?

Yes, for embedded boards that require constant-voltage 5V and fall within the converter's 10W output class. Its compact dimensions of 50.8 × 25.4 × 11.2 mm are also helpful in tight cabinet layouts.

Is the SKE10B-05 rated for outdoor service?

The product data specifies operation from -25°C to +71°C, so it has a defined temperature range for environmental review. No IP rating is listed, which means the specs do not state outdoor, wet-location, or dust-exposed suitability.

What are the output differences across the SKE10B series?

The listed SKE10B family shares the same 10W power rating and 18-36VDC input range. The output choices shown are SKE10B-05 at 5V and 2A, SKE10B-12 at 12V and 840mA, SKE10B-15 at 15V and 666mA, and SKE10B-24 at 24V and 420mA.
