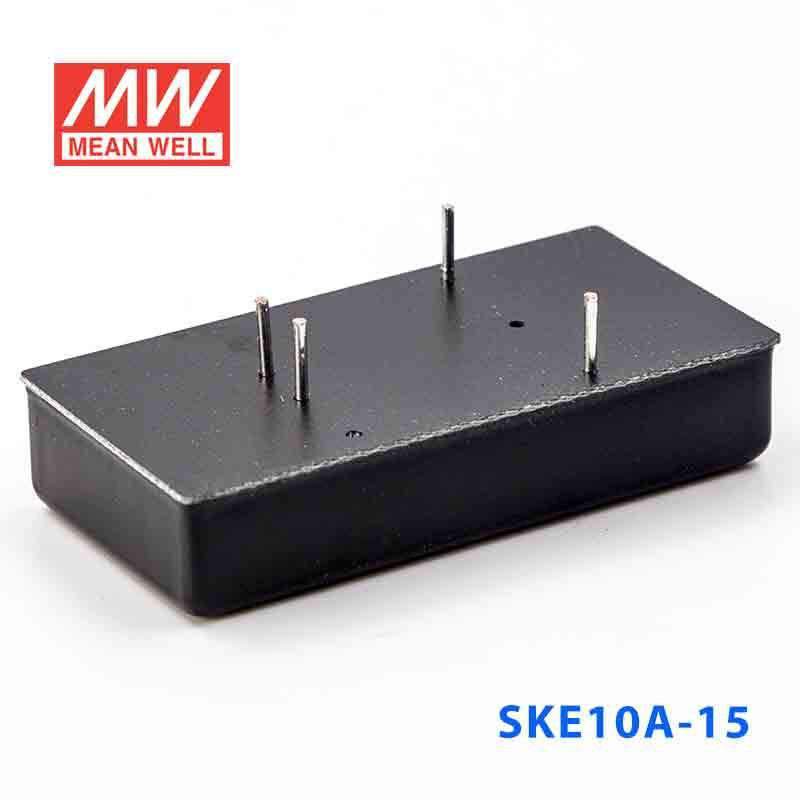

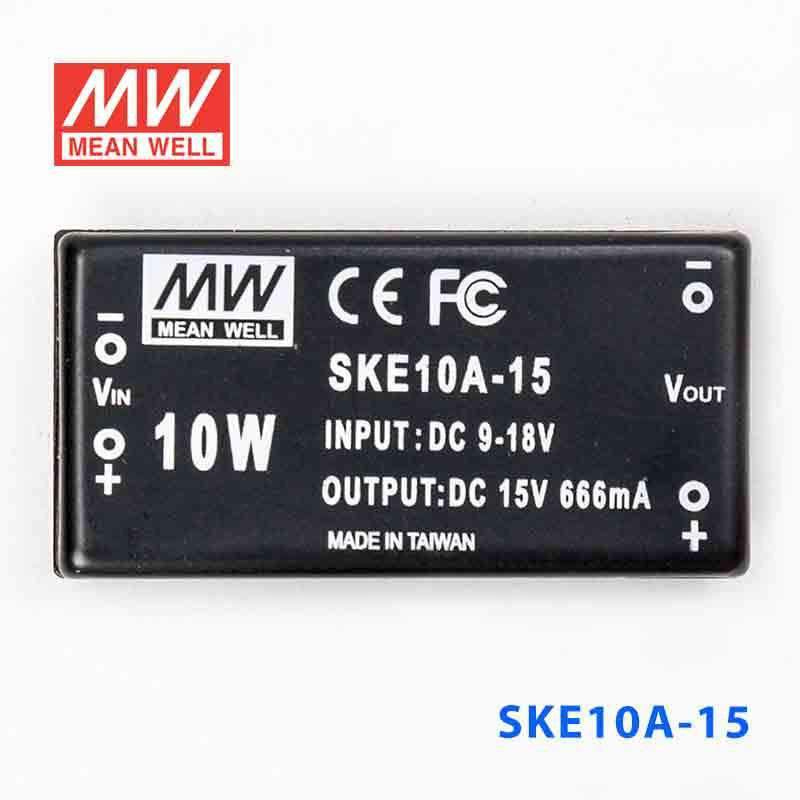

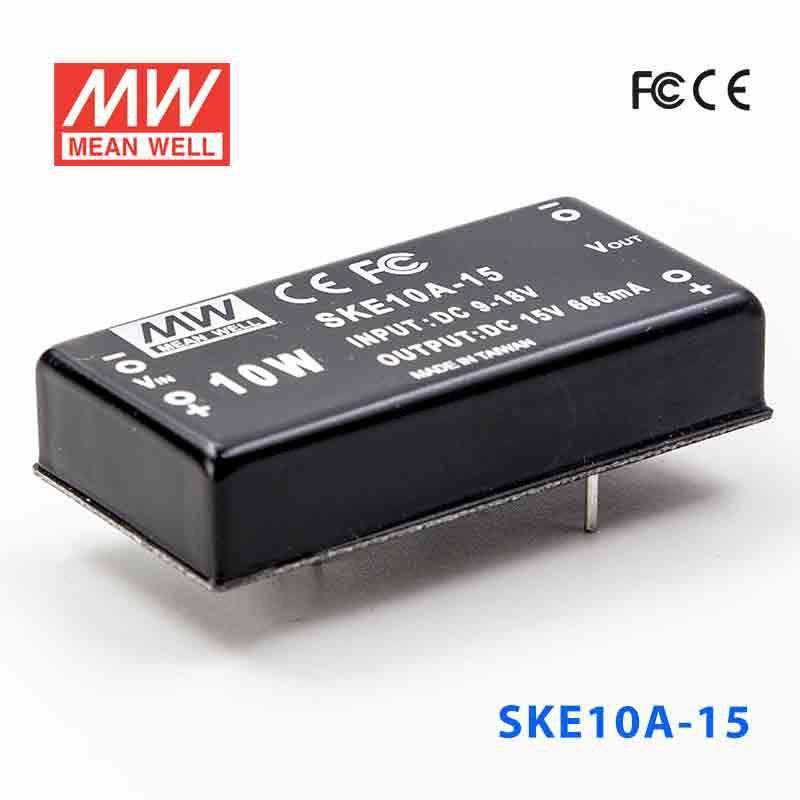

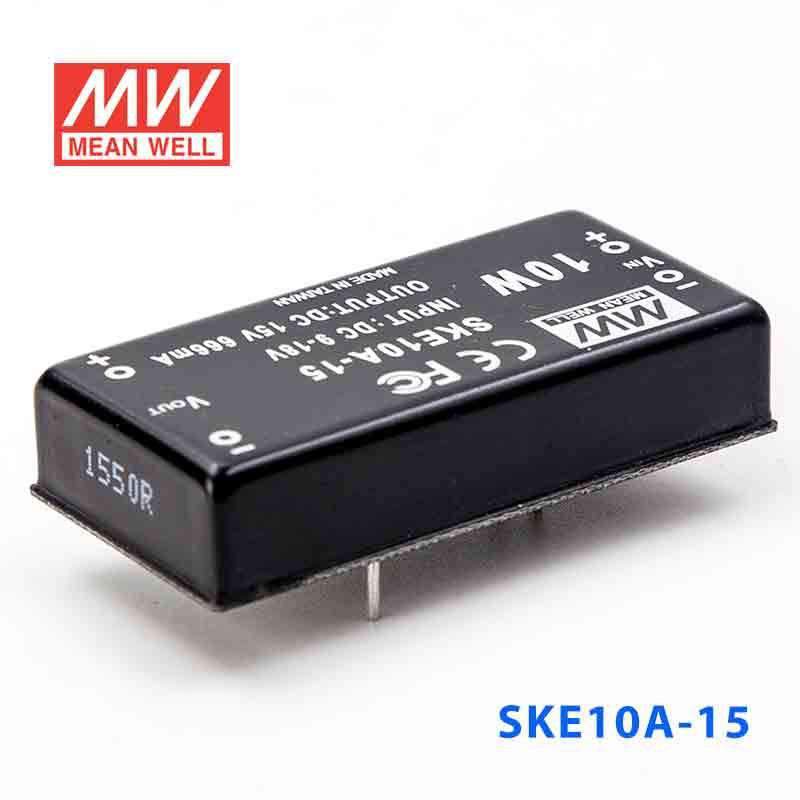

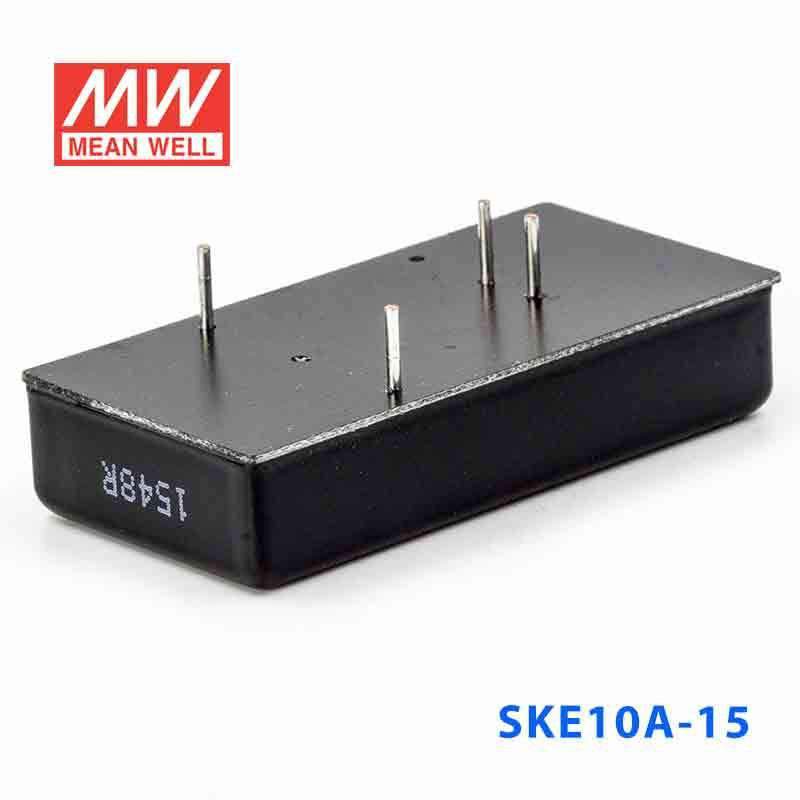

Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out

$21.34 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range
4: 1 wide input range (option)
1500VDC I / O isolation
3000VDC I / O isolation (option)
Built-in EMI filter
Protection: Short circuit / Overload
Cooling by free air convection
Six-sided shield metal case
100% full load burn-in test
Low cost, high reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty

General Specification

Voltage set point accuracy ±2.0% (max.)
Line regulation ±0.3% (max.)
Load regulation ±0.5% (max.) @ 10 ~ 100% load
Overload protection 160% to 250%, auto-recovery
Efficiency 85% (typical)
Short circuit protection Continuous, auto-recovery
I / O isolation voltage 1000VDC (min.)
I / O isolation resistance 100MQ(min.)@500VDC
Working temperature -25 ~ + 71°C (refer to output derating curve)
Storage temperature -25°C to + 105°C
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient ± 0.03% / ° C (max.)
Dimension (LxWxH) (mm) 50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch
Case material Six-sided shield metal case

Specifications

  • Brand
    Mean Well
  • Series
    SKE Series
  • Power Rating
    10 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.66 Ampere
  • Input Voltage
    9V~18V
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~71°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.44 in
  • Weight
    0.07 lb

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8659359498560, "variants" :[{ "context":"default", "variant_id": 46634951016768, "sku":"SKE10A-15", "inventory_qty" : 9, "customer" : true, "custom_html" :"\u003cdiv class=\"price\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$21.34\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e\n", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

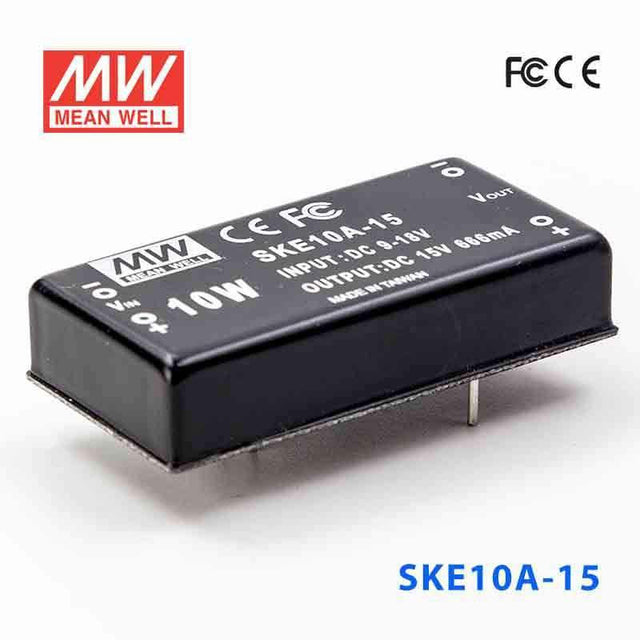

Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out
