Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

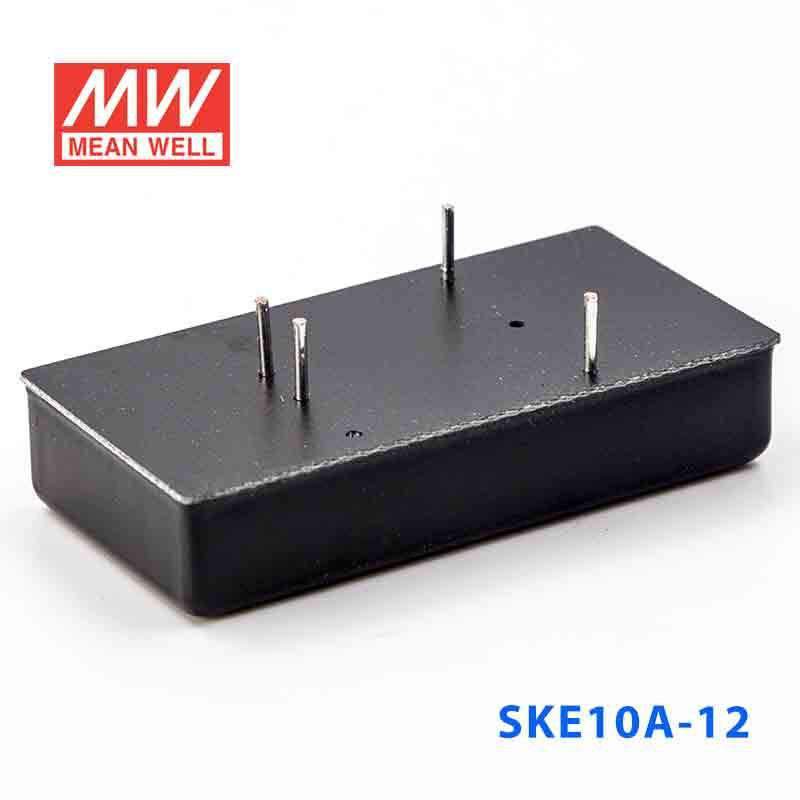

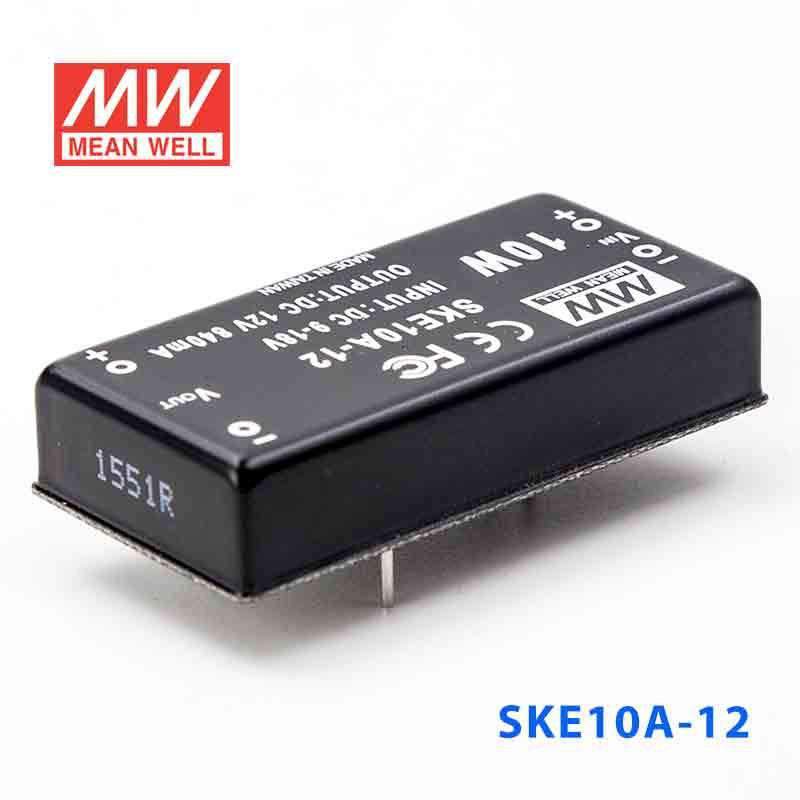

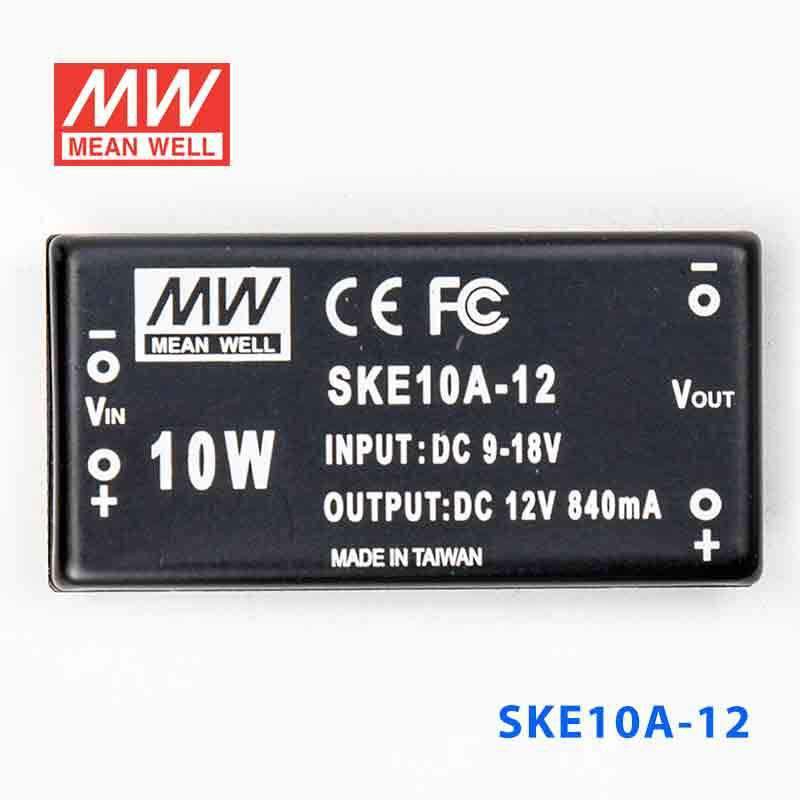

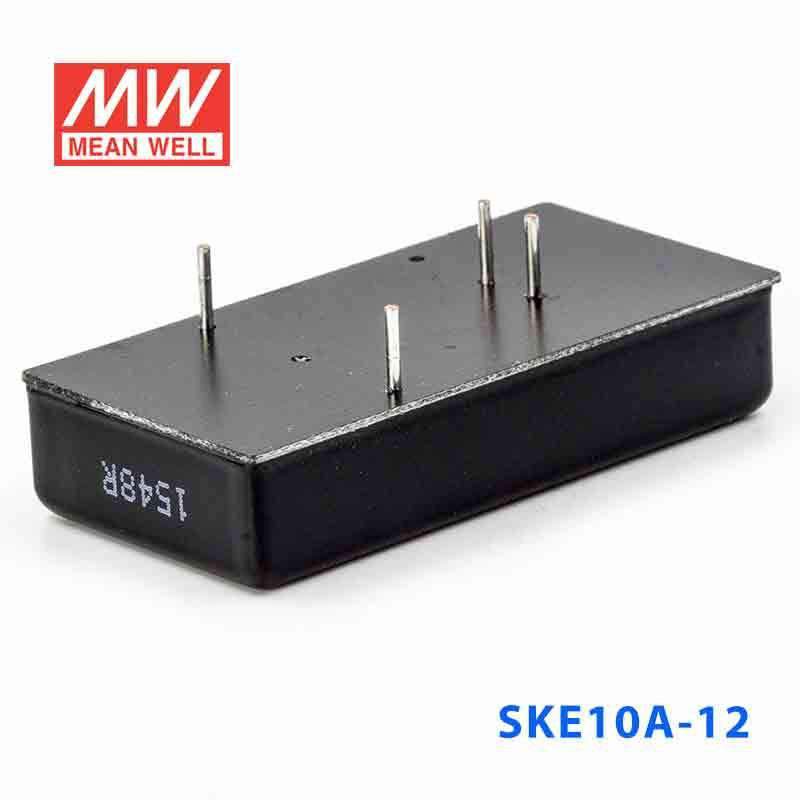

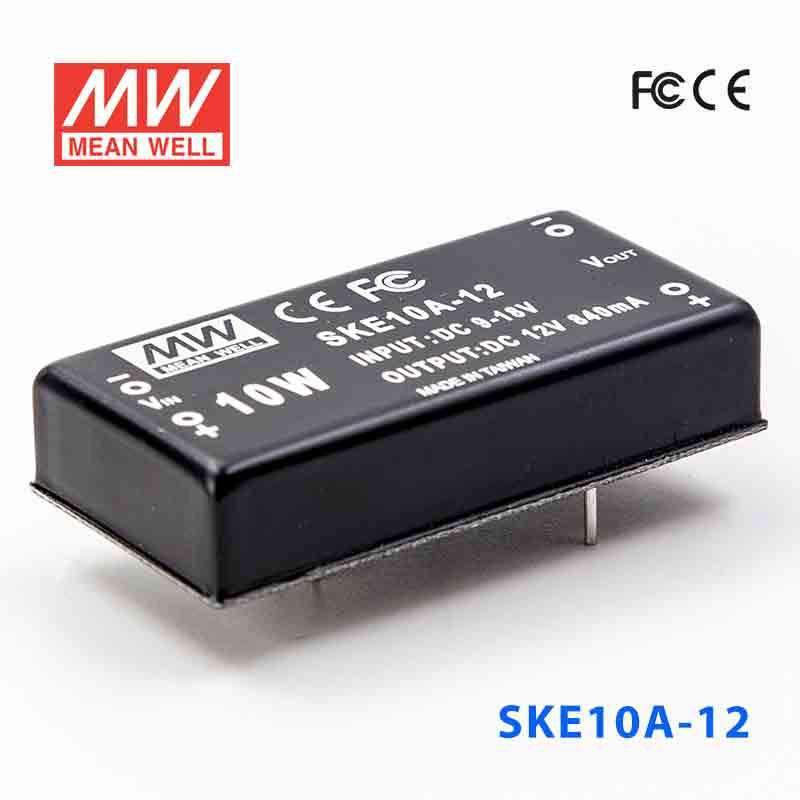

Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out 840mA
$21.34 USD
$132.00
Unit price /
Unavailable
Description
Description
The SKE10A-12 is a 10W Mean Well DC-DC converter (input: 9~18VDC, operating temperature: -25~+71°C).
Key Features
- ✓ Input voltage: 9~18VDC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 840mA
- ✓ I/O isolation: 1000V
- ✓ Operating temperature: -25~+71°C
- ✓ Safety certifications: CE, EMC, FCC
- ✓ 2 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating10 Watt
-
Output Voltage12 Volt
-
Rated Current0.84 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
