Mean Well

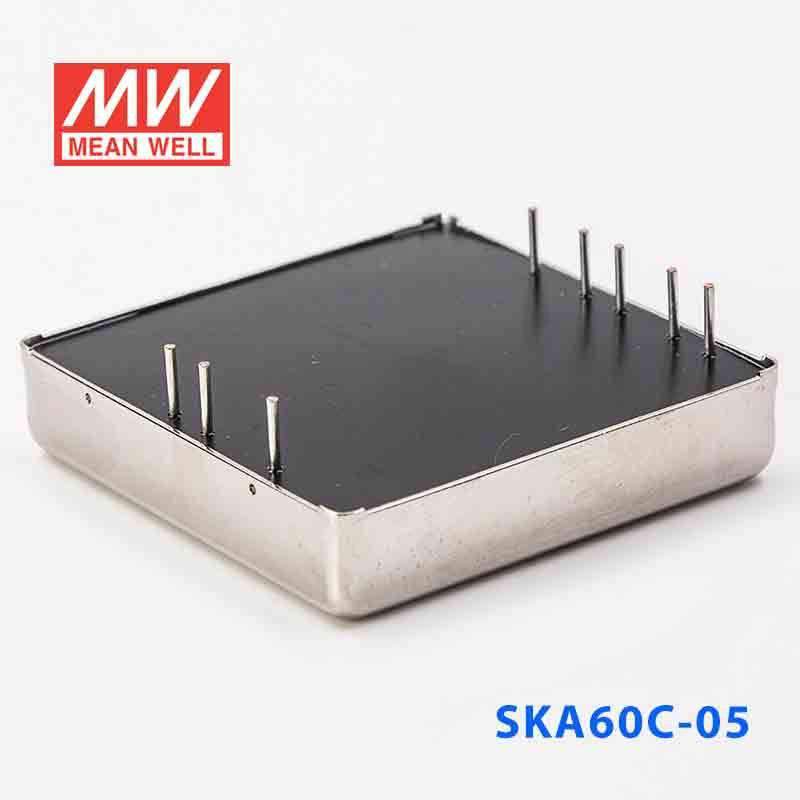

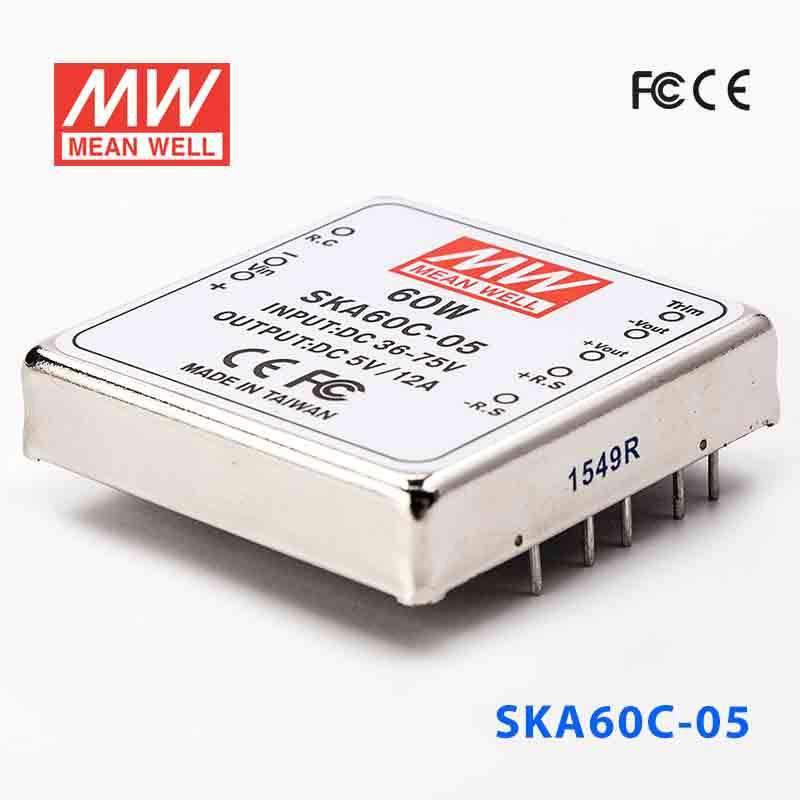

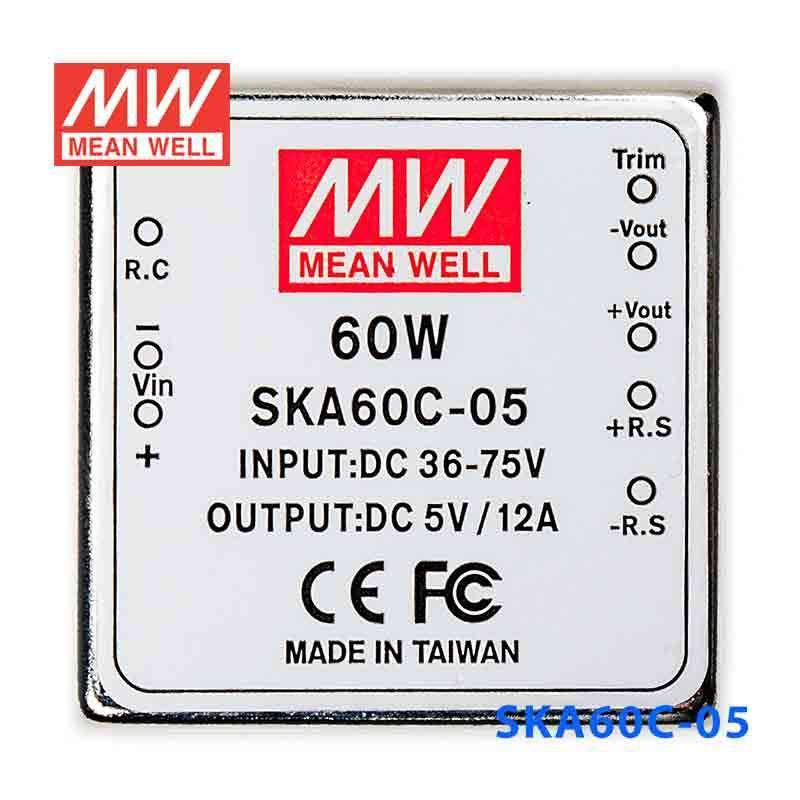

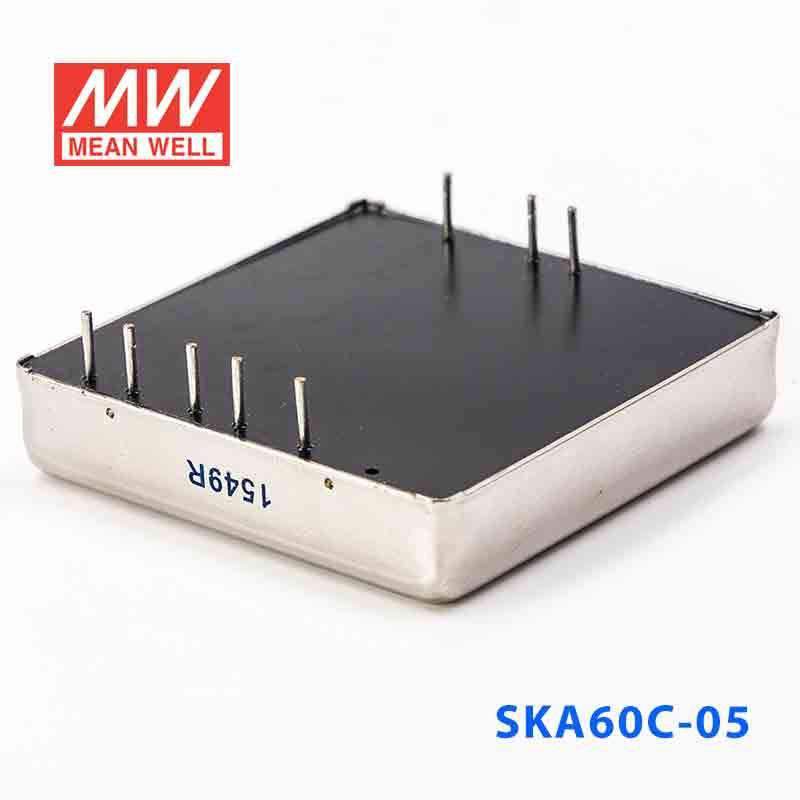

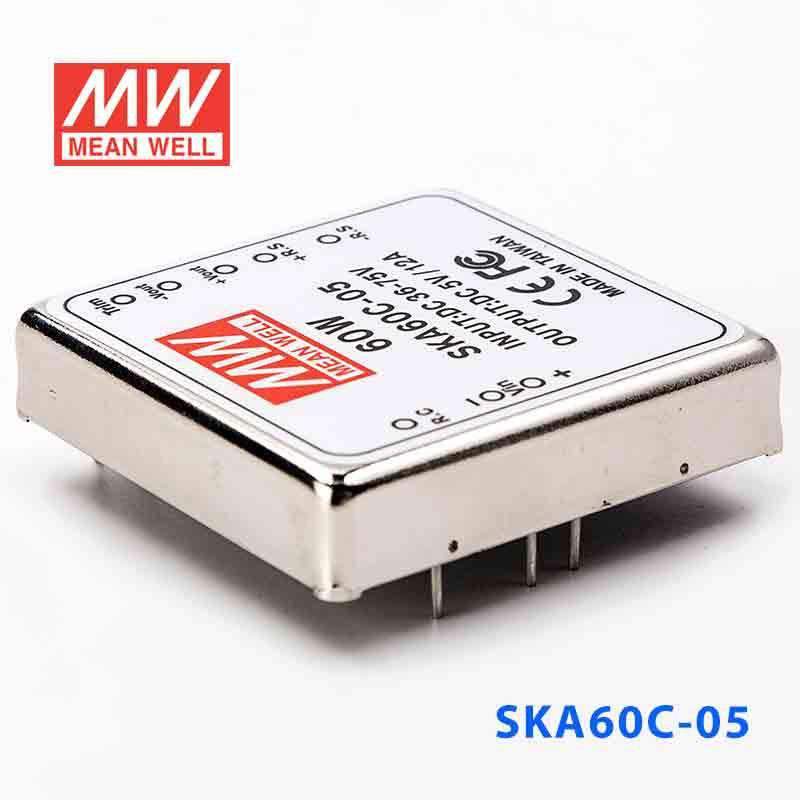

Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out 12A

SKU SKA60C-05
$57.12 USD
Shipping calculated at checkout.
In stock
|

Overview

SKA60C-05 is the 5V output model of this series: rated power 60W, typical efficiency 92%.

Features

  • 2"x2" compact size
  • 2:1 wide input range
  • High efficiency up to 93%
  • 1500VDC I/O isolation
  • Built-in remote ON / OFF control
  • Built-in remote sense
  • Trimming output ±10%
  • Comply with CE / FCC without external components
  • Protections: Short circuit / Overload / Input and output Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Output 3.3V available
  • 2 years warranty

Specifications

SKA60C-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
1.2 ~ 12A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
250KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
1000uF
EXTERNAL TRIM Adj. RANGE(Typ.)
±10%

INPUT

VOLTAGE RANGE
36 ~ 75VDC
EFFICIENCY (Typ.)
92%
DC CURRENT Full load
1370mA
DC CURRENT No load
60mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 75VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
110% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Input(Typ.)
>80 ~ 100VDC input voltage Protection type : Shut down o/p voltage, recovers automatically after fault condition is removed
OVER VOLTAGE Output(Typ.)
5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
CASE TEMP.
+100℃ max.
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)
PACKING
67g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKA60C-05 Mechanical Specification
Mechanical Specification
SKA60C-05 Packing
Packing

Downloads

FAQ

Can I use the SKA60C-05 to supply 5V logic or embedded electronics from a 36-75V source?

Yes. This model provides constant 5V output with up to 12A output current and is rated for 60W. It is designed for applications that need a regulated 5V rail from a 36-75V input range.

Is the SKA60C-05 a good fit for industrial controllers or communication hardware that need higher-current 5V power?

It can be a fit when the load requires 5V and stays within 12A. That higher 12A output makes it more suitable for heavier 5V loads than the 12V or 15V versions in the same 60W family. The converter operates in constant-voltage mode for stable 5V output.

Can this converter support 5V devices in automation systems with a 36-75V input range?

Yes, that is the use case this model is aligned with. The 36-75V input range and 5V, 12A output make it suitable where the upstream system voltage is higher but the downstream electronics require regulated 5V power. The total output capability is 60W.

Will the SKA60C-05 work in hot or cold industrial environments?

The operating temperature range is -40°C to +70°C, which supports use in demanding indoor equipment environments. No IP rating is listed in the provided specs, so the temperature range is the main environmental rating available. For exposed outdoor conditions, enclosure-level protection would need to be provided separately.

What is the difference between the SKA60C-05 and the other SKA60C versions?

All listed SKA60C models are rated at 60W and use a 36-75V input range. The SKA60C-05 outputs 5V at 12A, the SKA60C-12 outputs 12V at 5A, and the SKA60C-15 outputs 15V at 4A. The selection point is the required output voltage and current at the same 60W class.
