Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

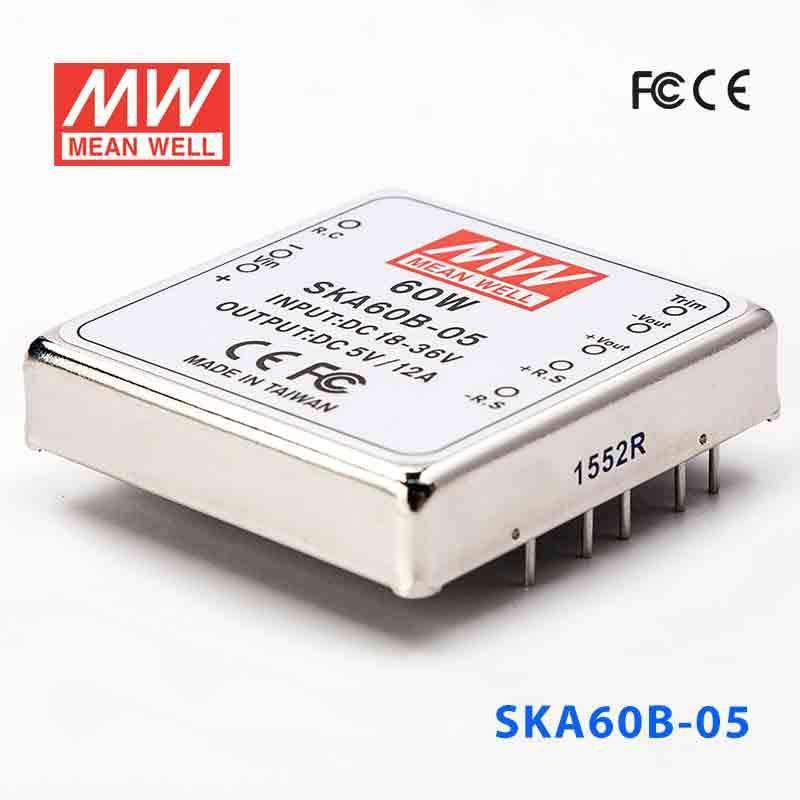

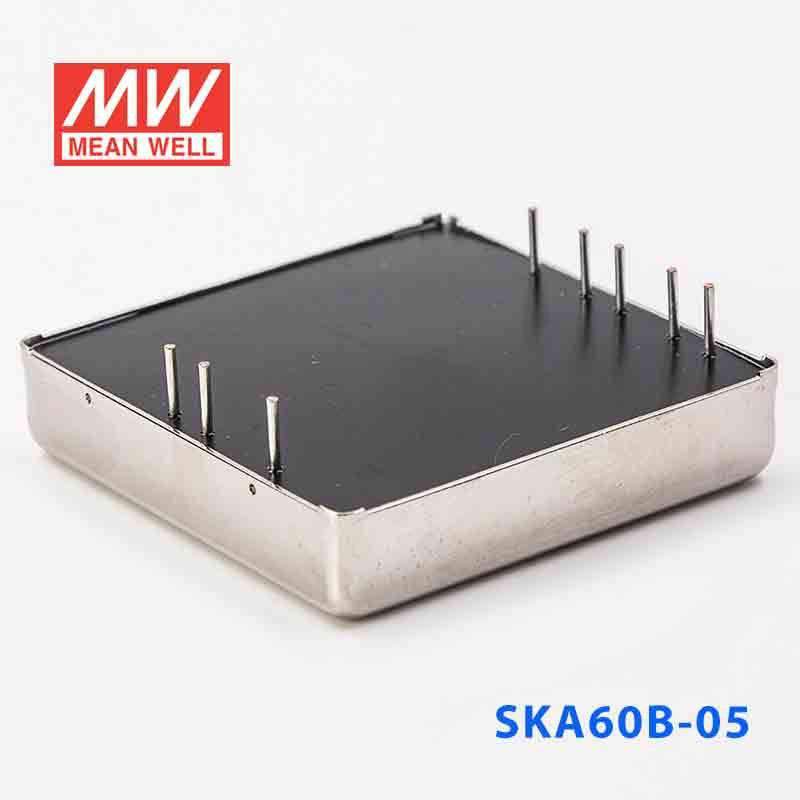

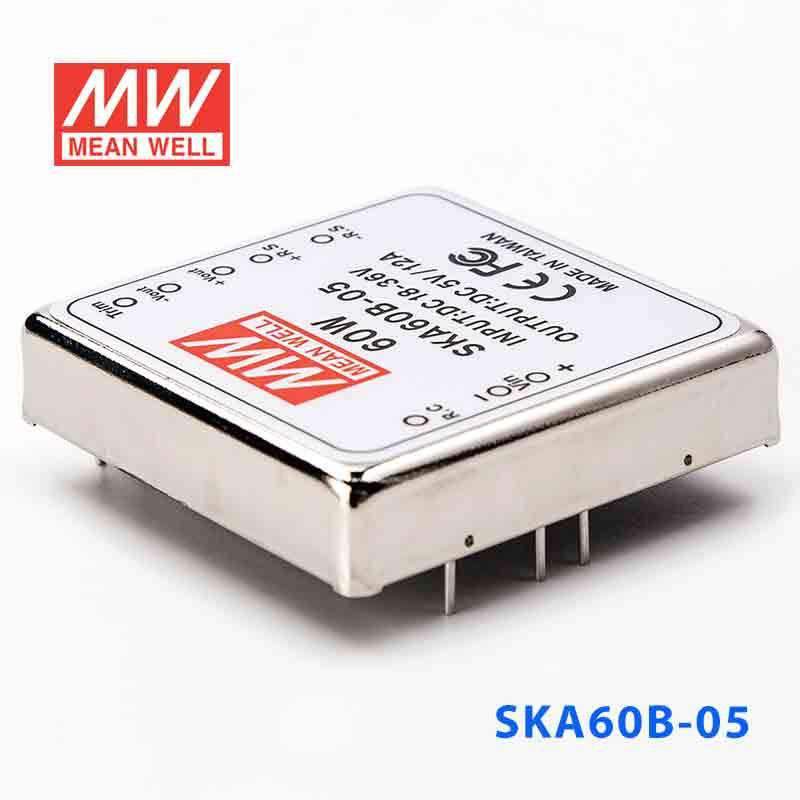

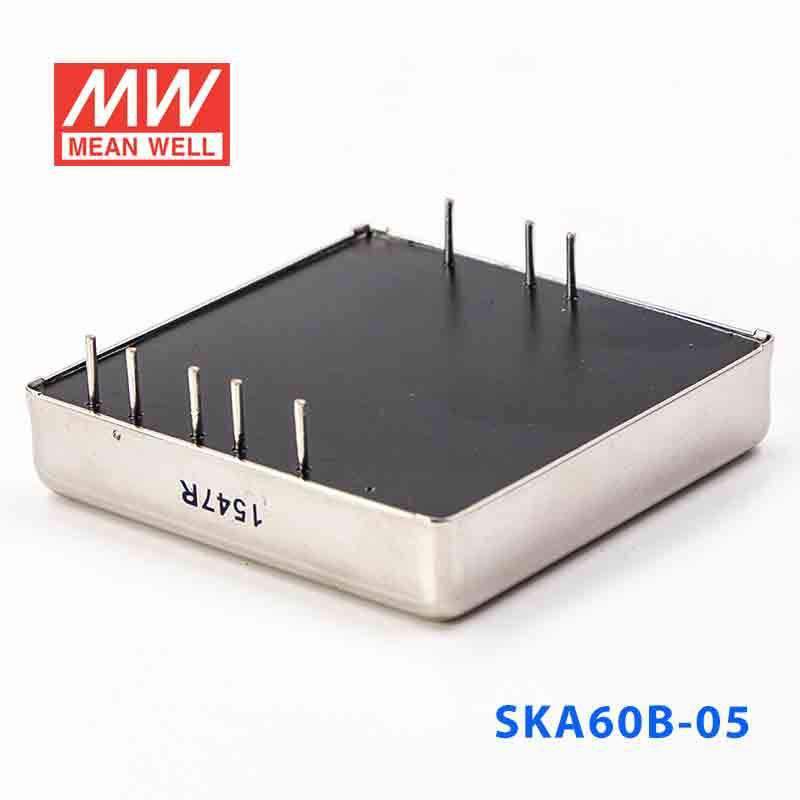

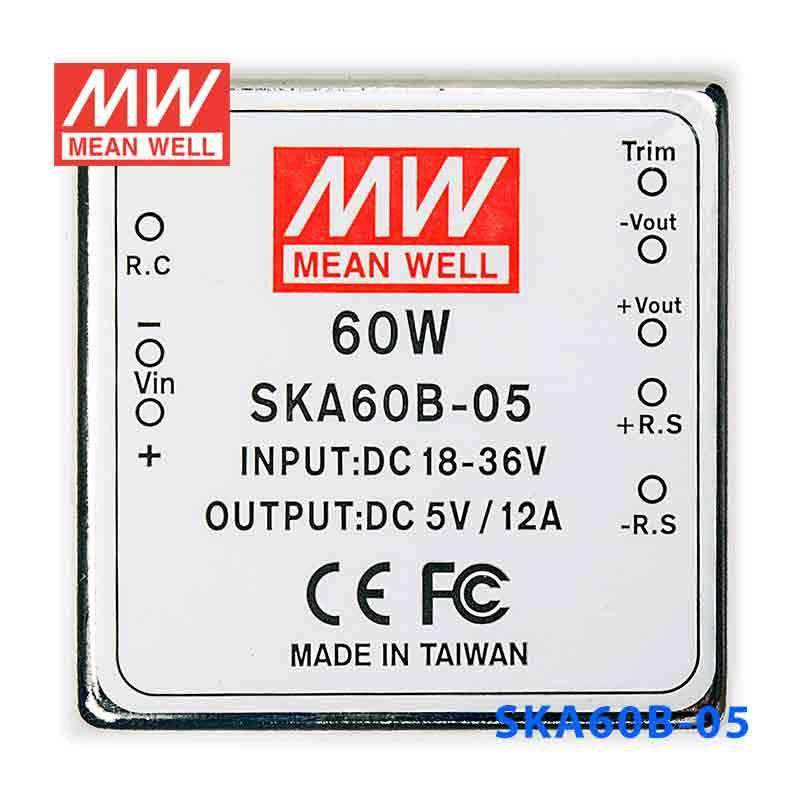

Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out 12A

SKU SKA60B-05
$57.12 USD
Shipping calculated at checkout.
Available to order
|

Overview

SKA60B-05 is the 5V output model of this series: rated power 60W, typical efficiency 90.5%.

Features

  • 2"x2" compact size
  • 2:1 wide input range
  • High efficiency up to 93%
  • 1500VDC I/O isolation
  • Built-in remote ON / OFF control
  • Built-in remote sense
  • Trimming output ±10%
  • Comply with CE / FCC without external components
  • Protections: Short circuit / Overload / Input and output Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Output 3.3V available
  • 2 years warranty

Specifications

SKA60B-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
1.2 ~ 12A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
250KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
1000uF
EXTERNAL TRIM Adj. RANGE(Typ.)
±10%

INPUT

VOLTAGE RANGE
18 ~ 36VDC
EFFICIENCY (Typ.)
90.5%
DC CURRENT Full load
2775mA
DC CURRENT No load
120mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 75VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
110% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Input(Typ.)
>40 ~ 50VDC
OVER VOLTAGE Output(Typ.)
5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
CASE TEMP.
+100℃ max.
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)
PACKING
67g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKA60B-05 Mechanical Specification
Mechanical Specification
SKA60B-05 Packing
Packing

Downloads

FAQ

Can I use the SKA60B-05 to power 5V embedded computing or control hardware from an 18-36VAC source?

Yes. The SKA60B-05 is rated for 18-36VAC input and provides a constant 5V output up to 12A and 60W. That makes it suitable for 5V embedded computing or control hardware that needs higher 5V current capacity.

Is this model appropriate for 5V industrial communication or logic electronics?

It can be a fit for 5V communication or logic electronics because the output is regulated constant voltage at 5V. With 12A output current and 60W total power, it supports higher-current 5V loads in systems using 18-36VAC input.

Can the SKA60B-05 be used in compact automation equipment with limited space?

Yes. The converter measures 50.8 x 50.8 x 11.0 mm and weighs 0.067 kg, so it is compact for space-constrained automation assemblies. It is designed for 5V constant-voltage output applications.

Is the SKA60B-05 suitable for cold or hot operating environments?

The specified operating temperature range is -40C to +70C, so the thermal rating covers a wide range of conditions. The provided specs do not list an IP rating, so resistance to rain, dust ingress, or washdown is not established here.

What are the differences between SKA60B-05 and the other SKA60B models?

The SKA60B-05 is the 5V version in the 60W SKA60B family and is rated for 12A output. The sibling models are SKA60B-12 at 12V and 5A and SKA60B-15 at 15V and 4A, and all three use 18-36VAC input.
