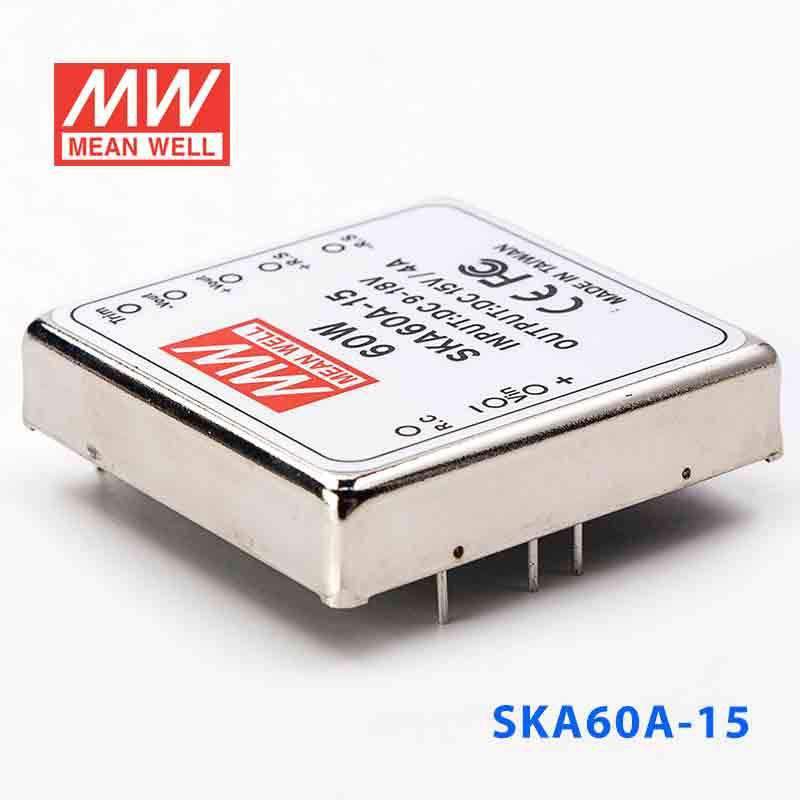

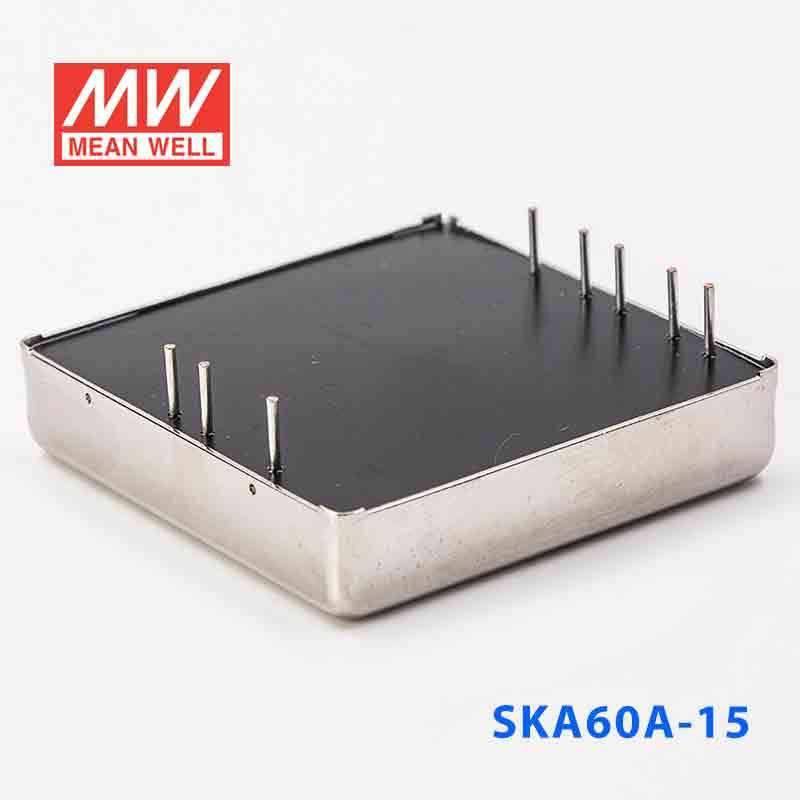

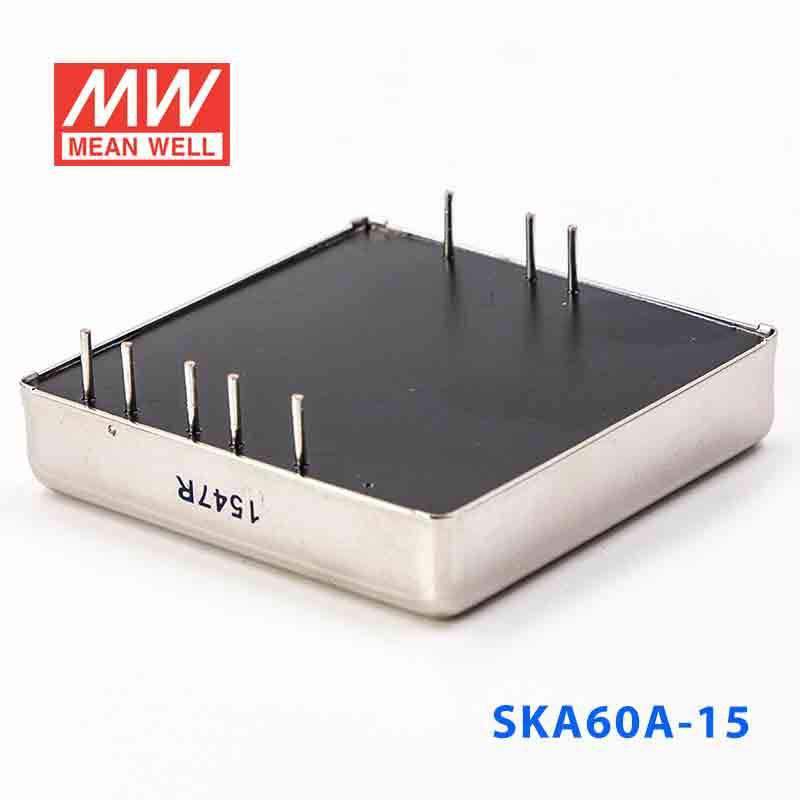

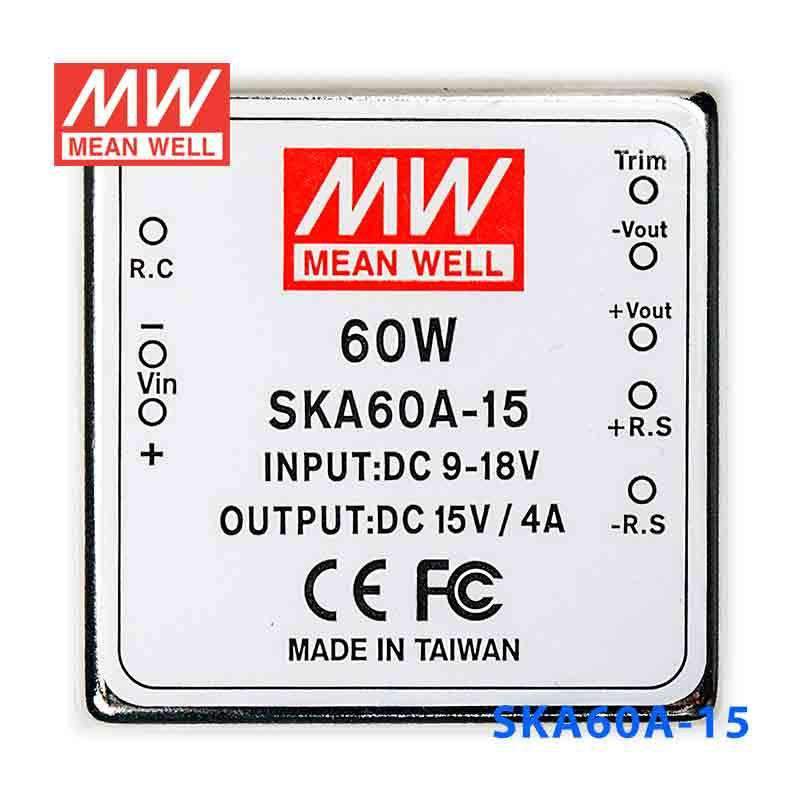

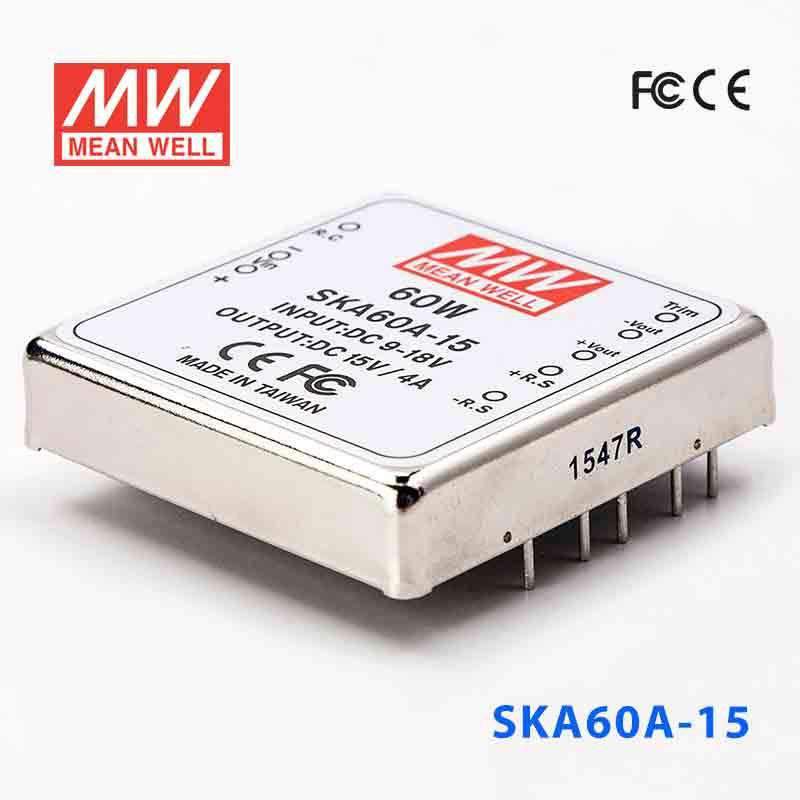

Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out 4A

SKU SKA60A-15
$57.12 USD
Shipping calculated at checkout.
Available to order
|

Overview

SKA60A-15 is the 15V output model of this series: rated power 60W, typical efficiency 92%.

Features

  • 2"x2" compact size
  • 2:1 wide input range
  • High efficiency up to 93%
  • 1500VDC I/O isolation
  • Built-in remote ON / OFF control
  • Built-in remote sense
  • Trimming output ±10%
  • Comply with CE / FCC without external components
  • Protections: Short circuit / Overload / Input and output Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Output 3.3V available
  • 2 years warranty

Specifications

SKA60A-15Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
15V
CURRENT RANGE
0.4 ~ 4A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
100mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
250KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
100uF
EXTERNAL TRIM Adj. RANGE(Typ.)
±10%

INPUT

VOLTAGE RANGE
9 ~ 18VDC
EFFICIENCY (Typ.)
92%
DC CURRENT Full load
5400mA
DC CURRENT No load
160mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 75VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
110% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Input(Typ.)
>20 ~ 25VDC
OVER VOLTAGE Output(Typ.)
5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
CASE TEMP.
+100℃ max.
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)
PACKING
67g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKA60A-15 Mechanical Specification
Mechanical Specification
SKA60A-15 Packing
Packing

Downloads

FAQ

Can I use the SKA60A-15 for 15V analog, sensor, or instrumentation circuits?

Yes. This converter provides a constant-voltage 15V output and is rated for up to 4A and 60W, which makes it suitable for 15V instrumentation or analog control loads within that range. The specified input range is 9-18VDC.

Is the SKA60A-15 suitable for 15V industrial control modules?

It can be used where the module requires regulated 15V constant voltage. The output rating is 15V at 4A with 60W total power, so the load needs to stay within those limits. Input must be within 9-18VDC.

Can this converter power 15V embedded or automation electronics in a compact enclosure?

Yes. The package measures 50.8 x 50.8 x 11.0 mm and weighs 0.067 kg, so it is compact for dense equipment layouts. Electrically, it is intended for 15V constant-voltage loads and provides up to 4A.

Is the SKA60A-15 suitable for outdoor or temperature-challenging environments?

The operating temperature is rated from -40C to +70C, so the temperature specification is broad. However, no IP rating is listed in the provided specs, so outdoor exposure protection is not defined by this product data.

How does SKA60A-15 compare with SKA60A-05 and SKA60A-12?

All three SKA60A models are 60W converters with 9-18VDC input. The SKA60A-15 outputs 15V at 4A, while the SKA60A-12 outputs 12V at 5A and the SKA60A-05 outputs 5V at 12A.
