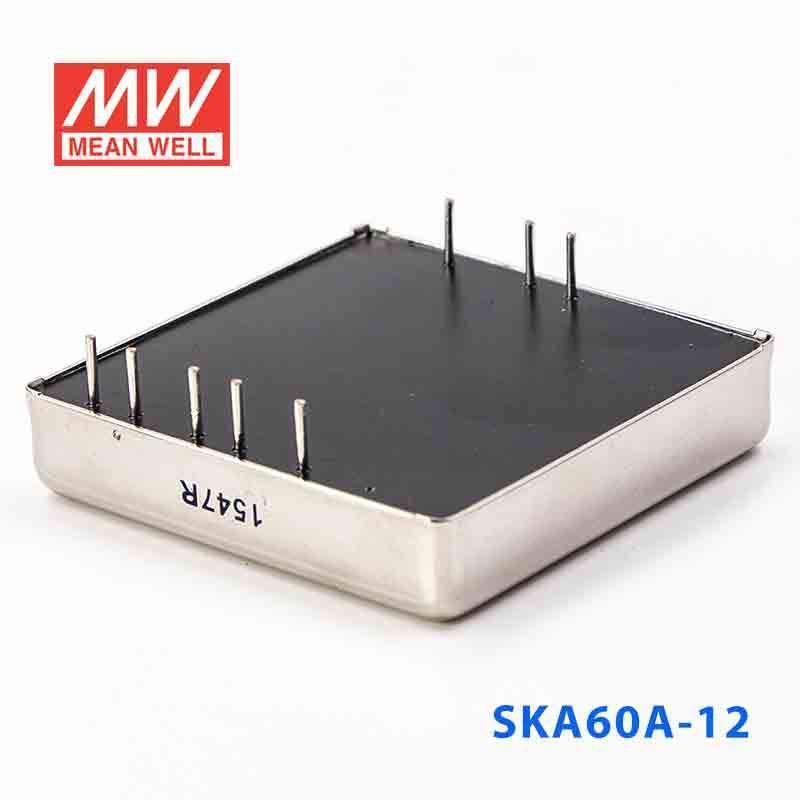

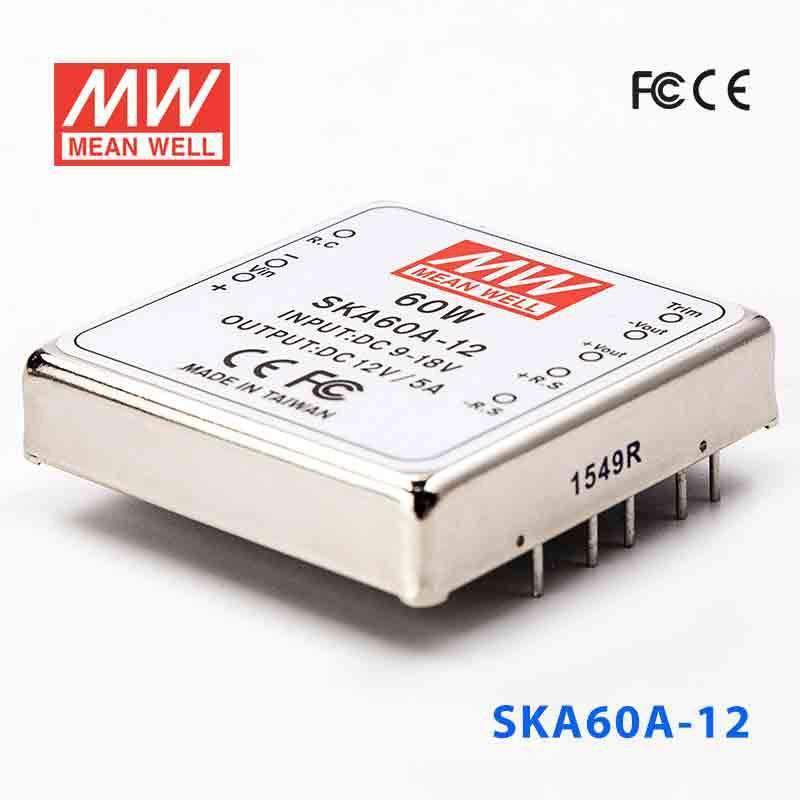

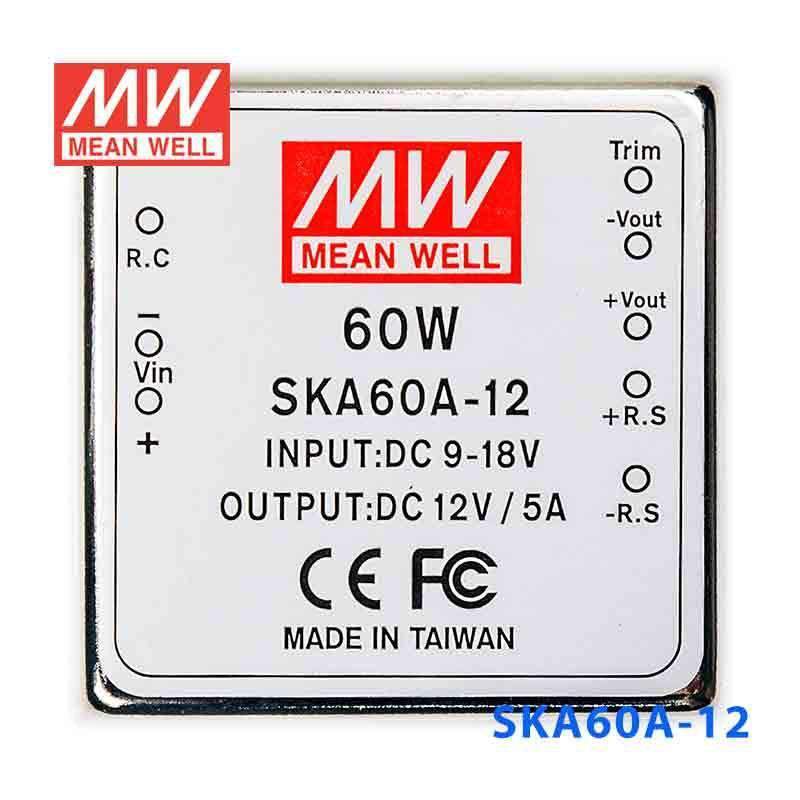

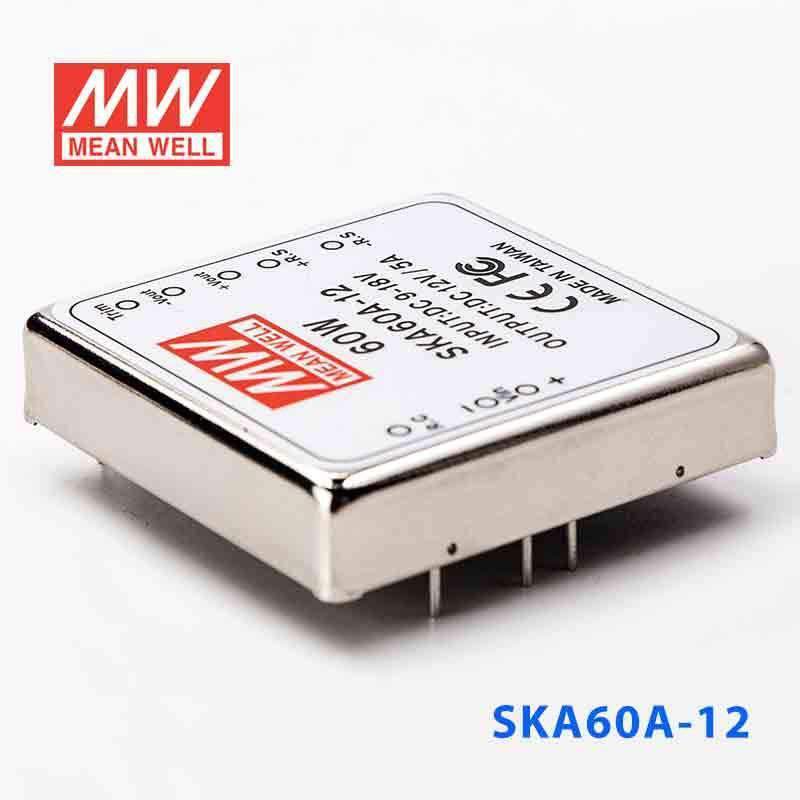

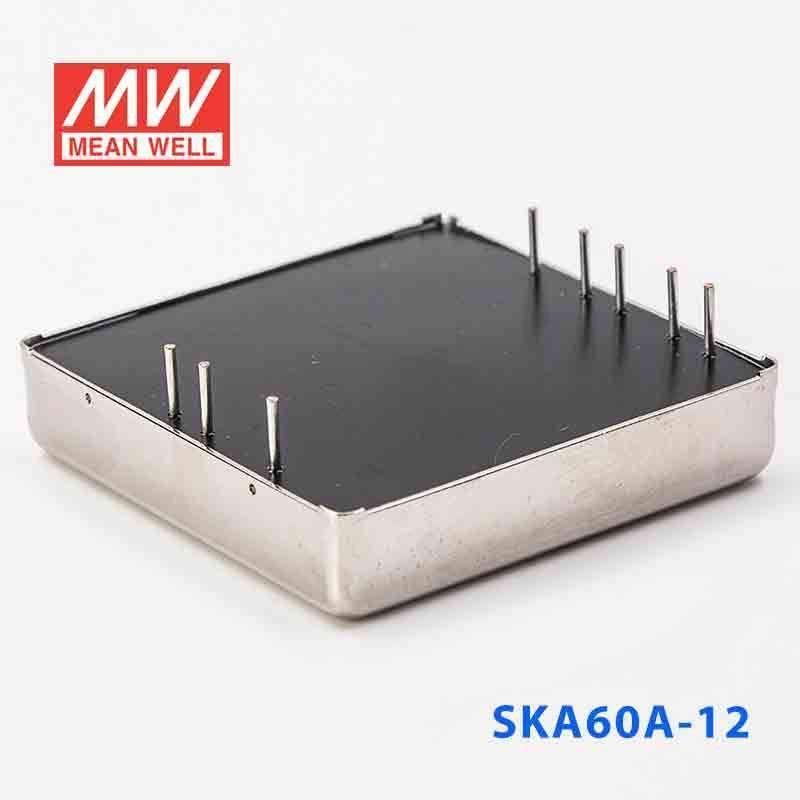

Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out 5A

SKU SKA60A-12
$57.13 USD
Shipping calculated at checkout.
In stock
|

Overview

SKA60A-12 is the 12V output model of this series: rated power 60W, typical efficiency 92%.

Features

  • 2"x2" compact size
  • 2:1 wide input range
  • High efficiency up to 93%
  • 1500VDC I/O isolation
  • Built-in remote ON / OFF control
  • Built-in remote sense
  • Trimming output ±10%
  • Comply with CE / FCC without external components
  • Protections: Short circuit / Overload / Input and output Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Output 3.3V available
  • 2 years warranty

Specifications

SKA60A-12Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
12V
CURRENT RANGE
0.5 ~ 5A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
80mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
250KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
220uF
EXTERNAL TRIM Adj. RANGE(Typ.)
±10%

INPUT

VOLTAGE RANGE
9 ~ 18VDC
EFFICIENCY (Typ.)
92%
DC CURRENT Full load
5445mA
DC CURRENT No load
160mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 75VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
110% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Input(Typ.)
>20 ~ 25VDC
OVER VOLTAGE Output(Typ.)
5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
CASE TEMP.
+100℃ max.
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)
PACKING
67g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKA60A-12 Mechanical Specification
Mechanical Specification
SKA60A-12 Packing
Packing

Downloads

FAQ

Can I use the SKA60A-12 for 12V PLC, HMI, or panel control devices?

Yes, if the load requires regulated 12V constant voltage. This model delivers 12V output up to 5A with a 60W rating, and it accepts 9-18VDC input. That makes it suitable for many 12V control and automation devices within that power range.

Is the SKA60A-12 a good fit for 12V industrial relays, indicators, and auxiliary controls?

It is intended for 12V constant-voltage loads, so it can be used for 12V relay circuits, indicators, and auxiliary control electronics when the total demand stays within 5A and 60W. The regulated 12V output is the key match for those applications.

Can this model power 12V instrumentation or monitoring electronics from a 9-18VDC source?

Yes. The unit is specified for 9-18VDC input and provides a constant 12V output. With up to 5A available, it fits 12V monitoring or instrumentation loads that need regulated 12V power.

Will the SKA60A-12 handle cold or high-heat operating conditions?

The published operating temperature range is -40C to +70C, which supports use across a wide temperature span. The product data provided does not include an IP rating, so exposure resistance for outdoor or wet locations is not defined here.

What is the difference between SKA60A-12 and the other SKA60A versions?

The SKA60A-12 is the 12V version of the 60W SKA60A series and is rated for 5A output. The sibling models are SKA60A-05 at 5V and 12A, and SKA60A-15 at 15V and 4A, with the same 9-18VDC input range.
