Mean Well

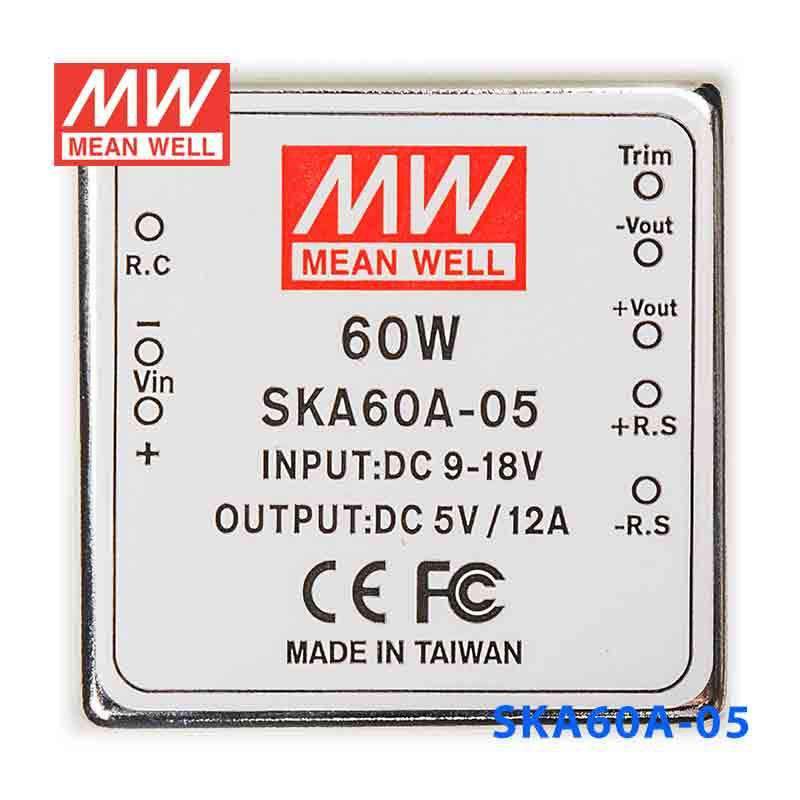

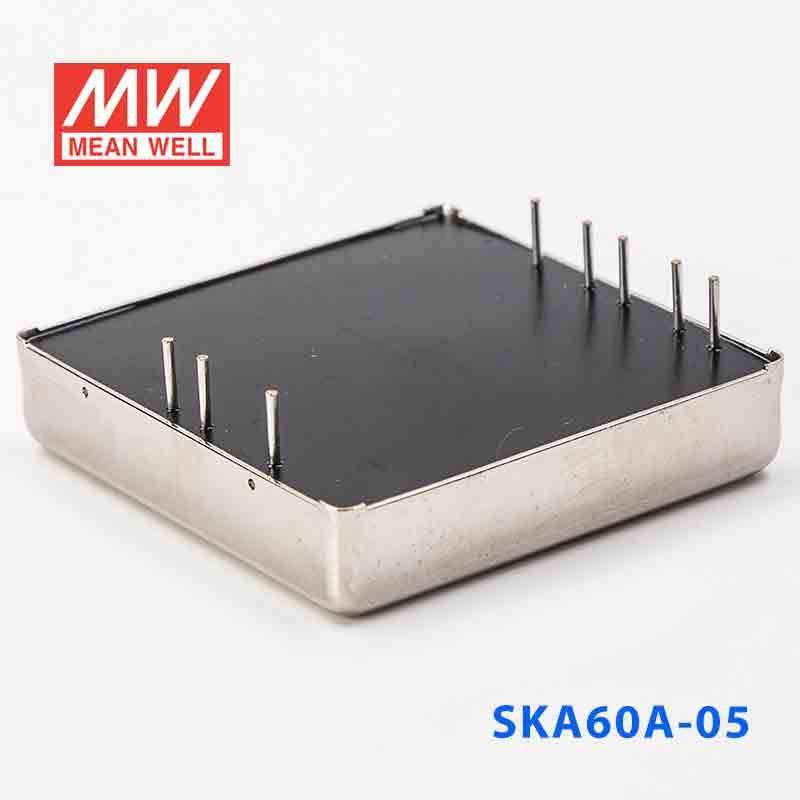

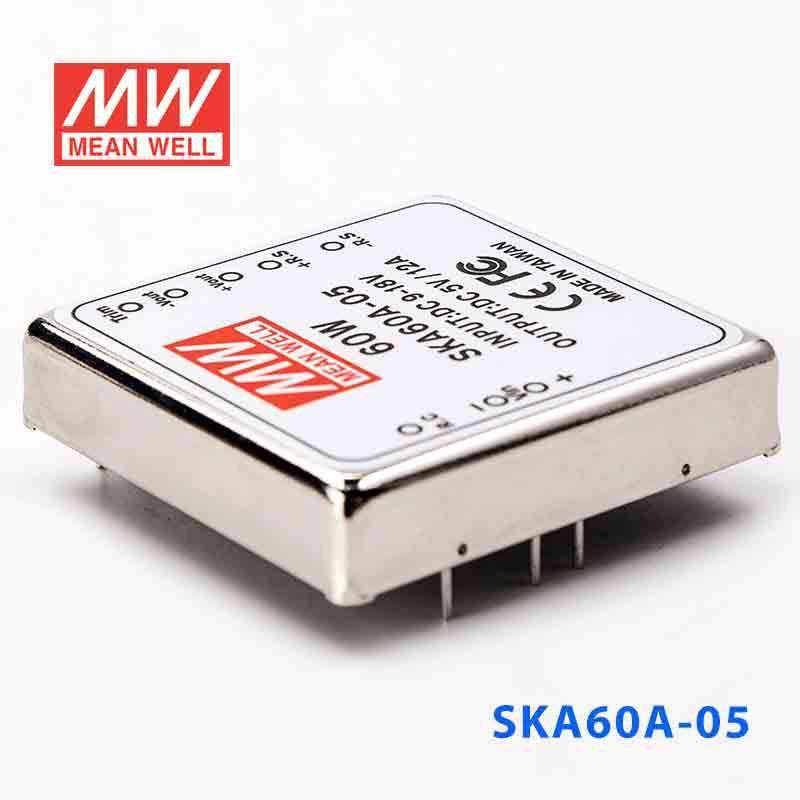

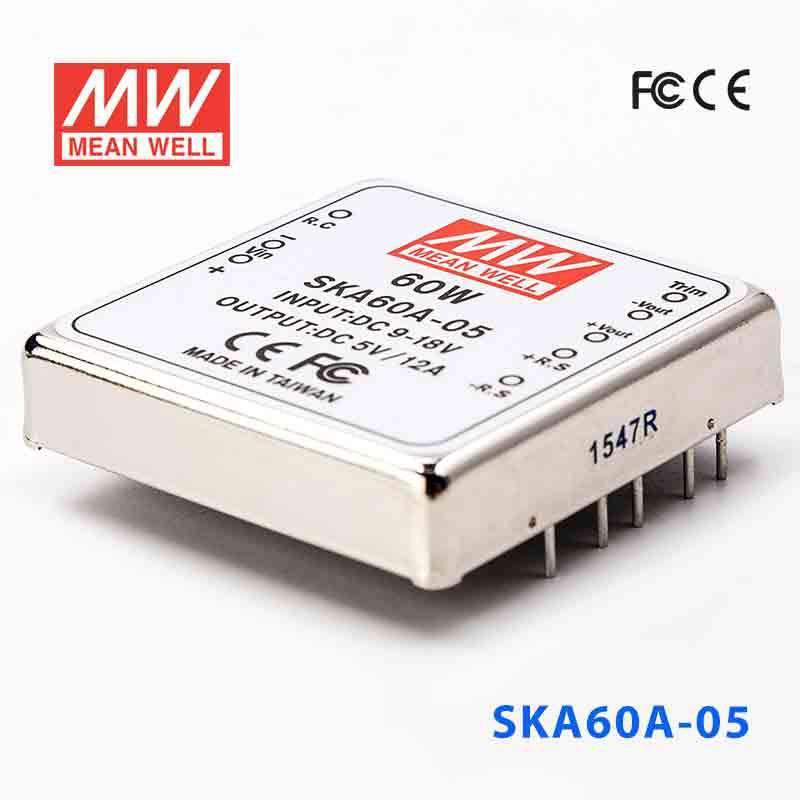

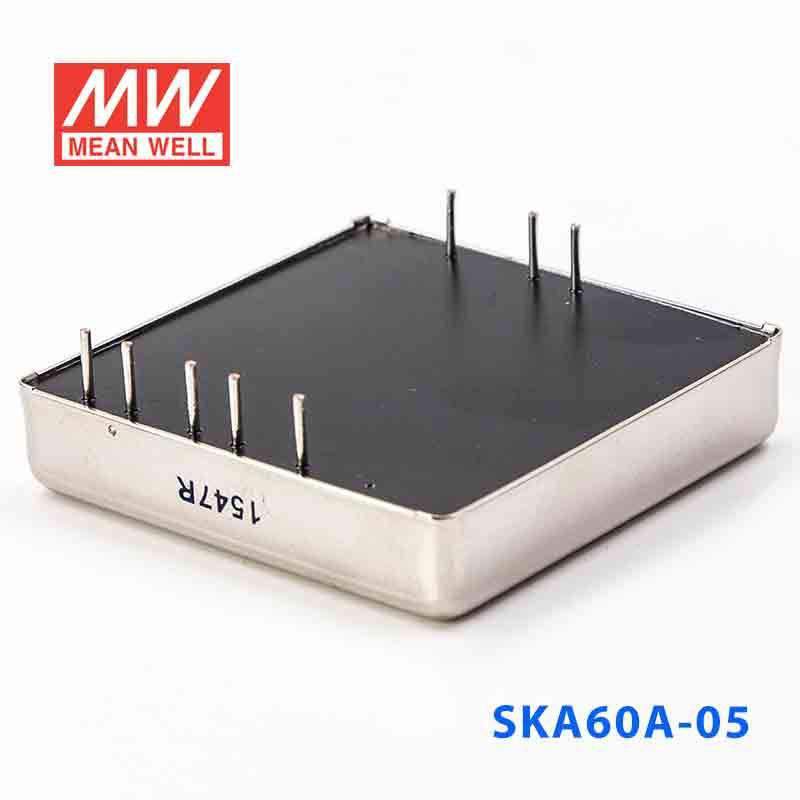

Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out 12A

SKU SKA60A-05
$57.12 USD
Shipping calculated at checkout.
Available to order
|

Overview

SKA60A-05 is the 5V output model of this series: rated power 60W, typical efficiency 91%.

Features

  • 2"x2" compact size
  • 2:1 wide input range
  • High efficiency up to 93%
  • 1500VDC I/O isolation
  • Built-in remote ON / OFF control
  • Built-in remote sense
  • Trimming output ±10%
  • Comply with CE / FCC without external components
  • Protections: Short circuit / Overload / Input and output Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Output 3.3V available
  • 2 years warranty

Specifications

SKA60A-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
1.2 ~ 12A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
250KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
1000uF
EXTERNAL TRIM Adj. RANGE(Typ.)
±10%

INPUT

VOLTAGE RANGE
9 ~ 18VDC
EFFICIENCY (Typ.)
91%
DC CURRENT Full load
5505mA
DC CURRENT No load
185mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 75VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
110% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Input(Typ.)
>20 ~ 25VDC
OVER VOLTAGE Output(Typ.)
5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
CASE TEMP.
+100℃ max.
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)
PACKING
67g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKA60A-05 Mechanical Specification
Mechanical Specification
SKA60A-05 Packing
Packing

Downloads

FAQ

Can I use the SKA60A-05 to power a 5V embedded controller or single-board computer in an industrial system?

Yes. This model provides a constant-voltage 5V output with up to 12A and 60W, which fits 5V embedded controllers or single-board computers that need a stable 5V rail. The input range is 9-18VDC.

Is the SKA60A-05 suitable for 5V industrial logic, sensors, or control electronics?

It can be a fit for 5V industrial logic and other 5V control electronics because the output is regulated constant voltage at 5V. With 12A available and a 60W rating, it is better suited to higher-current 5V loads than lower-current variants in the same family.

Can this converter be used for 5V automation devices in compact control equipment?

Yes. The compact 50.8 x 50.8 x 11.0 mm form factor and 67g weight make it practical where space is limited. It is intended for 5V constant-voltage loads and accepts 9-18VDC input.

Is the SKA60A-05 appropriate for harsh-temperature environments?

The specified operating temperature range is -40C to +70C, so the temperature rating supports use in demanding indoor equipment or protected enclosures. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not established by this data alone.

How does the SKA60A-05 compare with the other SKA60A models?

All three SKA60A models are rated for 60W. The SKA60A-05 outputs 5V at 12A, the SKA60A-12 outputs 12V at 5A, and the SKA60A-15 outputs 15V at 4A, and all use the same 9-18VDC input range.
