Mean Well

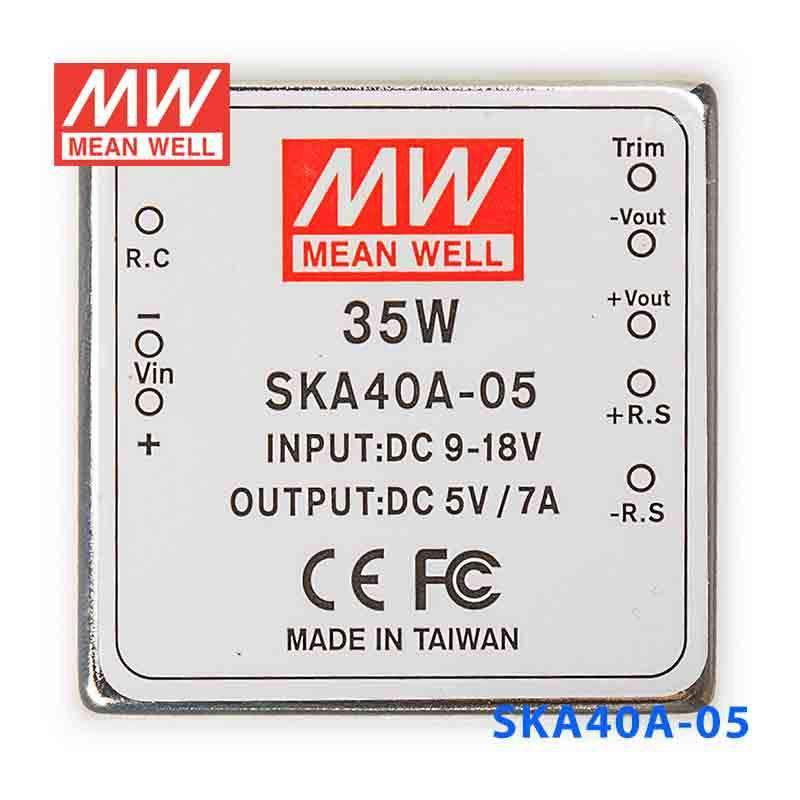

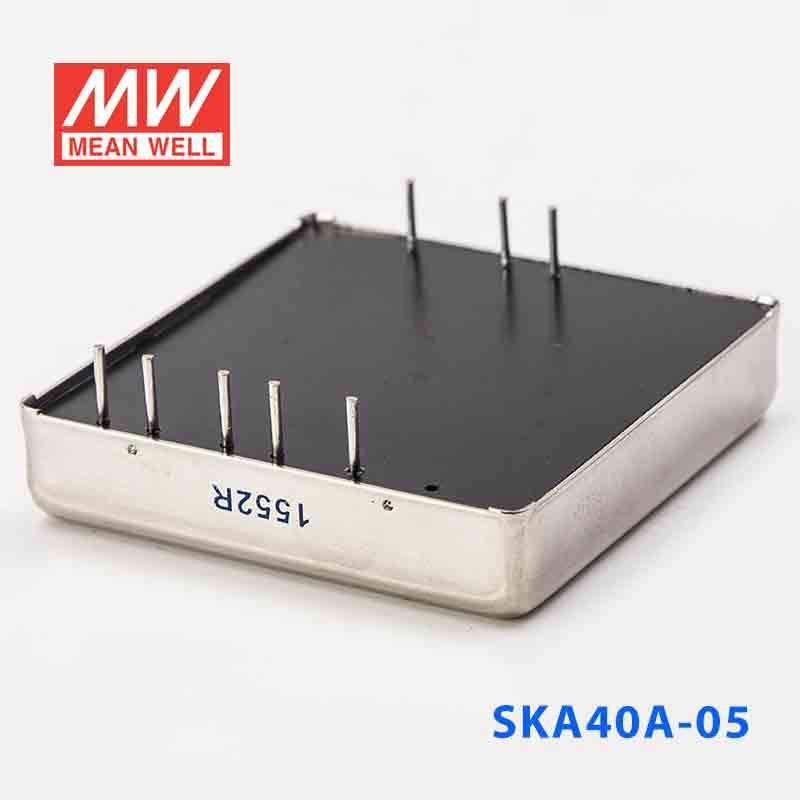

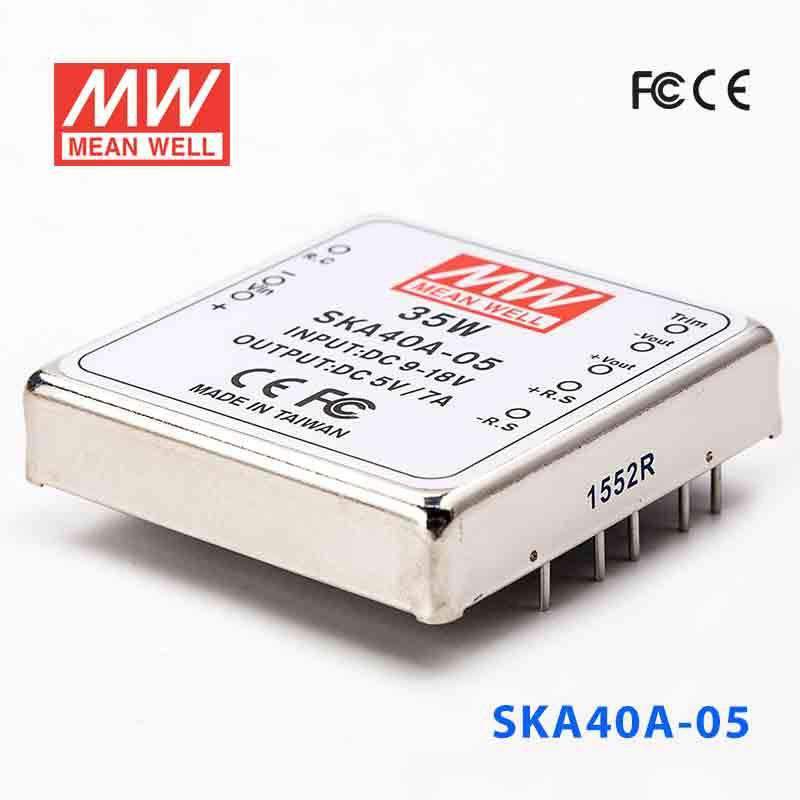

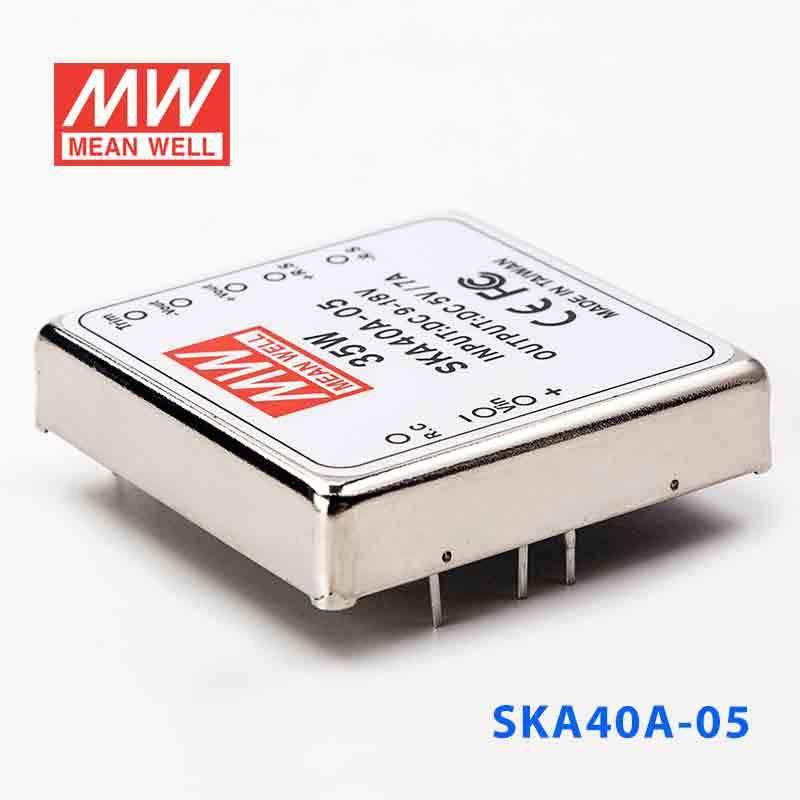

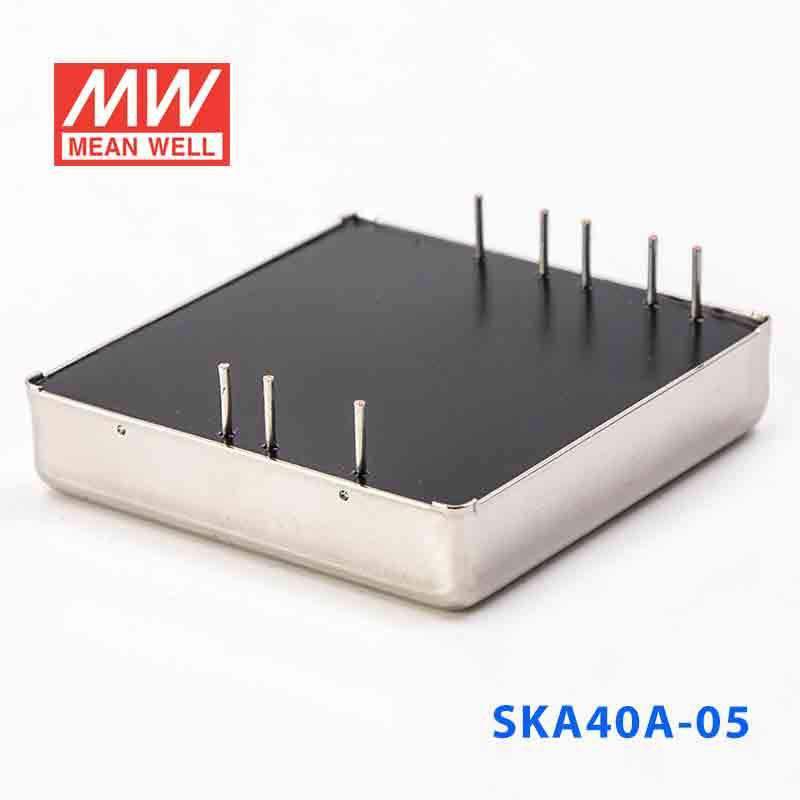

Mean Well SKA40A-05 DC-DC Converter - 35W - 9~18V in 5V out 7A

SKU SKA40A-05
$47.46 USD
Shipping calculated at checkout.
Available to order
|

Overview

SKA40A-05 is the 5V output model of this series: rated power 35W, typical efficiency 91%.

Features

  • 2:1 wide input range
  • High efficiency up to 92%
  • 1500VDC I/O isolation
  • Built-in EMI filter
  • Built-in remote ON / OFF control
  • Built-in remote sense
  • Trimming output ±10%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Output 3.3V/9V available
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

SKA40A-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
0.7 ~ 7A
RATED POWER
35W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
200KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
1000uF
EXTERNAL TRIM Adj. RANGE(Typ.)
±10%

INPUT

VOLTAGE RANGE
9 ~ 18VDC
EFFICIENCY (Typ.)
91%
DC CURRENT Full load
3850mA
DC CURRENT No load
150mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 75VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
110% ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode

ENVIRONMENT

WORKING TEMP.
-40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)
PACKING
50g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKA40A-05 Mechanical Specification
Mechanical Specification
SKA40A-05 Packing
Packing

Downloads

FAQ

Can I use the SKA40A-05 to power a 5V embedded controller or single-board computer in equipment with a 9-18VDC input?

This converter provides a constant 5V output at up to 7A with 35W capacity. Its listed input range is 9-18VDC, so it suits embedded electronics that need 5V power from that source range.

Is the SKA40A-05 a fit for industrial USB hubs, gateways, or low-voltage IT hardware that need 5V power?

The output is regulated 5V with up to 7A available, which is useful for 5V IT or control hardware. The total output limit is 35W, so the load needs to remain within that rating.

Can this model support 5V automation electronics in vehicles or mobile equipment with a 9-18VDC supply range?

The listed input range is 9-18VDC and the output is a constant 5V. That makes it suitable where the source and the 5V load both match those published limits.

Would the SKA40A-05 work for compact control cabinets with limited space?

Its dimensions are 50.8 × 50.8 × 11.0 mm and its weight is 50g. Those specs support use in compact assemblies where a low-profile 5V, 35W converter is needed.

Can the SKA40A-05 be used in outdoor or temperature-variable environments?

The operating temperature range is specified as -40°C to +80°C. No IP rating is listed, so temperature capability is defined, but outdoor or washdown suitability is not established by the published specs.

What is the difference between the SKA40A-05 and the other SKA40A versions?

The SKA40A-05 is rated for 35W with 5V output at 7A. In the same series, the SKA40A-12 is 40W with 12V at 3.33A, and the SKA40A-15 is 40W with 15V at 2.67A.
