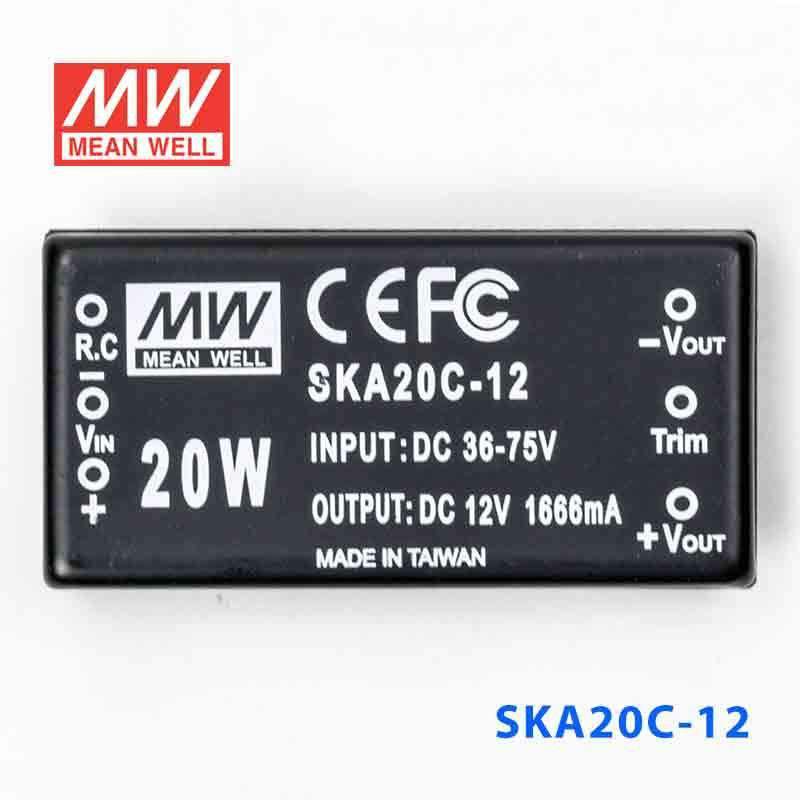

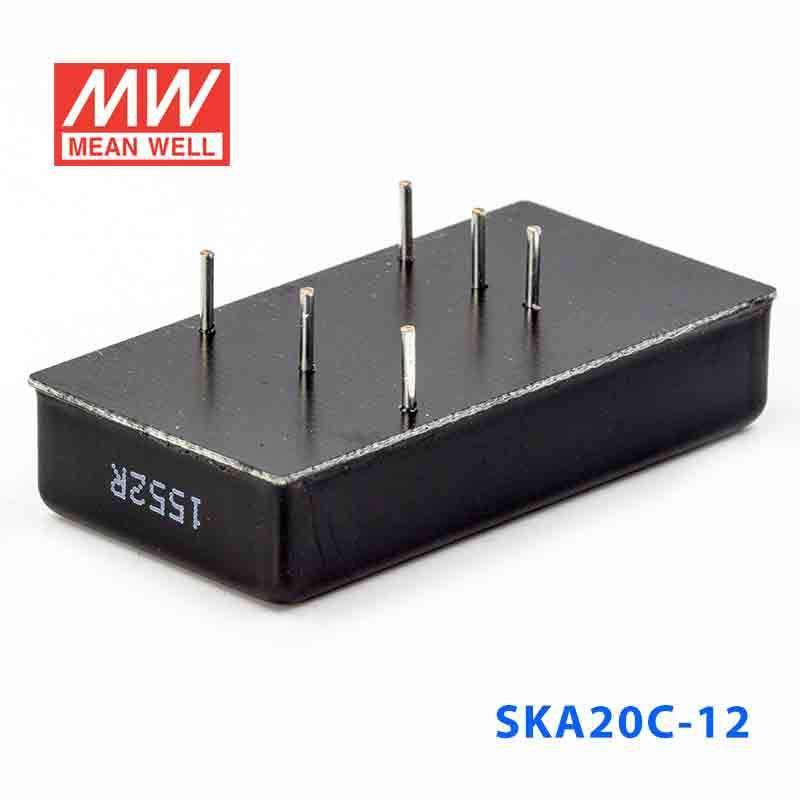

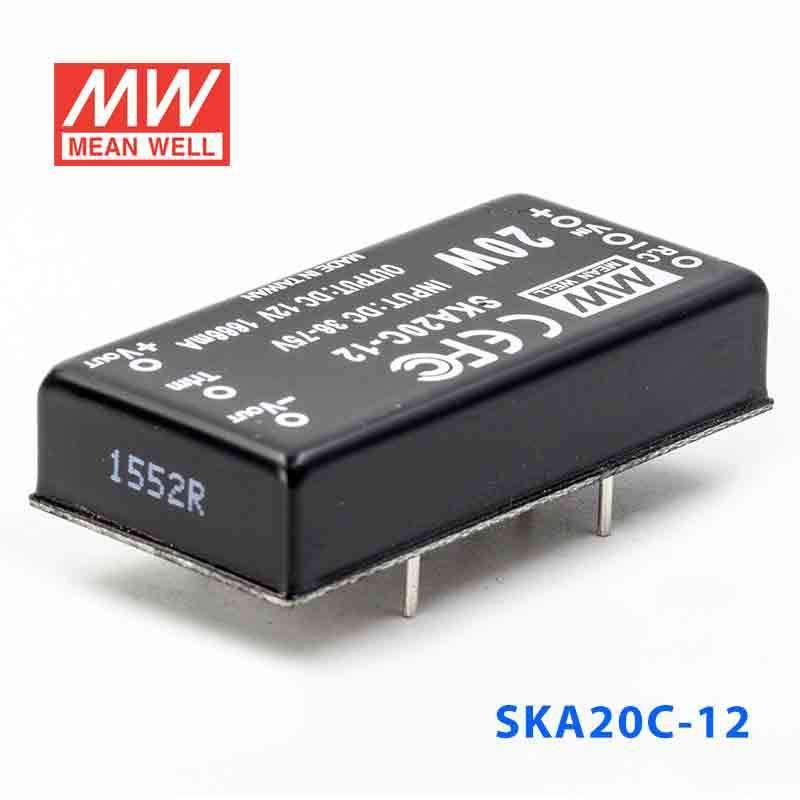

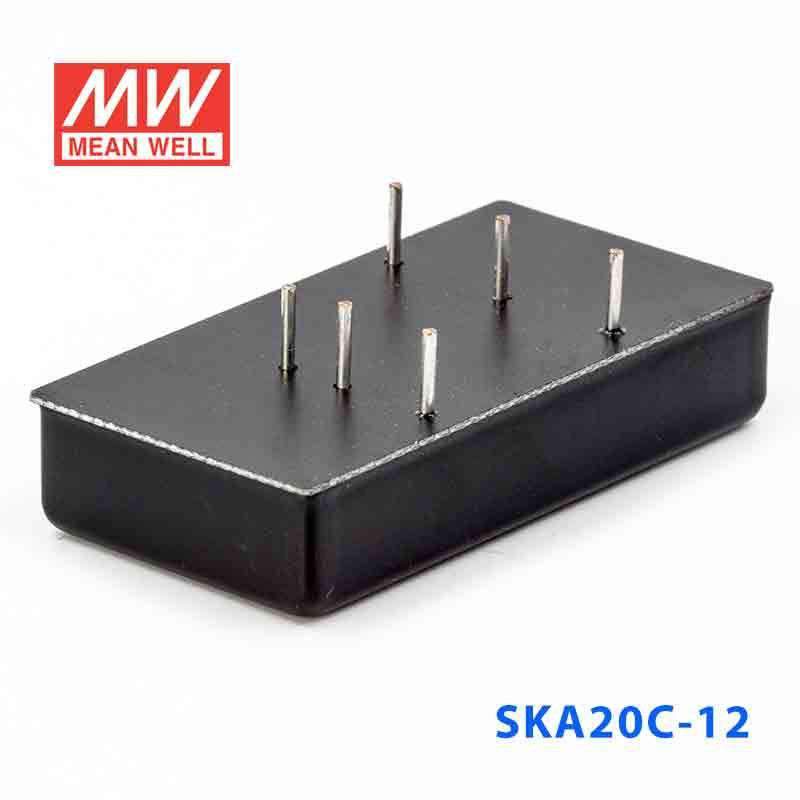

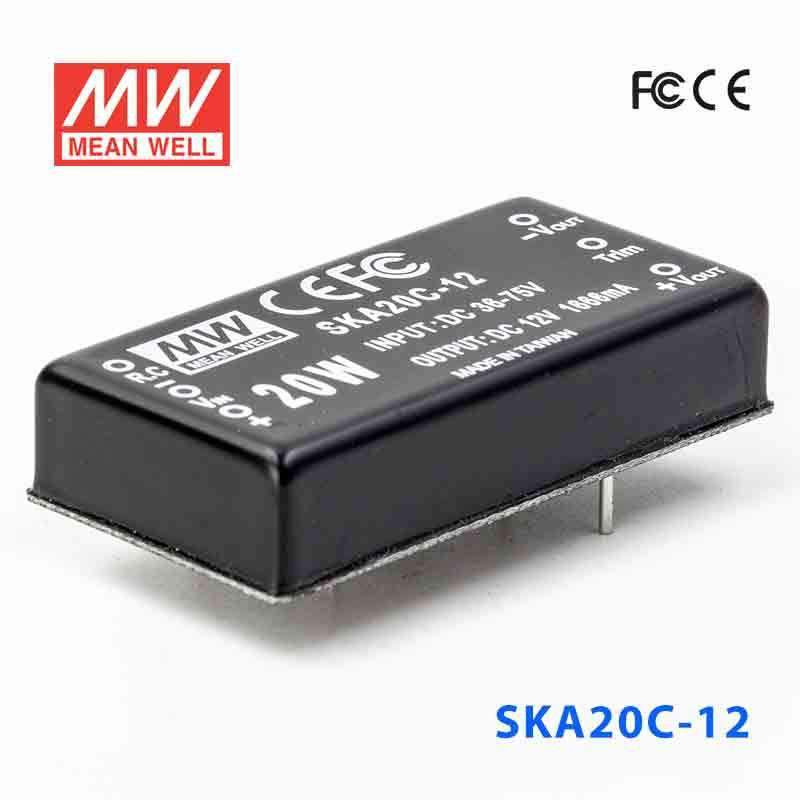

Mean Well SKA20C-12 DC-DC Converter - 20W - 36~75V in 12V out 1.66A

SKU SKA20C-12
$30.13 USD
Shipping calculated at checkout.
In stock
|

Overview

SKA20C-12 is the 12V output model of this series: rated power 20W, typical efficiency 87.5%.

Features

  • 2"×1" compact size
  • 2:1 wide input range
  • High efficiency up to 89.5%
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control
  • Built-in trimming output
  • Built-in EMI filter
  • Protections: Short circuit / Overload / Input and Output Over voltage
  • Cooling by free air convection
  • Six-sided shielded metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

SKA20C-12Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
12V
CURRENT RANGE
166 ~ 1666mA
RATED POWER
20W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.2%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
300KHz typ.
EXTERNAL CAPACITANCE LOAD (max.)
220uF
EXTERNAL TRIM Adj. RANGE(Typ.)
-20 ~ +10%

INPUT

VOLTAGE RANGE
36 ~ 75VDC
EFFICIENCY (Typ.)
87.5%
DC CURRENT Full load
500mA
DC CURRENT No load
15mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 30VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short

PROTECTION (Note. 5)

PROTECTION
Fuse recommended
OVER CURRENT
110% ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
>80 ~ 82VDC input voltage Output Protection type : Shut down o/p voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
700Khrs min. MIL-HDBK-217F(25℃)
DIMENSION
50.8*25.4*11.2 mm or 2"*1"*0.44" inch (L*W*H)
PACKING
31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

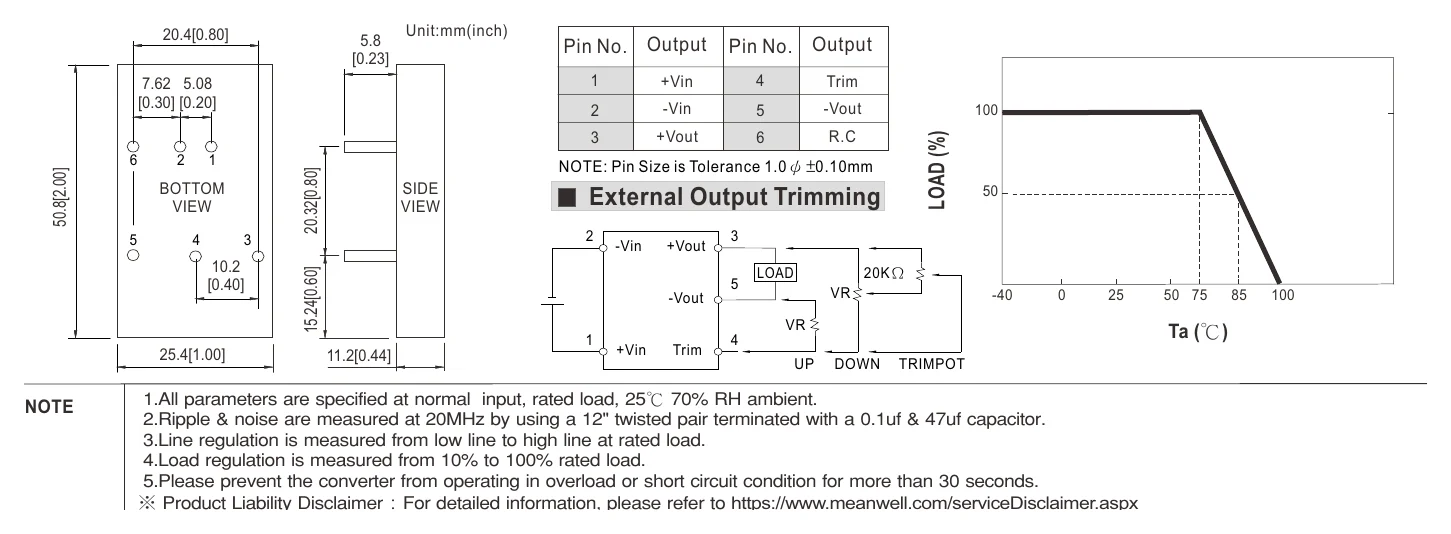

SKA20C-12 Mechanical Specification
Mechanical Specification

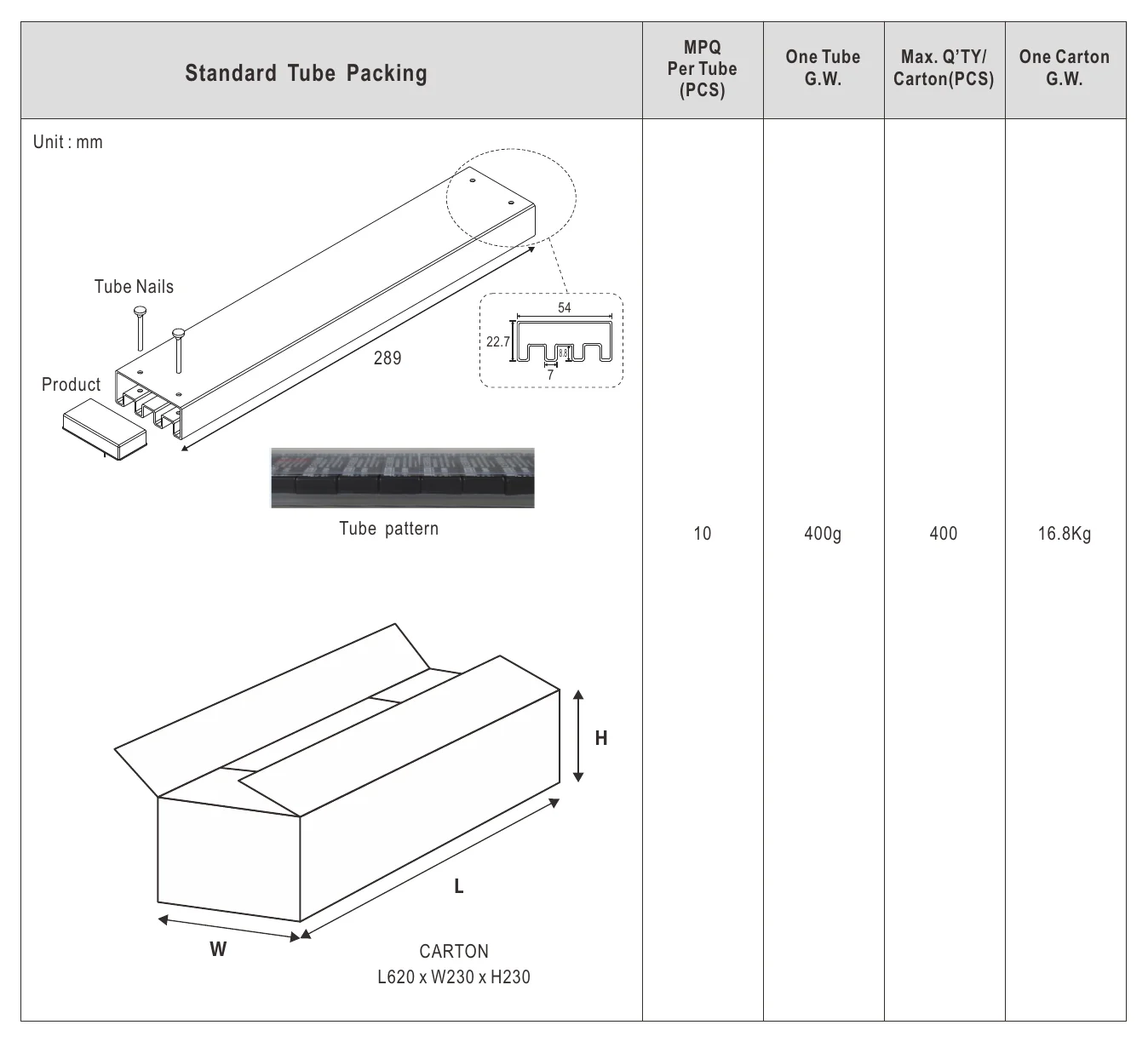

SKA20C-12 Packing
Packing

Downloads

FAQ

Can I use the SKA20C-12 for a 12V industrial controller or automation module on a 36-75VDC input?

Yes, this converter accepts 36-75VDC input and delivers a constant 12V output. It is suitable for 12V loads up to 1.66A, within the 20W output rating.

Is the SKA20C-12 appropriate for 12V monitoring, control, or embedded hardware in higher-input systems?

It can be used when the application needs regulated 12V power from a 36-75VDC source. The connected equipment needs to stay within 1.66A output current and 20W maximum power.

Can this model support 12V industrial interface electronics where the source voltage varies across 36-75VDC?

That is the intended input window for this model, and the output is fixed at 12V in constant-voltage mode. It fits 12V interface or control electronics that do not exceed 1.66A.

What temperature and exposure conditions are specified for the SKA20C-12?

The published operating temperature range is -40°C to +85°C. The specs do not include an IP rating, so the product information does not state indoor sealed use, outdoor use, or weather resistance.

How does the SKA20C-12 compare with SKA20C-05 and SKA20C-15?

These SKA20C models all use the same 36-75VAC input range, 20W power class, 50.8 × 25.4 × 11.2 mm dimensions, 0.0312 kg weight, and -40°C to +85°C operating range. The output choices are 5V at 4A for SKA20C-05, 12V at 1.66A for SKA20C-12, and 15V at 1.33A for SKA20C-15.
