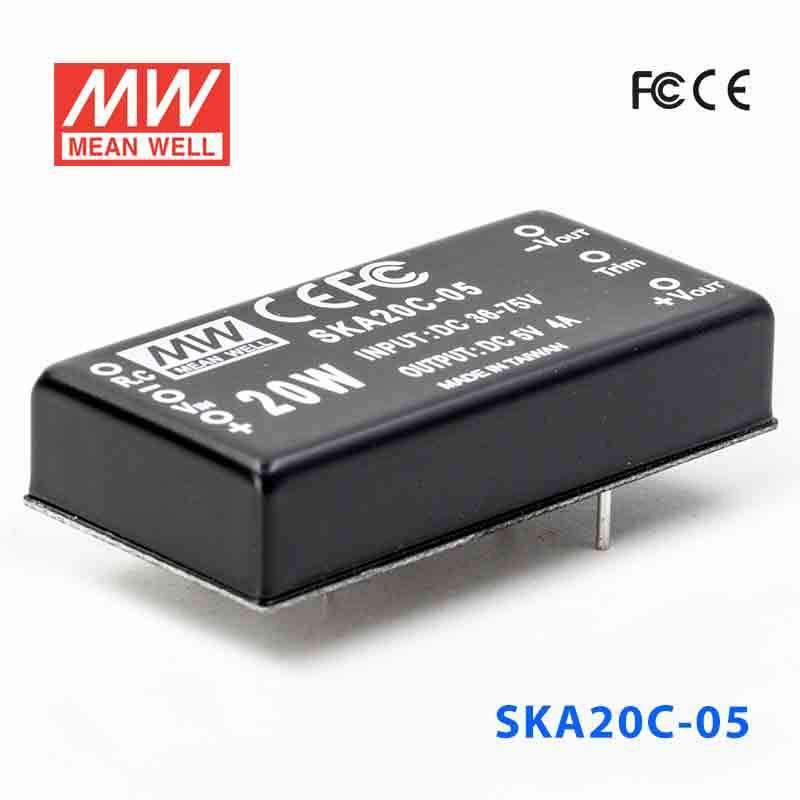

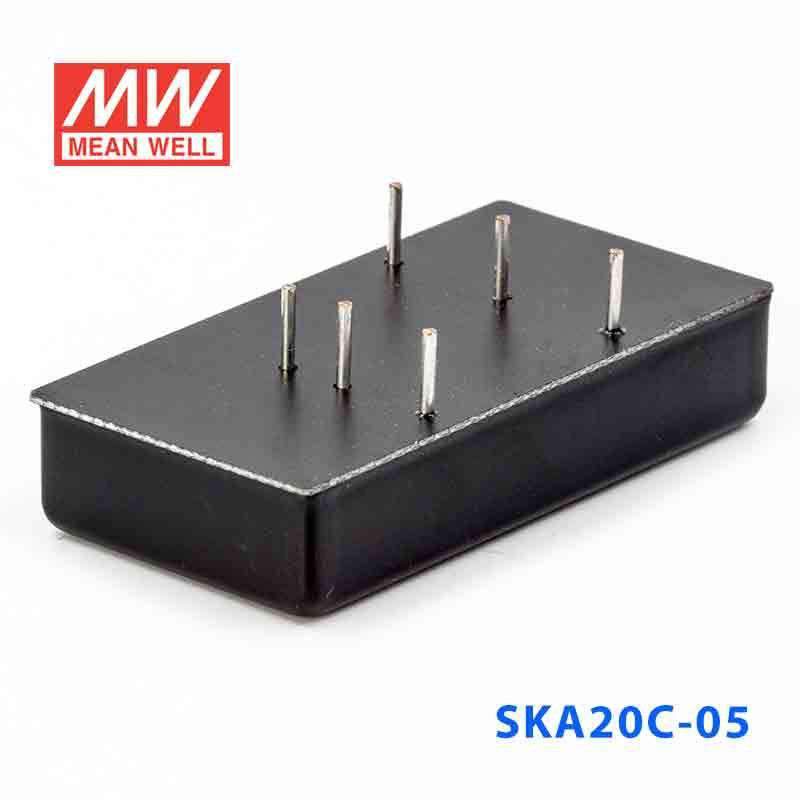

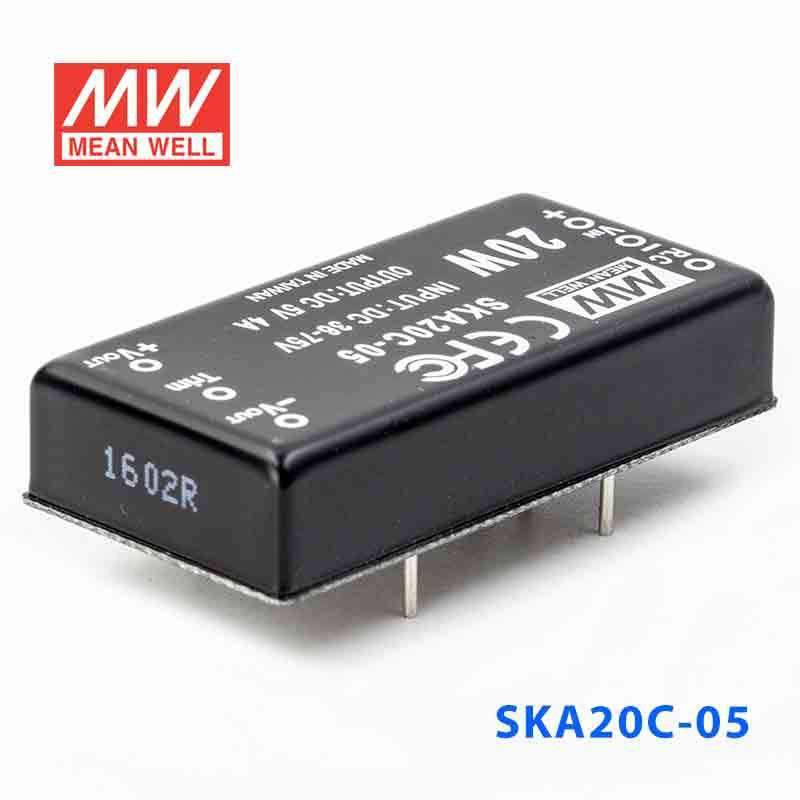

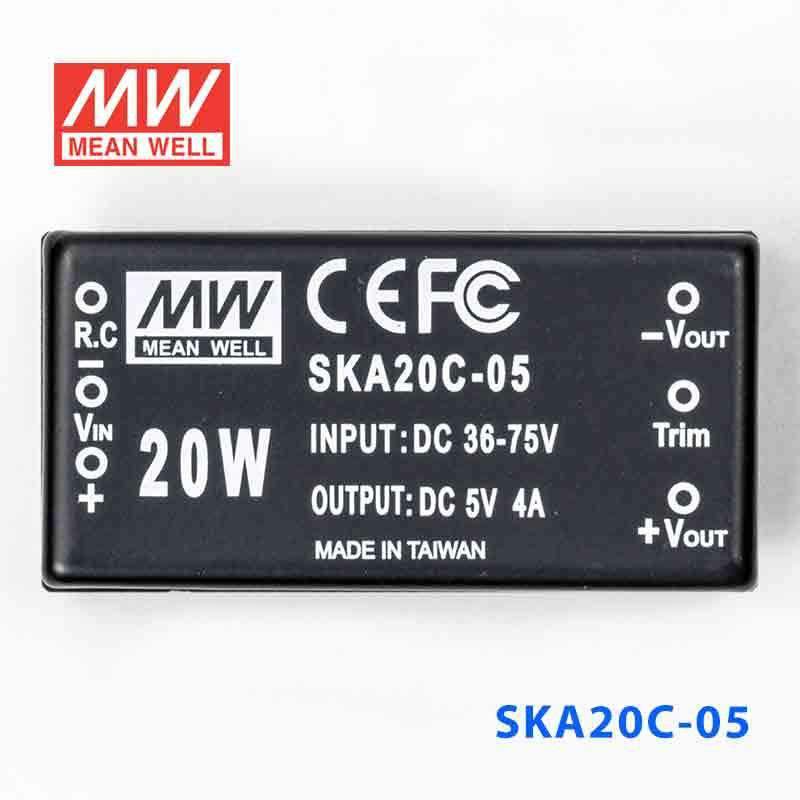

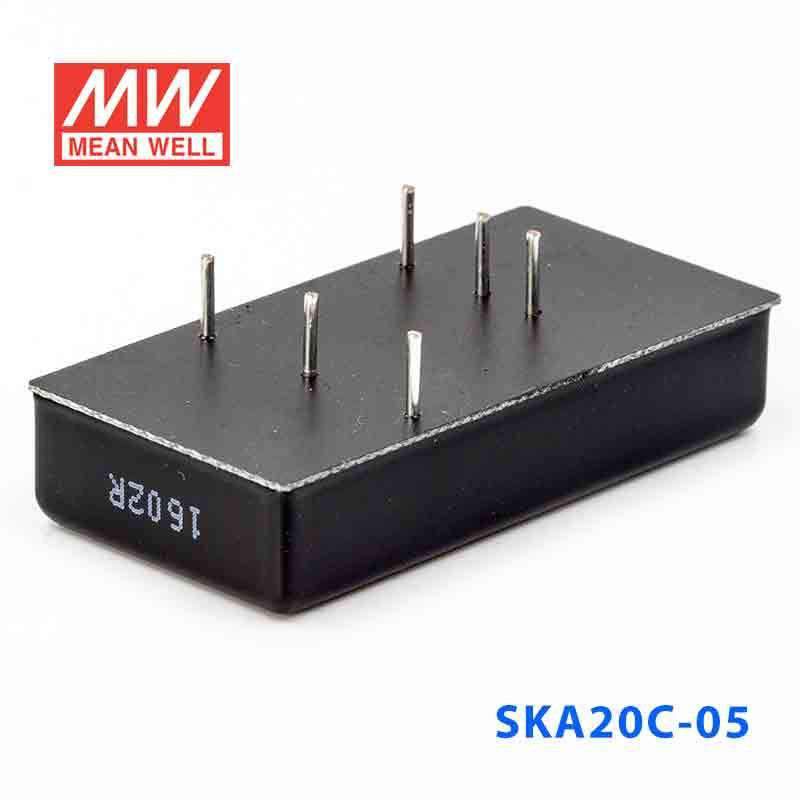

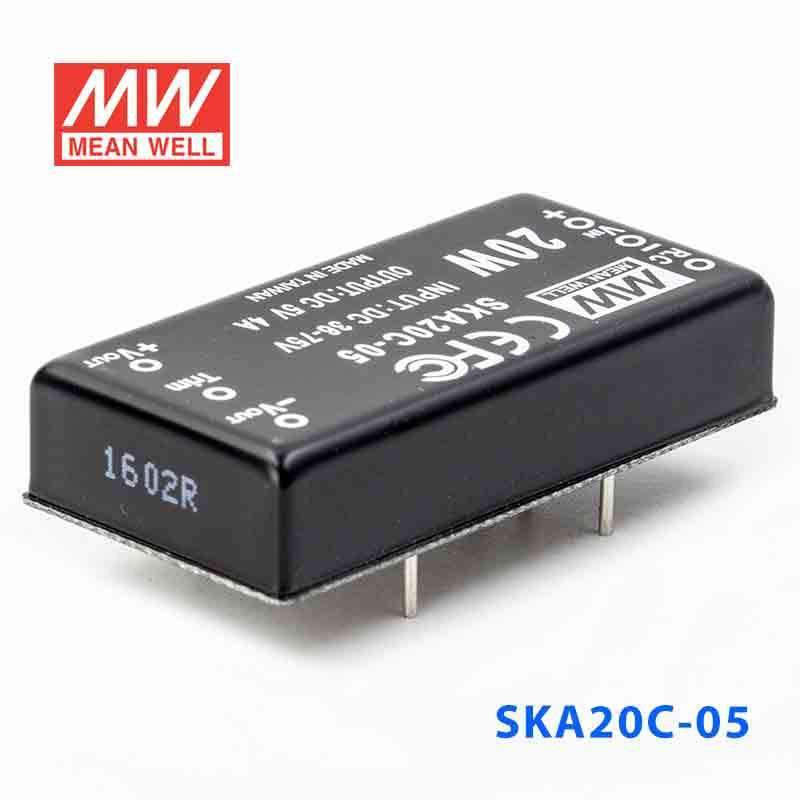

Mean Well SKA20C-05 DC-DC Converter - 20W - 36~75V in 5V out

$30.13 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2"x1" compact size
2:1 wide input range
High efficiency up to 89.5%
1500VDC I/O isolation
Built-in remote ON/OFF control
Built-in trimming output
Built-in EMI filter
Protection: Short circuit / Overload / Input and Output Over voltage
Cooling by free air convection
Six-sided shield metal case
100% full burn-in test
Low cost, high reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty

General Specification

Voltage set point accuracy ±2.0% (max.)
Line regulation ±0.2% (max.)
Load regulation ±0.5%
Overload protection 110%~250%, auto-recovery
Efficiency 87.5% ; 88% ; 88.5% | 88% ; 88.5% ; 87.5 | 89% ; 89.5% ; 88%
Short circuit protection Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation voltage 1000VDC (min.)
I/O isolation resistance I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature -40~+85°C (refer to output derating curve)
Storage temperature -55 ~ +125°C, 10 ~ 95% RH
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient ±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm) 50.8 x 25.4 x 11.2 mm or 2" x 1" x 0.44" inch
Case material Six-sided shield metal case

Specifications

  • Brand
    Mean Well
  • Series
    SKA Series
  • Power Rating
    20 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    36V~75V
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.44 in
  • Weight
    0.07 lb
