Mean Well

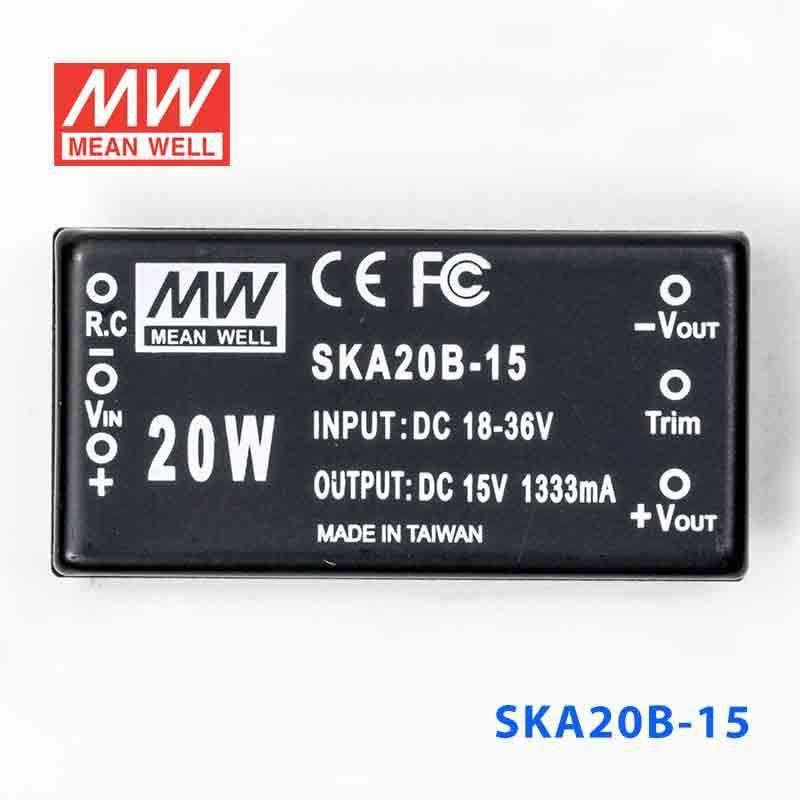

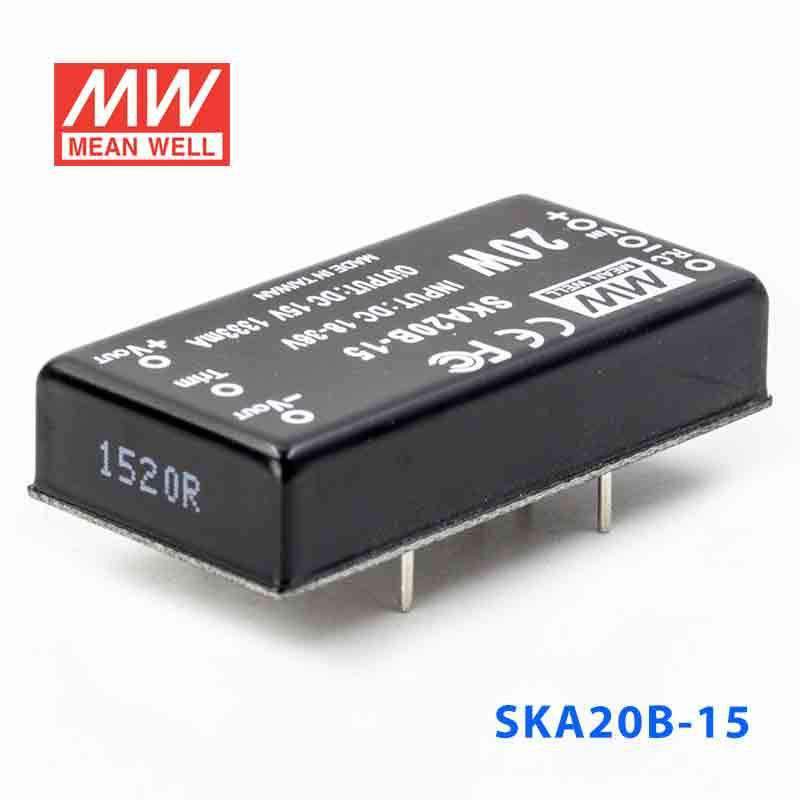

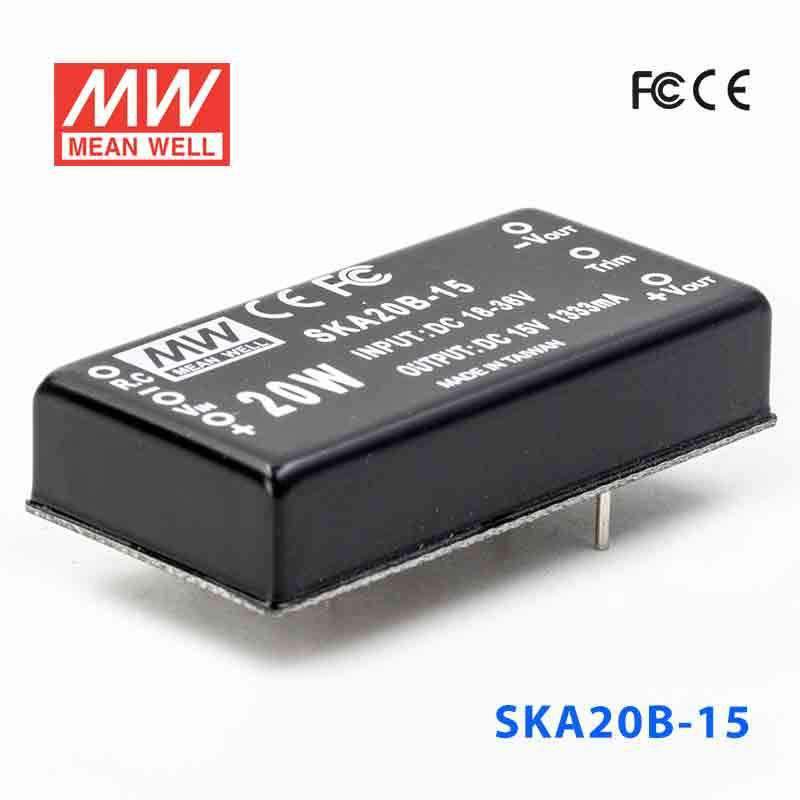

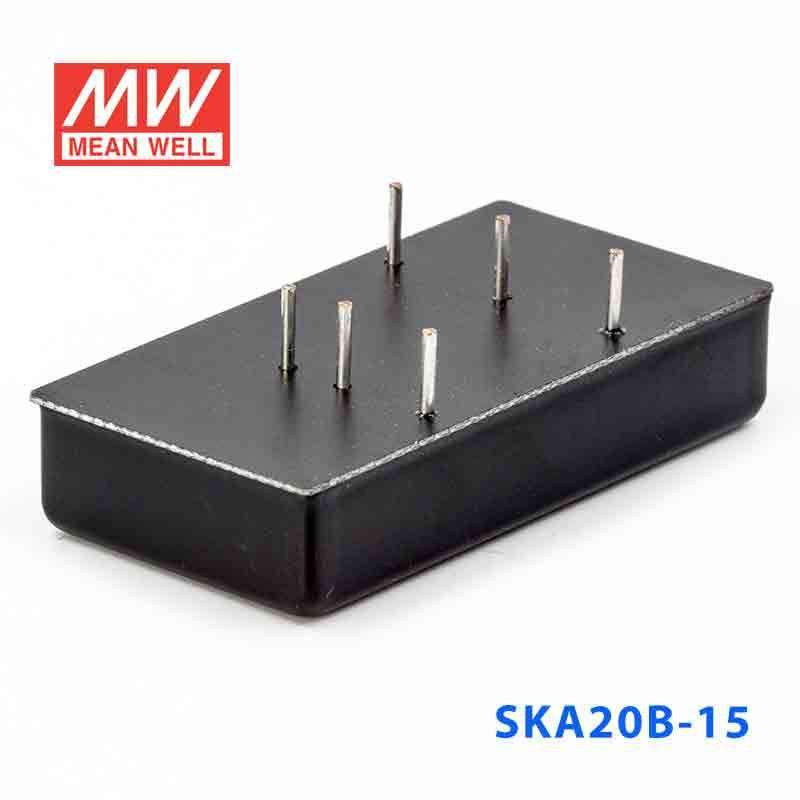

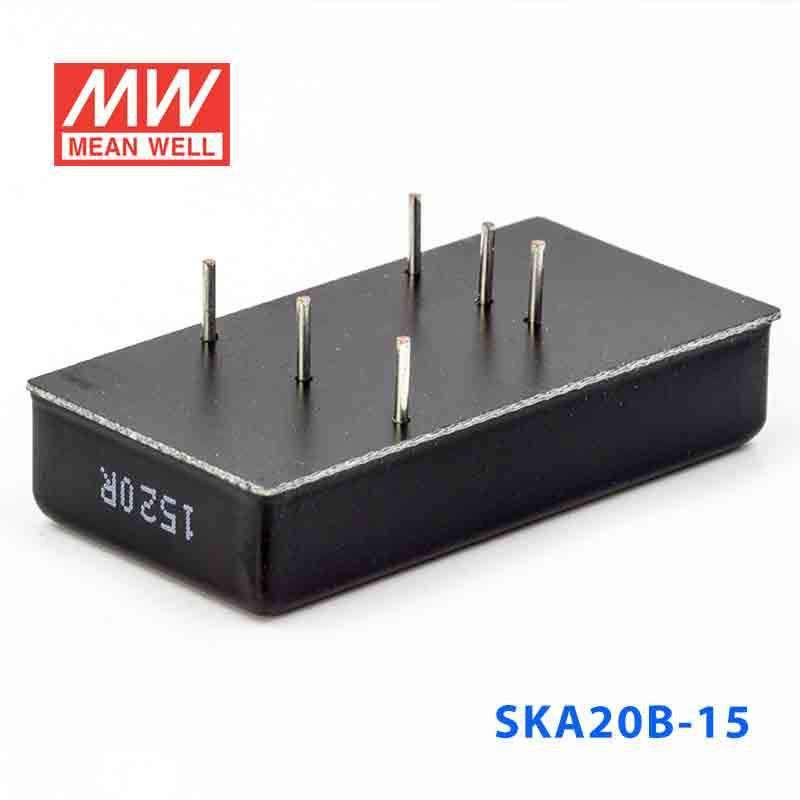

Mean Well SKA20B-15 DC-DC Converter - 20W - 18~36V in 15V out 1.33A

SKU SKA20B-15
$30.13 USD
Shipping calculated at checkout.
Available to order
|

Overview

SKA20B-15 is the 15V output model of this series: rated power 20W, typical efficiency 89.5%.

Features

  • 2"×1" compact size
  • 2:1 wide input range
  • High efficiency up to 89.5%
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control
  • Built-in trimming output
  • Built-in EMI filter
  • Protections: Short circuit / Overload / Input and Output Over voltage
  • Cooling by free air convection
  • Six-sided shielded metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

SKA20B-15Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
15V
CURRENT RANGE
133 ~ 1333mA
RATED POWER
20W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.2%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
300KHz typ.
EXTERNAL CAPACITANCE LOAD (max.)
100uF
EXTERNAL TRIM Adj. RANGE(Typ.)
-20 ~ +10%

INPUT

VOLTAGE RANGE
18 ~ 36VDC
EFFICIENCY (Typ.)
89.5%
DC CURRENT Full load
950mA
DC CURRENT No load
25mA
FILTER
Pi network
REMOTE CONTROL
Power ON : R.C ~ -Vin > 2.5V ~ 30VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short

PROTECTION (Note. 5)

PROTECTION
Fuse recommended
OVER CURRENT
110% ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
>40 ~ 43VDC

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
700Khrs min. MIL-HDBK-217F(25℃)
DIMENSION
50.8*25.4*11.2 mm or 2"*1"*0.44" inch (L*W*H)
PACKING
31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SKA20B-15 Mechanical Specification
Mechanical Specification
SKA20B-15 Packing
Packing

Downloads

FAQ

Can I use the SKA20B-15 to run a 15V industrial control or embedded subsystem?

Yes, it is a constant-voltage converter with a 15V output and an 18-36VDC input range. It can support 15V loads up to 1.33A, with a maximum output power of 20W.

Is the SKA20B-15 suitable for 15V automation electronics inside machinery or cabinets?

It can be suitable for 15V automation electronics if the available input falls within 18-36VDC. The connected load must remain within the converter's 1.33A output current and 20W output rating.

Can this converter power 15V industrial sensors or signal-processing modules?

This model is intended for fixed 15V output applications and uses constant-voltage operation. It fits 15V devices that require no more than 1.33A from a source in the 18-36VDC input range.

How does the SKA20B-15 handle temperature and environmental exposure?

The specified operating temperature range is -40°C to +85°C, which covers a wide set of temperature conditions. No IP rating appears in the provided specs, so the product page does not classify it for outdoor or washdown exposure.

How is SKA20B-15 different from SKA20B-05 and SKA20B-12?

The three SKA20B versions have the same 20W power rating, 18-36VAC input range, compact 50.8 × 25.4 × 11.2 mm size, 0.0312 kg weight, and -40°C to +85°C operating temperature. The output options are 5V at 4A for SKA20B-05, 12V at 1.66A for SKA20B-12, and 15V at 1.33A for SKA20B-15.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8659351929152, "variants" :[{ "context":"default", "variant_id": 46634910908736, "sku":"SKA20B-15", "inventory_qty" : 0, "customer" :true, "custom_html" :"\u003cdiv class=\"price\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$30.13\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

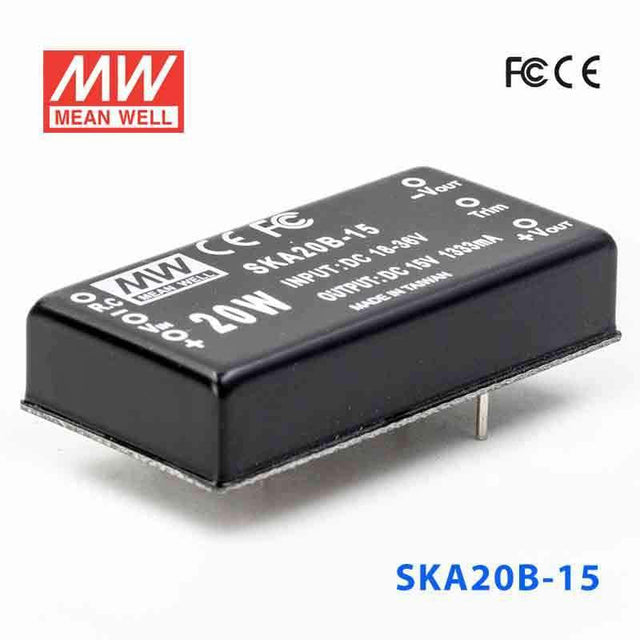

Mean Well SKA20B-15 DC-DC Converter - 20W - 18~36V in 15V out 1.33A
