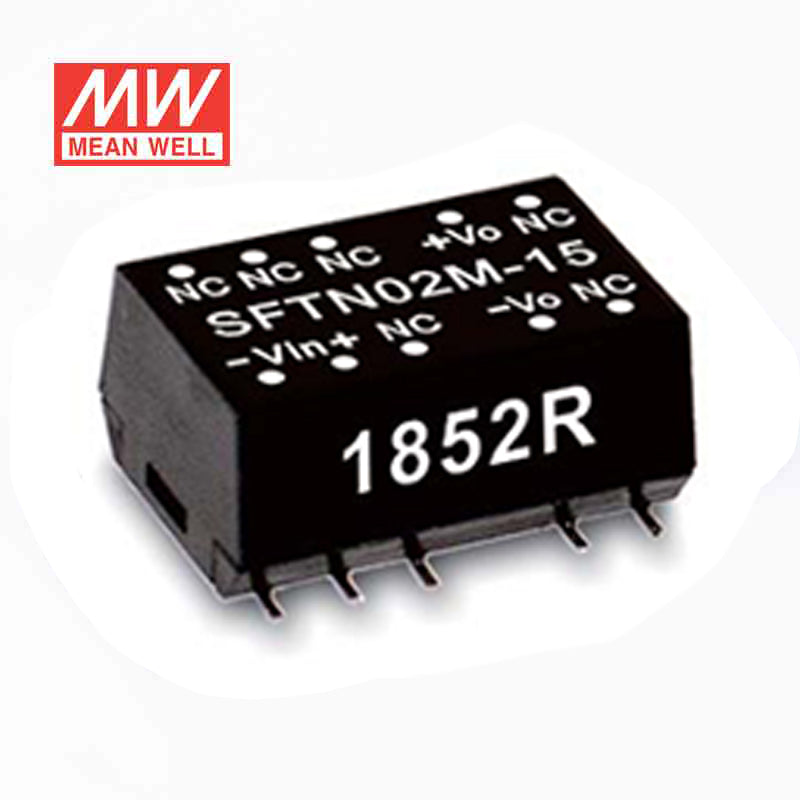

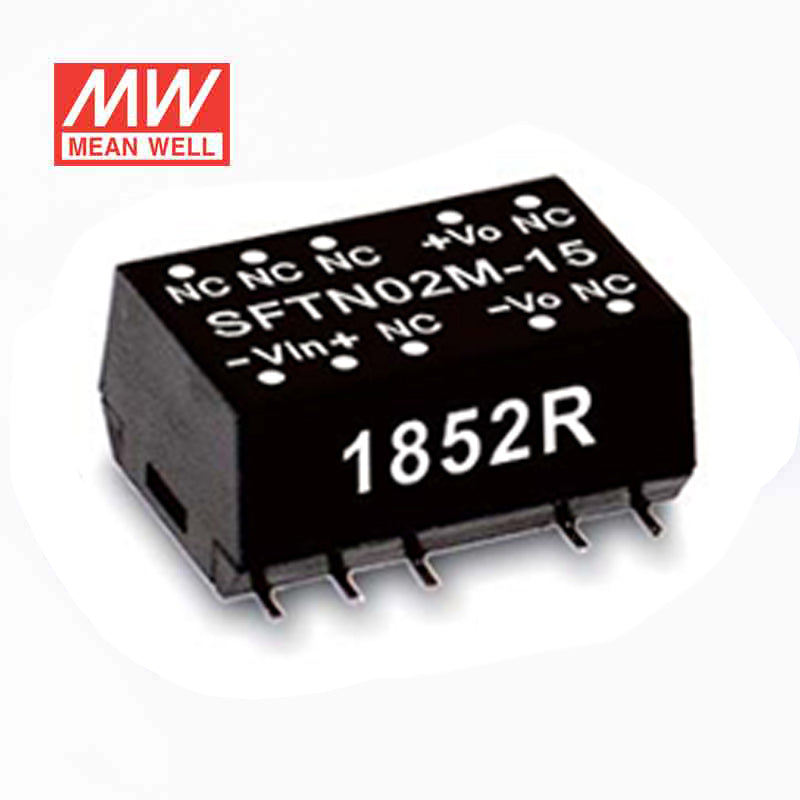

Mean Well SFTN02M-15 DC-DC Converter - 2W - 10.8~13.2V in 15V out
$5.94 USD
Unit price /
Unavailable
Description
Description
The SFTN02M is a 2W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSFTN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.13 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~100°C
-
Warranty3 Year
-
Length0.6 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
