Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

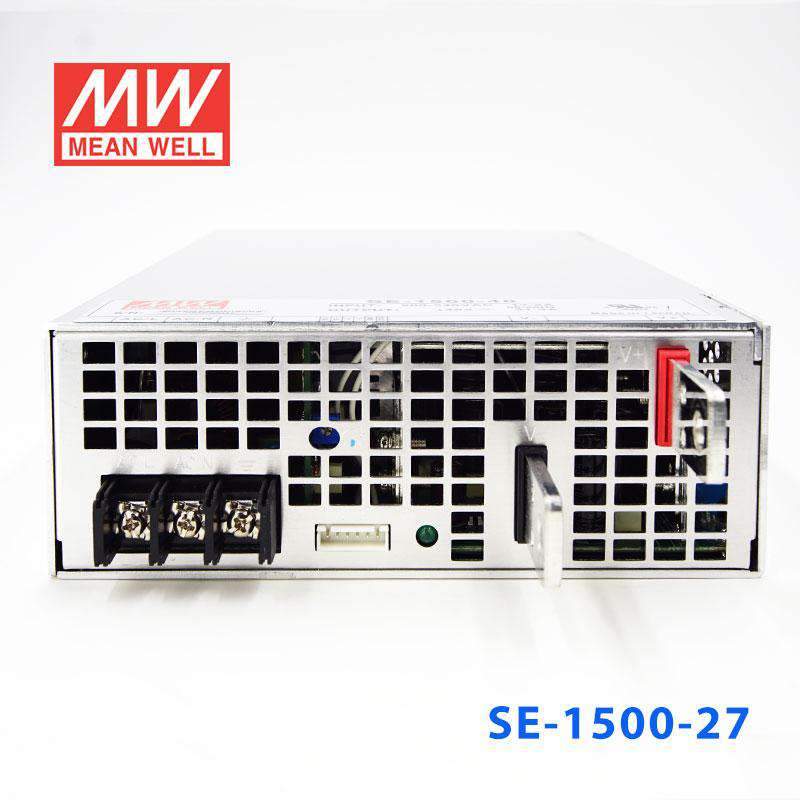

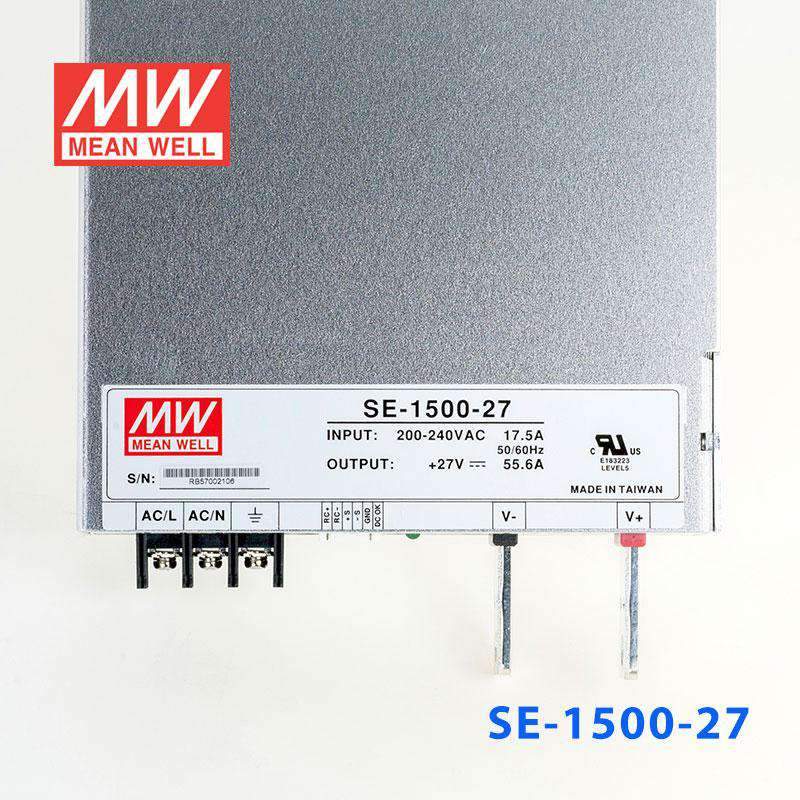

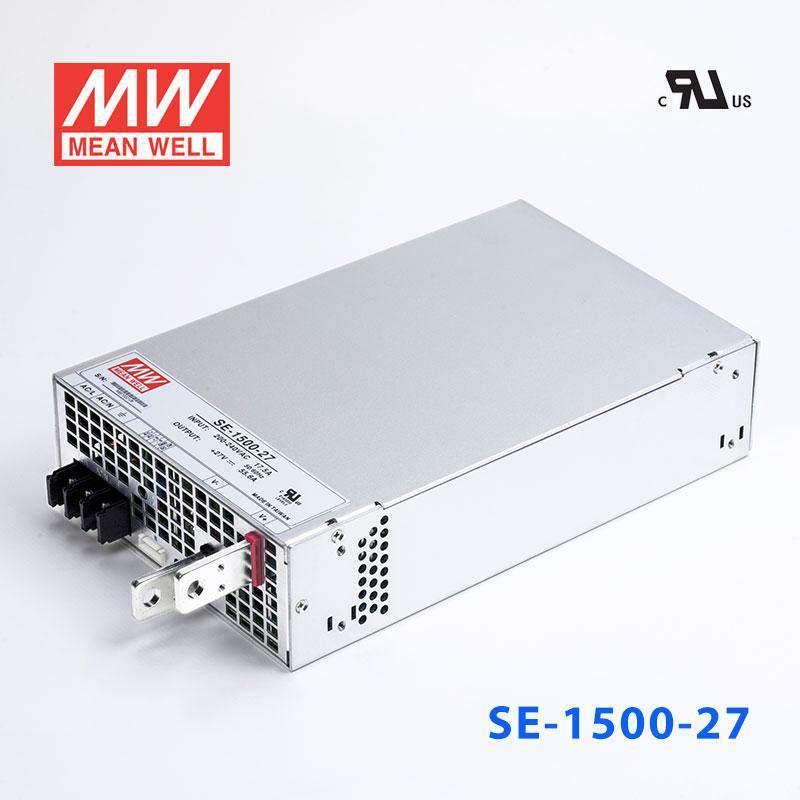

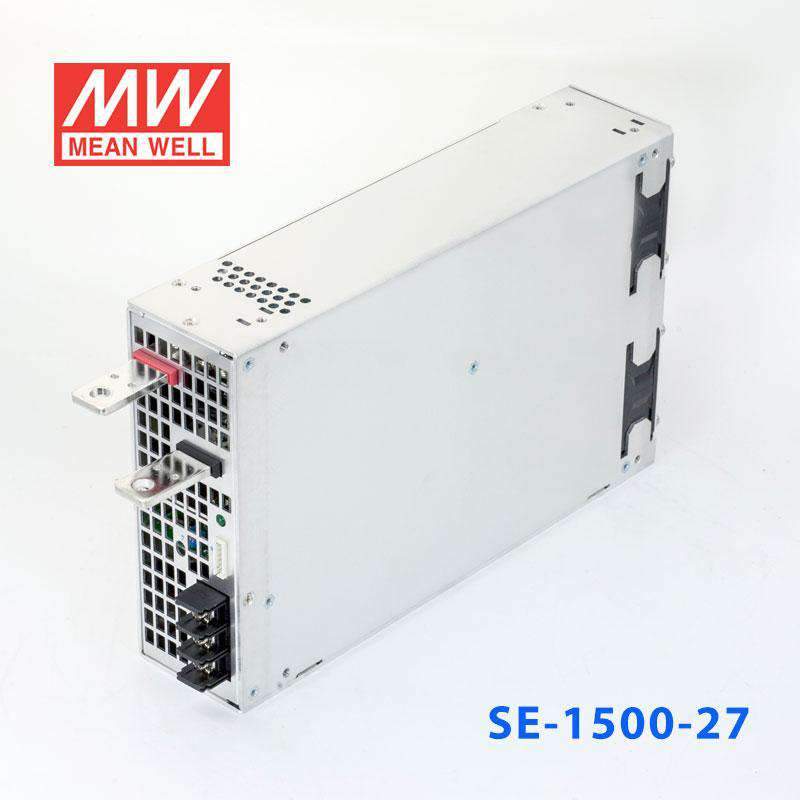

Mean Well SE-1500-27 Switching Power Supplies 1501.2W 27V 55.6A Enclosed

Name: Mean Well SE-1500-27 Switching Power Supplies 1501.2W 27V 55.6A Enclosed
Brand: Mean Well
SKU: SE-1500-27
Price: 541.73 USD
Availability: InStock

economical model medium to high power(450W~1500W)

SKU SE-1500-27

$541.73 USD

Shipping calculated at checkout.

In stock

Overview

SE-1500-27 is the 27V output model of this series: rated current 55.6A, rated power 1501.2W, typical efficiency 88%.

Features

AC input 180 ~ 264VAC
AC input active surge current limiting
Protections: Short circuit / Overload / Over voltage / Over temperature

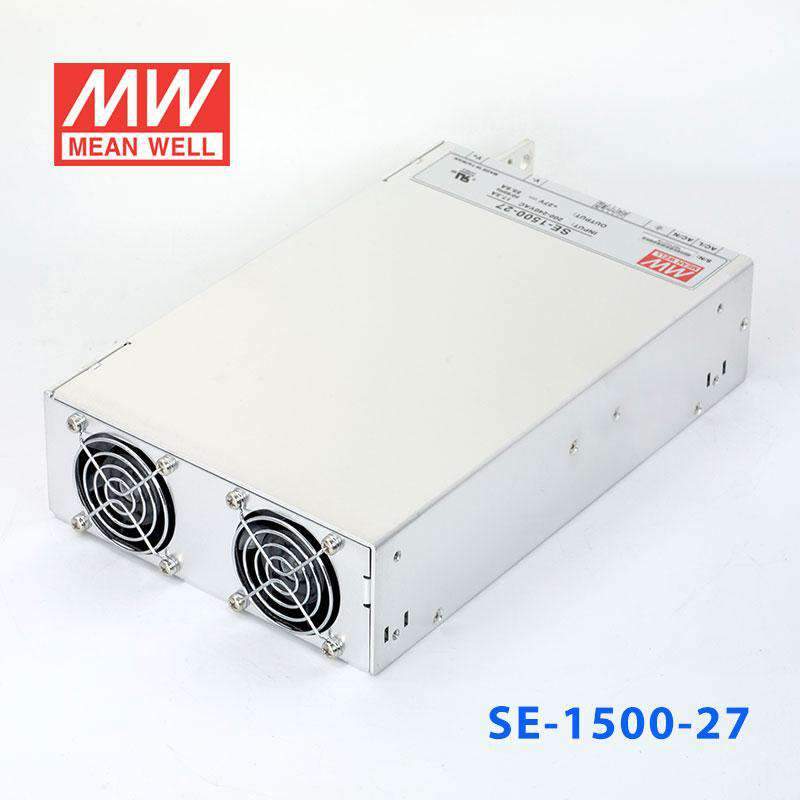

Forced air cooling by built-in DC ball bearing fan
High power density 7.8w/inch³
With DC OK signal output
Built-in remote ON-OFF control
Built-in remote sense function
UL / CUL approved
Low cost
2 years warranty

Specifications

SE-1500-27Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 27V
RATED CURRENT: 55.6A
CURRENT RANGE: 0 ~ 55.6A
RATED POWER: 1501.2W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 25 ~ 30V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 150ms, 12ms / 230VAC at full load
HOLD UP TIME (Typ.): 26ms / 230VAC at full load

INPUT

VOLTAGE RANGE: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 17.5A / 230VAC
INRUSH CURRENT (Typ.): 60A / 230VAC
LEAKAGE CURRENT: <3.5mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 31 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC_OK SIGNAL: PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V
REMOTE CONTROL: RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1 , BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32),CNS15936 Class A
Radiated BS EN/ EN55032 (CISPR32),CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY^{Note 4}: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-6-2 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Radiated	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-6-2	1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 999.9K hrs min. Telcordia SR-332 (Bellcore) ; 134.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*177.8*63.5mm (L*W*H)
PACKING: 3.3Kg; 4pcs/14.2Kg/1.14CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

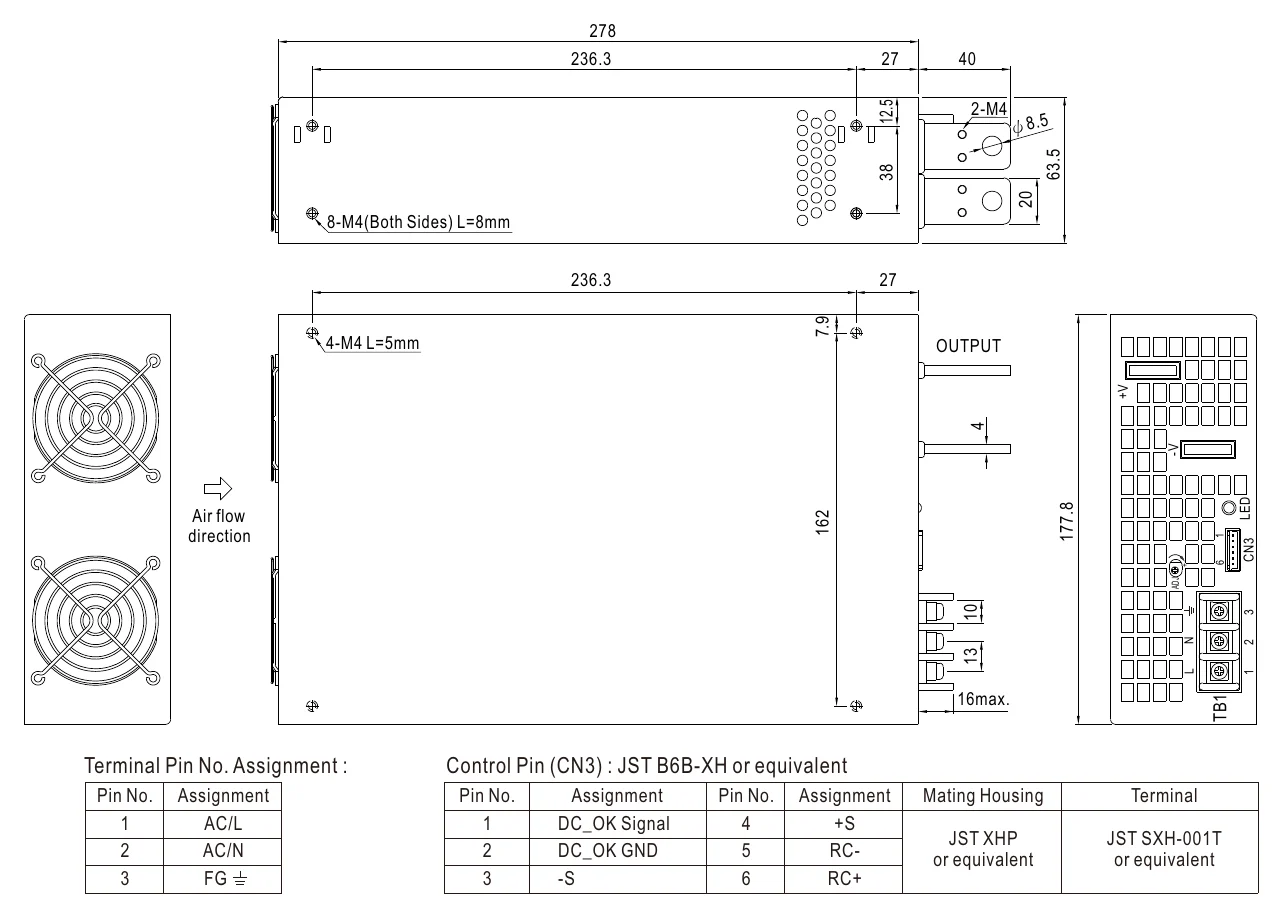

SE-1500-27 Mechanical Specification — Mechanical Specification

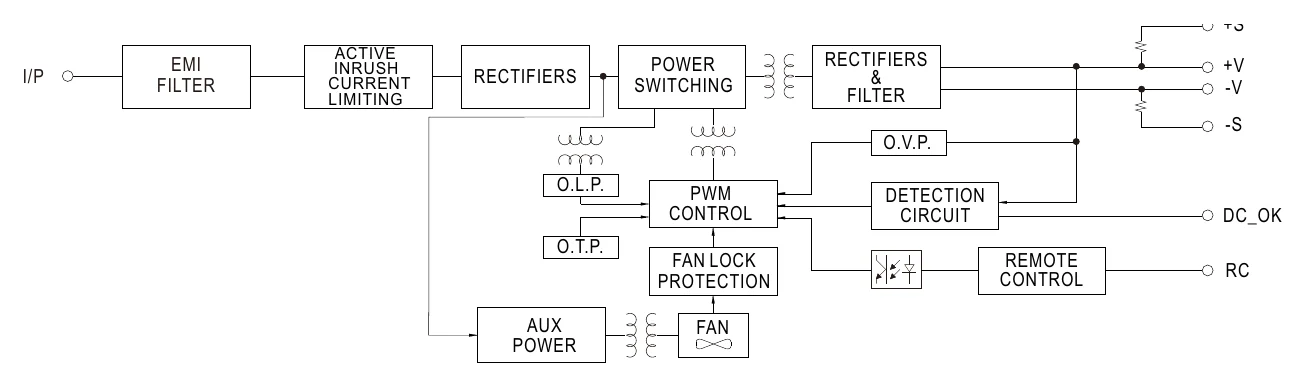

SE-1500-27 Block Diagram — Block Diagram

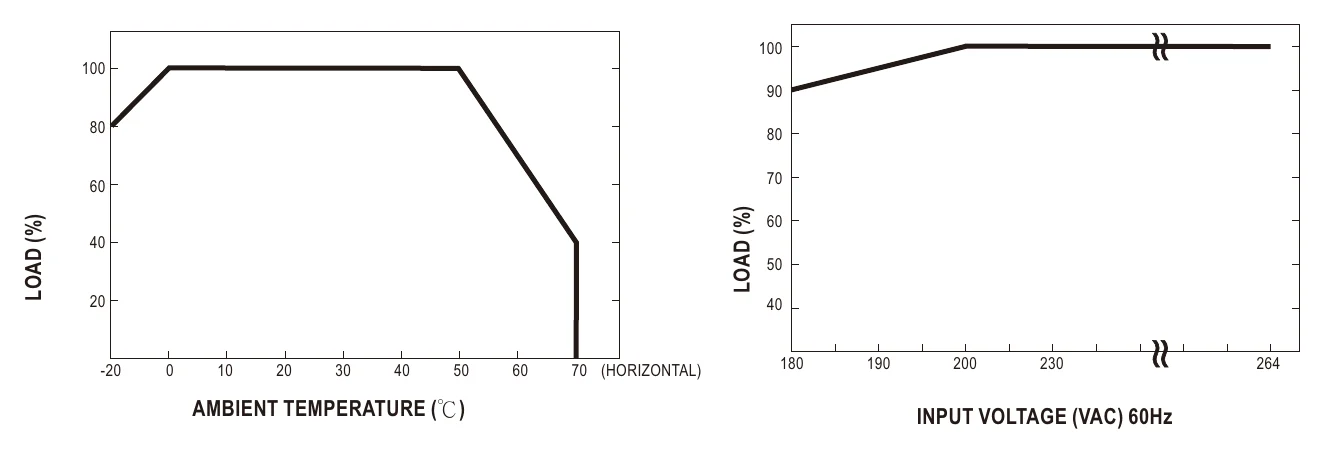

SE-1500-27 Derating Curve — Derating Curve

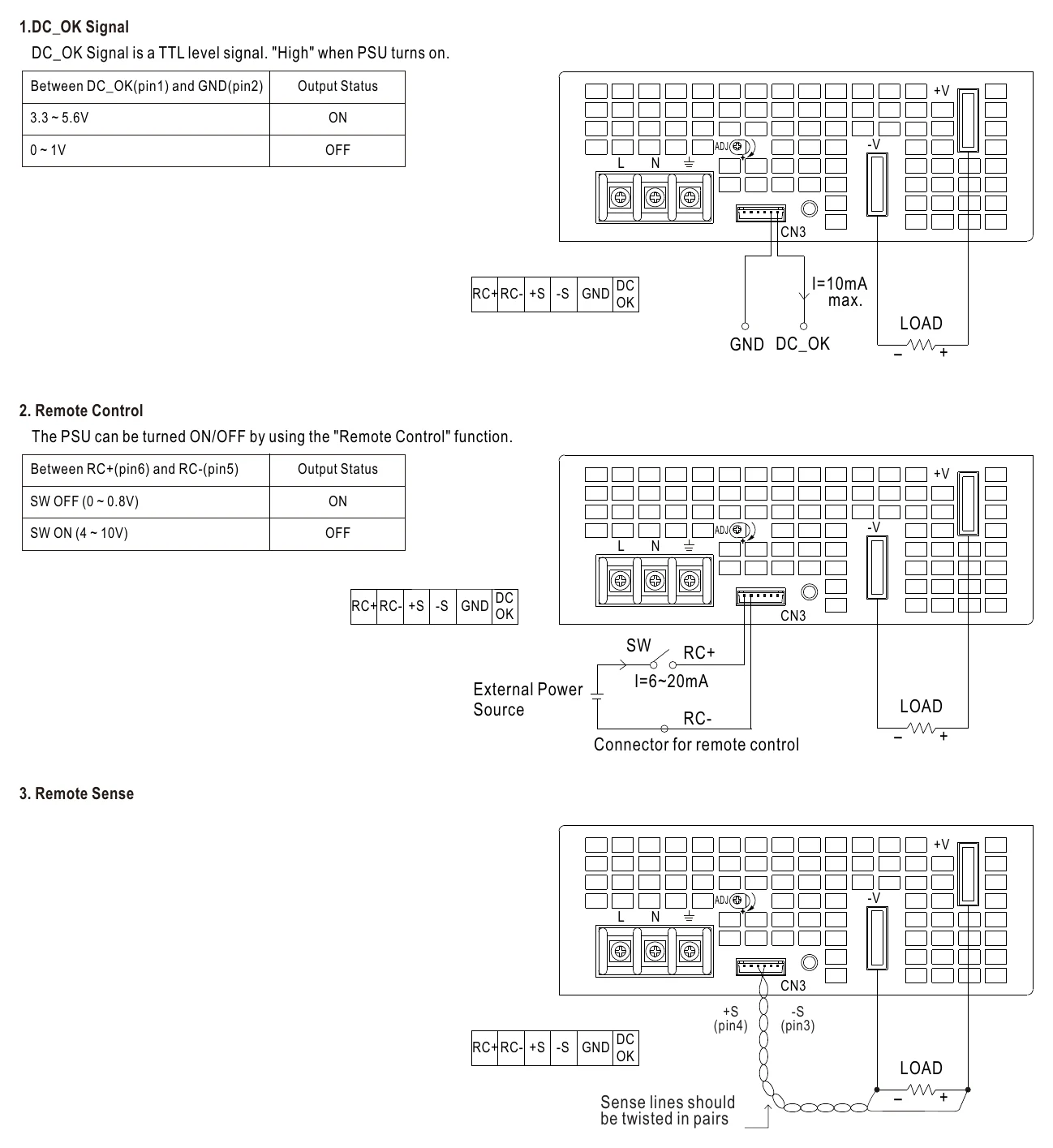

SE-1500-27 Function Manual — Function Manual

Downloads

Certificates1

UL Certificate (SE-1500)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SE-1500-27 for equipment that requires a 27V DC bus?

Yes, this is a constant-voltage 27V supply designed for loads that specifically require 27V DC input. Its rated output is 55.6A and 1501.2W.

Is the SE-1500-27 suitable for a 27V industrial test bench?

It can be used for industrial or electronics test setups that need a regulated 27V source rather than a lower nominal voltage. The supply provides up to 55.6A with a total output rating of 1501.2W.

Can this model support multiple 27V loads in one control enclosure?

It can serve as a shared 27V source for multiple DC loads when all connected equipment is rated for constant-voltage 27V operation. The combined load must remain within 55.6A and 1501.2W.

Does the SE-1500-27 have an outdoor-rated enclosure?

The provided specs do not show an IP rating, so outdoor suitability is not confirmed in the product data. The operating temperature range is -20°C to +70°C, but that does not by itself indicate resistance to rain, dust, or washdown conditions.

How does the SE-1500-27 compare to other SE-1500 models?

The listed SE-1500 versions are 5V 300A 1500W, 12V 125A 1500W, 15V 100A 1500W, 24V 62.5A 1500W, 27V 55.6A 1501.2W, and 48V 31.3A 1502.4W. Compared with the others, this version provides the 27V option with a 55.6A output rating.
