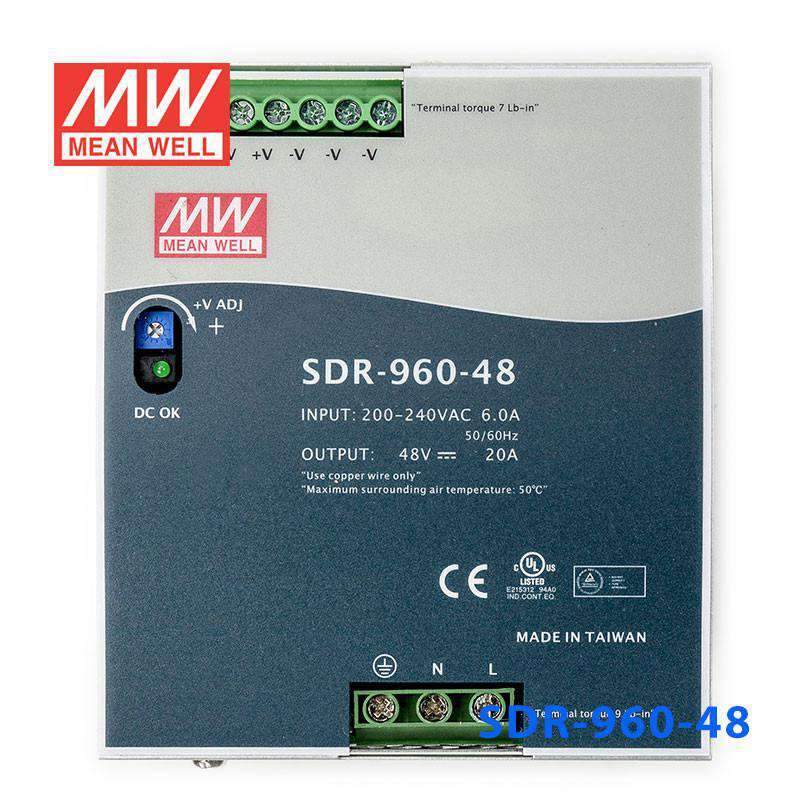

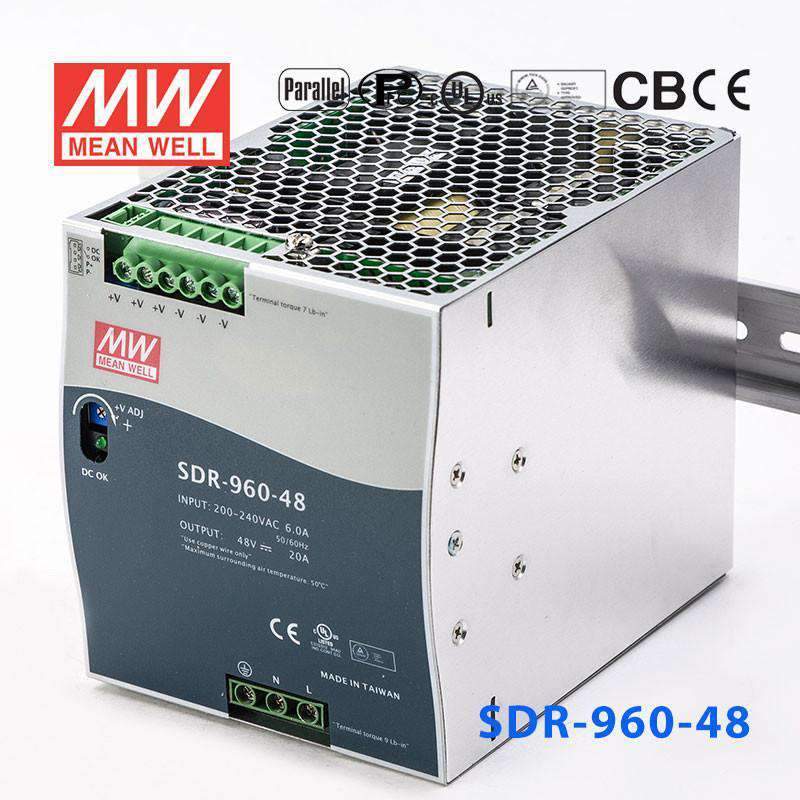

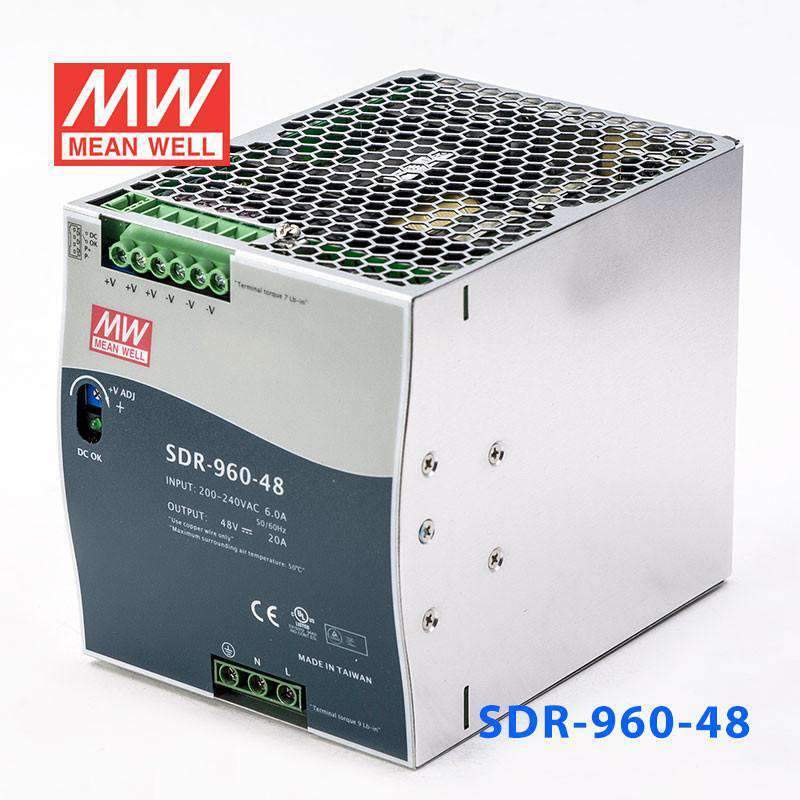

Mean Well SDR-960-48 Single Output Industrial Power Supply 960W 48V 20A - DIN Rail

Name: Mean Well SDR-960-48 Single Output Industrial Power Supply 960W 48V 20A - DIN Rail
Brand: Mean Well
SKU: SDR-960-48
Price: 284.06 USD
Availability: InStock

SKU SDR-960-48

$284.06 USD

Shipping calculated at checkout.

Select model — 6 in this family

SDR-960-48

SDR-75-48 Fixed output Low stock$44.32 USD

SDR-120-48 Fixed output In stock$71.34 USD

SDR-240-48 Fixed output In stock$110.09 USD

SDR-480-48 Fixed output In stock$168.54 USD

SDR-480P-48 PFC Low stock$168.54 USD

SDR-960-48 Fixed output In stock$284.06 USD

Product variants

In stock

Overview

SDR-960-48 is the 48V output model of this series: rated current 20A, rated power 960W, typical efficiency 94%.

Features

AC input 180~264VAC only
130% peak load capability
110mm slim design
Built-in active PFC function compliance to BS EN/EN61000-3-2
High efficiency 94% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit

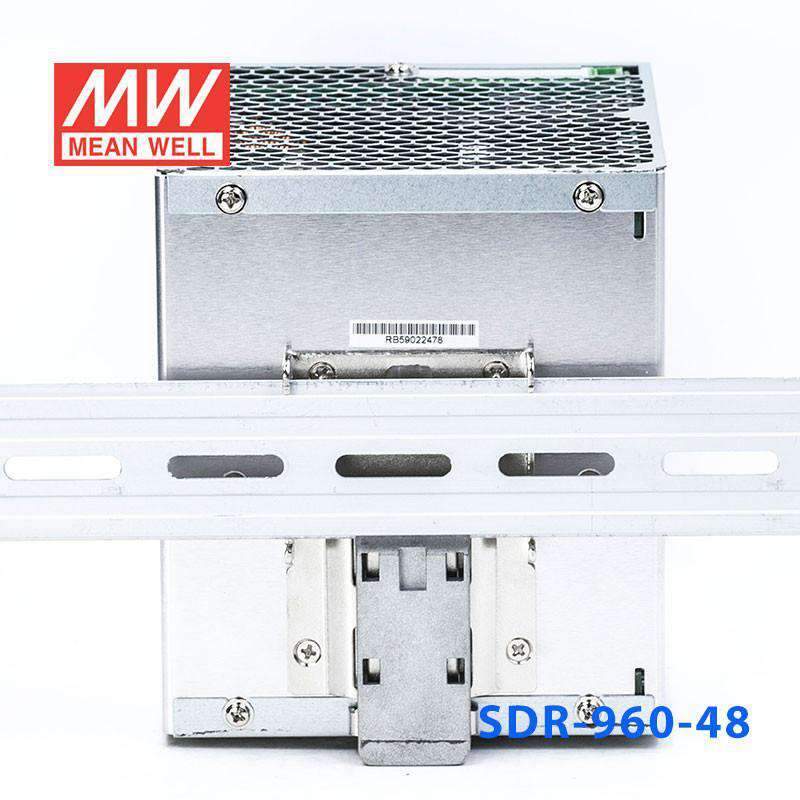

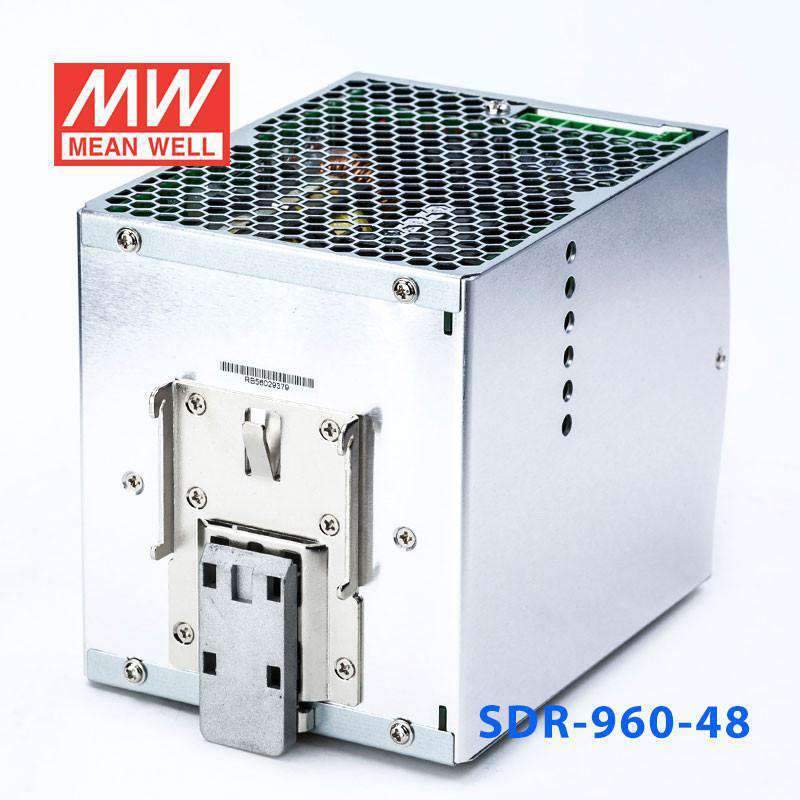

Can be installed on DIN rail TS-35/7.5 or 15
UL508(industrial control equipment)approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Current sharing up to 3840W(3+1)
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Specifications

SDR-960-48Specifications from the official datasheet (2025-02-17 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 20A
CURRENT RANGE: 0 ~ 20A
RATED POWER: 960W
PEAK CURRENT: 26A
PEAK POWER^Note.6: 1248W (3sec.)
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 55V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 100ms/230VAC at full load
HOLD UP TIME (Typ.): 14ms / 230VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC at full load
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 6A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A / 230VAC
LEAKAGE CURRENT: <3.5mA / 240VAC

PROTECTION

OVERLOAD: Normally works within 105 ~ 130% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery after 30 seconds if the peak load condition is removed Constant current limiting within 130 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 56 ~ 65V Protection type : Shut down o/p voltage, with auto-recovery or re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.): 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
CURRENT SHARING: Please refer to function manual

ENVIRONMENT

WORKING TEMP.^Note.5: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃ )
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL508, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved ; (meet BS EN/EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Conduction class B, Radiation class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936,KC KSC 9832
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020, KC KSC 9835

OTHERS

MTBF: 660.2K hrs min. Telcordia SR-332 (Bellcore) ; 70.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 110*125.2*150mm (W*H*D)
PACKING: 2.47Kg ; 6pcs/15.8Kg/1.55CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. 3 seconds peak power max. and the average output power should not exceed the rate power.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. Consult MEAN WELL for deployment of Radiation class B.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SDR-960-48 Mechanical Specification — Mechanical Specification

SDR-960-48 Block Diagram — Block Diagram

SDR-960-48 Derating Curve — Derating Curve

SDR-960-48 Function Manual — Function Manual

Downloads

Certificates4

CB Certificate (SDR-960)(EN) PDF Download

TUV Certificate (SDR-960)(EN) PDF Download

EMC Certificate (SDR-960)(EN) PDF Download

UL Certificate (SDR-960)(EN) PDF Download

Test reports1

Test Report (SDR-960-48)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the SDR-960-48 for a 48V industrial control cabinet with higher current demand?

Yes, this model is designed for high-output DIN rail cabinet use where a 48V DC bus is required. It delivers 48V at 20A with 960W total power, which suits larger 48V control systems better than smaller SDR units.

Is the SDR-960-48 suitable for building management or automation panels that run on 48V DC?

It can be a fit when the panel uses 48V DC equipment and the combined load stays within 20A and 960W. The DIN rail format also makes it appropriate for structured enclosure builds rather than bench or open-frame use.

Can the SDR-960-48 power multiple 48V devices in one enclosure?

Yes, as long as the total 48V load remains within 20A and 960W. With dimensions of 150.0 x 125.2 x 110.0 mm, it is better suited to larger control cabinets that can accommodate a high-power DIN rail supply.

Does the SDR-960-48 make sense when a 48V panel needs one centralized DIN rail power supply?

It does when the design goal is to feed a larger 48V DC bus from one supply inside the cabinet. Its 180-264VAC input and 48V, 20A, 960W output make it the 48V model of the SDR-960 series, with a 3-second peak of 1248W (26A).

Can this model be installed in harsh exposed locations, or is it meant for enclosure use?

This unit should be treated as an enclosure-mounted DIN rail power supply. The listed operating temperature range is -30°C to +70°C, with output derating at higher temperatures per the derating curve, but no IP rating is provided for exposed outdoor or direct-spray environments.

How does the SDR-960-48 compare with related SDR DIN rail power supplies?

The SDR-960 spec sheet covers two models. The SDR-960-48 gives 48V at 20A (960W), adjustable 48 ~ 55V, with 250mVp-p ripple and noise. The SDR-960-24 gives 24V at 40A (960W), adjustable 24 ~ 28V, with 180mVp-p ripple and noise. Both share the 180 ~ 264VAC / 254 ~ 370VDC input, PFC (PF≧0.95), 94% typical efficiency, DC OK relay contact, current sharing and the same 110 x 125.2 x 150 mm (W x H x D) case.
