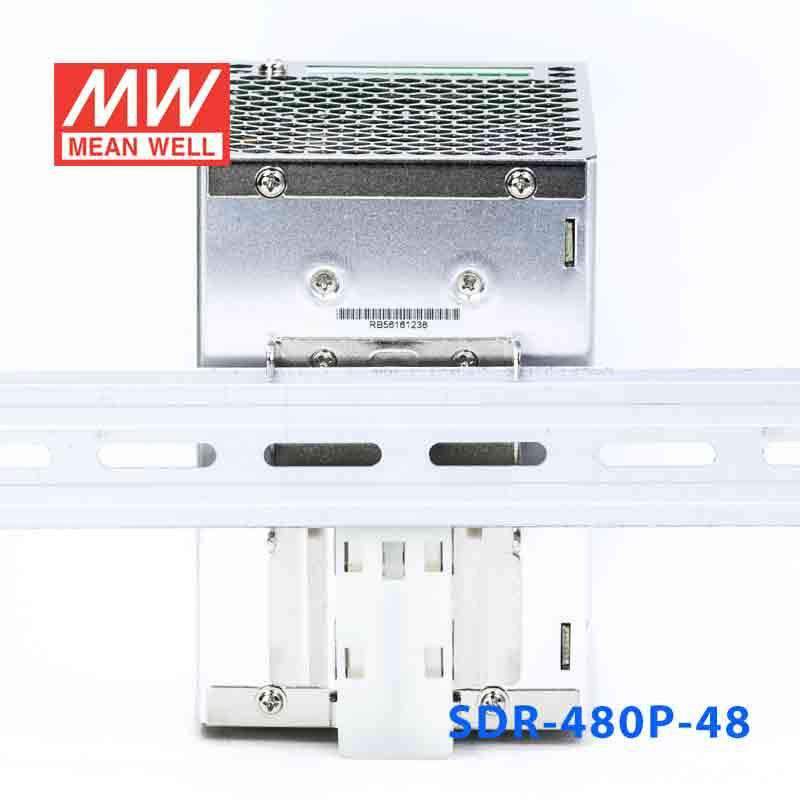

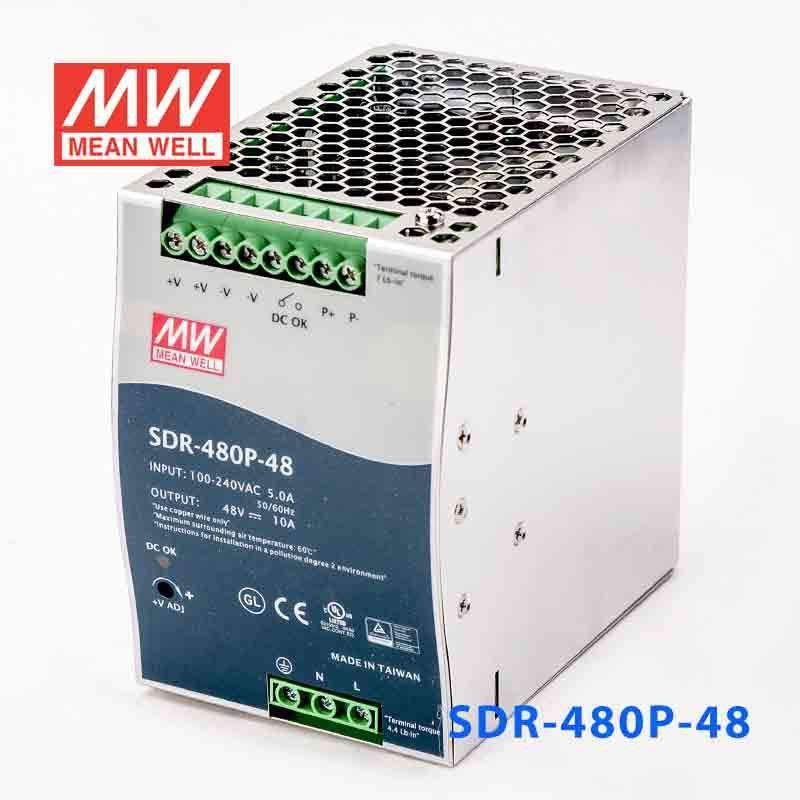

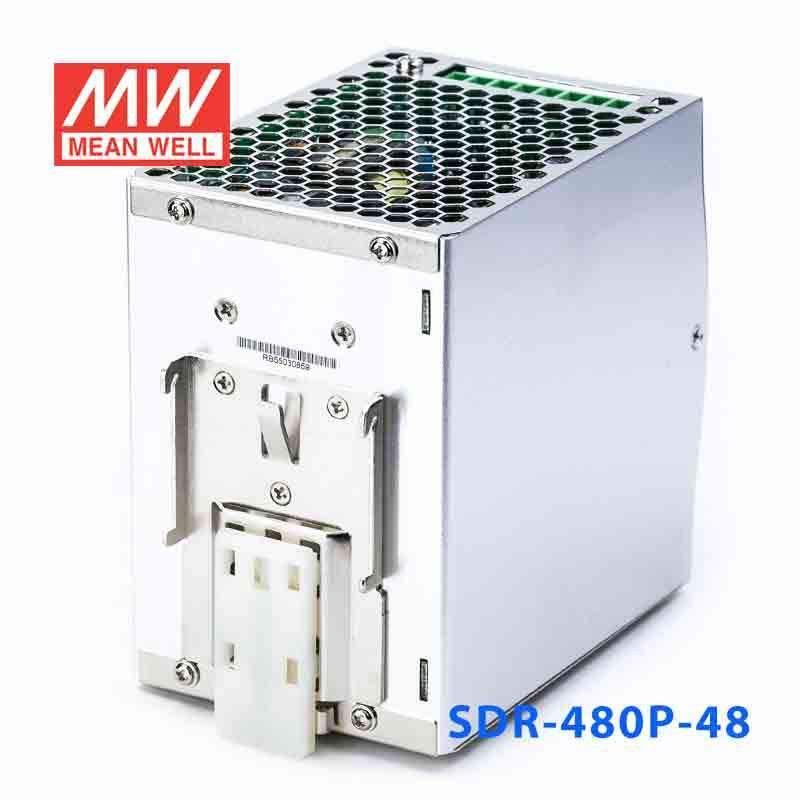

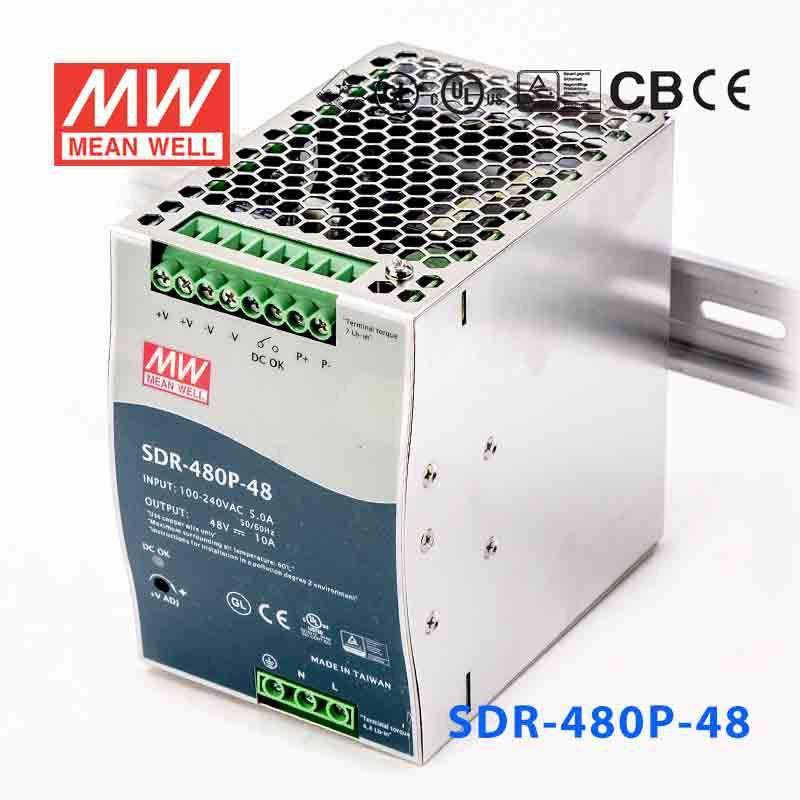

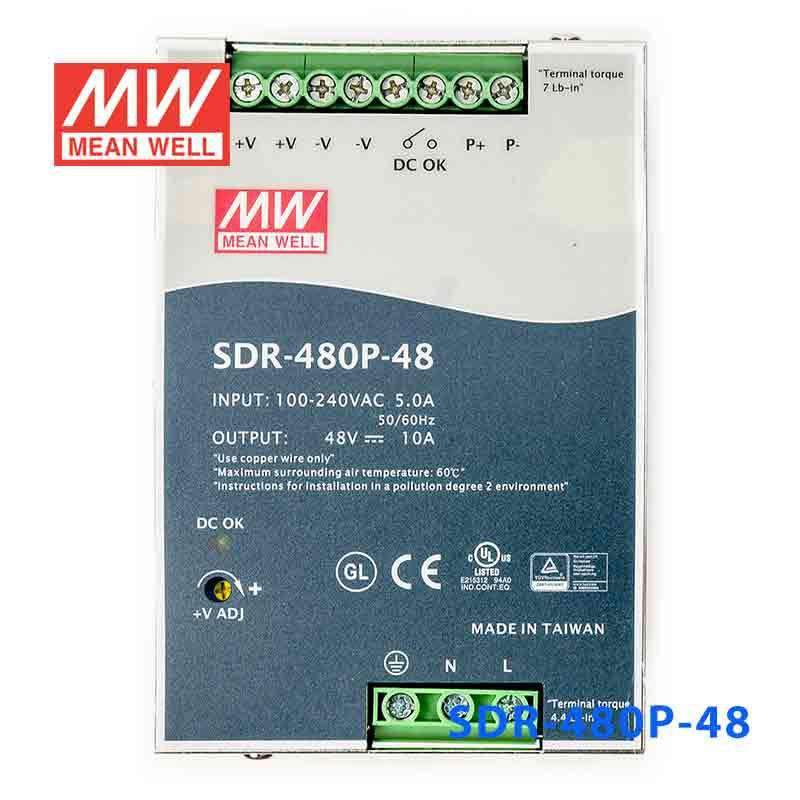

Mean Well SDR-480P-48 Single Output Industrial Power Supply 480W 48...
$168.54 USD
Unit price /
Unavailable
Description
Description
The SDR-480P is a 480W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Current sharing up to 3840W (parallel units)
- ✓ Safety approvals: ¢J , 10 ~ 95% RH ¢J) -40 ~ +85 ¡(cid:211) 0.03%/ Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 (0 ~ 50 ¢J UL508 TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,GL,TUV
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length5.06 in
-
Width4.93 in
-
Height3.37 in
-
Weight3.53 lb
