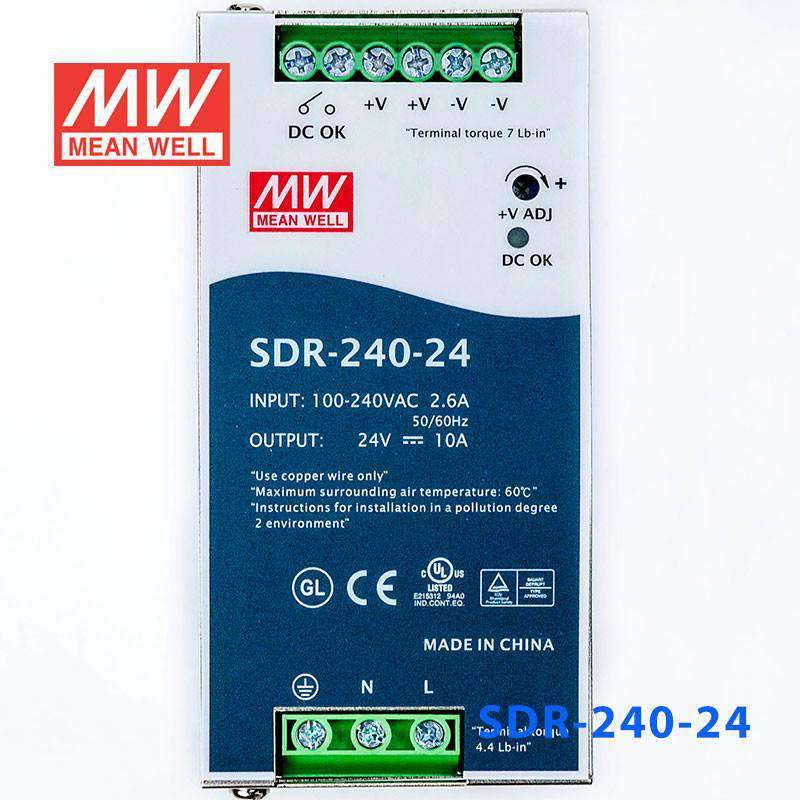

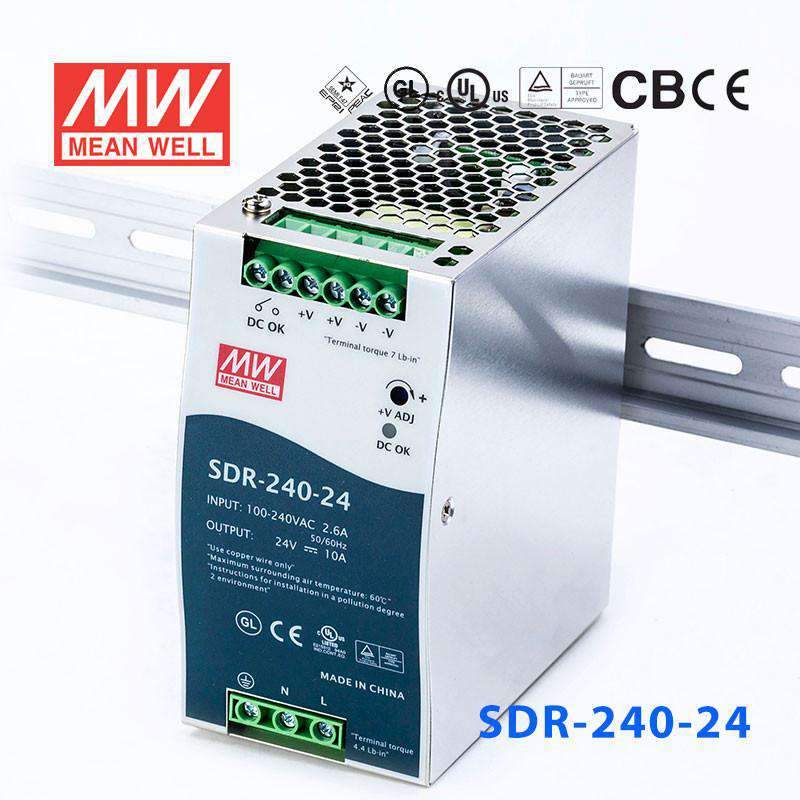

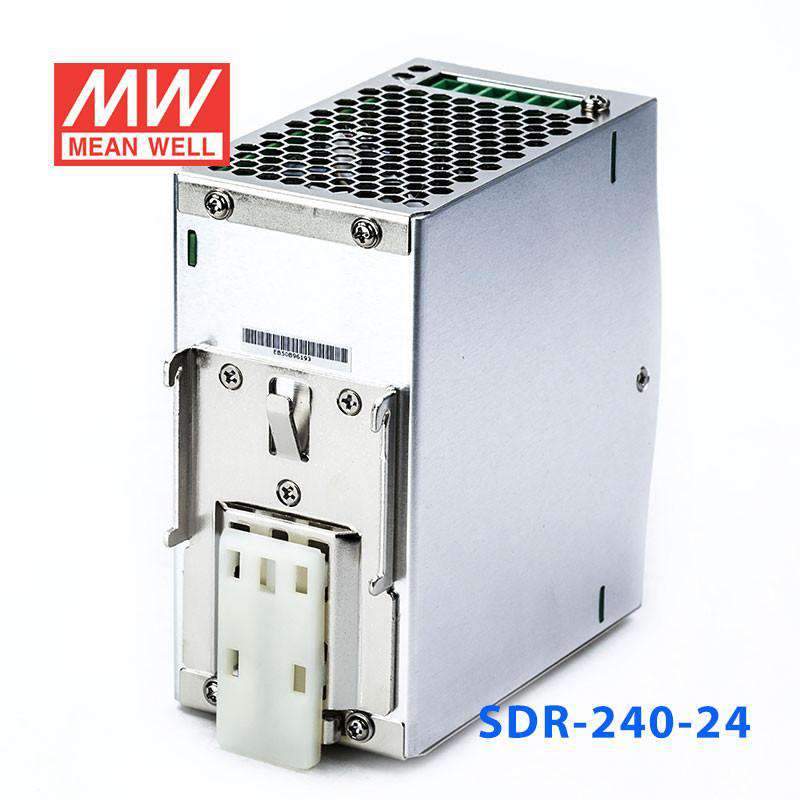

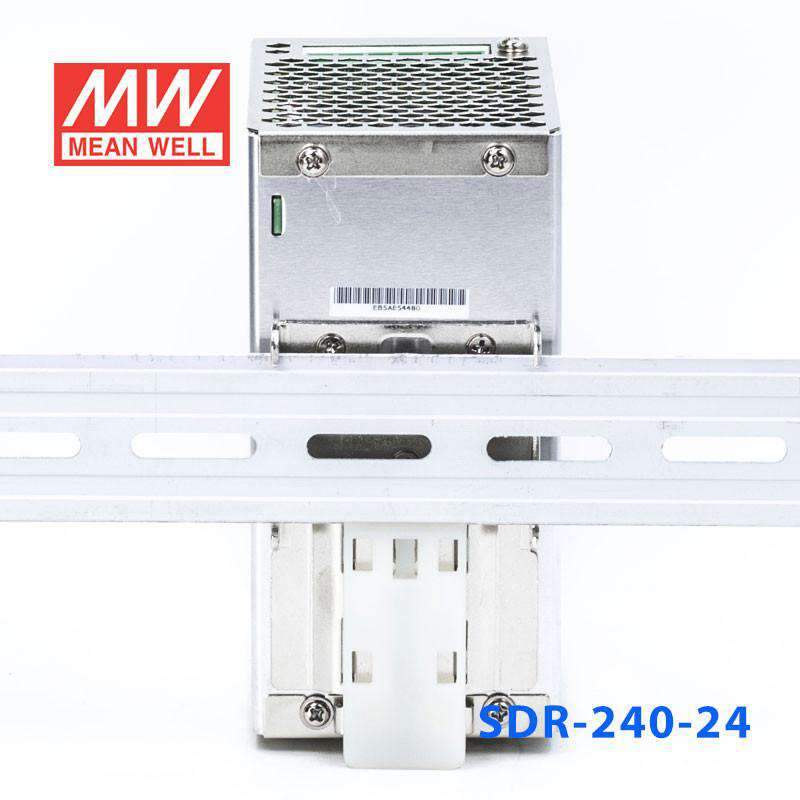

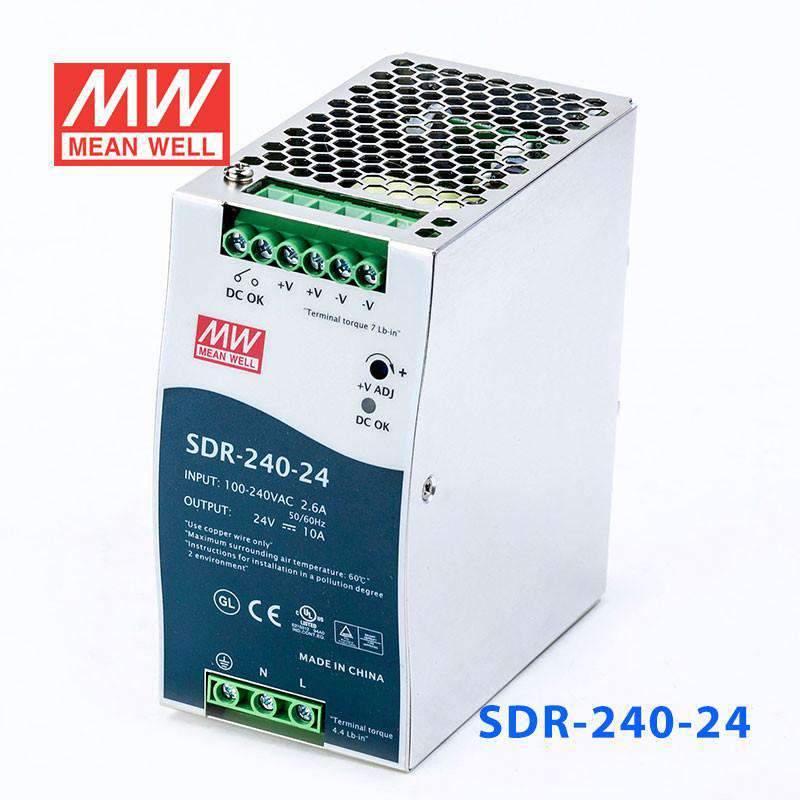

Mean Well SDR-240-24 Single Output Industrial Power Supply 240W 24V 10A - DIN Rail

SKU SDR-240-24
$110.09 USD
Shipping calculated at checkout.

Select model — 6 in this family

SDR-240-24
In stock
|

Overview

SDR-240-24 is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 94%.

Features

  • High efficiency 94% and low power dissipation
  • 150% peak load capability
  • Built-in active PFC function, PF>0.93
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty

Specifications

SDR-240-24Specifications from the official datasheet (2025-02-17 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
10A
CURRENT RANGE
0 ~ 10A
RATED POWER
240W
PEAK CURRENT
15A
PEAK POWERNote.6
360W (3sec.)
RIPPLE & NOISE (max.)Note.2
50mVp-p
VOLTAGE ADJ. RANGE
24 ~ 28V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
650ms, 60ms/230VAC 1300ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
0.94/230VAC 0.99/115VAC at full load
EFFICIENCY (Typ.)Note.8
94%
AC CURRENT (Typ.)
2.6A/115VAC 1.3A/230VAC
INRUSH CURRENT (Typ.)
33A/115VAC 55A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery >150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
OVER VOLTAGE
29 ~ 33V Protection type : Shut down o/p voltage with auto-recovery
OVER TEMPERATURE
95℃±5℃ (TSW : detect on heatsink of power switch) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.)
60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

ENVIRONMENT

WORKING TEMP.Note.5
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS
UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, BSMI CNS15598-1, EAC TP TC 004 approved;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020, SEMI F47 approved

OTHERS

MTBF
1160.3K hrs min. Telcordia SR-332 (Bellcore) ; 169.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
63*125.2*113.5mm (W*H*D)
PACKING
1.03Kg; 12pcs/13.4Kg/1.22CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
  6. 6. 3 seconds max., please refer to peak loading curves.
  7. 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
  8. 8. After 30 minutes of burn-in.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

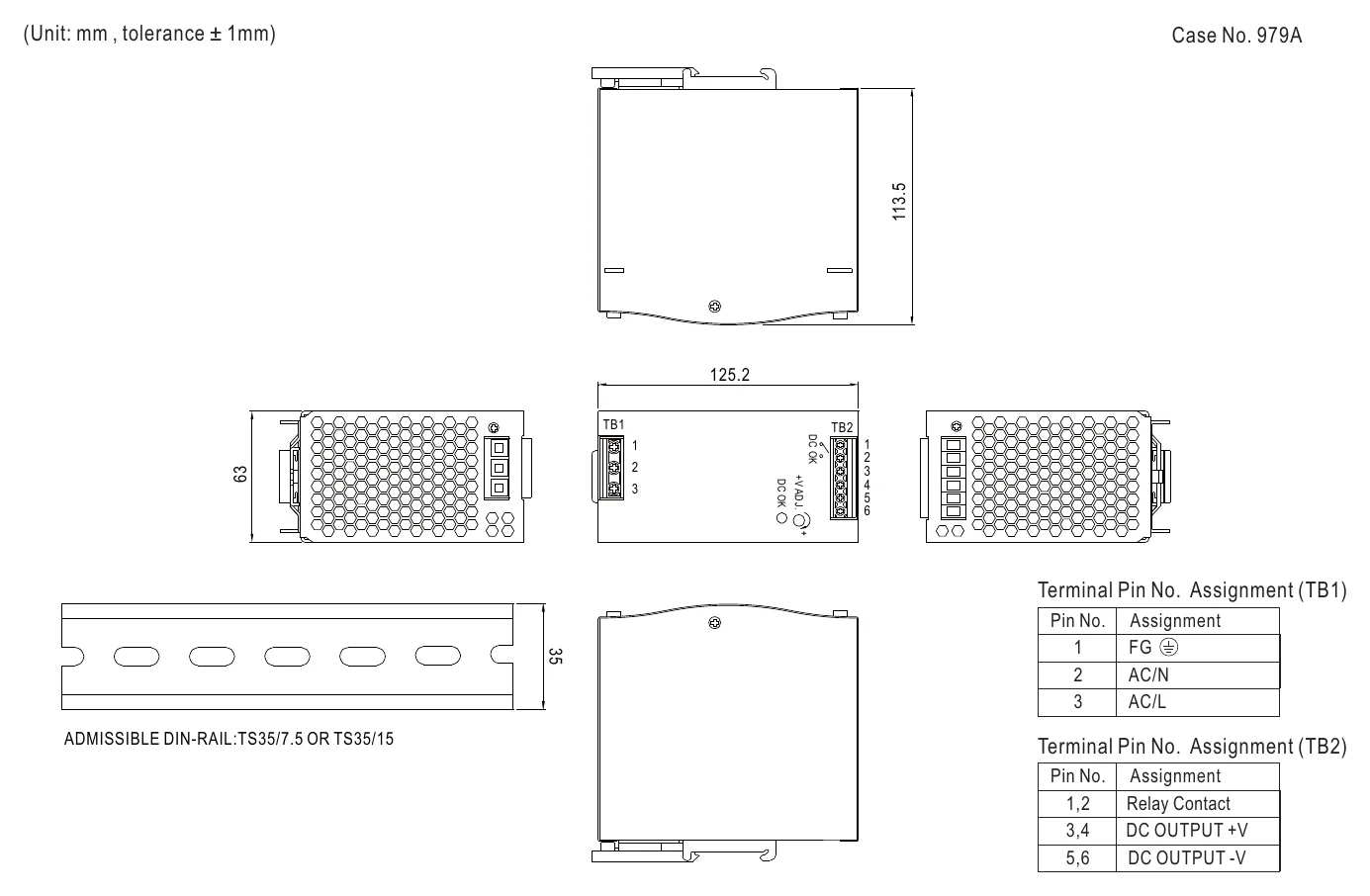

SDR-240-24 Mechanical Specification
Mechanical Specification

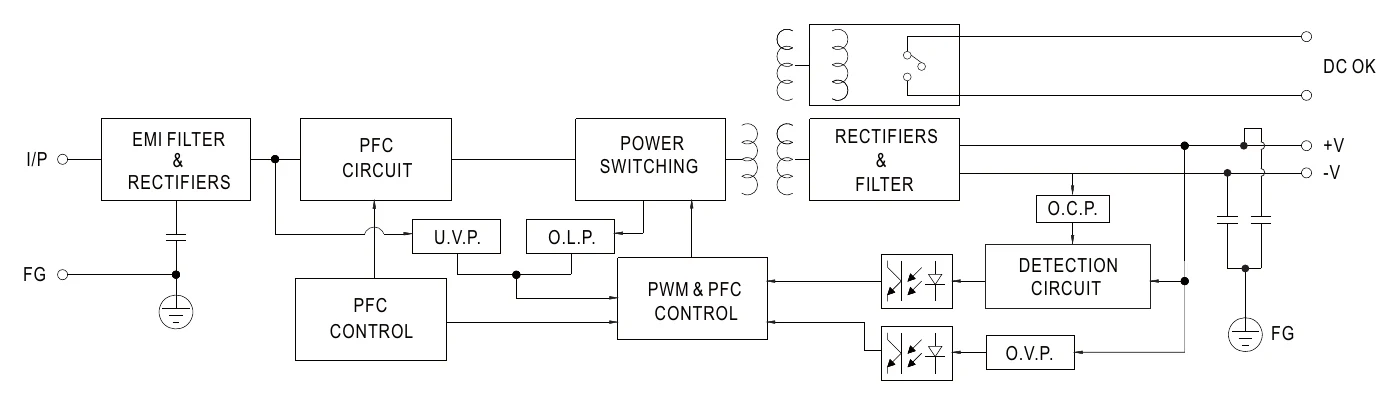

SDR-240-24 Block Diagram
Block Diagram

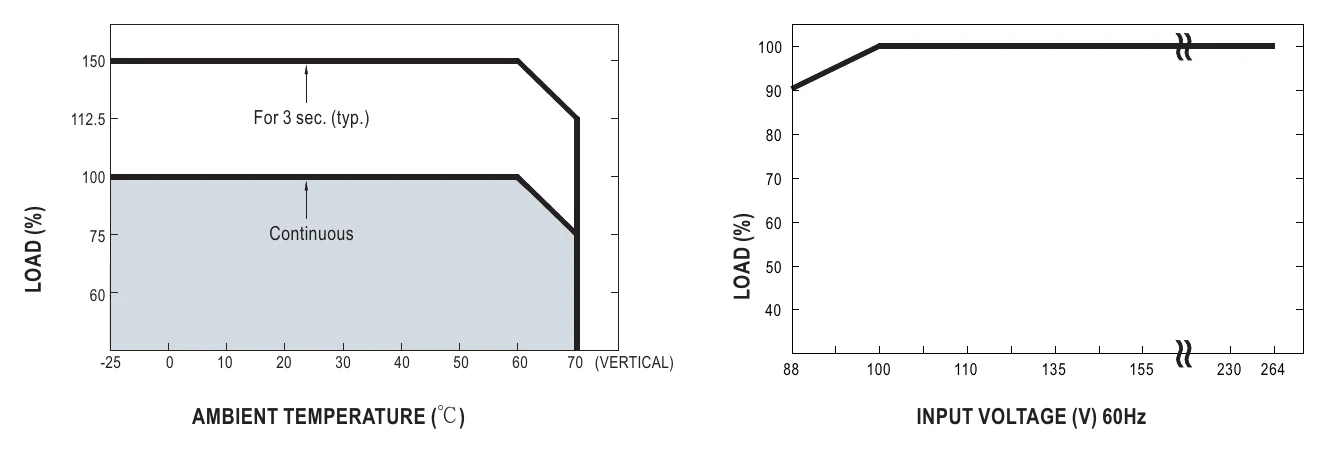

SDR-240-24 Derating Curve
Derating Curve

Downloads

FAQ

Can the SDR-240-24 power a larger 24V PLC and remote I/O cabinet?

Yes, this unit provides 24V output at up to 10A, with a total power rating of 240W, so it suits larger 24V PLC and remote I/O loads than a 120W model. It is built for DIN rail mounting in industrial control panels.

Is the SDR-240-24 a good fit for 24V industrial automation panels with higher current demand?

It is intended for 24V DC control applications that need more headroom, up to 240W and 10A. The 125.2 x 113.5 x 63.0 mm size gives more output capacity while remaining a DIN rail cabinet power supply.

Can I use this model for a 24V building management control enclosure with multiple field controllers?

Yes, when the combined 24V load remains within 10A and 240W. Its 88-264VAC input range also supports installation in panels fed from a wide range of AC input conditions.

Is the SDR-240-24 designed for protected cabinet use in industrial environments?

Yes, it is best suited for use inside control cabinets or enclosures rather than exposed locations. The specified operating temperature is -25°C to +70°C (refer to the derating curve), and the unit is approved to UL508, TÜV BS EN/EN62368-1, AS/NZS 62368.1, BSMI CNS15598-1 and EAC TP TC 004.

How does the SDR-240-24 compare across the SDR family?

On the SDR-240 series spec sheet there are two models: the SDR-240-24 delivers 24V at 10A (adjustable 24-28V), while the SDR-240-48 delivers 48V at 5A (adjustable 48-55V). Both are rated 240W with 150% peak power (360W for 3 seconds), 94% typical efficiency, active PFC, a DC OK relay contact and free air convection cooling.
